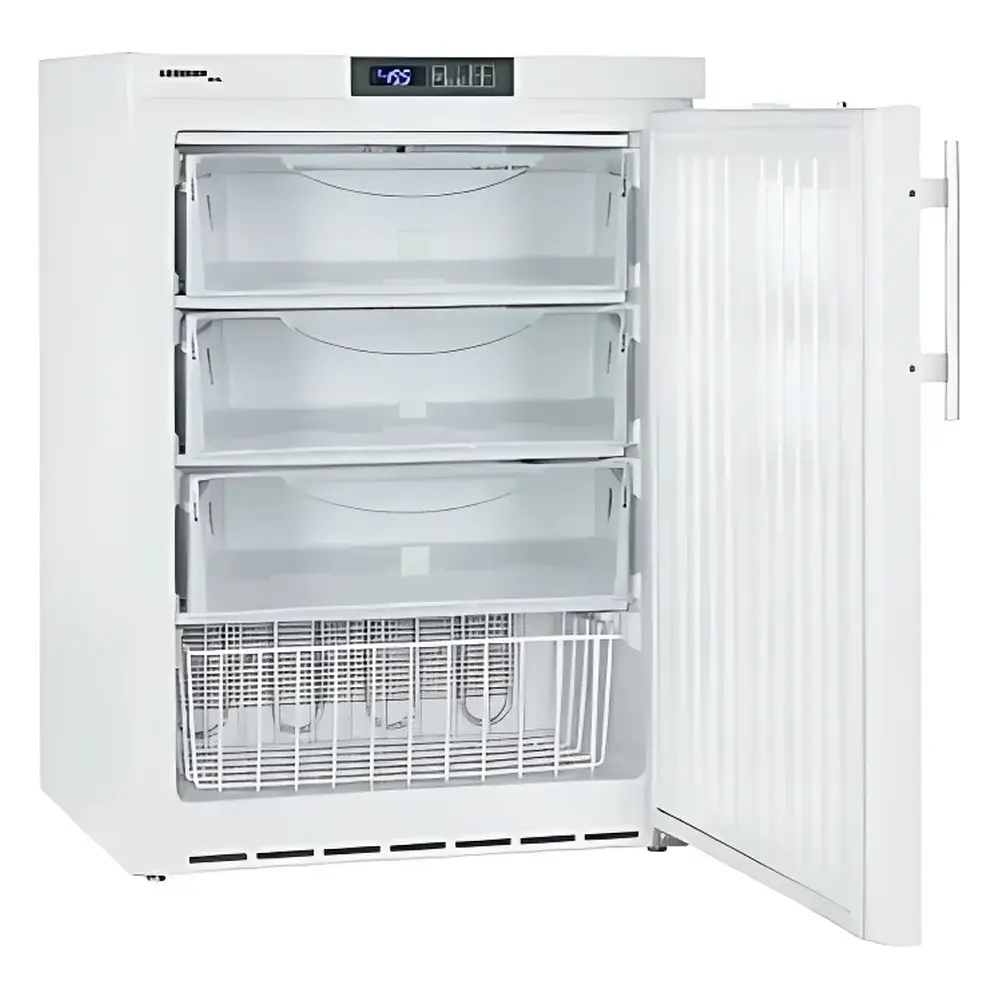

Liebherr LGUex 1500 Explosion-Proof Laboratory Low-Temperature Refrigerator

Overview

The Liebherr LGUex 1500 is a CE-marked, ATEX-certified explosion-proof laboratory refrigerator engineered for safe, stable, and traceable storage of flammable liquids, volatile solvents, combustible powders, and temperature-sensitive reagents in regulated research and quality control environments. Designed according to the fundamental principles of intrinsically safe refrigeration—featuring spark-free electronic components, hermetically sealed control circuits, and non-incendive enclosure architecture—the LGUex 1500 operates within a precisely controlled thermal range of −9 °C to −26 °C. Its thermodynamic system leverages R600a refrigerant—a natural hydrocarbon with zero ozone depletion potential (ODP = 0) and negligible global warming potential (GWP ≈ 3)—in conjunction with high-efficiency compressors and optimized heat exchange geometry. The unit meets EN 60079-0 and EN 60079-15 standards for equipment protection by type “nA” (non-sparking) and “nC” (enclosure), ensuring compliance with hazardous area classification zones 1 and 2 under IEC 60079-10-1.

Key Features

• ATEX 2014/34/EU certification validated by notified body TÜV Rheinland (Certificate No. TRAC 18 ATEX 0001 X), confirming suitability for Zone 2 gas atmospheres (Group IIA, IIB, T4)
• Dual-zone precision temperature management with ±0.1 °C setpoint accuracy and ≤0.8 °C internal uniformity across all load conditions
• RS485 serial interface supporting Modbus RTU protocol for integration into centralized environmental monitoring systems (EMS); enables real-time logging of temperature profiles, alarm states, and operational events
• Local non-volatile memory storing the last three alarm entries—including timestamp, type (e.g., door-open duration >60 s), and recovery status—with automatic overwrite logic
• Reversible door configuration with ergonomic slim-profile handle and certified high-security mechanical lock meeting DIN EN 1303 requirements
• Energy-optimized design achieving 0.926 kWh/24h consumption (tested per EN 62552-3 at +25 °C ambient, SN-ST climate class), reducing long-term operational cost and carbon footprint
• Stainless steel interior and exterior construction with GlassLine™ tempered glass front panel—resistant to chemical splashes, abrasion, and UV degradation

Sample Compatibility & Compliance

The LGUex 1500 accommodates standard laboratory containers including glass bottles (up to 2 L), HDPE carboys, aluminum solvent cans, and sealed powder vials. Its temperature stability profile satisfies storage requirements for common organic solvents (e.g., acetone, ethanol, diethyl ether), peroxide-forming compounds, lithium battery electrolytes, and catalyst precursors. The unit conforms to ISO/IEC 17025:2017 clause 6.4.3 on environmental condition control for testing laboratories, and supports GLP/GMP audit readiness through documented alarm history and configurable temperature logging intervals. While not FDA 21 CFR Part 11–validated out-of-the-box, its RS485 interface permits integration with validated third-party data acquisition software that provides electronic signature, audit trail, and role-based access control.

Software & Data Management

No embedded touchscreen or proprietary cloud platform is included; instead, the LGUex 1500 adopts an industrial-grade serial communication architecture compatible with widely deployed laboratory infrastructure. Via RS485, users may connect to SCADA systems (e.g., Siemens Desigo CC, Schneider EcoStruxure), building management systems (BMS), or custom Python/Node-RED-based dashboards. The device transmits ASCII-encoded telemetry packets every 60 seconds—including current temperature (°C), setpoint (°C), door status (open/closed), and active alarm flags. Optional PT100 input allows independent verification of chamber temperature against primary sensor output—a critical feature for method validation under ASTM E2877-22 (“Standard Guide for Validation of Temperature-Controlled Storage Equipment”). All local event logs are retained without battery backup but survive power interruption due to EEPROM-based storage.

Applications

• Storage of Class I flammable liquids (flash point <60 °C) in university chemistry and pharmaceutical synthesis labs
• Secure containment of pyrophoric reagents (e.g., tert-butyllithium, white phosphorus) requiring sub-zero inert atmosphere compatibility
• Long-term stability testing of reference standards per ICH Q5C guidelines, where thermal excursion must remain below ±2 °C over 72 h
• Pre-chilling of samples prior to GC-MS, HPLC, or cryo-SEM preparation where consistent thermal history affects analytical reproducibility
• Backup cold storage for biobanking workflows involving solvent-preserved tissue specimens (e.g., OCT-embedded sections)

FAQ

Is the LGUex 1500 suitable for Zone 1 classified areas?

No. It is certified only for Zone 2 (low probability of explosive atmosphere) per ATEX Directive 2014/34/EU. Zone 1 installation requires additional engineering controls or alternative equipment with higher protection levels (e.g., Ex d or Ex e).
Can the unit be validated for GxP environments?

Yes—when integrated with compliant data acquisition software and operated under documented SOPs covering IQ/OQ/PQ protocols aligned with Annex 15 of EU GMP and ASTM E2500-13.
Does it support automatic defrost?

No. The LGUex 1500 uses manual defrost to eliminate heating elements and associated ignition risks—consistent with IEC 60079-15 Clause 7.3.3 for “nC” enclosures.
What is the maximum ambient temperature for continuous operation?

38 °C (SN-ST climate class), verified per EN 62552-3 test conditions with full load and door closed for 24 hours.
Is R600a refrigerant compatible with standard service tools?

Yes—but only by technicians trained and certified in hydrocarbon refrigerant handling per EN 378-4 and local regulatory requirements (e.g., EPA Section 608 Type II in the US).
