LUDL BioPrecision2 Motorized Inverted Microscope Stage

Overview

The LUDL BioPrecision2 Motorized Inverted Microscope Stage is an engineered solution for high-precision, repeatable XY positioning in automated microscopy workflows. Built upon over two decades of expertise in precision motion control for life science instrumentation, the BioPrecision2 employs a closed-loop stepper motor–driven ball screw mechanism with cross-roller bearings and aerospace-grade anodized aluminum and stainless-steel structural components. Its core measurement principle relies on direct mechanical translation coupled with optional high-resolution linear or rotary encoder feedback—enabling deterministic positional control without reliance on open-loop step counting alone. Designed specifically for integration with inverted microscopes—including Nikon Ti/Eclipse TE series, Leica DMi/DMI series, Olympus IX series, and Zeiss AxioObserver and Axiovert platforms—the stage delivers sub-micron repeatability and nanometer-class resolution in a low-profile, mechanically stable architecture. The platform supports demanding applications such as multi-site time-lapse imaging, high-content screening (HCS), automated fluorescence acquisition, and correlative light-electron microscopy (CLEM) sample navigation.

Key Features

• Sub-micron repeatability: ±0.25 µm typical, achieved via closed-loop control with optional linear encoders (0.1 µm or 0.05 µm resolution)
• Nanometer-scale resolution: Standard 50 nm minimum incremental movement enabled by precision-ground ball screws and optimized stepper motor drive electronics
• High-speed performance: Up to 60 mm/sec maximum velocity without compromising positional fidelity or mechanical resonance stability
• Low-profile mechanical design: Optimized envelope for unobstructed objective access and compatibility with long-working-distance and water-immersion objectives
• Modular mounting interface: Universal flange system supporting standardized microscope-specific adapters (N1/N2/N3/L1/O3/Z2/Z3)
• Corrosion-resistant construction: Stainless steel fasteners, hardened cross-roller bearings, and MIL-spec CNC-machined aluminum housing
• Expandable functionality: Optional piezo focus insert integration for Z-axis automation; customizable sample holders for 96-well plates, Petri dishes, and standard 1×3” slides

Sample Compatibility & Compliance

The BioPrecision2 accommodates a broad range of specimen formats through interchangeable, precision-machined stage inserts—including flat-top and conventional inverted configurations. Standard accessories include universal slide clamps, Petri dish holders (35 mm, 60 mm, 100 mm), and 96-well plate carriers with alignment fiducials. Custom inserts are available for non-standard substrates (e.g., silicon wafers, microfluidic chips, or custom glass-bottom dishes). All mechanical and electrical subsystems comply with IEC 61000-6-2 (immunity) and IEC 61000-6-4 (emission) standards. When integrated into GLP/GMP-regulated environments, the stage supports audit-ready operation when paired with MAC 6000 controller firmware configured for FDA 21 CFR Part 11–compliant electronic records and signatures (via optional software modules and system validation documentation).

Software & Data Management

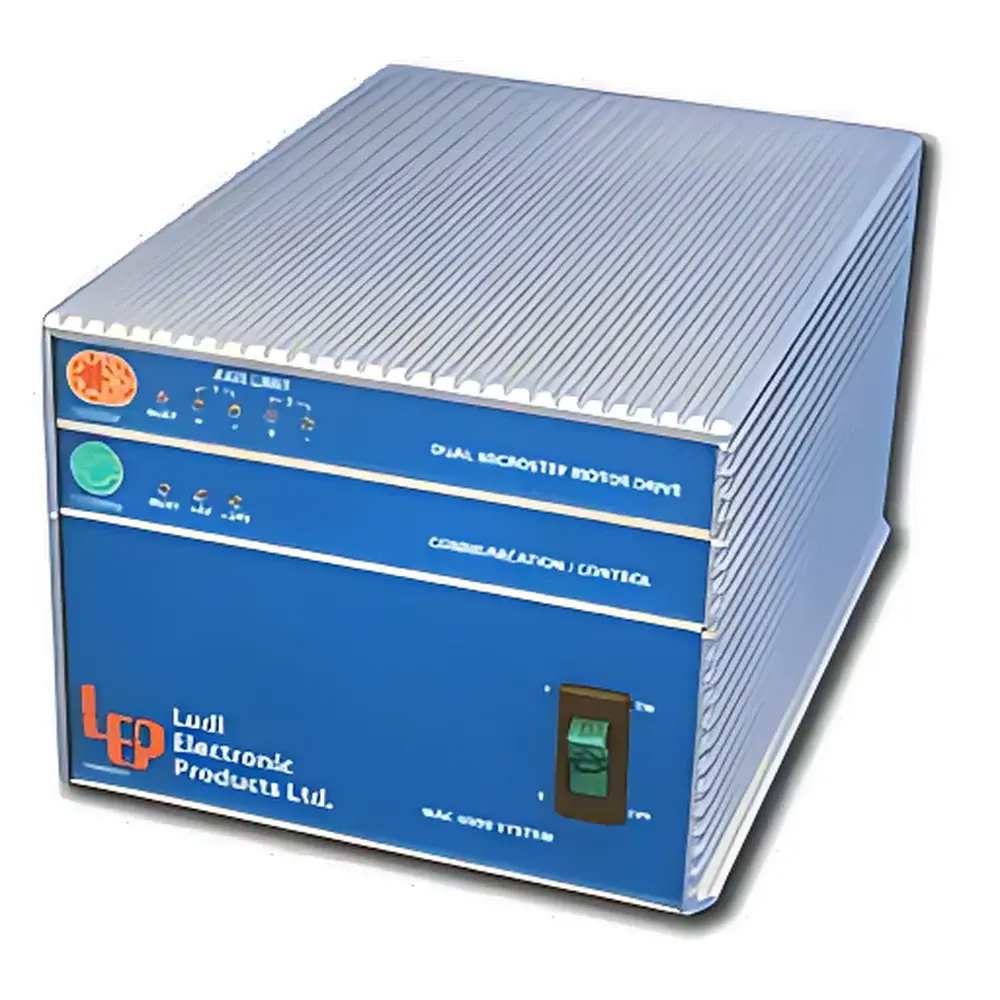

Control is managed through the LUDL MAC 6000 Advanced Motion Controller—a programmable automation hub featuring dual RS-232 (115.2 kbps), USB 2.0, and 10/100 Ethernet interfaces. Its embedded macro language—syntax-compatible with legacy LEP controllers—enables deterministic script sequencing for multi-axis trajectories, conditional logic, and hardware-triggered acquisition synchronization. The controller supports third-party integration via ASCII-based serial protocol and TCP/IP socket communication, enabling seamless interoperability with Micro-Manager, MetaMorph, NIS-Elements, and Python-based acquisition frameworks (e.g., PySerial + OpenCV). Encoder feedback data is logged with timestamped position metadata at up to 1 kHz sampling rate, facilitating post-acquisition spatial registration and drift correction in quantitative image analysis pipelines.

Applications

• Automated high-content screening (HCS) across 96- and 384-well plates in drug discovery and toxicology assays
• Long-term live-cell imaging with precise multi-field-of-view stitching and temporal registration
• Electrophysiology patch-clamp experiments requiring stable, vibration-isolated XY repositioning between cells
• Single-molecule tracking and super-resolution localization microscopy (e.g., PALM/STORM) requiring nanometer-level stage stability
• Automated pathology slide scanning and digital histology workflow integration
• Development of custom microscopy rigs for optogenetics, light-sheet illumination, or micro-manipulation systems

FAQ

What encoder options are available for the BioPrecision2 stage?
The BioPrecision2 supports rotary encoders (RE) and two linear encoder variants: LE (0.1 µm resolution) and LE2 (0.05 µm resolution). Encoder selection is specified at order time using the 96SXXX-YY-ZZ nomenclature.
Is the stage compatible with both upright and inverted microscopes?
The BioPrecision2 is engineered exclusively for inverted microscope configurations. For upright systems, LUDL offers the BioPrecision2 Upright variant or the BioPoint2 series.
Can the stage be integrated into existing automated imaging software?
Yes—through ASCII serial commands over RS-232/USB or TCP/IP, the MAC 6000 controller provides full command-line control and position reporting compatible with most commercial and open-source microscopy platforms.
What is the warranty and service support structure?
LUDL provides a standard 24-month limited warranty covering materials and workmanship. Extended service plans and factory calibration services are available through authorized global distributors.
Does the stage support Z-axis automation?
While the BioPrecision2 is an XY-only platform, it features a standardized mounting interface for optional LUDL piezo-driven Z-focus inserts (e.g., EZ Focus series), enabling fully coordinated XYZ motion control.
