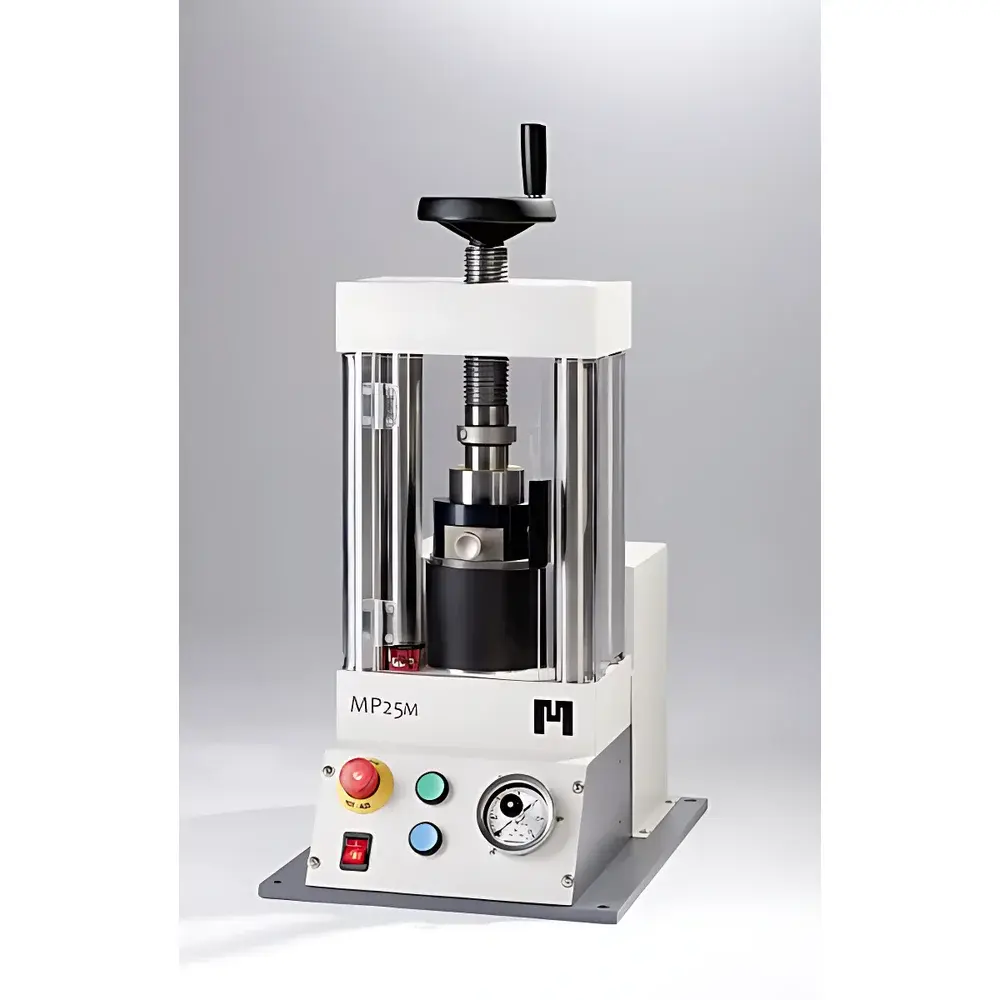

Maassen MP25M Automatic Hydraulic Pellet Press (25-Ton Maximum Force)

Overview

The Maassen MP25M Automatic Hydraulic Pellet Press is a CE-compliant, precision-engineered laboratory instrument developed and manufactured in Germany for reproducible, high-integrity sample pelletization in analytical preparation workflows. It operates on a dual-stage hydraulic principle—combining rapid low-load piston advancement with controlled high-force compression—to deliver consistent, operator-independent compaction across diverse powder matrices. Designed specifically for routine X-ray fluorescence (XRF), wavelength-dispersive XRF (WDXRF), energy-dispersive XRF (EDXRF), and Fourier-transform infrared (FT-IR) spectroscopy sample preparation, the MP25M ensures uniform pellet density, minimal binder migration, and minimal inter-particle void formation—critical parameters influencing spectral reproducibility and quantitative accuracy. Its integrated pressure regulation architecture eliminates manual force estimation, enabling traceable, auditable compression cycles compliant with GLP and ISO/IEC 17025 requirements for method validation.

Key Features

• Fully automatic operation: One-touch start (green button) initiates programmable compression; system halts precisely at user-defined setpoint (range: 0.1–25.0 tons, resolution ±0.01 ton)
• Active overpressure protection: Mechanical and electronic dual-limiting system prevents exceedance of maximum rated force, safeguarding both tooling and sample integrity
• Interlocked polycarbonate safety enclosure: Compression cycle disabled unless safety door is fully latched—conforming to EN ISO 13857 Category 1 access protection
• Dual-mode pressure release: Blue “slow depressurize” button enables controlled, stepwise piston retraction; optional automated full-cycle decompression available via firmware configuration
• Robust mechanical architecture: Stainless steel load frame, precision-machined aluminum cylinder housing, and hardened steel piston rod ensure long-term dimensional stability under cyclic loading
• Zero-maintenance hydraulic system: Sealed two-stage pump with integrated thermal cutoff prevents fluid degradation or leakage—no scheduled oil changes or seal replacements required over typical lab service life

Sample Compatibility & Compliance

The MP25M accommodates standard die sets from 13 mm to 40 mm in diameter—including popular ASTM E1157, ISO 12847, and DIN 51001-compliant geometries—enabling direct integration into certified XRF calibration protocols. Its fixed minimum net height (70 mm) and extended maximum height (165 mm) support thick-walled dies, multi-layer pellet configurations, and binder-diluted matrices requiring elevated cavity volume. All control logic and pressure transduction meet IEC 61508 SIL 2 functional safety criteria for industrial equipment. The device is supplied with factory calibration certificate traceable to PTB (Physikalisch-Technische Bundesanstalt), and supports periodic verification per ISO 7500-1 (Class 1 accuracy). It complies with FDA 21 CFR Part 11 requirements when operated with validated LIMS-integrated software modules (optional add-on).

Software & Data Management

While the MP25M operates as a standalone instrument with analog/digital hybrid interface (4-digit LED pressure display, analog gauge with red setpoint needle), it features RS-232 and optional USB-C digital output for external data logging. When paired with Maassen’s optional PelletLink™ PC software (v3.2+), users gain audit-trail-enabled cycle logging—including timestamp, target force, actual peak force, dwell time, and operator ID—exportable in CSV or PDF format for regulatory submission. Software enforces role-based access control (RBAC), electronic signature capture, and automatic backup to network drives—fully satisfying ALCOA+ (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available) data integrity principles.

Applications

• Routine XRF pellet preparation for geological, metallurgical, and environmental samples (e.g., soils, slags, ores, fly ash)
• FT-IR KBr pellet fabrication requiring precise 8–12 ton compression to minimize scattering artifacts
• Pharmaceutical excipient compressibility testing per USP guidelines
• Reference material homogenization and certification workflows under ISO Guide 35
• Research-scale ceramic green-body densification studies where repeatability across >1000 cycles is mandatory

FAQ

What safety standards does the MP25M conform to?
It meets CE requirements under the Machinery Directive 2006/42/EC, EMC Directive 2014/30/EU, and Low Voltage Directive 2014/35/EU, with documented conformity to EN ISO 13857 (safe distances), EN 60204-1 (electrical safety), and EN 61000-6-2/6-4 (EMC immunity/emission).
Can the MP25M be integrated into an automated sample prep line?
Yes—via its TTL-compatible trigger input and RS-232 command set, it supports synchronization with robotic arms, auto-feeders, and LIMS-driven scheduling systems.
Is calibration documentation included with shipment?
Each unit ships with a PTB-traceable factory calibration certificate covering force transducer linearity, hysteresis, and zero stability across the full 0–25 ton range.
What maintenance is required during normal operation?
None—the sealed hydraulic circuit and brushless motor drive require no lubrication, fluid replacement, or periodic recalibration under standard ambient lab conditions (15–30°C, <70% RH).
Does the MP25M support custom die geometries beyond 40 mm?
Standard configuration limits to 40 mm due to column spacing (160 mm); however, Maassen offers engineered variants (MP25M-XL) with widened frame and reinforced tie rods for up to 50 mm dies—subject to prior mechanical validation.
