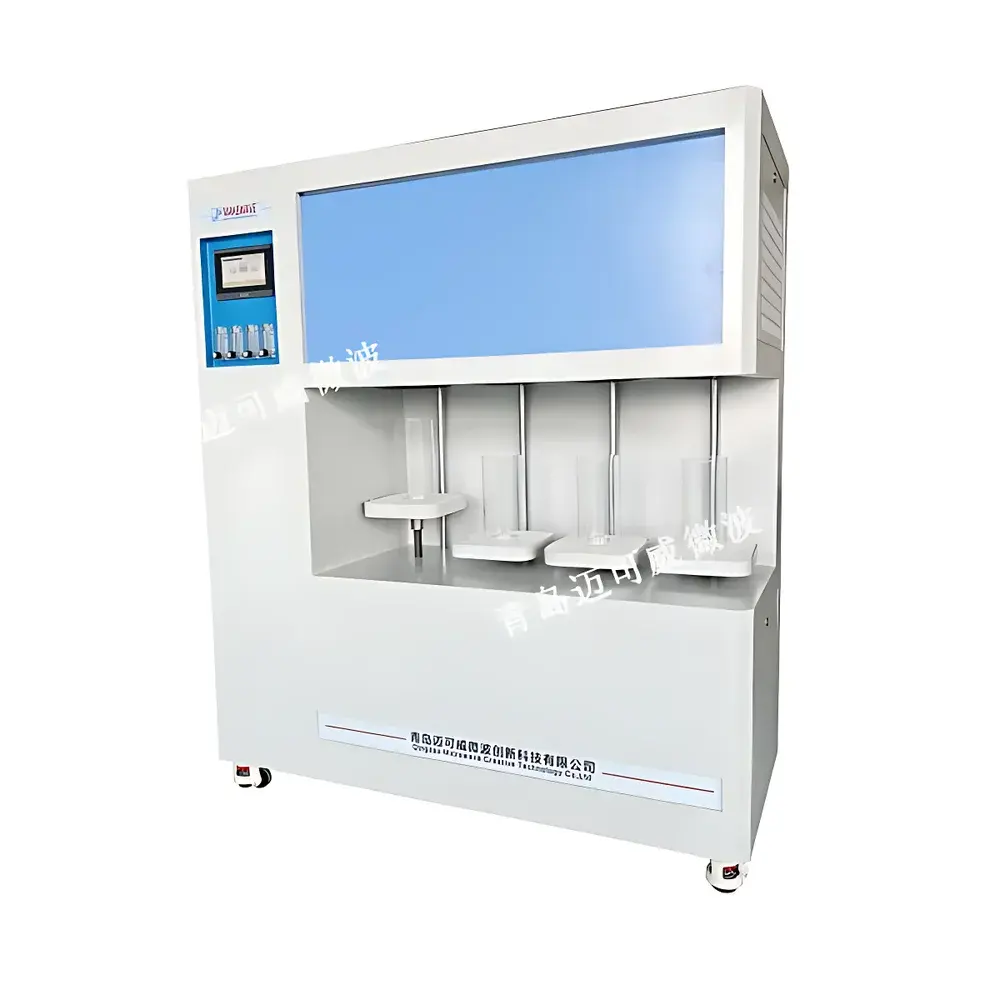

MakeWave HXH-TS03-4 Four-Position Parallel Microwave Carbonization and Ashing Furnace

Overview

The MakeWave HXH-TS03-4 is a purpose-engineered four-position parallel microwave carbonization and ashing furnace designed for high-throughput, thermally controlled sample preparation in analytical laboratories. Unlike conventional resistance-heated muffle furnaces, the HXH-TS03-4 utilizes focused microwave energy to induce rapid, volumetric heating within refractory quartz crucibles—enabling efficient organic matrix removal, complete carbonization, and quantitative ash residue recovery in a single thermal cycle. Its architecture integrates principles of microwave–thermal hybrid processing with ISO/IEC 17025-aligned thermal uniformity management, making it suitable for applications requiring strict repeatability across replicate samples—particularly in environmental testing, food safety analysis, pharmaceutical excipient characterization, and geological sample digestion workflows.

Key Features

• Four independent, physically isolated cavity modules—each accommodating a standard 3 L quartz crucible—enable simultaneous yet non-interfering processing of up to four samples under identical thermal profiles.
• Vertical compact configuration minimizes laboratory footprint while maintaining full thermal separation between positions, eliminating cross-contamination risk from volatile species migration or radiant heat coupling.
• Integrated exhaust manifold routes all process-generated fumes and combustion byproducts through a unified duct interface compatible with standard laboratory fume hoods or dedicated vented exhaust piping systems (compatible with ASTM D5630-compliant off-gas handling).
• Remote wired PLC control system decouples operator interface from the high-temperature zone—enhancing user safety and enabling placement of the touchscreen console outside high-heat or high-humidity zones.
• Precise temperature regulation via dual-stage feedback (infrared pyrometry + thermocouple redundancy) ensures ±1 °C stability at setpoints up to 1200 °C, meeting calibration traceability requirements for GLP-compliant ash content determination (per USP & AOAC Official Methods).
• 20-minute ramp to maximum operating temperature reflects optimized microwave power modulation and thermal inertia management—reducing total cycle time without compromising residue integrity or crucible longevity.

Sample Compatibility & Compliance

The HXH-TS03-4 supports a broad range of solid and semi-solid matrices including plant tissues, animal feed, soil sediments, polymer composites, and pharmaceutical tablets. Quartz crucibles provide inert containment for chloride- and fluoride-rich samples, minimizing reaction-induced mass loss artifacts during high-temperature oxidation. The system conforms to key regulatory frameworks governing thermal analysis instrumentation: it supports audit-ready operation under FDA 21 CFR Part 11 when paired with validated software (e.g., optional MakeWave LabLink Suite), and its thermal performance aligns with ISO 5667-18 (water quality sampling), ASTM D3174 (ash in coal and coke), and ISO 1171 (determination of ash in solid mineral fuels). All electrical and microwave emission parameters comply with IEC 61000-6-3 (EMC emissions) and GB 4706.1 (safety of household and similar electrical appliances).

Software & Data Management

While the base unit operates via embedded PLC firmware with local touchscreen interface, optional integration with MakeWave LabLink™ v3.2 enables full data capture, method archiving, and electronic signature functionality. The software logs real-time temperature curves, power output, dwell times, and alarm events—including timestamped thermal deviations exceeding ±1.5 °C—for traceable record retention. Audit trails are immutable and exportable in CSV/PDF formats compliant with ISO/IEC 17025 clause 7.10. Data files include instrument ID, operator credentials, and calibration certificate references—facilitating seamless inclusion in LIMS environments or regulatory submissions.

Applications

• Quantitative ash content determination per AOAC 942.05 and ISO 2171 in cereals, dairy powders, and dietary supplements.
• Rapid carbonization of biomass prior to elemental analysis (ICP-OES/MS) or XRF quantification.
• Thermal pretreatment of contaminated soils for heavy metal leaching studies (TCLP/SPLP compliance support).
• Residue yield assessment in polymer degradation kinetics under controlled oxidative atmospheres.
• High-reproducibility ash fusion temperature screening for coal and slag characterization (ASTM D1857).

FAQ

Can the HXH-TS03-4 operate under inert or reducing atmospheres?

No—the system is engineered for ambient-air oxidative ashing only; it does not support gas purging or sealed atmosphere control.
Is quartz crucible replacement included in routine maintenance schedules?

Quartz crucibles are consumables; typical service life exceeds 200 cycles at ≤1000 °C but diminishes above 1100 °C due to devitrification—replacement intervals depend on usage frequency and sample composition.
Does the PLC controller support custom program storage?

Yes—up to 99 user-defined thermal protocols can be saved locally, each with multi-segment ramp/soak profiles, power limits, and end-condition triggers.
What safety interlocks are implemented?

Dual redundant door-safety switches, microwave leakage monitoring (<1 mW/cm² at 5 cm), overtemperature cutoff (1250 °C hardware limit), and emergency power-off circuitry compliant with IEC 61508 SIL2.
Is validation documentation available for GMP environments?

Yes—IQ/OQ protocols, as-found/as-left calibration reports, and traceable thermocouple certificates are provided upon request for qualified installations.
