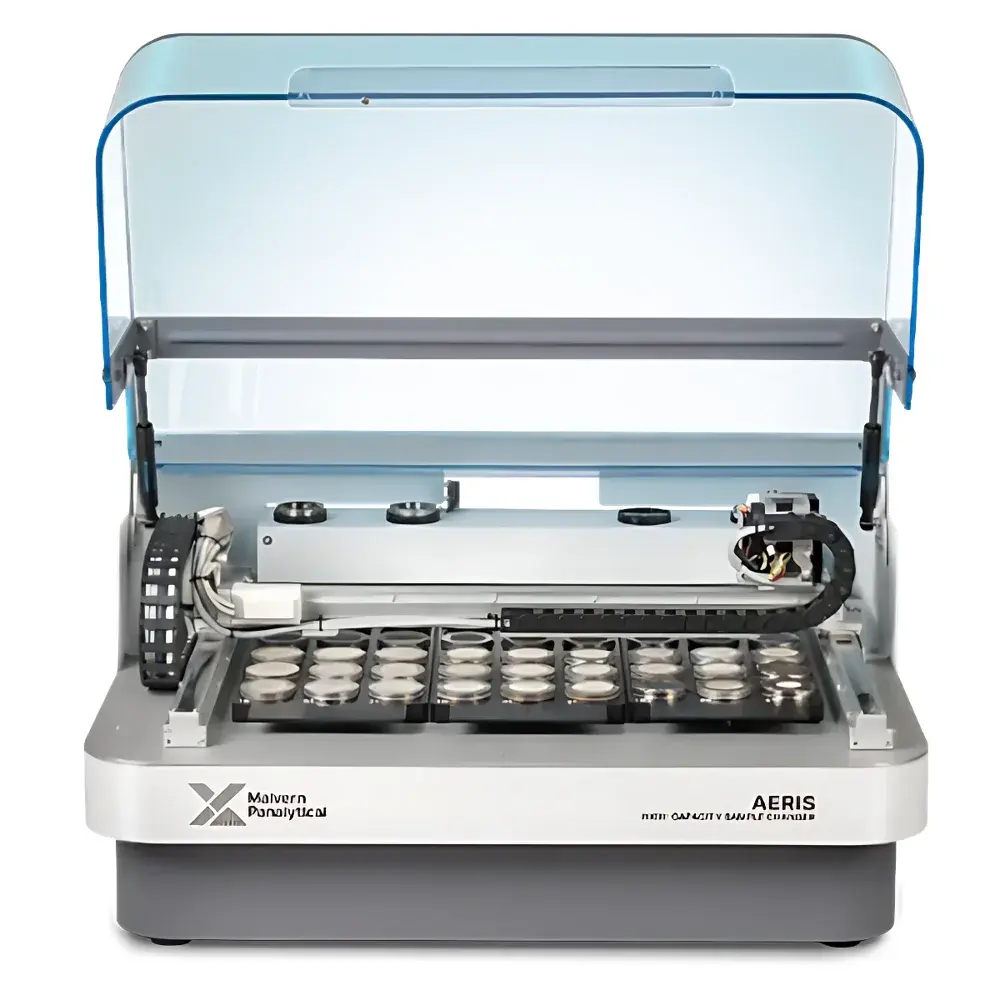

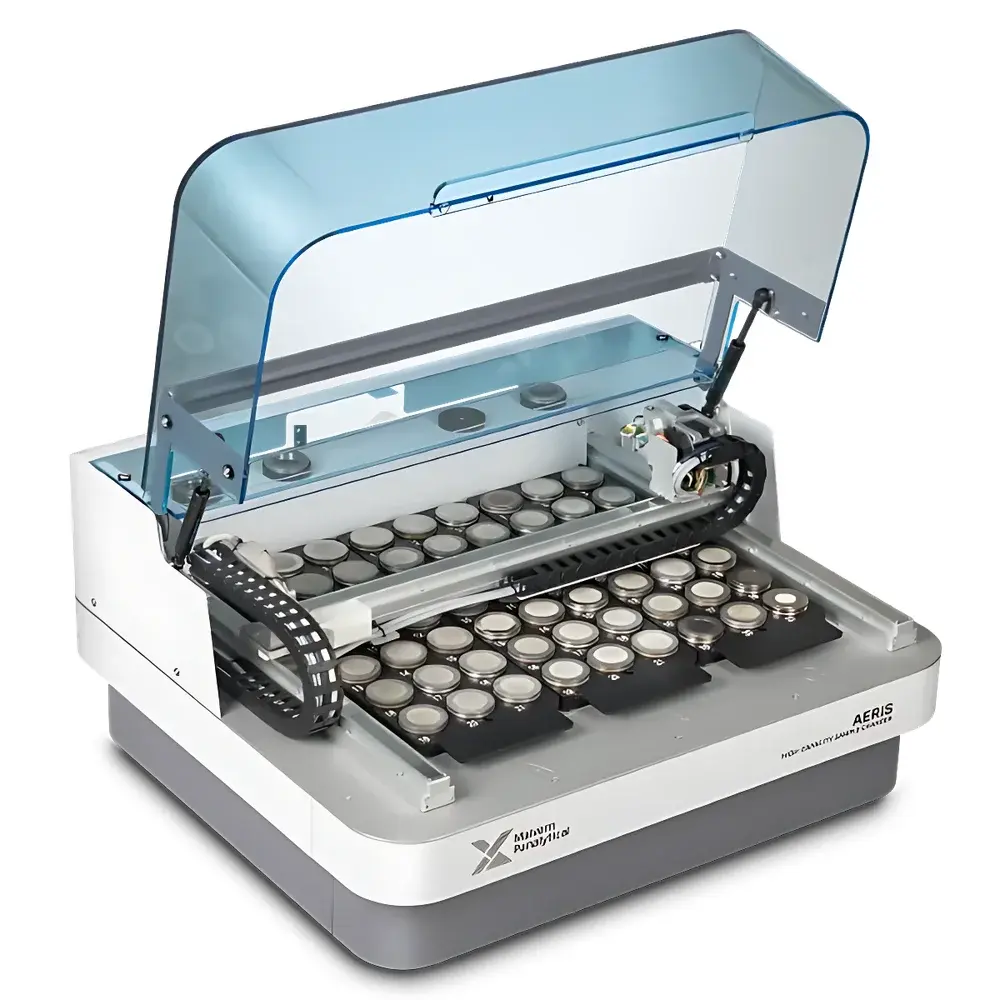

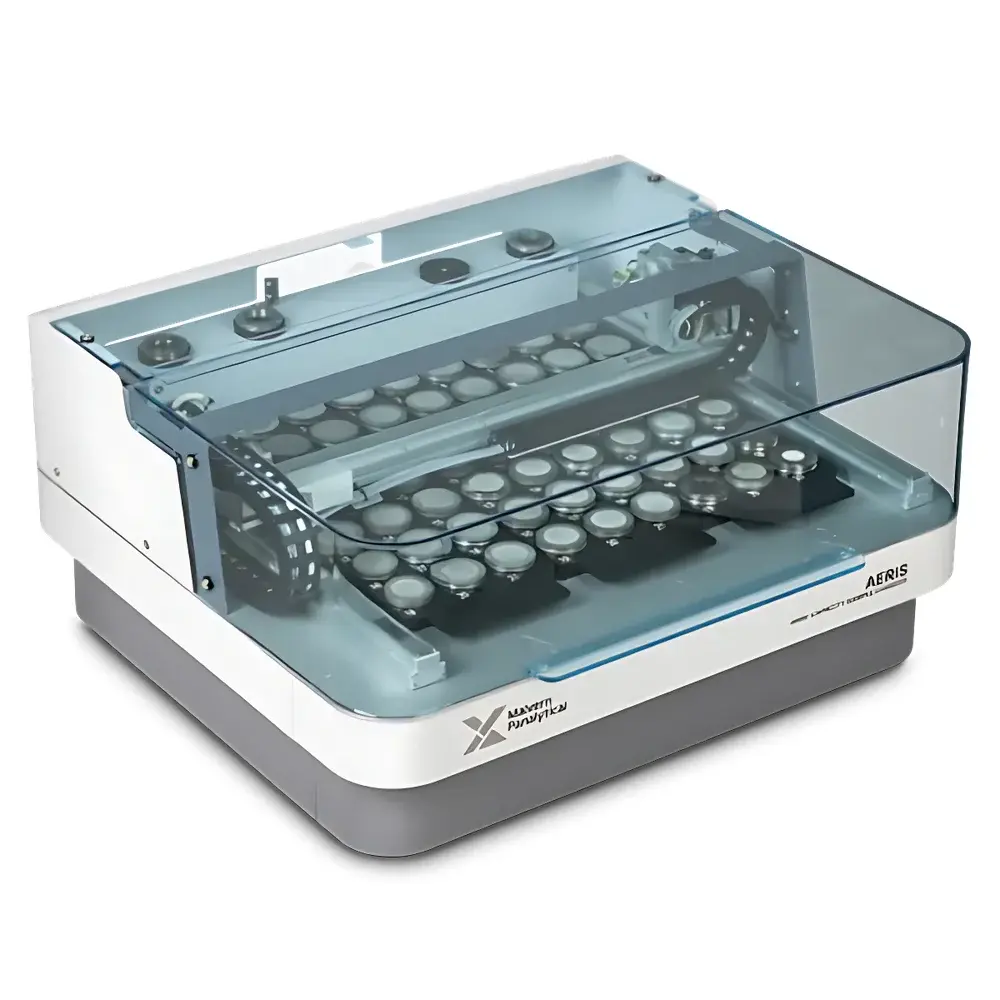

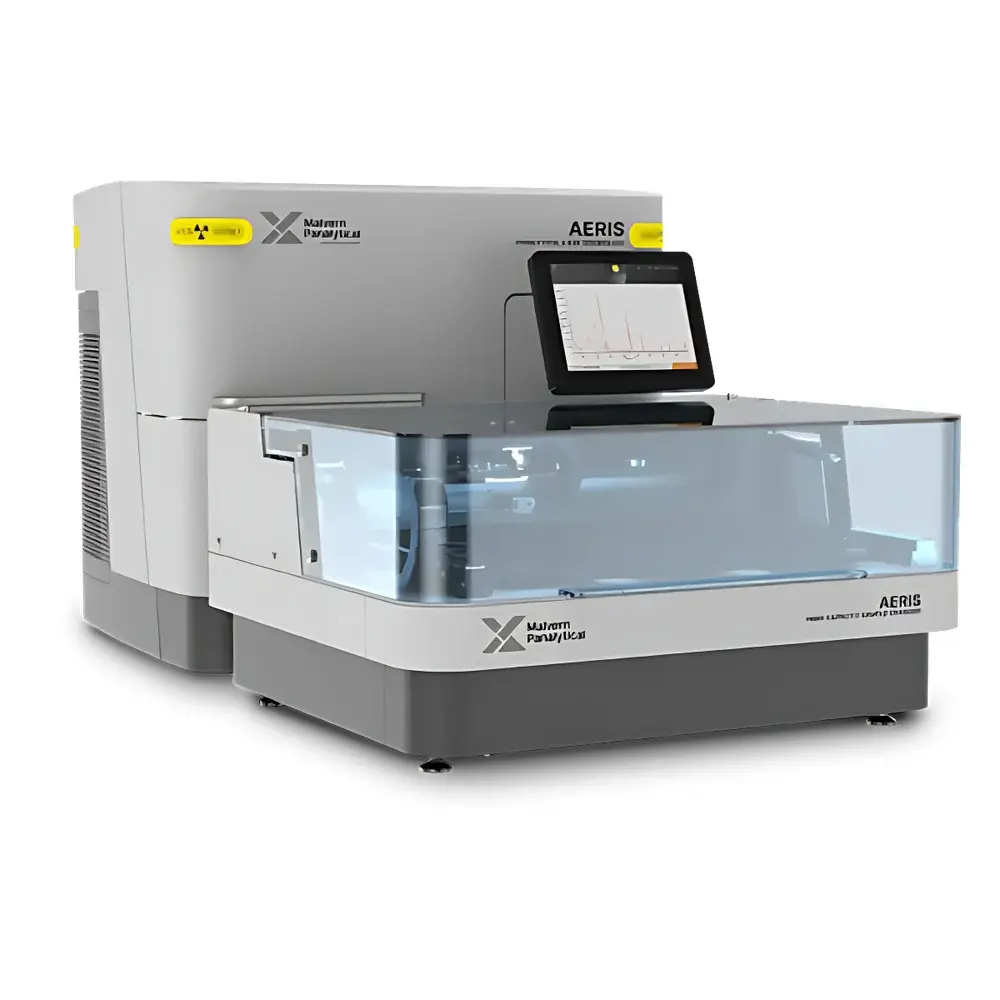

Malvern Panalytical Aeris HCSC High-Capacity Sample Changer for Benchtop X-ray Diffractometers

Overview

The Malvern Panalytical Aeris HCSC (High-Capacity Sample Changer) is a fully integrated, robotic autosampler engineered specifically for the Aeris series of benchtop powder X-ray diffractometers. It leverages Bragg’s law-based X-ray diffraction (XRD) to deliver phase identification, quantitative analysis, crystallite size determination, and lattice strain assessment across diverse powdered or solid polycrystalline samples. Designed for laboratories requiring sustained, unattended operation without compromising measurement integrity, the HCSC supports continuous batch analysis of >60 samples per sequence—enabling overnight data acquisition, shift-independent throughput, and full utilization of instrument duty cycles. Its mechanical architecture is co-engineered with the Aeris goniometer and detector system to ensure precise sample positioning repeatability (<5 µm lateral accuracy), minimal beam path perturbation, and thermal stability over extended run times. As a native component of the Aeris platform—not an after-market add-on—the HCSC maintains full synchronization with X-ray generator control, detector readout timing, and real-time data streaming protocols.

Key Features

• Robust 60+ position sample carousel with programmable tray indexing and auto-calibrated Z-height compensation for variable sample thickness (0.1–5 mm)
• Integrated gripper mechanism with force-sensing feedback to prevent sample damage during loading/unloading
• Zero-crossing optical encoder alignment ensures sub-arcsecond angular reproducibility between successive sample presentations
• Modular mounting interface compatible with all Aeris configurations (Aeris Standard, Aeris Mining, Aeris Cement, Aeris Aluminium)
• Onboard diagnostics including motor current monitoring, vacuum seal verification, and positional error logging for GLP-compliant audit trails
• Front-access loading bay with ergonomic height (85 cm) and optional RFID sample tube recognition for traceability

Sample Compatibility & Compliance

The HCSC accommodates standard 25 mm and 32 mm diameter sample holders—including zero-background silicon wafers, pressed pellets, capillary tubes, and industry-specific trays (e.g., ASTM E1361-compliant cement discs). All sample stages are certified to ISO 9001:2015 manufacturing standards and conform to IEC 61000-6-2/6-4 electromagnetic compatibility requirements. The system supports regulatory workflows under FDA 21 CFR Part 11 via optional electronic signature modules and time-stamped, immutable acquisition logs. Routine operation complies with ASTM E1422 (Standard Practice for X-ray Diffraction Analysis of Metals), ISO 17892-12 (Geotechnical investigation — Laboratory testing — Part 12: Determination of mineral composition by X-ray diffraction), and USP for pharmaceutical polymorph screening.

Software & Data Management

Controlled through Malvern Panalytical’s Empyrean Software Suite (v6.0+), the HCSC integrates seamlessly into method-driven workflows. Users define multi-step sequences—including automatic background acquisition, dynamic scan range adjustment per sample, and conditional re-measurement triggers (e.g., low signal-to-noise ratio or peak shift thresholds). Raw .raw and processed .csv outputs are automatically timestamped, metadata-tagged (operator ID, instrument serial, ambient temperature/humidity), and routed to configurable network locations or LIMS endpoints via secure SFTP or OPC UA. Audit trail functionality records every command execution, parameter change, and hardware state transition—fully compliant with ALCOA+ (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available) data integrity principles.

Applications

• Quality control in cement production: rapid quantification of alite, belite, and free lime phases per ASTM C1365
• Mineralogical mapping in mining exploration: automated batch analysis of drill core pulverates for quartz, hematite, and clay group identification
• Aluminium alloy certification: detection of intermetallic phases (e.g., Al₃Fe, Mg₂Si) and texture analysis via pole figure acquisition
• Pharmaceutical solid-state characterization: polymorph screening, hydrate/anhydrate ratio tracking, and excipient compatibility studies
• Academic materials research: high-throughput screening of MOF synthesis conditions or battery cathode degradation pathways

FAQ

Is the HCSC compatible with existing Aeris instruments installed prior to 2020?
Yes—retrofit kits including updated motion controller firmware and mechanical adapters are available for Aeris systems manufactured from Q3 2017 onward.
Can the HCSC be operated remotely via network connection?
Yes; Empyrean Software supports secure remote access through TLS-encrypted VNC sessions with role-based permissions and session logging.
Does the HCSC require external compressed air or vacuum supply?
No; all actuation is electro-mechanical. Vacuum sample retention is generated internally via integrated diaphragm pumps.
What maintenance intervals are recommended for the robotic arm and carousel drive?
Scheduled service is required every 12 months or after 10,000 sample cycles—whichever occurs first—per the manufacturer’s Preventive Maintenance Manual PN-EM-PM-HCSC-EN.
How does the HCSC handle samples with volatile or moisture-sensitive compounds?
Optional inert-gas purge ports (N₂ or Ar) and sealed sample chamber variants are available for controlled-atmosphere operation (dew point ≤ –40°C).
