MCL-MOTNZ Integrated Nano- and Micro-Positioning Stage

Overview

The MCL-MOTNZ is a high-stability, integrated XY micropositioning and Z-axis nanopositioning stage engineered for precision optical microscopy applications requiring sub-micron repeatability and nanometer-scale axial control. Built upon a robust aluminum mechanical architecture, the system implements a hybrid actuation strategy: stepper motor-driven XY translation (25 mm range per axis) coupled with a closed-loop piezoelectric Z-axis nanopositioner (200 µm travel). Its design targets inverted microscope platforms—specifically Olympus IX, Nikon TE/Ti, Leica DMI, and Zeiss Axiovert/Axio Observer series—enabling seamless retrofit without structural modification. The core measurement principle relies on proprietary PicoQ® capacitive position sensing, delivering absolute, drift-free, sub-nanometer resolution (0.4 nm) under real-time closed-loop feedback. Unlike encoder-augmented stages, the MCL-MOTNZ achieves native stability and repeatability (<100 nm) through precision-ground motion components and intelligent microstepping algorithms—eliminating the need for external encoders while maintaining metrological integrity suitable for GLP-compliant single-molecule imaging workflows.

Key Features

• Integrated dual-domain positioning: 25 mm XY micropositioning + 200 µm Z nanopositioning in a single monolithic platform
• Closed-loop Z-axis control with PicoQ® capacitive sensors enabling 0.4 nm resolution and <100 nm repeatability
• Stepper motor XY stage with 95 nm minimum step size, 4 mm/sec max speed, and aluminum body for thermal stability

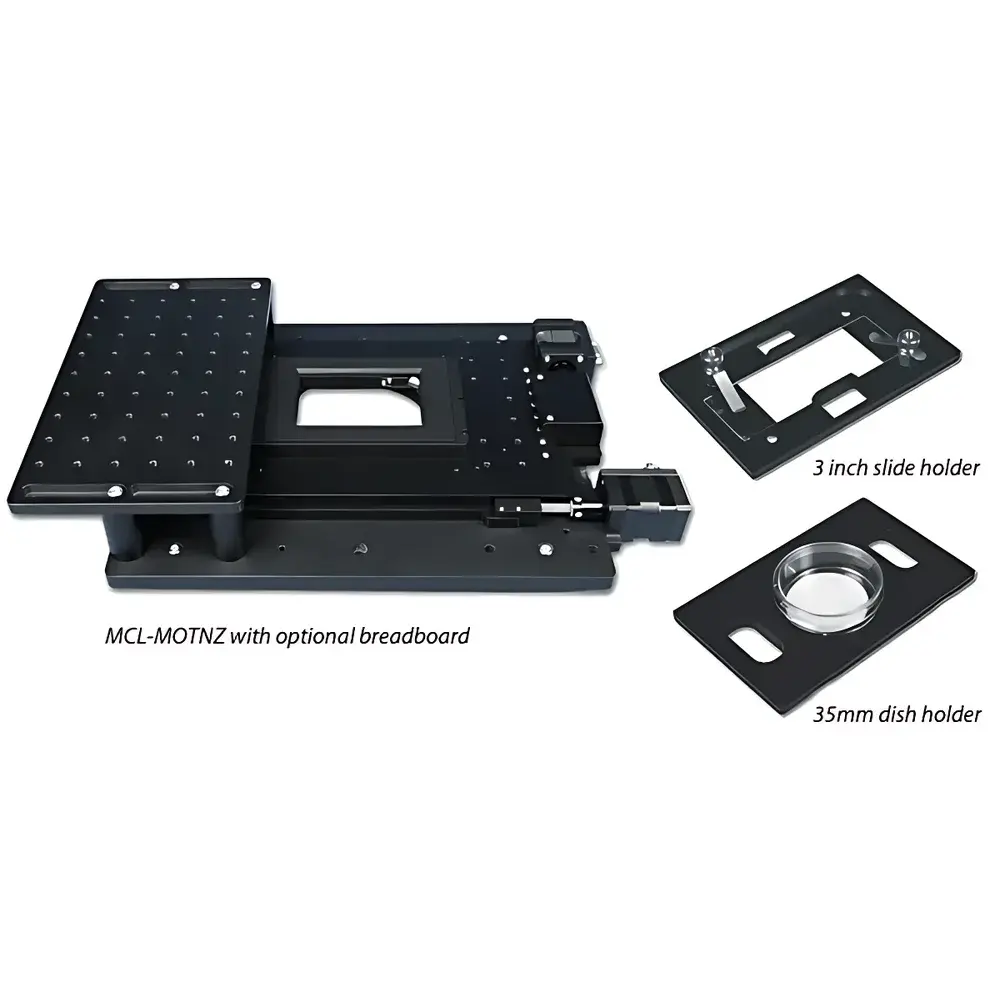

• Dedicated mounting interfaces for standard 75 mm microscope slides and 35 mm Petri dishes
• Compact USB 2.0–enabled Nano-Drive®C (Z-axis) and Micro-Drive™C (XY) controllers with LabVIEW-compatible APIs
• Optional wireless joystick interface for intuitive manual override during alignment or coarse navigation
• Native compatibility with inverted microscope footprints and optical table integration via standardized kinematic mounts

Sample Compatibility & Compliance

The MCL-MOTNZ supports common biological and material science sample carriers—including glass-bottomed culture dishes, silicon wafers, and custom-fabricated substrates—via its adjustable slide and dish holders. Its mechanical footprint and height profile are certified compatible with ISO 10110–compliant optical bench configurations and conform to ANSI/ISO 80000-4 standards for dimensional metrology reporting. While not FDA-cleared as a medical device, the system’s closed-loop architecture, deterministic motion profiles, and audit-ready controller logging (via LabVIEW-based timestamped command history) support adherence to GLP and GMP documentation requirements for preclinical imaging studies. All firmware and driver libraries comply with USB Implementers Forum (USB-IF) specifications and meet EMC Class B limits per FCC Part 15 Subpart B.

Software & Data Management

The MCL-MOTNZ ships with fully documented USB HID-class drivers and native LabVIEW VIs supporting synchronized multi-axis motion, position polling, and trajectory scripting. Controller firmware supports both digital (USB) and analog (0–10 V) input modes, enabling integration into existing DAQ environments (e.g., National Instruments PXI, Thorlabs Kinesis). Position data can be streamed at up to 1 kHz for real-time feedback loops in adaptive optics or autofocus routines. All motion commands generate time-stamped logs accessible via API, satisfying traceability requirements for ISO/IEC 17025-accredited laboratories. Optional MATLAB and Python SDKs are available under NDA for algorithm-driven acquisition protocols used in STORM/PALM super-resolution reconstruction pipelines.

Applications

• Confocal and widefield fluorescence microscopy requiring precise Z-stack acquisition with <10 nm axial reproducibility
• Single-molecule FRET and TIRF experiments demanding long-term positional stability over multi-hour acquisitions
• Nanomanipulation tasks including AFM tip positioning, optical tweezer trapping, and microinjection probe alignment
• Super-resolution imaging modalities (STORM, PALM, SIM) where pixel registration accuracy depends on stage-induced drift compensation
• Automated patch-clamp electrophysiology setups requiring coordinated XYZ repositioning between cell targeting and electrode approach
• Quantitative reflectance/interferometric measurements on thin-film samples requiring calibrated Z-height stepping

FAQ

What is the difference between the MCL-MOTNZ and the MCL-MANNZ?
The MCL-MOTNZ uses stepper motors for XY motion and piezo actuation for Z; the MCL-MANNZ replaces XY steppers with manual micrometers for cost-sensitive applications requiring only infrequent coarse adjustment.
Can the MCL-MOTNZ be used in vacuum or cleanroom environments?
Standard units are rated for ambient lab use only; vacuum-compatible variants (with outgassing-certified materials and non-lubricated bearings) are available upon engineering consultation.
Does the system support third-party software like MetaMorph or μManager?
Yes—through provided DLLs and documented COM interfaces, the MCL-MOTNZ integrates natively with MetaMorph, μManager, and HALCON via custom device adapters.
Is analog voltage control supported for Z-axis modulation during live imaging?
Yes—the Nano-Drive®C controller accepts 0–10 V analog input with 16-bit DAC resolution, enabling real-time Z-modulation synchronized to camera triggers or laser pulses.
What maintenance is required for long-term positional accuracy?
No routine calibration is needed; PicoQ® sensors self-zero on power-up, and mechanical backlash is eliminated by preloaded flexure-guided motion elements—only periodic inspection of mounting hardware is recommended per ISO 5327 maintenance guidelines.
