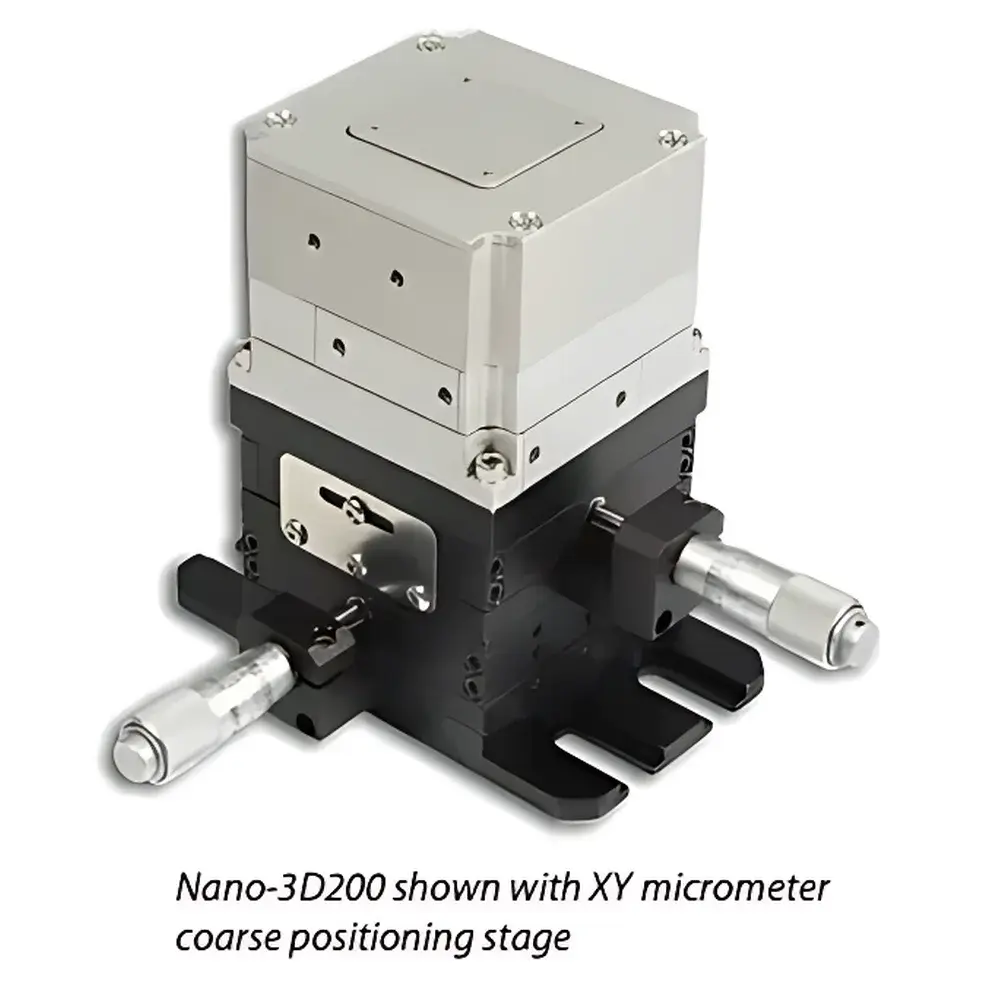

MCL Think Nano Nano-3D200 Three-Axis Closed-Loop Flexure-Guided Nanopositioning Stage

Overview

The MCL Think Nano Nano-3D200 is a high-precision, three-axis (X-Y-Z) nanopositioning stage engineered for sub-micron stability and minimal crosstalk in demanding optical and nanofabrication environments. Based on monolithic aluminum flexure architecture, it eliminates mechanical backlash, hysteresis, and wear—enabling true solid-state motion with no sliding or rotating parts. Its operation relies on piezoelectric actuation coupled with integrated capacitive position sensors, delivering closed-loop feedback at the nanometer level. Designed for integration into compact optical setups—including fiber alignment stations, interferometric test benches, and hybrid coarse-fine positioning systems—the Nano-3D200 provides deterministic, repeatable displacement within a 200 µm cubic envelope. Its resonant dynamics (150 Hz in X/Y, 500 Hz in Z) support high-bandwidth scanning and active vibration compensation protocols, while its 1 nm resolution ensures compatibility with metrology-grade applications requiring traceable positional fidelity.

Key Features

• True monolithic flexure guidance across all three axes—mechanically decoupled motion with <0.05% crosstalk between X, Y, and Z
• Closed-loop control via integrated capacitive position sensors, enabling absolute positioning without homing routines
• 1 nm minimum incremental motion resolution with long-term thermal drift <±5 nm over 8 hours (23 ±1 °C ambient)
• Aluminum body (6061-T6) optimized for thermal conductivity and EMI shielding; anodized surface for enhanced durability
• Wireless 3-axis joystick controller (optional) supporting intuitive manual alignment without software dependency or PC interface
• Compatible with standard Ø1″ and Ø2″ optical post mounts, kinematic base plates, and SM1-threaded accessories
• Designed for vacuum-compatible variants (upon request)—no outgassing adhesives or lubricants used in core assembly

Sample Compatibility & Compliance

The Nano-3D200 accommodates diverse sample configurations through customizable top plate options (flat or groove-top variants), supporting direct mounting of fiber ferrules, MEMS chips, AFM cantilevers, and photonic integrated circuits. It complies with ISO 9001 manufacturing protocols and meets RoHS 3 directive requirements for hazardous substance restriction. While not certified for medical device use, its design principles align with GLP-compliant instrumentation standards for laboratory reproducibility. The stage’s low electromagnetic signature and absence of brushless motor EMI make it suitable for ultra-low-noise quantum optics experiments. For regulated environments requiring audit trails, the Nano-Drive® controller supports optional firmware logging compliant with FDA 21 CFR Part 11 Annex 11 guidelines when deployed with validated software stacks.

Software & Data Management

Control is enabled via the Nano-Drive® digital controller, which features USB 2.0 and RS-422 interfaces, real-time waveform generation (sine, triangle, sawtooth), and programmable scan patterns (raster, Lissajous, spiral). A comprehensive SDK (C/C++, Python, MATLAB, LabVIEW) enables integration into automated test sequences and custom DAQ architectures. Position data streams at up to 10 kHz sampling rate with timestamped metadata, supporting HDF5 and CSV export formats. Firmware updates are performed via signed binary packages to ensure integrity. All configuration parameters—including PID gains, voltage limits, and sensor calibration offsets—are stored non-volatily and survive power cycling. Remote diagnostics and error logging facilitate predictive maintenance in multi-stage instrument clusters.

Applications

• Active alignment of single-mode optical fibers in telecom transceiver packaging
• Sub-pixel registration in multi-spectral confocal microscopy and STED super-resolution platforms
• Probe positioning in scanning near-field optical microscopy (SNOM) and nano-FTIR systems
• Maskless lithography tooling stages for electron-beam and laser direct-write nanofabrication
• Dynamic focus correction in adaptive optics loops using wavefront sensor feedback
• Calibration reference stages for coordinate measuring machines (CMMs) and laser interferometers

FAQ

Is the Nano-3D200 compatible with third-party motion controllers?
Yes—open-command protocol documentation and ASCII-based serial command set are provided under NDA for OEM integration.
Can it operate in vacuum or cleanroom environments?
Standard units are rated for Class 1000 cleanrooms; vacuum-compatible versions (10⁻⁶ Torr) are available with modified cabling and sensor housing.
What is the typical warm-up time to achieve specified thermal stability?
Less than 15 minutes after power-on under stable ambient conditions (23 ±0.5 °C); full specification compliance achieved after 30 minutes.
Does the system support synchronized multi-axis triggering?
Yes—TTL-compatible trigger I/O allows hardware-level synchronization with cameras, lasers, or lock-in amplifiers.
How is long-term positional drift mitigated in closed-loop operation?
Capacitive sensors continuously correct for piezoceramic creep and thermal expansion; drift compensation algorithms are embedded in Nano-Drive® firmware.
