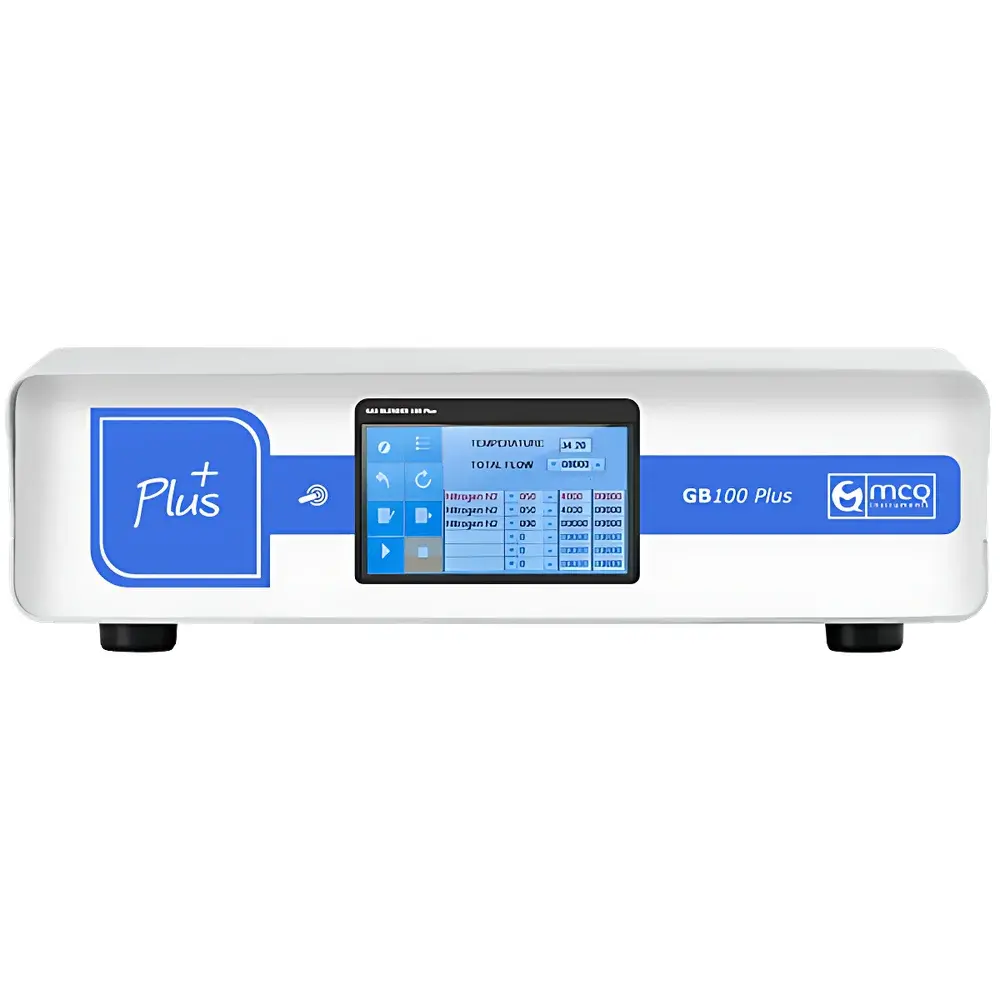

MCQ GB100PLUS Dynamic Gas Dilution System

Overview

The MCQ GB100PLUS Dynamic Gas Dilution System is an engineered solution for precise, real-time generation of certified gas mixtures across laboratory, industrial, and regulatory compliance environments. Based on the principle of mass flow-controlled blending—where individual gas streams are metered via calibrated thermal mass flow controllers (MFCs) and combined in a static mixing chamber—the system delivers stable, traceable dilutions with high temporal resolution and low dead-volume response. Unlike static cylinder-based standards, the GB100PLUS enables on-demand synthesis of target concentrations (ppm to % v/v) without reliance on pre-mixed reference gases, reducing logistical overhead and enabling dynamic concentration ramps, step changes, and multi-gas sequence protocols. Its architecture supports both research-grade flexibility and routine QA/QC reproducibility, making it suitable for applications requiring metrological traceability to NIST, PTB, or UKAS-accredited reference standards.

Key Features

• Modular input configuration: Select from 3-, 4-, or 6-channel variants, each supporting independent mass flow control with factory-calibrated MFCs traceable to international standards.
• Wide dynamic flow range: Standard 0–500 mL/min per channel; optional configurations extend to 0–15,000 mL/min for high-flow applications such as stack emission simulation or large-volume chamber dosing.
• Precision dilution capability: Achieves programmable dilution ratios from 1:1 (undiluted) to 1:1000 with ≤±1% full-scale repeatability under stabilized temperature and pressure conditions.
• Digital interoperability: Native support for RS-232, RS-485, and Ethernet interfaces with Modbus RTU/TCP protocol enables seamless integration into LIMS, SCADA, or custom Python/LabVIEW automation frameworks.
• Inert wetted path construction: Stainless steel 316L manifolds, EPDM/Viton-sealed valves, and electropolished internal surfaces ensure compatibility with reactive, corrosive, and moisture-sensitive gases including SO₂, NO, and H₂.
• Embedded diagnostics: Real-time monitoring of flow deviation, pressure drop, valve actuation status, and thermal stability with configurable alarm thresholds and event logging.

Sample Compatibility & Compliance

The GB100PLUS accommodates over 20 common industrial and environmental gases—including H₂, He, SF₆, and N₂O—without catalyst degradation or adsorption artifacts, provided appropriate material selection (e.g., stainless steel for H₂, specialized seals for SO₂). It conforms to ISO 6145-1 (gas mixture preparation by dynamic blending), EN 14181 (QAL2/QAL3 requirements for automated monitoring systems), and supports audit-ready operation under GLP and ISO/IEC 17025 quality management systems. Optional firmware upgrades enable 21 CFR Part 11-compliant electronic signatures, audit trails, and user-access-level controls for regulated pharmaceutical and emissions testing labs.

Software & Data Management

The system ships with MCQ ControlSuite™ v3.x—a Windows-based configuration and runtime platform supporting intuitive graphical workflow design, time-scheduled dilution profiles, and CSV/Excel export of timestamped flow and concentration logs. All operational parameters—including setpoints, actual flows, valve states, and error codes—are stored locally with microSD backup and accessible remotely via secure HTTP(S) API endpoints. Data integrity is maintained through cyclic redundancy checks (CRC), write-protected configuration archives, and tamper-evident logging compliant with FDA ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available).

Applications

• Calibration gas generation for fixed and portable gas analyzers (e.g., FTIR, NDIR, electrochemical, PID, and chemiluminescence detectors).
• Dynamic challenge testing of continuous emission monitoring systems (CEMS) per EPA Method 205 and EN 15267.
• Controlled atmosphere studies in food packaging, cell culture incubators, and bioreactor feed gas conditioning.
• R&D of catalytic converters, sensor response kinetics, and VOC oxidation efficiency under variable stoichiometry.
• Method validation and uncertainty budgeting in environmental laboratories accredited to ISO/IEC 17025.
• On-site preparation of multi-component standard mixtures for GC carrier gas spiking, detector linearity verification, and leak detection tracer gas formulation.

FAQ

Does the GB100PLUS support hydrogen (H₂) as a component gas?
Yes—H₂ is fully supported in all 4- and 6-channel configurations with stainless steel 316L flow paths and H₂-rated solenoid valves. For 3-channel base models, H₂ compatibility requires optional material upgrade.
Can dilution ratios be changed during operation without interrupting gas output?
Yes—the system supports real-time ratio modulation via external command or internal program loop, with typical transition stabilization within <3 seconds at constant total flow.
Is third-party software integration limited to specific platforms?
No—Modbus RTU/TCP implementation ensures compatibility with LabVIEW, MATLAB, Python (pymodbus), Ignition SCADA, and most enterprise LIMS solutions without proprietary drivers.
What maintenance intervals are recommended for long-term accuracy?
Annual recalibration of MFCs against primary standards is recommended; filter replacement every 6 months in particulate-rich environments; zero-point verification before critical calibration runs.
Are firmware updates provided post-purchase?
Yes—MCQ provides free firmware updates for five years from date of shipment, including security patches, protocol enhancements, and new compliance modules (e.g., 21 CFR Part 11 add-ons).
