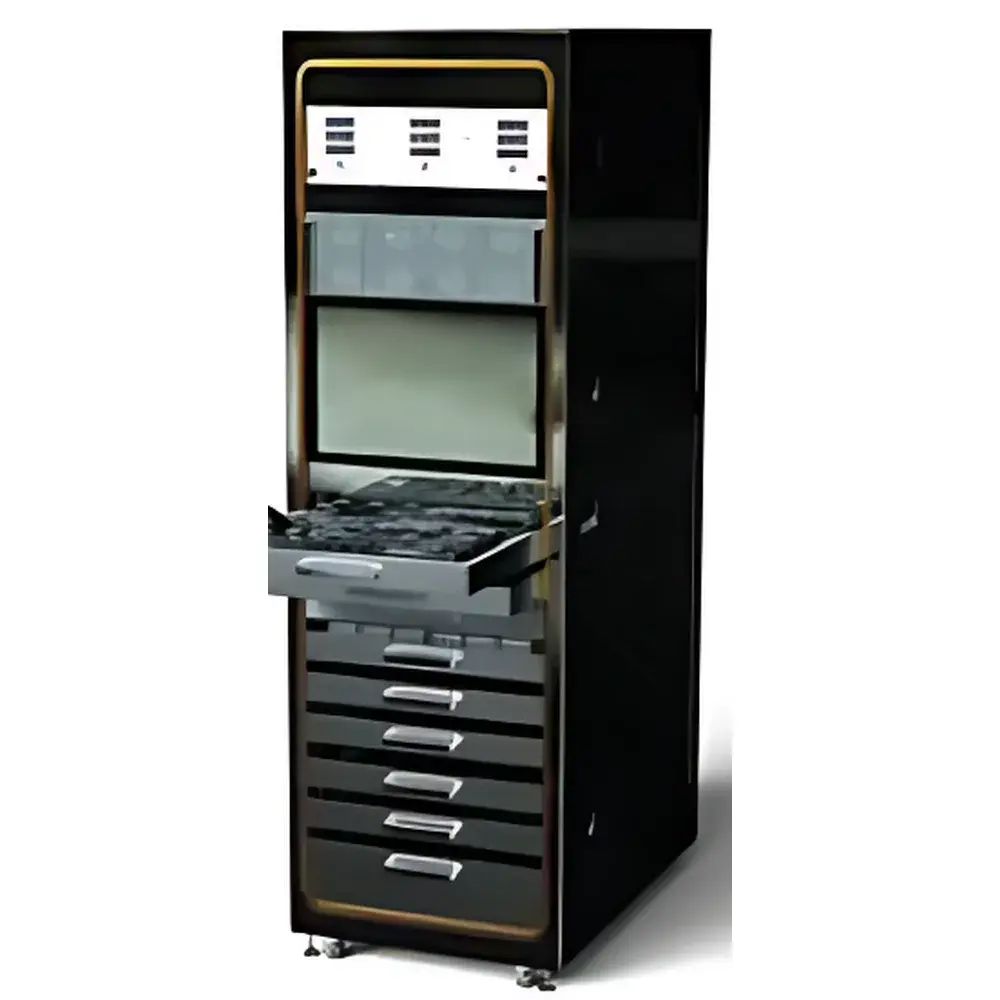

McScience T6000 Calcium-Based Water Vapor Transmission Rate (WVTR) Testing System

Overview

The McScience T6000 Calcium-Based Water Vapor Transmission Rate (WVTR) Testing System is a precision-engineered platform designed for quantitative evaluation of moisture barrier performance in thin-film encapsulation layers used in organic optoelectronic devices. It operates on the well-established calcium degradation assay principle: a high-purity calcium thin film is deposited onto a substrate and sealed within a test cell under controlled environmental conditions. As water vapor permeates through the barrier material, it reacts irreversibly with calcium to form calcium hydroxide and calcium oxide—inducing a measurable increase in electrical resistance. This resistance change is monitored in real time via integrated DC four-wire measurement circuitry, enabling direct, traceable correlation to cumulative water ingress. The system is specifically optimized for R&D and reliability validation of OLED displays, organic photovoltaics (OPV), and perovskite solar cells—where ultra-low WVTR (<10⁻⁶ g/m²/day) is critical to operational lifetime and electrochemical stability.

Key Features

• Multi-channel architecture supporting up to eight independent test cells—enabling parallel evaluation of diverse barrier stacks, deposition parameters, or accelerated aging conditions.
• Dual-zone environmental chamber with independent temperature and humidity control, capable of maintaining stable setpoints from 15 °C to 85 °C (±0.1 °C) and 5–90 % RH (±1 % RH) over extended durations (≥1000 hours).
• Integrated electrical measurement unit with auto-ranging DC resistance/conductance capability, resolution down to 0.1 mΩ, and programmable sampling intervals from 1 second to 24 hours.
• Modular design accommodating optional optical monitoring modules (e.g., in situ transmittance or fluorescence imaging) for correlative degradation analysis.
• Robust mechanical sealing interface compliant with ISO 15106-3 sample mounting geometry, ensuring repeatable edge-seal integrity and minimizing perimeter leakage artifacts.
• Calibration traceability to NIST-traceable hygrometers and certified calcium film thickness standards (via quartz crystal microbalance verification).

Sample Compatibility & Compliance

The T6000 accommodates standard 25 mm × 25 mm or 50 mm × 50 mm substrates—including glass, flexible PET/PEN foils, and thin-film metal or oxide barrier laminates. Sample mounting follows ASTM F1249 Annex A3 guidelines for calcium-based methods, with configurable guard-ring configurations to suppress edge diffusion effects. All hardware and firmware comply with ISO/IEC 17025 requirements for testing laboratories, and data acquisition protocols support 21 CFR Part 11-compliant electronic signatures and audit trails when deployed in GLP/GMP-regulated environments. Test reports include full metadata: ambient history logs, resistance vs. time curves, derivative WVTR plots, and uncertainty budgets per GUM (JCGM 100:2008).

Software & Data Management

The proprietary T6000 Control Suite (v4.2+) provides real-time visualization of resistance drift, automatic WVTR calculation using the standardized first-derivative method (dR/dt → g/m²/day), and batch statistical analysis across channels. Raw data is stored in HDF5 format with embedded calibration coefficients and environmental metadata. Export options include CSV, PDF test reports with digital signatures, and XML files compatible with LIMS integration. Software validation documentation (IQ/OQ/PQ protocols) is provided, and the system supports remote monitoring via secure TLS 1.2–encrypted Ethernet connection—enabling centralized fleet management in multi-site R&D facilities.

Applications

• Quantitative benchmarking of ALD, PECVD, and sputtered oxide/nitride multilayer barriers for foldable OLED backplanes.
• Accelerated humidity-temperature stress testing (e.g., 60 °C/90 % RH) to model field failure mechanisms in perovskite PV modules.
• Correlation studies between WVTR values and luminance decay rates in RGB OLED subpixels under constant current drive.
• Process window qualification for roll-to-roll encapsulation lines—validating uniformity across web width via spatially resolved channel mapping.
• Regulatory submission support for FDA 510(k) or CE marking dossiers requiring barrier performance evidence per IEC 62461.

FAQ

How does the calcium degradation method compare to MOCON or infrared sensor-based WVTR systems?
The calcium assay offers superior sensitivity below 10⁻⁵ g/m²/day and direct chemical specificity to H₂O—unlike indirect optical or coulometric detection. It remains the reference method for ultra-barrier validation per ISO 15106-3.
Can the T6000 be used for oxygen transmission rate (OTR) measurement?
No—the system is purpose-built for H₂O-specific detection via Ca oxidation chemistry. OTR requires distinct sensing architectures (e.g., luminescent quenching or coulometric titration).
What is the minimum detectable WVTR under standard test conditions (40 °C/90 % RH)?
At 40 °C/90 % RH with 100 nm Ca films and 24-hour sampling, the lower limit of quantitation (LOQ) is 5×10⁻⁷ g/m²/day (k = 10, based on resistance noise floor and calibration uncertainty).
Is third-party calibration certification available?
Yes—McScience partners with accredited metrology labs in Seoul and Berlin to provide annual calibration certificates traceable to KRISS and PTB standards.
Does the system support custom test protocols beyond predefined temperature/humidity ramps?
Yes—users may define arbitrary time-dependent T/RH profiles, trigger conditional actions (e.g., pause/resume on resistance threshold), and embed custom Python scripts via the API interface.
