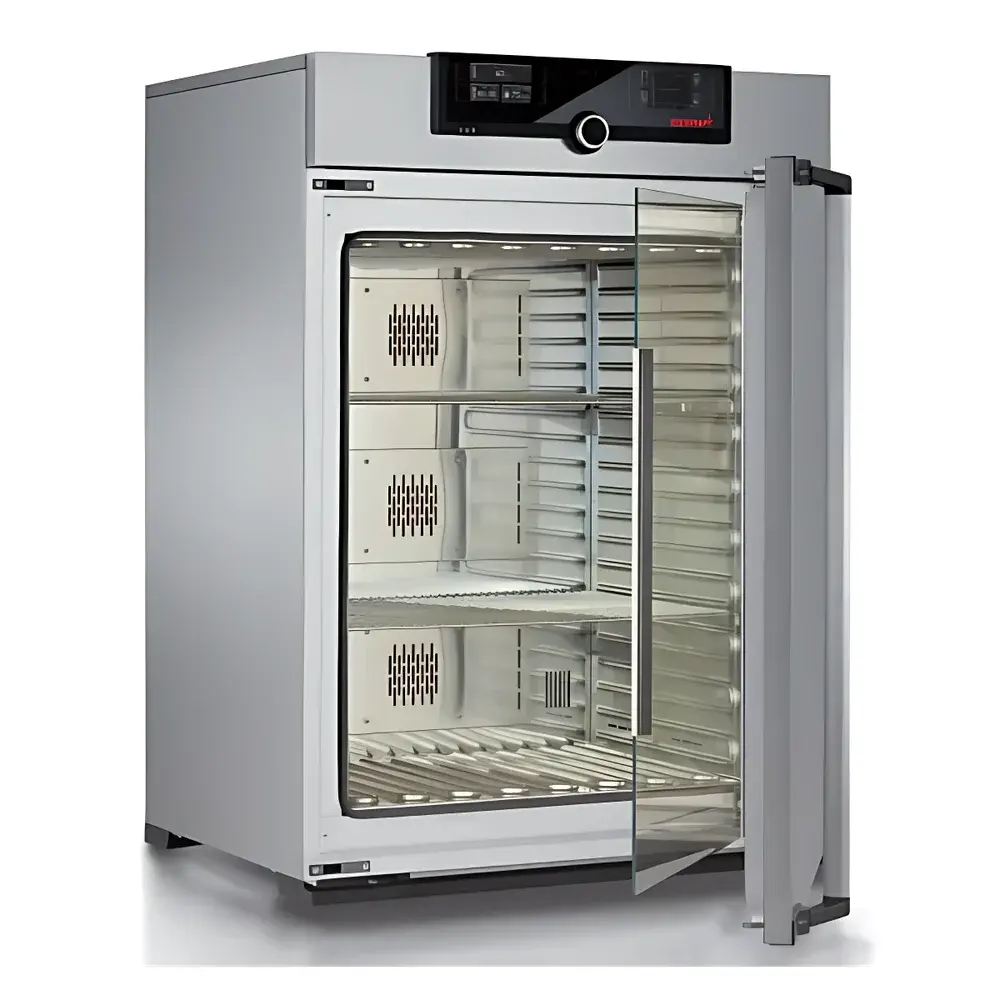

Memmert HPPeco Environmental Chamber Series

Overview

The Memmert HPPeco Environmental Chamber Series is a precision-engineered, solid-state climate chamber designed for long-term stability testing, accelerated aging studies, and controlled-condition sample storage in pharmaceutical, biotechnology, and materials science laboratories. Unlike conventional compressor-based systems, the HPPeco employs high-efficiency Peltier thermoelectric modules for both heating and cooling—enabling precise bidirectional temperature control without refrigerants, moving parts, or oil-lubricated compressors. This architecture eliminates mechanical vibration and acoustic noise (<25 dB(A) at 1 m), ensuring undisturbed incubation of sensitive biological samples and metrologically stable thermal environments. The chamber operates across a validated temperature range of 0 °C to +70 °C and a dynamic humidity range of 10–90 % RH, fully aligned with ICH Q1A(R3) guidelines for long-term, intermediate, and accelerated stability testing protocols. Its energy-optimized design achieves up to 90 % lower power consumption compared to equivalent compressor-driven units—particularly advantageous during extended +20 °C to +30 °C stability runs, where minimal thermal delta reduces thermoelectric duty cycle and maximizes efficiency.

Key Features

• Solid-state Peltier technology: Zero refrigerant use, no scheduled maintenance, and intrinsic compliance with F-Gas Regulation (EU No. 517/2014)
• High-precision microclimate control: ±0.1 °C temperature uniformity (at 25 °C, empty chamber), ±1.5 % RH accuracy (10–90 % RH range)
• Intelligent load-adaptive control: Real-time modulation of thermoelectric module output based on internal thermal mass, door opening events, and sensor feedback
• GLP-compliant operation: Full audit trail support, user access levels (admin/operator), password-protected parameter locking, and electronic signature capability (optional)
• Three-point calibration interface: Direct on-panel adjustment of temperature and humidity setpoints at three independent validation points for IQ/OQ/PQ traceability
• Low-noise, low-vibration enclosure: Vibration amplitude <0.5 µm RMS; acoustically isolated chamber walls and silent fan array

Sample Compatibility & Compliance

The HPPeco series accommodates diverse sample formats—including vials, trays, plates, and sealed containers—within its uniformly conditioned interior. Interior chambers are constructed from electropolished stainless steel (AISI 316L) with seamless welds and rounded corners to support cleaning validation and prevent microbial retention. All models meet ISO 14644-1 Class 8 cleanroom ambient compatibility requirements when installed in controlled laboratory environments. The system supports full regulatory documentation packages for FDA 21 CFR Part 11, EU Annex 11, and WHO TRS 992 compliance. Humidity control utilizes membrane-based desiccant regeneration and ultrasonic humidification—avoiding mineral deposits and condensation-related contamination risks common in steam-based systems.

Software & Data Management

Equipped with Memmert’s proprietary *memmert connect* software (Windows/macOS compatible), the HPPeco enables remote monitoring, real-time data logging, and automated report generation. All temperature and humidity readings are timestamped with millisecond resolution and stored internally (up to 10 years’ worth of 1-min intervals). Data export is available in CSV, PDF, and XML formats compliant with LIMS integration standards. Optional cloud connectivity via TLS 1.2–encrypted MQTT protocol allows centralized fleet management across multi-site facilities. Electronic records include operator ID, event timestamps, alarm logs, and deviation annotations—all structured to satisfy ALCOA+ data integrity principles.

Applications

• ICH Q1A(R3)-compliant stability studies (long-term, accelerated, intermediate conditions)
• Photostability testing (when equipped with optional LED illumination module)
• Controlled-temperature storage of reference standards, APIs, and excipients
• Accelerated degradation testing of polymer-based medical devices and packaging materials
• Environmental stress screening of electronic components under defined thermal-hygric profiles
• Seed germination, fungal culture, and plant tissue incubation requiring ultra-stable, low-vibration conditions

FAQ

Does the HPPeco require refrigerant servicing or compressor oil changes?
No. The solid-state Peltier system contains no refrigerants, lubricants, or wear-prone mechanical compressors—eliminating all routine HVAC maintenance.
Can the HPPeco be validated per GMP Annex 15 requirements?
Yes. The system includes factory-provided DQ/IQ/OQ documentation templates, calibrated NIST-traceable sensors, and configurable alarm thresholds for formal qualification.
Is the LED illumination module spectrally tunable and photometrically calibrated?
Yes. The module offers selectable CCT (2,700 K warm white / 6,500 K cool white / dual-band), intensity control in 1 % increments, and integrated photodiode feedback for luminance stability verification.
What is the maximum allowable internal load for specified temperature/humidity uniformity?
Uniformity specifications apply to standard loading conditions (≤70 % volume occupancy with inert thermal mass); detailed load-dependent performance curves are provided in the Technical Validation Manual.
How is data integrity ensured during power interruption?
Internal non-volatile memory retains all logged data and active setpoints; upon recovery, the chamber resumes operation with no loss of historical records or configuration state.
