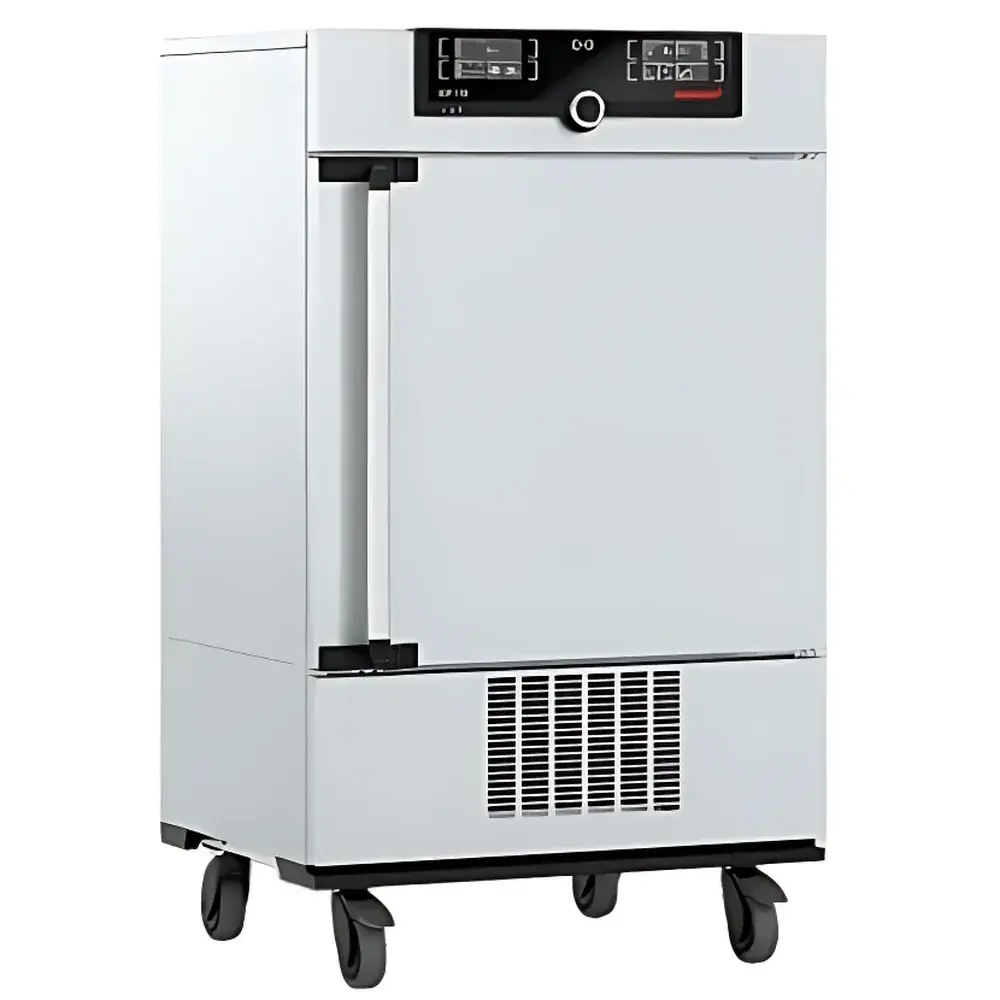

Memmert ICP Series Compressor-Cooled Low-Temperature Biochemical Incubator

Overview

The Memmert ICP Series Compressor-Cooled Low-Temperature Biochemical Incubator is an engineered platform for precise, stable, and reproducible environmental control across a broad thermal range—from sub-zero conditions (–12 °C) to standard incubation temperatures (+60 °C). Unlike Peltier-based or water-jacketed alternatives, the ICP employs a hermetically sealed refrigeration compressor paired with a dual-zone forced-air jacket system. This architecture enables rapid thermal response during both heating and cooling transitions—critical for protocols requiring dynamic temperature cycling, such as cold-adapted microbial cultivation, enzyme stability assays, or low-temperature fermentation studies. The fully enclosed stainless steel chamber (AISI 304 / EN 1.4301) eliminates condensation risks and supports rigorous cleaning validation. Its gas-tight construction, combined with electronically regulated fresh air exchange, ensures consistent CO₂-compatible operation when integrated with external gas modules (optional), while maintaining tight humidity control under non-saturated conditions.

Key Features

• Compressor-driven cooling system delivering stable sub-zero performance without cryogenic consumables or excessive power draw
• Dual-zone air jacket with independent heating/cooling circuits—enabling uniform ΔT < ±0.3 °C at setpoint across full volume (per DIN 12880 verification)
• TwinDISPLAY touchscreen interface with intuitive AtomCONTROL software for multi-parameter programming (temperature, fan speed, lighting, air exchange)
• Stepwise adjustable forced convection (10–100% in 10% increments), enabling optimization for sensitive cell monolayers or dense microbial cultures
• Programmable daylight simulation: LED interior lighting synchronized with temperature and fan profiles to emulate circadian cycles
• Motorized, preheated fresh air inlet with closed-loop damper control—minimizing thermal load during air exchange and preventing condensation ingress
• Full GLP/GMP readiness: Audit-trail enabled logging (via USB/Ethernet), user access levels, electronic signature support (21 CFR Part 11 compliant configuration available)

Sample Compatibility & Compliance

The ICP series accommodates a wide spectrum of life science workflows—from aerobic/anaerobic bacterial culture and yeast propagation to mammalian cell line maintenance at reduced metabolic rates (e.g., hypothermic storage at 4–12 °C). Its robust stainless steel interior (electropolished finish optional) resists corrosion from ethanol, hydrogen peroxide vapor, and common disinfectants—facilitating compliance with ISO 14644 cleanroom-grade decontamination protocols. All models conform to EN 61000-6-3 (EMC), EN 61000-6-2 (immunity), and carry CE marking under the EU Machinery Directive 2006/42/EC. Design documentation aligns with ISO 13485:2016 for medical device–adjacent applications (e.g., diagnostic reagent stability testing). Validation packages—including IQ/OQ templates and traceable calibration certificates—are provided for FDA-regulated environments.

Software & Data Management

AtomCONTROL firmware provides deterministic real-time control with 0.1 °C resolution and ±0.2 °C accuracy (at 37 °C, per factory calibration). Data logging records temperature, fan speed, light status, and air damper position at user-defined intervals (1 sec–24 h), stored locally on internal flash memory or streamed via Ethernet to LIMS or SCADA systems. USB export supports CSV and PDF report generation with embedded digital signatures. Remote monitoring and alarm notification (email/SNMP) are configurable. Firmware updates preserve all user programs and historical logs—ensuring continuity during routine maintenance cycles.

Applications

• Cold-acclimation studies in plant physiology and psychrophilic microbiology
• Long-term storage of hybridoma cultures and primary isolates at 4–8 °C
• Controlled-rate cooling for cryopreservation media optimization
• Accelerated stability testing of biologics and diagnostics under ICH Q1A(R3) guidelines
• Environmental simulation for ASTM D3574 foam compression-set or ISO 11607 packaging integrity validation
• Low-temperature enzymatic reaction profiling (e.g., restriction digests, ligations)

FAQ

What is the minimum operating temperature, and how is sub-zero stability achieved?
The ICP maintains ±0.3 °C stability at –12 °C using a dedicated low-temperature compressor circuit and vacuum-insulated jacket—eliminating reliance on external chillers or dry ice.
Can the incubator be validated for GxP environments?
Yes. Factory-provided IQ/OQ documentation, NIST-traceable sensor calibration, and optional 21 CFR Part 11 audit trail modules support FDA, EMA, and PMDA submissions.
Is humidity control available?
Humidity is not actively controlled; however, the sealed chamber and preheated air inlet minimize relative humidity drift—typically maintaining RH 30–60% at 20–37 °C (non-condensing). External humidification modules may be integrated via auxiliary ports.
How does the air circulation system differ from conventional fan-forced incubators?
The ICP’s variable-speed tangential blower operates independently of heating/cooling demand, allowing airflow optimization without compromising thermal uniformity—validated per DIN 12880 Annex B.
Are spare parts and service support available globally?
Memmert maintains authorized service centers in >60 countries; critical components (compressor, PID controllers, touchscreens) carry 24-month warranties and are stocked regionally for <72-hr dispatch.
