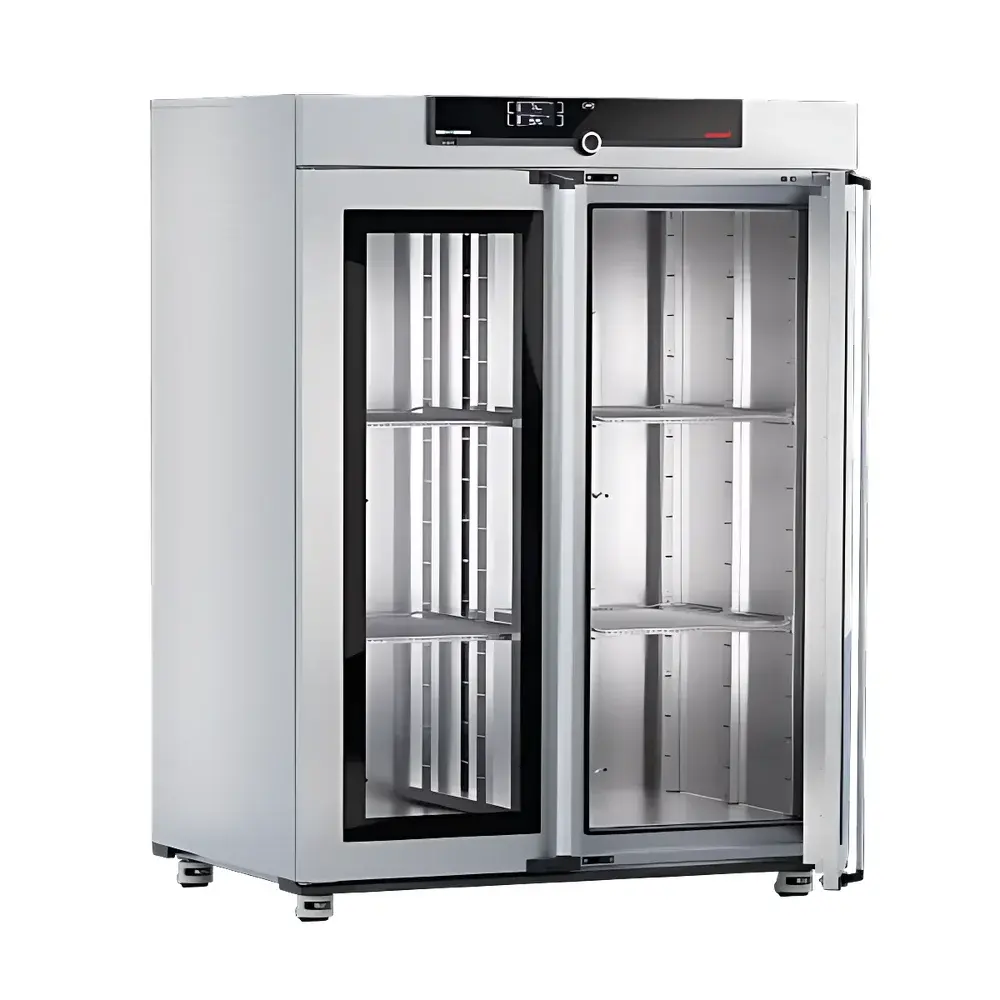

Memmert IPP1400eco Low-Temperature Incubator (Single-Display Model)

Overview

The Memmert IPP1400eco is a precision-engineered low-temperature incubator designed for laboratories requiring stable, vibration-free thermal environments across a broad operational range—from sub-ambient (0 °C) to elevated temperatures (up to 70 °C). Unlike conventional compressor-based incubators, the IPP1400eco employs solid-state Peltier thermoelectric modules for bidirectional temperature control—enabling both active heating and cooling without mechanical refrigerants or moving compressors. This thermoelectric architecture eliminates oil-lubricated components, refrigerant leakage risks, and associated maintenance cycles. The system operates on the principle of the Peltier effect: electrical current applied across dissimilar semiconductors induces directional heat transfer, allowing precise, reversible thermal regulation with high reproducibility. Its compact footprint, silent operation (<35 dB(A)), and near-zero mechanical vibration make it especially suitable for sensitive biological assays—including cell culture under thermal stress, insect rearing, enzyme kinetics, and microbiological studies where mechanical disturbance must be minimized.

Key Features

• Peltier-based thermoelectric heating/cooling system—no compressor, no refrigerant gases, no oil lubrication
• Energy-efficient operation: up to 90% lower power consumption versus equivalent compressor-driven units during cooling phases
• Temperature stability: ±0.1 °C at setpoint (typical), with uniformity ≤±0.3 °C across working volume (measured per DIN 12880)
• Vibration-damped chamber design: <0.5 µm peak-to-peak displacement at 1–100 Hz—validated for entomological and microplate-based applications
• Condensate-free interior: sealed Peltier heat exchangers relocate condensation exclusively to external cold-side fins; no internal moisture accumulation
• Forced-air convection with optimized airflow geometry ensures rapid thermal equilibration and homogeneous temperature distribution
• Single high-resolution TFT display with intuitive menu navigation and real-time parameter visualization

Sample Compatibility & Compliance

The IPP1400eco accommodates standard laboratory vessels including Petri dishes, multiwell plates (6–96-well), flasks (up to 2 L), and insect rearing cages. Its absence of internal condensation supports long-term storage of hygroscopic samples and humidity-sensitive cultures without desiccation or cross-contamination. The unit complies with key international standards including IEC 61010-1 (safety requirements for electrical equipment), EN 61326-1 (EMC for laboratory instruments), and meets essential requirements of the EU Machinery Directive 2006/42/EC. While not intrinsically humidified, its dry, stable environment aligns with ISO 14644-1 Class 8 cleanroom-compatible workflows when deployed in controlled laboratory settings. For applications requiring concurrent humidity control, Memmert’s HPPeco series—also Peltier-based—is recommended as a complementary platform.

Software & Data Management

The IPP1400eco operates autonomously via its embedded microcontroller and does not require external PC connectivity for basic operation. All temperature profiles, setpoints, and runtime logs are stored internally with timestamped event recording (power-on, door openings, alarms). Optional RS485 interface enables integration into centralized lab monitoring systems (e.g., LabVantage, Thermo Fisher SampleManager) using Modbus RTU protocol. Audit trail functionality supports GLP-compliant documentation: all parameter changes, alarm acknowledgments, and system events are logged with user ID (if enabled via external authentication gateway) and immutable timestamps. Data export is supported via USB flash drive (FAT32 formatted) in CSV format, facilitating traceability for FDA 21 CFR Part 11–aligned quality systems when paired with validated third-party electronic lab notebook (ELN) solutions.

Applications

• Low-temperature microbial cultivation (e.g., psychrophilic bacteria, lactic acid starters)
• Insect and arthropod rearing protocols requiring vibration-free thermal staging
• Enzyme activity assays across defined thermal gradients (0–70 °C)
• Stability testing of biopharmaceutical intermediates under non-refrigerated but sub-ambient conditions
• Cell cycle synchronization studies involving temperature-shift protocols
• Material compatibility testing of medical devices under thermal cycling (ISO 10993-12)
• Calibration reference chambers for thermocouple and RTD validation in metrology labs

FAQ

Does the IPP1400eco support humidity control?
No—the IPP1400eco is a dry-heat/cooled incubator. For combined temperature and humidity regulation, consider the Memmert HPPeco series, which integrates Peltier-based humidification.
Can it operate continuously at 0 °C in ambient environments above 30 °C?
Yes—its Peltier cooling capacity is rated for continuous operation at 0 °C with ambient temperatures up to 32 °C (per technical datasheet, condition: 50% max relative humidity, unobstructed ventilation).
Is the unit suitable for GMP-regulated environments?
It meets core hardware requirements for GMP Annex 11 and EU GMP Chapter 4; however, full qualification (IQ/OQ/PQ) must be performed by the end user in situ, including mapping per ISO 14644-3 and alarm response validation.
What maintenance is required?
Annual inspection of external Peltier heat sink fins and fan intake filters is recommended. No refrigerant recharge, compressor oil change, or desiccant replacement is necessary.
Is the temperature sensor calibrated traceable to NIST standards?
Each unit ships with a factory calibration certificate (DIN EN ISO/IEC 17025 accredited); optional on-site calibration with NIST-traceable reference sensors is available through Memmert Service Centers.
