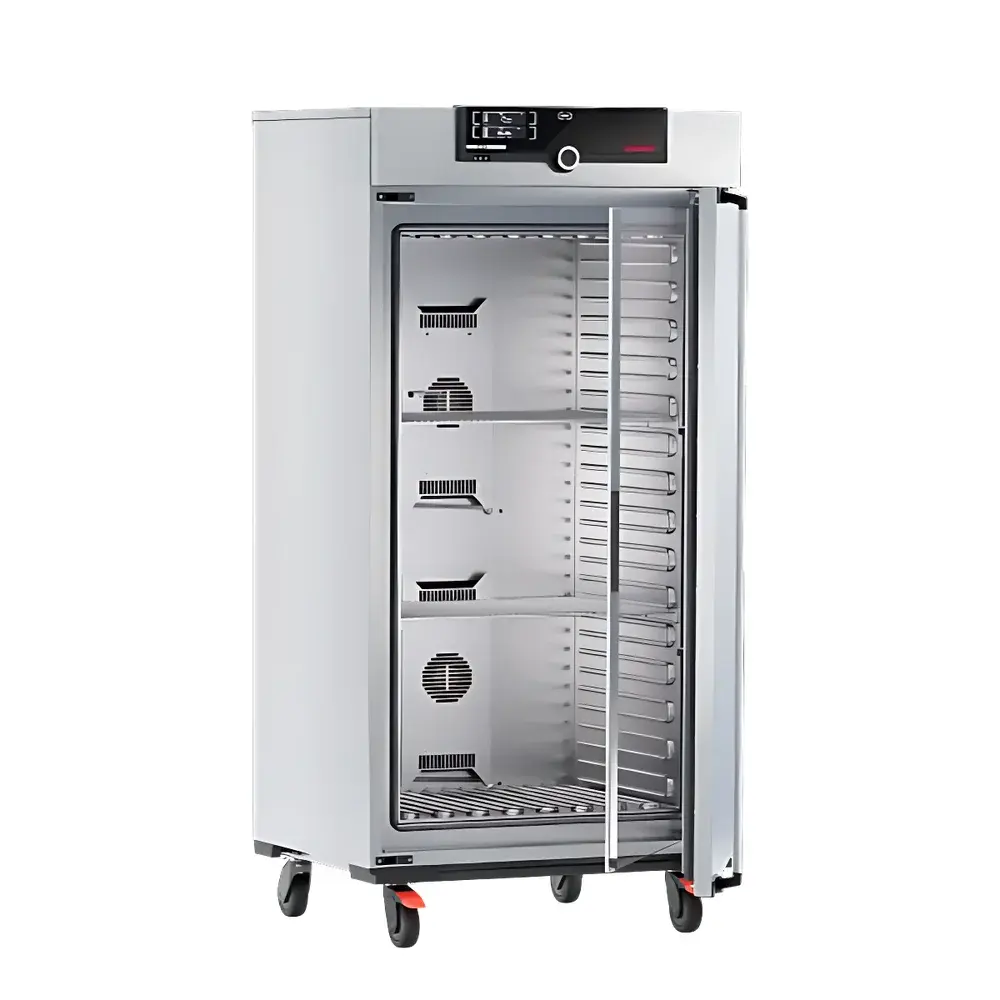

Memmert IPP410eco Low Temperature Incubator (Single-Display Model)
| Brand | Memmert |
|---|---|
| Origin | Germany |
| Manufacturer Type | Direct Manufacturer |
| Origin Category | Imported |
| Model | IPP410eco |
| Cooling Method | Peltier Thermoelectric Cooling |
| Temperature Range | 0 °C to 70 °C |
Overview
The Memmert IPP410eco is a precision-engineered low temperature incubator designed for laboratories requiring stable, energy-efficient thermal control across a broad operational range (0 °C to 70 °C). Unlike conventional compressor-based systems, the IPP410eco employs solid-state Peltier thermoelectric modules for both heating and cooling—enabling bidirectional thermal regulation without mechanical refrigerants or moving parts beyond the internal fan. This architecture eliminates vibration transmission, minimizes acoustic emissions (<35 dB(A) at 1 m), and ensures exceptional spatial temperature uniformity (±0.3 °C at 37 °C, typical) via forced-air convection with tangential airflow distribution. The system operates exclusively on demand: power is consumed only during active heating or cooling phases, resulting in up to 90% lower energy consumption compared to equivalent compressor-driven units under comparable duty cycles. Its sealed thermoelectric heat exchanger prevents internal condensation—moisture forms exclusively on external cold-side heatsinks—making it suitable for moisture-sensitive applications such as cell culture, enzyme kinetics, and entomological studies where internal humidity stability and contamination control are critical.
Key Features
- Peltier-based thermoelectric heating/cooling system with zero refrigerant use and no compressor-induced vibration or noise
- Energy-optimized operation: consumes power only during active thermal transitions; idle state draws minimal standby current
- Compact footprint (W × D × H: 600 × 620 × 850 mm) ideal for space-constrained laboratory environments
- High-precision microprocessor control with 0.1 °C setpoint resolution and real-time PID feedback loop adjustment
- Internal chamber constructed from electropolished stainless steel (AISI 304), fully autoclavable door gasket, and seamless welded corners for microbial containment
- Integrated overtemperature and sensor-failure safety cutoffs compliant with EN 61010-1 and IEC 61000-6-3 EMC standards
Sample Compatibility & Compliance
The IPP410eco supports a wide range of biological and biochemical samples—including mammalian and insect cell cultures, microbial growth assays, PCR pre-incubation, and protein stability studies—without introducing mechanical disturbance or thermal overshoot. Its condensation-free interior eliminates risk of sample wetting or cross-contamination from drip formation. The unit meets key regulatory requirements for GLP-compliant environments: full traceability of temperature logs (via optional RS232/USB interface), configurable alarm thresholds, and audit-ready event logging. While not intrinsically humidified, its design allows seamless integration with external humidity generators or compatibility with Memmert’s HPPeco series when controlled relative humidity (30–95% RH) is required per ISO 17025 or USP guidelines.
Software & Data Management
Temperature data is recorded internally at user-defined intervals (1 s to 24 h) with non-volatile memory retention (≥10,000 data points). Optional COMET Logger software (Windows/macOS compatible) enables real-time monitoring, CSV export, and graphical trend analysis. All logged entries include timestamp, setpoint, actual chamber temperature, and status flags (e.g., “Heating Active”, “Cooling Active”, “Alarm Triggered”). For regulated environments, the system supports 21 CFR Part 11-compliant configurations when paired with validated third-party LIMS or ELN platforms—ensuring electronic signatures, audit trails, and role-based access control for temperature-critical workflows.
Applications
- Low-temperature microbiological incubation (e.g., psychrophilic bacteria, fungal spore germination)
- Insect rearing and behavioral studies requiring vibration-free thermal environments
- Enzyme activity assays at sub-ambient temperatures with high reproducibility
- Pre-incubation of nucleic acid samples prior to qPCR or NGS library preparation
- Stability testing of biopharmaceutical intermediates per ICH Q5C guidance
- Material science applications involving polymer crystallization kinetics within 0–70 °C range
FAQ
Does the IPP410eco require external ventilation or exhaust ducting?
No—its closed-loop Peltier system dissipates heat externally via passive aluminum heatsinks and low-noise axial fans; no ducting or room venting is necessary.
Can the unit maintain temperature stability during frequent door openings?
Yes—the forced-air convection system recovers setpoint within ≤3 minutes after a 10-second door opening at 25 °C ambient, per Memmert internal validation protocol IPP-VER-02.
Is the chamber volume truly usable for stacking multi-tier shelving?
Yes—the 410 L net volume includes unobstructed vertical clearance (620 mm height) and standardized shelf support rails accommodating up to four adjustable stainless-steel shelves (included).
What calibration documentation is provided upon delivery?
Each unit ships with a factory-issued temperature uniformity and accuracy certificate (traceable to PTB, Germany), performed at three points (top/mid/bottom) across 10 °C, 25 °C, and 45 °C.
Is firmware upgrade capability supported in the field?
Yes—firmware updates are delivered via USB stick and executed through the front-panel menu; version history and update logs are retained in device memory.
