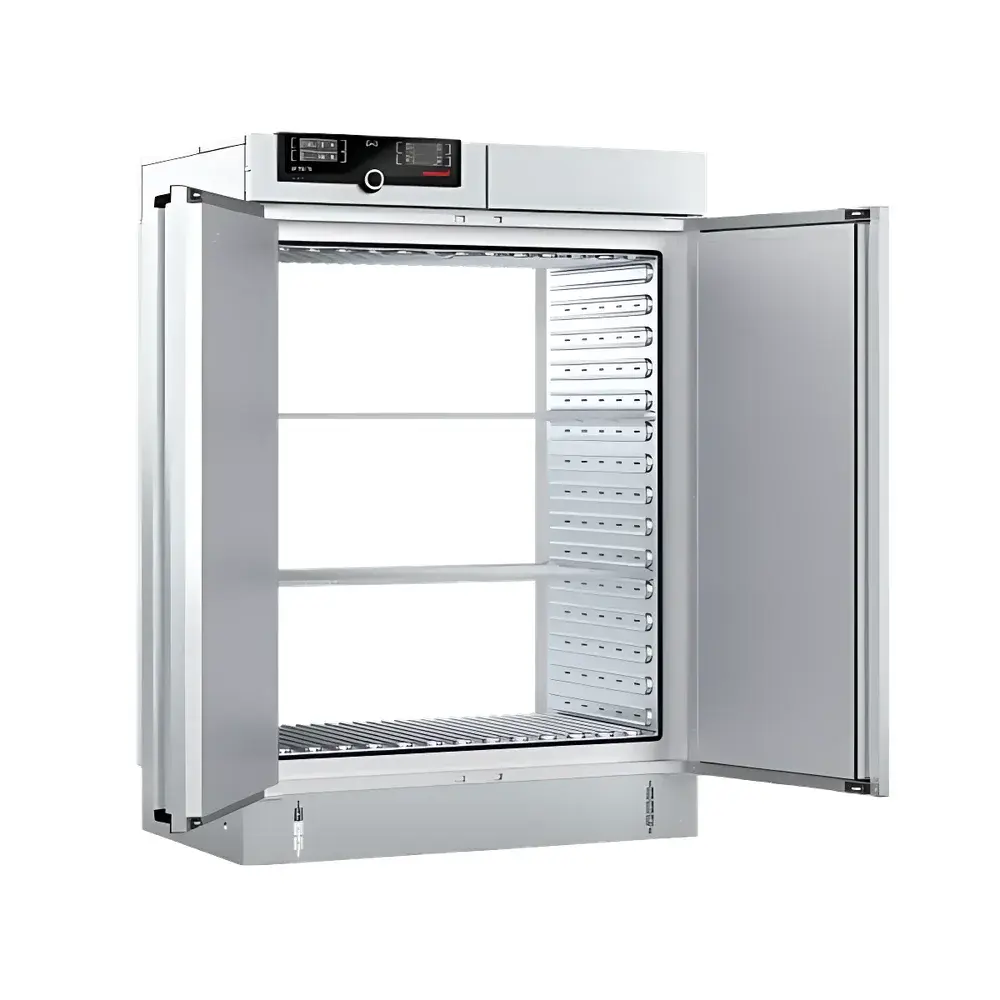

Memmert SFplus Twin-Display Sterilization Oven

Overview

The Memmert SFplus Twin-Display Sterilization Oven is an ISO 13485-certified, Class B medical device sterilizer engineered for precise thermal decontamination of reusable surgical instruments, glassware, laboratory tools, and critical process equipment. Unlike conventional drying ovens, the SFplus implements a validated dry-heat sterilization cycle based on time–temperature lethality principles—specifically designed to achieve ≥6-log reduction of highly resistant bacterial spores (e.g., Bacillus atrophaeus) at defined exposure durations above 160 °C. Its core operational integrity relies on the patented SetpointWAIT function: sterilization timing initiates only after *all* configured temperature sensors—including chamber wall, air, and optionally placed sample-proximal Pt100 probes—have simultaneously reached and stabilized at the user-defined setpoint. This eliminates cumulative thermal lag errors and ensures compliance with EN 554:2015 and DIN 58946-2 Annex A for sterility assurance level (SAL) validation.

Key Features

• Quadrilateral heating system with independently controlled heaters on all four chamber walls, ensuring uniform thermal distribution (±0.3 °C at 180 °C per DIN 12880) and eliminating cold spots.
• TwinDISPLAY interface: two synchronized, high-brightness TFT screens—one dedicated to real-time process monitoring (temperature, time, phase status), the other to parameter configuration, event log review, or multi-channel sensor visualization.
• SetpointWAIT logic integrated into firmware: prevents timer activation until thermal equilibrium is confirmed across up to three user-configured measurement points—mandatory for GLP/GMP traceability and regulatory audits.
• Optional electromagnetic door lock with RFID-based ID card authentication: enforces operator authorization, prevents unauthorized cycle interruption, and logs access events with timestamp and user ID.
• Comprehensive digital I/O: 4–20 mA analog output for external SCADA integration; RS485 Modbus RTU port for centralized lab automation systems; USB-C for encrypted data export (CSV/Excel).
• Pre-installed validation-ready firmware supporting IQ/OQ documentation templates aligned with ISO 13485 and FDA 21 CFR Part 11 when paired with optional audit trail and electronic signature modules.

Sample Compatibility & Compliance

The SFplus accommodates stainless-steel trays, borosilicate glass containers, silicone tubing, metal forceps, and autoclave-compatible polymer components—provided materials are rated for continuous exposure up to 250 °C. Chamber volume options (30–750 L) support both benchtop validation studies and production-scale sterilization batches. All models undergo factory calibration against NIST-traceable standards and ship with a full Certificate of Conformance (CoC) and Factory Calibration Report. The system meets essential requirements of the EU Medical Device Regulation (MDR 2017/745), carries CE marking under Directive 2014/34/EU (ATEX optional), and supports validation protocols required by ISO 17025-accredited laboratories.

Software & Data Management

Memmert’s optional ControlCOCKPIT Professional software enables remote cycle programming, live multi-device monitoring, and automated report generation compliant with 21 CFR Part 11 Annex 11. Data integrity safeguards include AES-256 encryption, immutable audit trails (user actions, parameter changes, alarm events), role-based access control (admin/operator/auditor), and electronic signatures with biometric or smartcard verification. Raw temperature/time datasets are stored internally (≥10,000 cycles) and exportable in CSV format with embedded metadata (cycle ID, operator ID, sensor channel IDs, calibration expiry dates). All logs retain ISO 8601 timestamps with UTC synchronization capability.

Applications

• Terminal sterilization of heat-stable surgical kits prior to aseptic packaging in Class C/D cleanrooms.
• Depyrogenation of glass vials and stoppers used in parenteral manufacturing (validated per USP <1211>).
• Decontamination of reusable analytical components (e.g., HPLC injector parts, GC liners) without solvent residue risk.
• Thermal validation of sterilization processes using biological indicators (BIs) and thermocouple-mapped load studies.
• ISO/IEC 17025-compliant calibration labs performing temperature uniformity mapping (DIN 12880) and stability testing.

FAQ

What is the purpose of the SetpointWAIT function?
SetpointWAIT ensures that the sterilization timer begins only after all selected temperature sensors have reached and held the target temperature for ≥10 seconds—eliminating false starts due to thermal inertia and guaranteeing accurate SAL delivery.
Can the SFplus be validated for GMP environments?
Yes—when equipped with optional audit trail, electronic signature, and calibrated Pt100 probes, the SFplus meets FDA 21 CFR Part 11 and EU Annex 11 requirements for computerized system validation.
Is external temperature monitoring supported?
Yes—the oven provides a dedicated Pt100 input port and supports simultaneous display of up to three independent sensor readings (chamber air, wall, and sample probe) on the TwinDISPLAY interface.
How does the electromagnetic door lock enhance safety?
It physically prevents door opening during active sterilization cycles and requires authorized RFID ID card authentication—enforcing SOP adherence and preventing accidental exposure to high-temperature hazards.
What documentation is provided for qualification?
Each unit ships with a Factory Acceptance Test (FAT) report, Certificate of Conformance, calibration certificate (NIST-traceable), and IQ/OQ protocol templates compatible with Veeva Vault and TrackWise QMS platforms.
