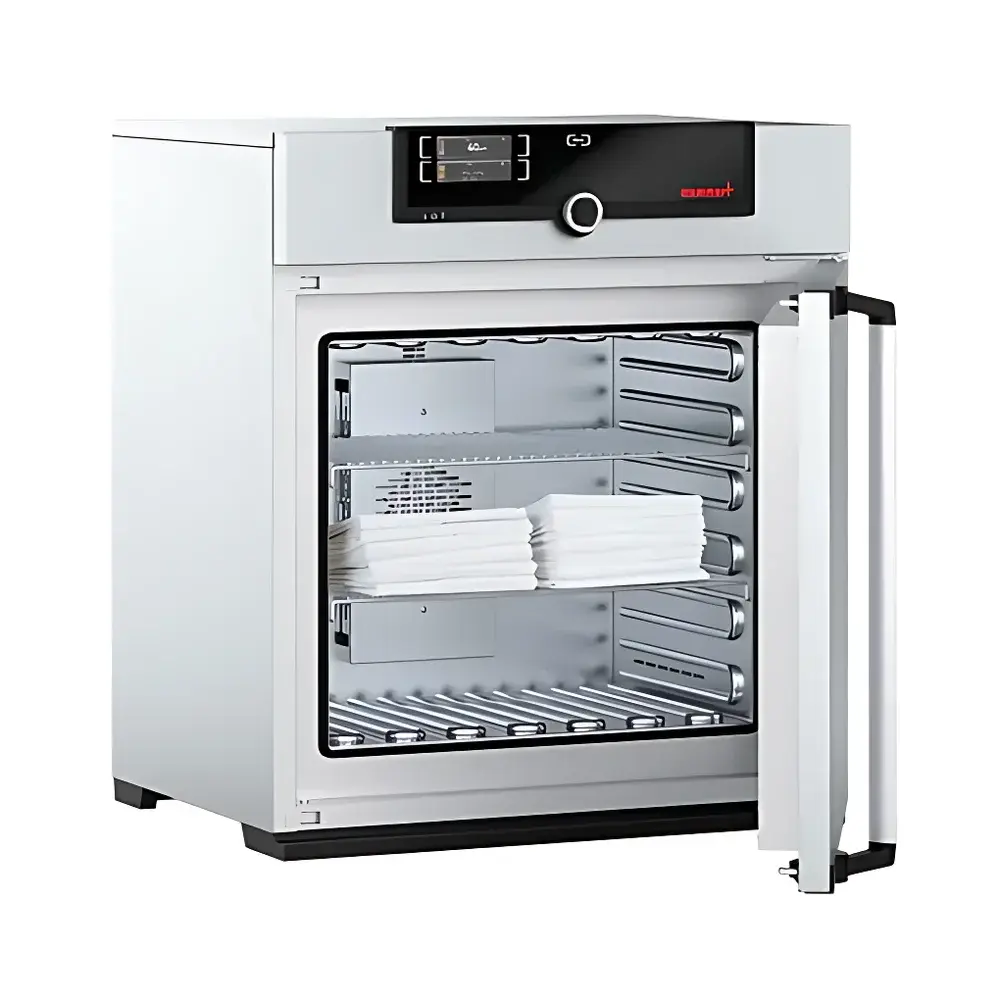

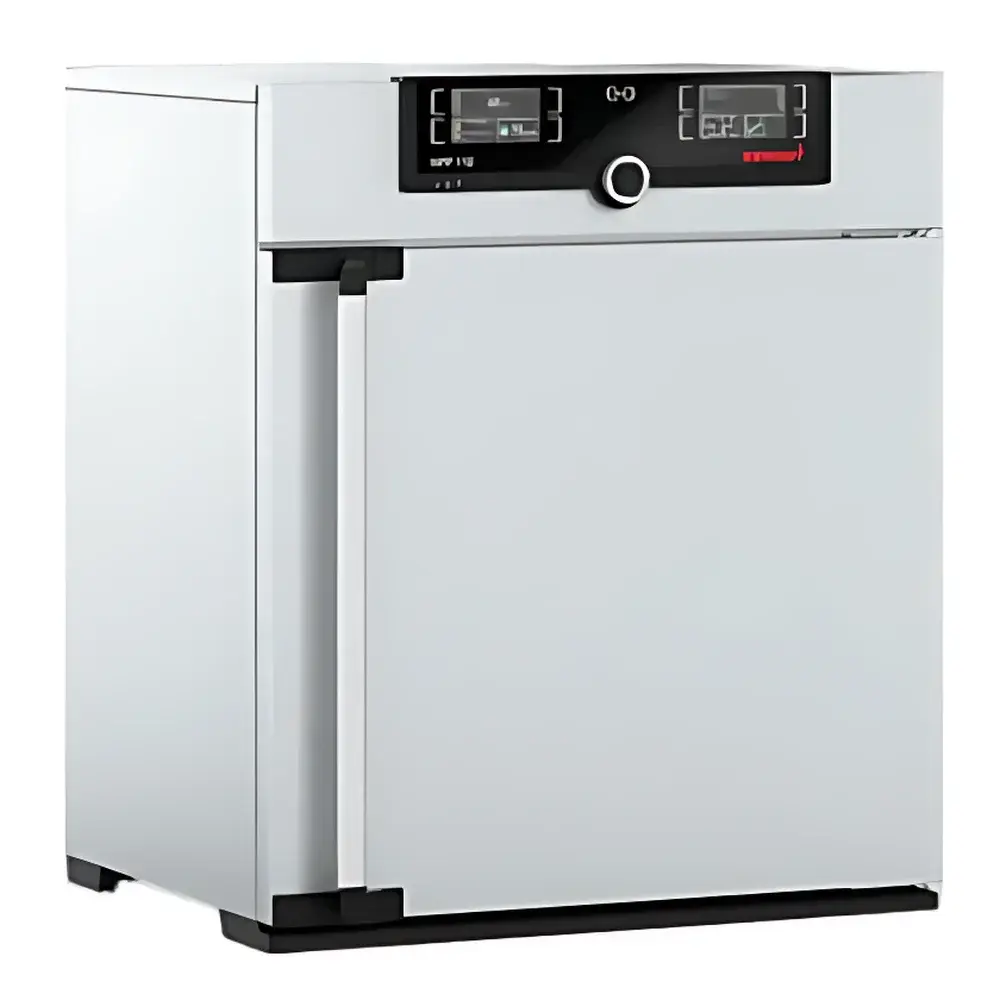

Memmert UN/UF Series Universal Drying Ovens
| Brand | Memmert |
|---|---|
| Origin | Germany (not USA — corrected per official Memmert documentation) |
| Model Series | UN, UNplus, UF, UFplus |
| Temperature Range | Ambient +5 K (UN/UNplus) or +10 K (UF/UFplus) to +300 °C |
| Temperature Uniformity | ≤ ±0.1 °C at ≤99.9 °C |
| External Dimensions (W×H×D) | 585 × 707 × 434 mm |
| Internal Chamber Volumes | 30, 55, 75, 110, 160, 260, 450, 750 L |
| Convection Type | Natural (UN) or Forced-air (UF) |
| Compliance | ICH Q1A, GLP/GMP-ready, FDA 21 CFR Part 11–compatible software options (AtmoCONTROL), ISO 17025 traceable calibration support |
| Air Exchange Control | Electronically adjustable via ControlCOCKPIT interface |
Overview
The Memmert UN and UF Series Universal Drying Ovens represent a benchmark in precision-controlled thermal processing for laboratories, quality control units, and regulated R&D environments. Engineered for reproducibility and long-term stability, these ovens operate on the principle of convective heat transfer—either natural convection (UN models) or forced-air circulation (UF models)—to ensure uniform temperature distribution across the entire chamber volume. Unlike generic heating cabinets, Memmert’s design integrates thermally optimized double-wall insulation, preheated fresh air intake, and microprocessor-regulated PID control to eliminate cold spots and minimize thermal overshoot. The UNplus and UFplus variants extend functionality with dual-display interfaces, enhanced data logging, and compatibility with AtmoCONTROL software for programmable air exchange rate management—critical for applications ranging from moisture loss determination to accelerated stability testing under ICH Q1A conditions.
Key Features
- High-precision temperature control: ±0.1 °C uniformity up to 99.9 °C; ±0.5 °C above 100 °C—validated per DIN 12880 and EN 61010-1
- Preheated fresh air system: Incoming ambient air is conditioned in a dedicated preheating chamber before entering the working space, preventing thermal shock to sensitive samples and reducing drying time variability
- Electronically adjustable air exchange: Fan speed, damper position, and ventilation aperture are fully programmable via ControlCOCKPIT touchscreen interface—enabling precise replication of airflow-dependent protocols (e.g., cable insulation aging per IEC 60811)
- Modular chamber configuration: Eight internal volumes (30–750 L) with reinforced stainless-steel chambers (option B0), HEPA-grade air filtration (K1, 80% efficiency at 3 µm), and optional quadruple-glazed full-view door (option 305575…)
- Regulatory readiness: Supports GLP-compliant audit trails, electronic signatures, and 21 CFR Part 11–enabled AtmoCONTROL software (with optional V4 three-point calibration certificate at +100 °C, +160 °C, +220 °C)
- Energy-optimized architecture: Patented EcoMode reduces standby power consumption by up to 40%; thermal mass stabilization ensures minimal energy fluctuation during extended stability runs
Sample Compatibility & Compliance
Memmert UN/UF ovens accommodate diverse sample types—including powders, granular media (sand, grain), polymer-coated wires, sterile textile packs, and pharmaceutical reference standards—without cross-contamination or thermal degradation. The UF and UFplus models meet critical requirements for dry-heat sterilization of surgical textiles (EN 285 Annex C) when equipped with A6 high-temperature alarm and validated cycle parameters. Chamber materials conform to USP and ISO 10993-5 for non-cytotoxicity. All models support optional Pt100 sensor integration (D7 interface) for independent temperature monitoring at user-defined locations, enabling spatial mapping per ASTM E2251. Documentation packages include factory calibration certificates traceable to DKD/DAkkS-accredited standards.
Software & Data Management
AtmoCONTROL software (standard with UFplus, optional for UF) provides full remote supervision: real-time temperature profiling, air exchange rate scheduling, event-triggered alarms, and automated report generation in PDF/CSV format. Data integrity is enforced through role-based access control, electronic audit trails, and encrypted local storage compliant with FDA 21 CFR Part 11 Subpart B. The ControlCOCKPIT interface logs all parameter changes—including fan speed (V3/V6), damper actuation, and door opening events—with timestamps and operator IDs. Optional D7 analog output (4–20 mA) enables integration into centralized SCADA or LIMS platforms for continuous environmental monitoring in stability chambers or cleanroom support areas.
Applications
- ICH Q1A(Q) stability studies: Controlled temperature (0–70 °C) and humidity (10–90 %RH, with optional humidification module) for long-term and accelerated testing of APIs and finished dosage forms
- Moisture content analysis: Gravimetric drying per AOAC 950.46, ASTM D2231, and ISO 787-2 for minerals, soils, and polymers
- Thermal aging of electrical insulation: Precise air exchange control ensures repeatable oxidation kinetics in wire/cable qualification per UL 1581 and IEC 60811-1-2
- Dry-heat sterilization validation: UF-series ovens support validation of sterilization cycles for low-bioburden textiles per ISO 11140-1 and EN 554
- Material curing and stress-relief annealing: Stable ramp/soak profiles for composites, adhesives, and metal alloys where thermal gradient control is critical
- Reference standard conditioning: ISO/IEC 17025-compliant storage of hygroscopic standards prior to analytical use
FAQ
What distinguishes UN from UF models?
The UN series uses natural convection and is optimized for gentle, low-turbulence drying of thermally sensitive materials. The UF series employs a rear-mounted, variable-speed centrifugal fan for forced-air circulation—delivering faster heat-up times, tighter uniformity, and programmable air exchange rates.
Can these ovens be used for sterilization?
Yes—UF and UFplus models equipped with the A6 high-temperature alarm module are validated for dry-heat sterilization of wrapped surgical textiles per EN 285 Annex C, provided cycle parameters are qualified per ISO 17665-1.
Is AtmoCONTROL software included?
AtmoCONTROL is standard on all UFplus models and available as an optional upgrade for UF units. It requires a Windows PC and supports both local and networked deployment with TLS 1.2 encryption.
How is temperature uniformity verified?
Uniformity is verified using nine calibrated Pt100 sensors placed at standardized positions (per DIN 12880). Validation reports include deviation maps and statistical summaries (mean, min/max, SD) for each setpoint.
Are custom port configurations supported?
Yes—up to eight configurable ports (F0–F9, D6, D7) are available for instrumentation feedthroughs, gas lines, or sensor cables. All ports feature thermally insulated, plug-sealed closures to maintain chamber integrity.
