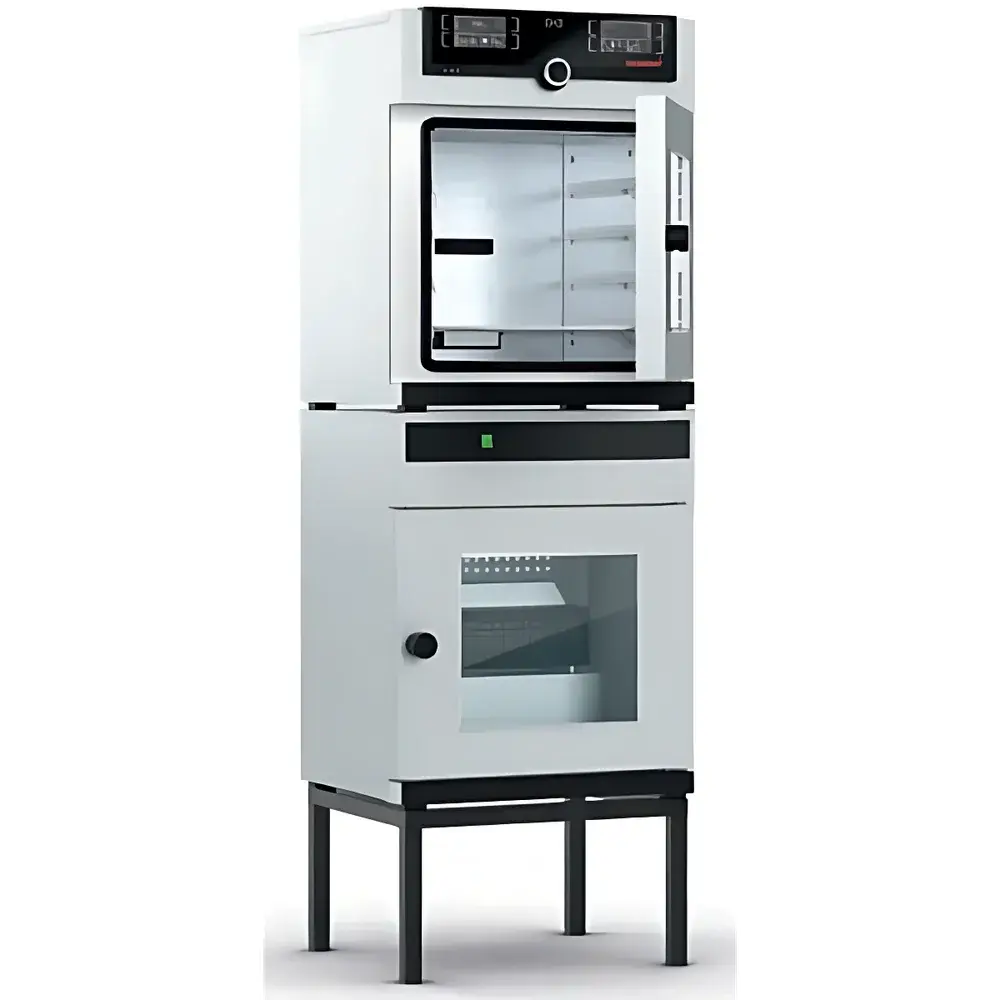

Memmert VO Series Vacuum Oven

Overview

The Memmert VO Series Vacuum Oven is a precision-engineered laboratory instrument designed for controlled thermal processing under reduced pressure. Operating on the fundamental principle of vacuum-assisted drying and heat treatment, it eliminates ambient oxygen and lowers the boiling point of solvents or moisture—enabling gentle, uniform, and residue-free sample conditioning. Unlike conventional convection ovens, the VO series employs direct conductive heating via temperature-controlled stainless-steel shelves, each equipped with an embedded Pt100 sensor and independent thermal regulation. This architecture ensures rapid thermal equilibration, minimal overshoot, and exceptional spatial uniformity across the chamber volume—critical for thermally sensitive materials such as pharmaceutical intermediates, polymer precursors, battery electrode coatings, and analytical standards.

Key Features

• Direct Plate Heating Technology: Each shelf integrates resistive heating elements and high-accuracy Pt100 sensors, enabling real-time feedback control and individual calibration per shelf—eliminating thermal gradients and ensuring reproducible process outcomes.
• Digital Vacuum Regulation: A closed-loop digital pressure control system replaces analog gauges, delivering precise setpoint maintenance from 2 mbar to atmospheric pressure (1100 mbar), with resolution down to 0.1 mbar and repeatability ±0.5 mbar.
• ControlCOCKPIT Interface: A 7-inch capacitive touchscreen provides intuitive access to multi-step programs, real-time trend graphs, alarm management, and user-level access control (admin/operator modes).
• AtmoCONTROL Software Integration: Enables remote monitoring, automated protocol execution, electronic signature support, and full 21 CFR Part 11-compliant audit trails—including timestamped parameter changes, door openings, and vacuum ramp events.
• Energy-Efficient Vacuum Pump System: Optional Memmert chemically resistant diaphragm pump features variable-speed drive, automatic load-adaptive operation, and predictive maintenance alerts—reducing energy consumption by up to 70% versus fixed-speed alternatives.
• Modular Chamber Expansion: Standard configurations include one heated shelf (VO 29: one shelf port; VO 49/101: two ports); optional modules support up to six independently controlled shelves, inert gas purging (N₂/Ar), and external alarm relay outputs for facility integration.

Sample Compatibility & Compliance

The VO series accommodates a broad spectrum of sample types—including hygroscopic powders, solvent-laden filters, thin-film substrates, ceramic green bodies, and lyophilized biologics—without risk of oxidation, decomposition, or surface cracking. Its stainless-steel interior (AISI 304), silicone-free sealing system, and low-outgassing chamber design meet ISO 14644-1 Class 5 cleanroom compatibility requirements. All models comply with EN 61010-1 (safety), EN 61326-1 (EMC), and are validated for use in GLP and GMP environments. Vacuum and temperature profiles can be fully documented and exported in CSV/PDF formats for regulatory submission per ICH Q5C, USP , and ASTM E2048-22.

Software & Data Management

AtmoCONTROL serves as the central data acquisition and process orchestration platform. It supports up to 99 programmable sequences, each with up to 20 segments (ramp/hold/vacuum steps). All operational data—including shelf-specific temperatures, chamber pressure, pump status, and door interlock states—are logged at user-defined intervals (1 s to 60 min) with SHA-256 hash integrity verification. Role-based permissions, electronic signatures, and tamper-proof archive export ensure compliance with FDA 21 CFR Part 11 Annex 11 and EU GMP Annex 11. Data backups are automatically synchronized to network drives or cloud storage via TLS 1.2–encrypted SMB/FTP protocols.

Applications

• Residual solvent removal from active pharmaceutical ingredients (APIs) prior to crystallization or tablet compression
• Moisture content determination in polymers and composites per ISO 11358 and ASTM D6984
• Pre-conditioning of lithium-ion battery cathode/anode materials under inert atmosphere
• Stabilization of calibration standards and reference materials in metrology labs
• Low-temperature degassing of optical adhesives and encapsulation resins
• Accelerated aging studies for packaging materials under controlled humidity-vacuum cycles

FAQ

What is the minimum achievable pressure with the standard configuration?
The base system achieves ≤2 mbar with optional Memmert diaphragm pump; ultimate pressure is dependent on chamber load, outgassing rate, and ambient temperature.
Can multiple shelves operate at different temperatures simultaneously?
No—shelves share a common temperature setpoint, but each is individually calibrated and monitored to guarantee uniformity within ±0.3 °C across the working volume.
Is AtmoCONTROL software included or licensed separately?
AtmoCONTROL is supplied free of charge with all VO series units and supports unlimited installations on Windows 10/11 PCs connected to the oven via Ethernet or USB.
Does the VO series support inert gas purging?
Yes—via optional Gas Inlet Module (GIM), which enables automated N₂ or Ar flow control, pressure balancing, and purge cycle programming within AtmoCONTROL.
How is traceability ensured during routine qualification (IQ/OQ/PQ)?
Built-in validation tools include auto-generated test reports, sensor drift tracking, vacuum leak rate calculation, and integrated calibration certificate import—fully aligned with ISO/IEC 17025 documentation workflows.
