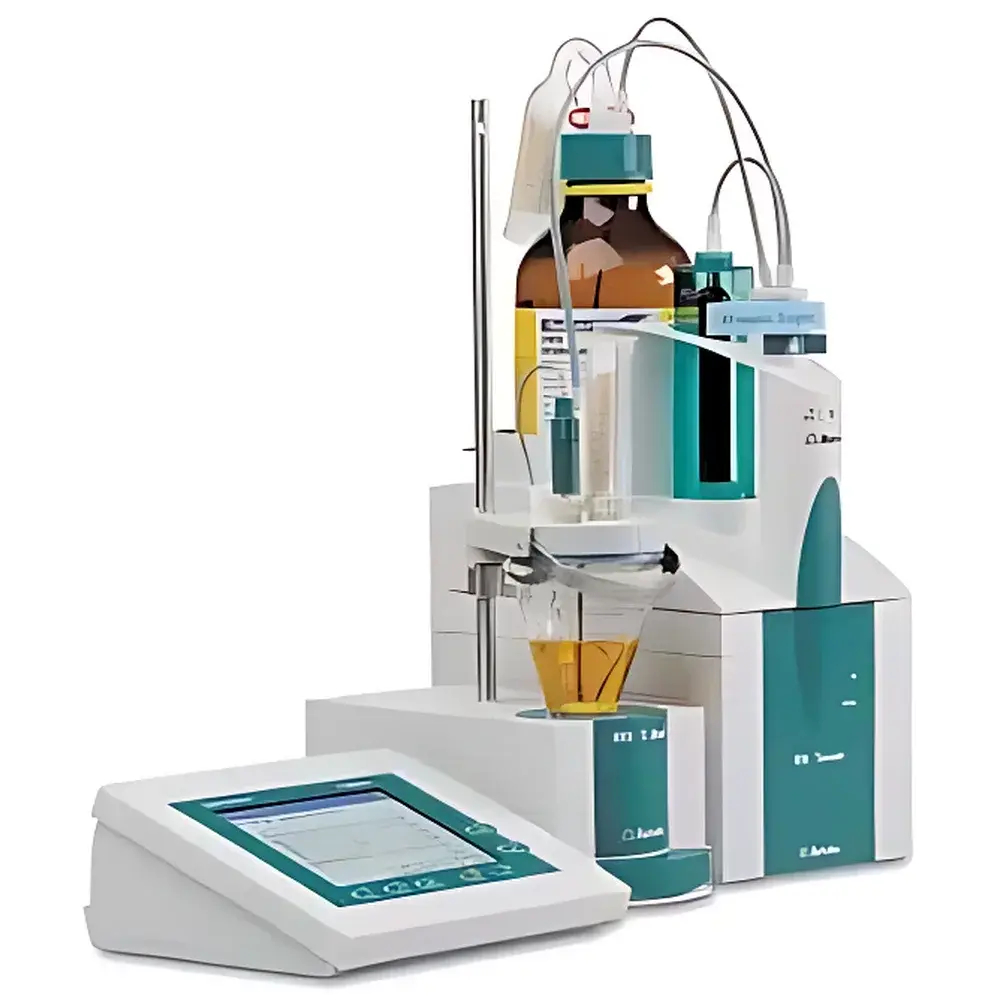

Metrohm 890 Titrando Intelligent Volumetric Karl Fischer Moisture Titrator

Overview

The Metrohm 890 Titrando is a high-precision volumetric Karl Fischer titrator engineered for trace to full-range moisture quantification in diverse chemical, pharmaceutical, and materials science laboratories. It operates on the stoichiometric iodine-based redox reaction defined by the Karl Fischer method—where iodine, generated in situ from iodide oxidation, reacts quantitatively with water in methanol-based electrolyte systems. This principle ensures direct, absolute measurement of water content without interference from volatile solvents or matrix effects common in loss-on-drying or NIR techniques. Designed and manufactured in Herisau, Switzerland, the 890 Titrando delivers metrological traceability aligned with ISO 8533, ASTM E203, DIN EN ISO 12937, JIS Z 8834, and BS 7277. Its dual-control architecture—supporting both standalone touchscreen operation and networked PC-based management—enables seamless integration into regulated environments requiring audit-ready documentation and procedural integrity.

Key Features

• Volumetric titration platform with automated burette recognition: The intelligent exchange unit reads embedded digital chips to auto-configure burette volume (1–50 mL), resolution (1/20,000), reagent name, concentration, titer, expiry date, and usage history—eliminating manual calibration errors.
• High-fidelity electrochemical detection: Equipped with dual polarization modes (Ipol and Upol), enabling precise endpoint determination across heterogeneous samples including viscous oils, hygroscopic powders, and gas-phase extracts.
• Safety-critical hardware design: The 803 KF titration stand integrates a membrane pump for solvent replenishment and waste evacuation, ultra-low-drift sealed cell architecture (<10 µg H₂O/min), and Safety Stop™—an algorithm-driven emergency halt triggered by abnormal current response or overflow conditions.
• Regulatory-grade control layer: Fully compliant with FDA 21 CFR Part 11 requirements, supporting electronic signatures, role-based access control, full audit trail logging, and tamper-evident data archiving for GxP workflows.
• Modular connectivity: Native MSB interface for peripheral expansion (e.g., 854/856 sample changers, 862 dispenser units); USB 2.0 host port for direct connection to balances, printers, LIMS servers, and intranet infrastructure.

Sample Compatibility & Compliance

The 890 Titrando accommodates liquid, solid, paste, and gaseous samples across an analytical range of 10 ppm to 100% water content. Solids are introduced via oven couplers (e.g., 874 Oven Sample Processor) or direct dissolution; gases are analyzed using flow-through cells with calibrated mass flow controllers. All methodologies adhere to international standard protocols—including ISO 760 (general KF procedure), ISO 12937 (petroleum products), USP , and EP 2.5.11—ensuring cross-laboratory reproducibility and regulatory acceptance. Instrument qualification (IQ/OQ/PQ) documentation packages are available per ASTM E2500 and Annex 15 guidelines.

Software & Data Management

Operation is supported by two complementary software layers: the embedded color touchscreen interface (with intuitive icon-driven navigation and real-time titration curve visualization) and tiamo™ v3.x, Metrohm’s validated PC-based titration suite. tiamo™ enables multi-instrument orchestration, parallel titration scheduling, customizable report generation (PDF, CSV, XML), and relational database indexing for rapid retrieval of historical results. All raw data—including electrode potential traces, burette position logs, and environmental metadata (temperature, humidity)—are stored with cryptographic checksums. Data export supports LIMS integration via HL7, ASTM E1384, and direct SQL server mapping.

Applications

Typical use cases include quantitative moisture assessment in active pharmaceutical ingredients (APIs), excipients, and lyophilized biologics per ICH Q5C; residual solvent analysis in polymer resins and battery electrolytes; water content verification in lithium-ion cathode materials (e.g., NMC, LFP); quality control of transformer oils per ASTM D1533; and stability-indicating assays for hydrolytically labile compounds. The system is routinely deployed in QC labs certified to ISO/IEC 17025 and manufacturing sites operating under cGMP Annex 11.

FAQ

What types of samples can be analyzed with the 890 Titrando?
Liquid, solid, semi-solid, and gaseous samples—provided appropriate sampling accessories (e.g., oven couplers, gas diffusion cells, or homogenizers) are used.
Does the instrument support automated sample handling?
Yes—via optional integration with Metrohm 854/856 automatic samplers or third-party robotic platforms through standardized USB or MSB interfaces.
How is data integrity ensured during long-term deployment?
Through built-in audit trail recording, electronic signature enforcement, and immutable data storage compliant with FDA 21 CFR Part 11 Subpart C.
Can the 890 Titrando be validated for GMP environments?
Yes—comprehensive IQ/OQ/PQ documentation kits, along with risk-based validation support services, are provided by Metrohm Application Laboratories.
Is tiamo™ software validated for regulated use?
Yes—tiamo™ v3.x carries formal validation packages meeting ALCOA+ principles and is pre-qualified for use in pharmaceutical and medical device manufacturing QA/QC departments.
