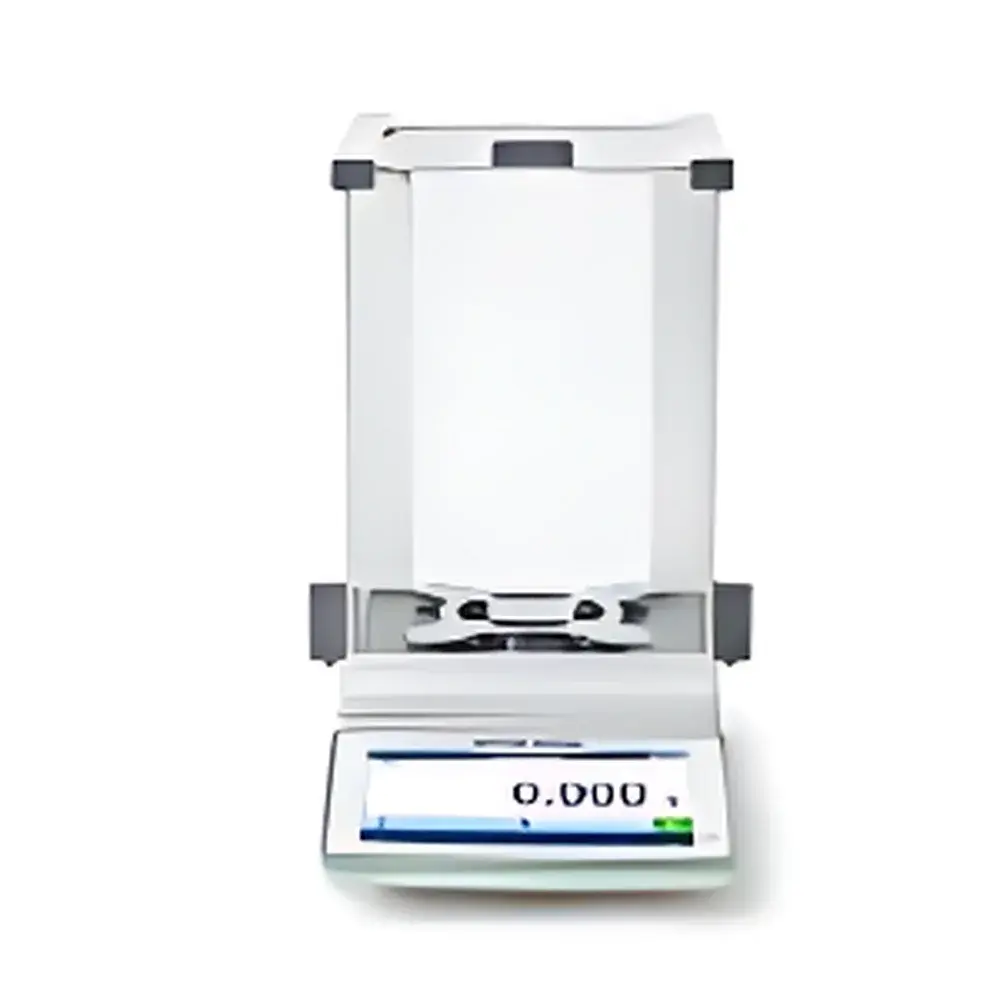

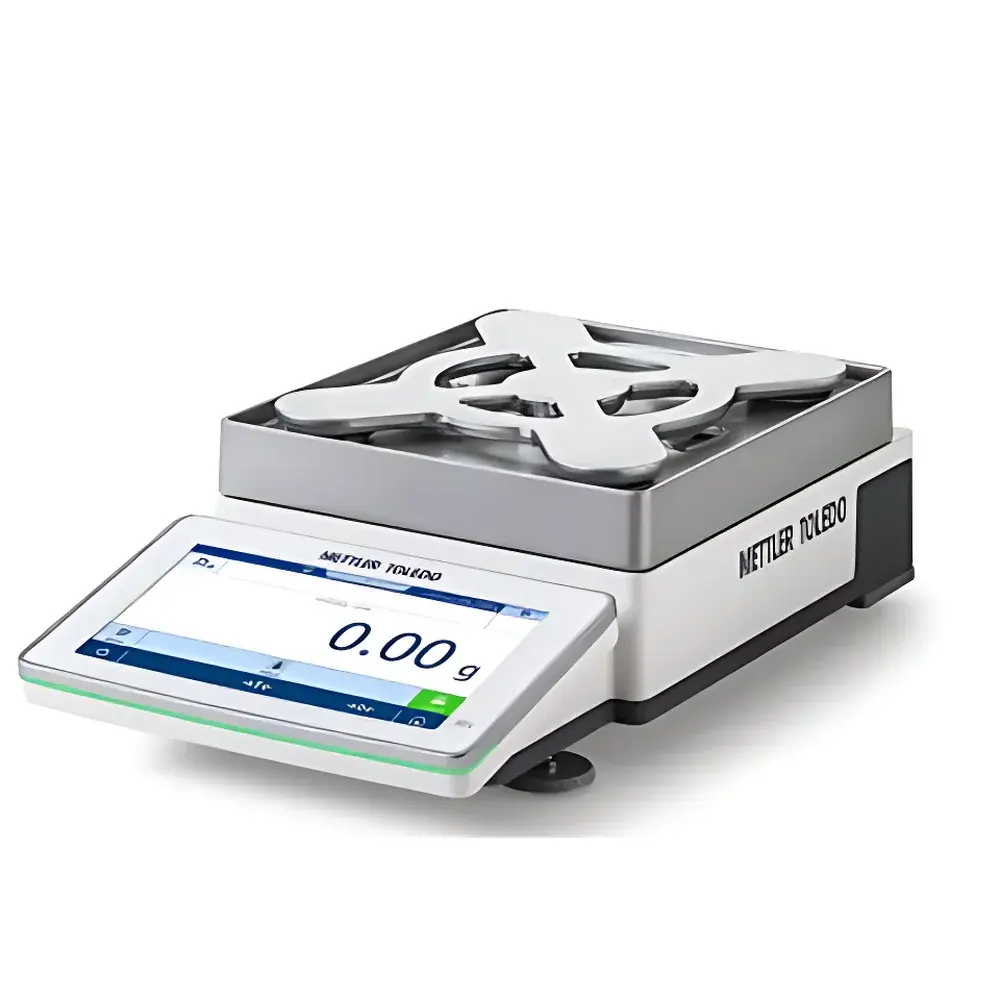

METTLER TOLEDO MX1203/A Precision Balance

Overview

The METTLER TOLEDO MX1203/A Precision Balance is an advanced laboratory weighing instrument engineered for high-accuracy mass determination in regulated and non-regulated environments. Operating on electromagnetic force compensation (EMFC) principle, it delivers metrologically traceable results with 1 mg readability across its full 1,220 g capacity range. Designed for routine analytical workflows requiring robust repeatability (0.5 mg typical) and rapid stabilization (≤1.5 s), the MX1203/A integrates SmartPan™ technology—a patented draft shield–optimized pan geometry that minimizes air current interference and accelerates settling time without mechanical dampening. Its compliance-ready architecture supports ISO/IEC 17025, USP and , and GxP-aligned operations through built-in audit trail capabilities, user-level access control, and automated data capture.

Key Features

• SmartPan™ technology for enhanced stability in dynamic lab environments—reduces vibration sensitivity and improves weighing speed under airflow conditions.
• Automatic internal calibration (FACT: Fully Automatic Calibration Technology) with temperature-triggered recalibration to maintain accuracy across ambient fluctuations (±1.5 °C).
• 7-inch high-resolution color TFT touchscreen with intuitive icon-driven interface, supporting multi-language operation and customizable home screen layouts.
• GxP-compliant user management system with role-based permissions (administrator, operator, reviewer), password protection, and electronic signature support per 21 CFR Part 11 requirements.
• Ergonomic design featuring adjustable height stand (optional), low-profile pan placement, and front-accessible ports to minimize repetitive motion and improve workflow efficiency.
• Energy-saving mode compliant with IEC 62301 standby power standards, reducing operational power consumption by up to 70% during idle periods.

Sample Compatibility & Compliance

The MX1203/A accommodates a broad spectrum of sample types—from powders and granules to small-volume liquids and solid reference standards—within its 127 mm × 127 mm stainless-steel pan. Its IP41-rated enclosure provides protection against dust ingress and vertically falling water droplets, enabling safe deployment in general-purpose laboratories, QC rooms, and manufacturing clean zones (ISO Class 8). The balance meets OIML R76-1 (2021) requirements for precision balances and is certified for trade-related applications where legal-for-trade verification is required (subject to local metrological approval). All firmware and software components are validated per IQ/OQ protocols, and the device supports GLP/GMP documentation integrity through timestamped, tamper-evident data export to networked printers or LIMS via Ethernet or USB-C.

Software & Data Management

Embedded LabX® Lite software enables seamless integration into digital lab ecosystems. It supports direct data export in CSV, PDF, or XML formats with configurable metadata fields (operator ID, sample ID, location, timestamp, uncertainty estimation). Audit trails record all critical events—including calibration, zeroing, parameter changes, and user logins—with immutable timestamps and user attribution. Optional LabX Connect extends functionality to remote monitoring, centralized fleet management, and automated report generation aligned with ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available). Data transmission complies with TLS 1.2 encryption standards over Ethernet or secure Bluetooth pairing.

Applications

• Pharmaceutical quality control: content uniformity testing, excipient blending verification, and reference standard weighing per USP minimum weight criteria.
• Chemical R&D: stoichiometric reagent dispensing, catalyst loading, and formulation development requiring ≤0.5 mg repeatability.
• Materials science: density determination via buoyancy correction, powder flow characterization, and additive manufacturing feedstock validation.
• Food & beverage QA: nutritional labeling compliance, moisture loss analysis, and batch release testing under HACCP and FSSC 22000 frameworks.
• Academic research: teaching labs requiring intuitive operation and metrological transparency; graduate-level physical chemistry experiments involving precise mass–volume correlations.

FAQ

What is the minimum weight requirement for USP compliance on the MX1203/A?
The typical minimum weight for 0.1% tolerance per USP is 1 g. This value is verified during installation qualification using certified weights and documented in the balance’s calibration certificate.
Does the MX1203/A support 21 CFR Part 11 compliance out of the box?
Yes—when configured with user management enabled, audit trail activated, and electronic signatures implemented via LabX Lite or LabX Connect, the system satisfies core Part 11 requirements for electronic records and signatures.
Can the balance be integrated into a LIMS or ERP system?
Yes—via Ethernet (TCP/IP), USB-C (mass storage or CDC serial emulation), or optional Bluetooth, the MX1203/A exports structured data compatible with major LIMS vendors including Thermo Fisher SampleManager, LabWare LIMS, and Siemens Opcenter Quality.
Is FACT calibration traceable to national standards?
FACT internal calibration uses factory-traceable reference masses calibrated against NIST-traceable standards; full traceability documentation is provided with each instrument’s Certificate of Conformance.
What environmental conditions affect the MX1203/A’s performance?
Optimal operation requires ambient temperatures between 10–30 °C, relative humidity ≤80% non-condensing, and vibration isolation from nearby centrifuges or HVAC ducts; the SmartPan™ design mitigates minor airflow disturbances but does not replace dedicated draft shields for microgram-level work.
