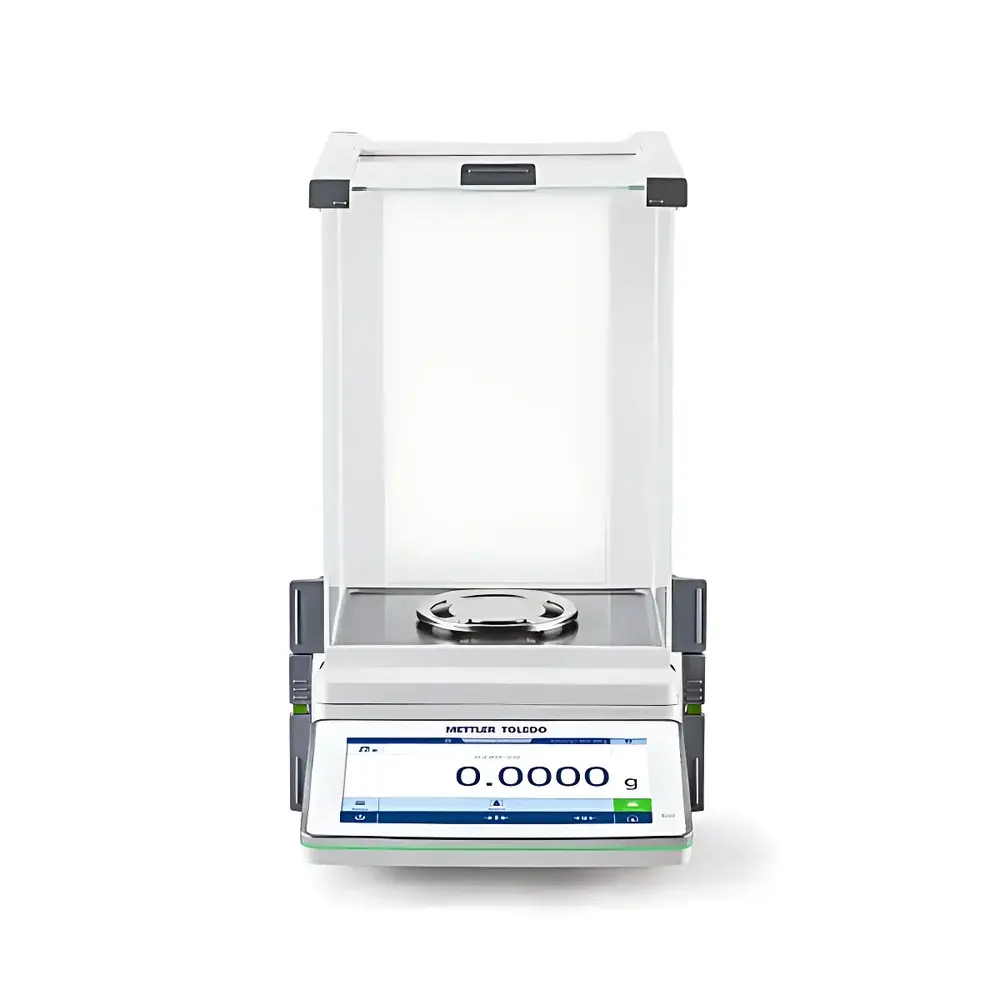

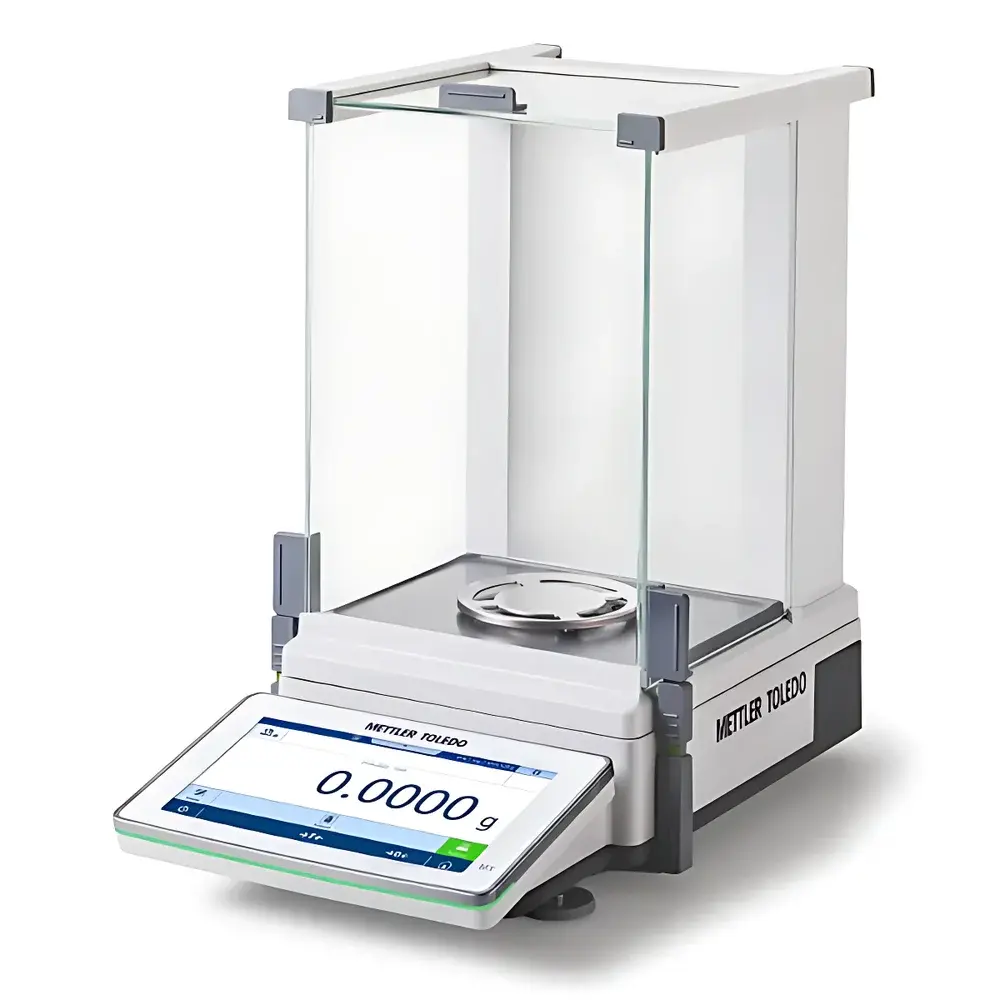

METTLER TOLEDO MX304/A Analytical Balance

Overview

The METTLER TOLEDO MX304/A Analytical Balance is a high-precision laboratory instrument engineered for rigorous quantitative analysis in regulated environments including pharmaceutical QC labs, contract research organizations (CROs), and academic research facilities. Operating on electromagnetic force compensation (EMFC) principle, it delivers traceable mass measurement with 0.1 mg readability and exceptional short-term repeatability of 0.05 mg (typical). Its 320 g maximum capacity supports versatile sample handling while maintaining metrological integrity across the full weighing range. The balance integrates SmartPan™ — an aerodynamically optimized weighing pan design that minimizes air current interference and reduces stabilization time to just 2 seconds, even under non-laminar airflow conditions typical of open-bench laboratory settings. This feature directly enhances throughput without compromising measurement fidelity.

Key Features

• SmartPan™ technology for rapid stabilization and improved robustness against environmental turbulence
• FACT (Fully Automatic Calibration Technology) with internal motorized weights enabling drift-compensated, temperature-triggered recalibration — no manual intervention required
• 7-inch full-color TFT capacitive touchscreen with intuitive icon-based navigation and multi-user gesture support
• ErgoDoor™ hinged front door system for unobstructed access and ergonomic sample placement, reducing operator fatigue during high-volume workflows
• Energy-saving mode compliant with IEC 62301 standby power requirements, automatically activating after configurable idle periods
• Integrated user management with role-based access control (RBAC), supporting up to 20 user profiles with password protection and audit trail logging
• IP41-rated enclosure providing protection against solid objects ≥1 mm and vertically falling water droplets — suitable for standard laboratory environments

Sample Compatibility & Compliance

The MX304/A accommodates samples ranging from microgram-scale reference standards to bulk powders up to 320 g, with a certified minimum weight of 100 mg per USP (±0.1% tolerance) and 10 mg under ISO/IEC 17025 uncertainty criteria (k=2, U=1%). Its 90 mm diameter stainless-steel weighing pan ensures compatibility with standard volumetric glassware, crucibles, and tare containers. Regulatory compliance is embedded at the firmware level: automatic timestamped data recording, electronic signature support, and immutable audit trails meet ALCOA+ principles. When configured with LabX™ software, the system satisfies FDA 21 CFR Part 11 requirements for electronic records and signatures, including operator authentication, change history, and secure archiving. All calibration and performance verification events are logged with metadata (operator ID, timestamp, ambient conditions), facilitating GLP/GMP audits and ISO 17025 accreditation assessments.

Software & Data Management

Data integrity is maintained through native integration with METTLER TOLEDO’s LabX™ software platform. Raw measurements, intermediate calculations (e.g., % recovery, net weight, tare subtraction), and metadata (user, method, timestamp, environment) are transmitted in real time via Ethernet or USB-C to centralized databases or LIMS. Built-in report templates generate PDF or Excel outputs compliant with internal SOPs and external regulatory submissions. The balance supports direct printing via USB-A–connected thermal or laser printers, with header/footer customization and mandatory inclusion of balance ID, calibration status, and environmental parameters. All communication protocols (including Modbus TCP and HTTP API endpoints) are documented per IEEE 11073-10201 standards, ensuring interoperability with enterprise MES and ERP systems.

Applications

The MX304/A serves critical roles in analytical method validation, dissolution testing, content uniformity assays, and reference standard preparation per ICH Q2(R2) guidelines. Its fast stabilization and low repeatability support high-frequency gravimetric titration workflows and loss-on-drying (LOD) determinations where sequential heating/weighing cycles demand sub-milligram consistency. In materials science, it enables precise formulation of catalysts, nanocomposites, and battery electrode slurries requiring controlled mass ratios. Routine use includes buffer preparation, reagent dispensing, and filter membrane weighing for particulate matter analysis (e.g., ASTM D2261, ISO 11843). Its GxP-ready architecture makes it suitable for stability-indicating assays conducted under ICH Q5C conditions.

FAQ

What is the certified readability of the MX304/A, and how does it differ from its displayed resolution?
The MX304/A displays mass values at 0.1 mg resolution; however, its certified readability per OIML R76 and NIST Handbook 44 is 1 mg for legal-for-trade applications — verified during factory calibration and documented in the included Certificate of Conformance.
Does the MX304/A support remote calibration verification using external test weights?
Yes — while FACT provides automated internal calibration, the balance includes a dedicated external calibration mode compatible with Class E2 or better weights (per ISO 9001 and EURAMET cg-18), allowing periodic verification by qualified personnel.
How is data integrity ensured during network transmission to LabX or third-party systems?
All Ethernet communications employ TLS 1.2 encryption; data packets include CRC32 checksums and sequence numbering to prevent corruption or replay attacks — validated during IQ/OQ protocol execution.
Can the MX304/A be integrated into a 21 CFR Part 11-compliant workflow without LabX?
No — standalone operation meets basic GxP documentation requirements, but full Part 11 compliance (electronic signatures, audit trail retention, system validation) requires LabX software with validated installation and configuration.
What environmental conditions must be maintained for optimal performance?
Ambient temperature stability within ±2 °C/hour and relative humidity between 20–80% RH (non-condensing) are recommended; vibration isolation tables are advised if floor RMS acceleration exceeds 0.5 µm/s² at 10–100 Hz.
