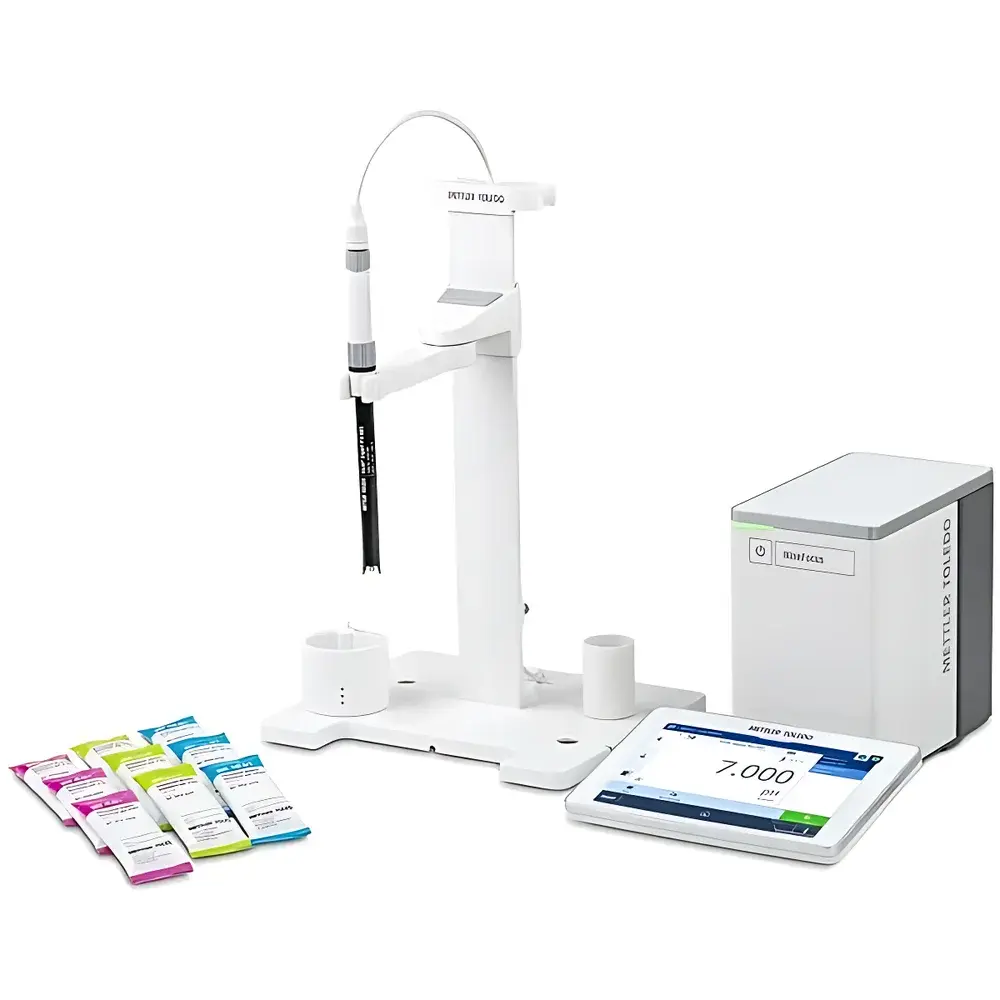

METTLER TOLEDO NineFocus NF2000 pH Meter Kit

Overview

The METTLER TOLEDO NineFocus NF2000 pH Meter Kit is a high-precision, single-channel benchtop electrochemical analyzer engineered for rigorous laboratory environments where regulatory compliance, measurement traceability, and operational reproducibility are non-negotiable. Built upon METTLER TOLEDO’s Intelligent Sensor Management (ISM®) architecture, the NF2000 employs potentiometric measurement principles—utilizing a reference electrode and a glass pH-sensing membrane—to deliver thermodynamically grounded pH values across an extended range of −2.000 to 20.000. Its dual-mode mV measurement capability (−2000 to +2000 mV) supports redox (ORP) analysis in water quality, electroplating, and pharmaceutical stability testing. The system integrates seamlessly with InLab® Expert Pro-ISM electrodes, which embed NIST-traceable calibration history, real-time sensor diagnostics (e.g., slope, offset, response time), and automatic calibration recognition—eliminating manual entry errors and ensuring data integrity from measurement initiation to report generation.

Key Features

• 7-inch full-color TFT touchscreen with intuitive, icon-driven navigation supporting 14 languages—including English, German, French, Spanish, Chinese (Simplified & Traditional), Japanese, Russian, Turkish, Italian, Polish, Portuguese, Thai, and Arabic.
• GLP-compliant operation with password-protected user management, customizable SOP templates, and configurable audit trails meeting FDA 21 CFR Part 11 requirements for electronic records and signatures.
• Modular hardware design enables future expansion to conductivity, ion concentration (ISE), dissolved oxygen (optical or polarographic), and temperature profiling via firmware updates and plug-in modules—without replacing the base unit.
• IP52-rated enclosure ensures protection against dust ingress and vertically dripping water, suitable for controlled lab environments with occasional splashes or humidity fluctuations.
• Dual calibration modes: 1–5 point pH calibration with automatic buffer recognition and dynamic slope calculation; simultaneous temperature compensation using integrated Pt1000 or external probe inputs.
• Real-time diagnostics including electrode health status, calibration drift alerts, and predictive maintenance notifications based on ISM sensor metadata.

Sample Compatibility & Compliance

The NF2000 accommodates aqueous and semi-aqueous samples across diverse matrices—including purified water, buffers, cell culture media, fermentation broths, wastewater effluents, and API suspensions—provided they fall within the operational temperature range (−30 °C to +130 °C) and do not exceed electrode chemical compatibility limits (e.g., HF-free, non-viscous, non-abrasive). All measurements adhere to internationally recognized standards: ISO 3696 (water purity), ASTM D1293 (pH of natural waters), USP (pH measurement in pharmaceutical preparations), and EP 2.2.3 (European Pharmacopoeia pH methods). The system’s embedded validation tools support IQ/OQ documentation packages, while its LabX® integration allows automated generation of GxP-compliant reports with full metadata (operator ID, timestamp, electrode serial number, calibration log, environmental conditions).

Software & Data Management

Data integrity is enforced through native LabX® PC software, which provides centralized instrument control, remote monitoring, and automated report generation with digital signature workflows. Each stored record (up to 3000 entries) includes timestamped raw values, calibrated results, electrode diagnostics, ambient temperature, and operator ID. Export options include CSV, PDF, and XML formats compatible with LIMS and ELN systems. USB-A and USB-C ports support direct data transfer to flash drives or printers; LAN connectivity enables networked deployment in multi-instrument labs. Optional barcode scanning streamlines sample ID logging, while stirrer control synchronization ensures consistent mixing during endpoint detection—critical for slow-response samples such as viscous emulsions or saturated salt solutions.

Applications

• Pharmaceutical QC: pH verification of injectables, ophthalmic solutions, and buffer preparation per USP monographs.
• Environmental Monitoring: Field-deployable benchtop validation of surface water, groundwater, and wastewater treatment streams under EPA and ISO protocols.
• Food & Beverage R&D: Batch consistency checks for dairy fermentation, juice acidification, and meat marinade optimization.
• Academic Research: Teaching laboratories requiring robust, multi-language interfaces and traceable calibration for undergraduate electrochemistry curricula.
• Biotechnology: Monitoring bioreactor pH setpoints with alarm-triggered notifications and export-ready datasets for process analytical technology (PAT) frameworks.

FAQ

Does the NF2000 support ISM-enabled electrodes?
Yes—the NF2000 is fully compatible with METTLER TOLEDO’s ISM digital electrodes, including the included InLab® Expert Pro-ISM. These electrodes auto-identify, store calibration history, and provide live diagnostic metrics.
Can I upgrade to conductivity or dissolved oxygen measurement later?
Yes—via firmware update and optional hardware modules. The base unit’s architecture is designed for parameter expansion without hardware replacement.
Is 21 CFR Part 11 compliance built-in or requires additional configuration?
Full Part 11 functionality—including role-based access, electronic signatures, and immutable audit trails—is enabled by default and validated through LabX® software configuration.
What temperature probes are supported?
The NF2000 accepts Pt1000 integrated sensors (in ISM electrodes) or external Pt100/Pt1000 probes via the mini-DIN port. Manual temperature input is also permitted for non-probe applications.
How is calibration traceability maintained?
Each calibration event is timestamped, linked to operator credentials, and associated with electrode-specific identifiers. SmartCal™ data from ISM electrodes is automatically embedded into calibration records.
