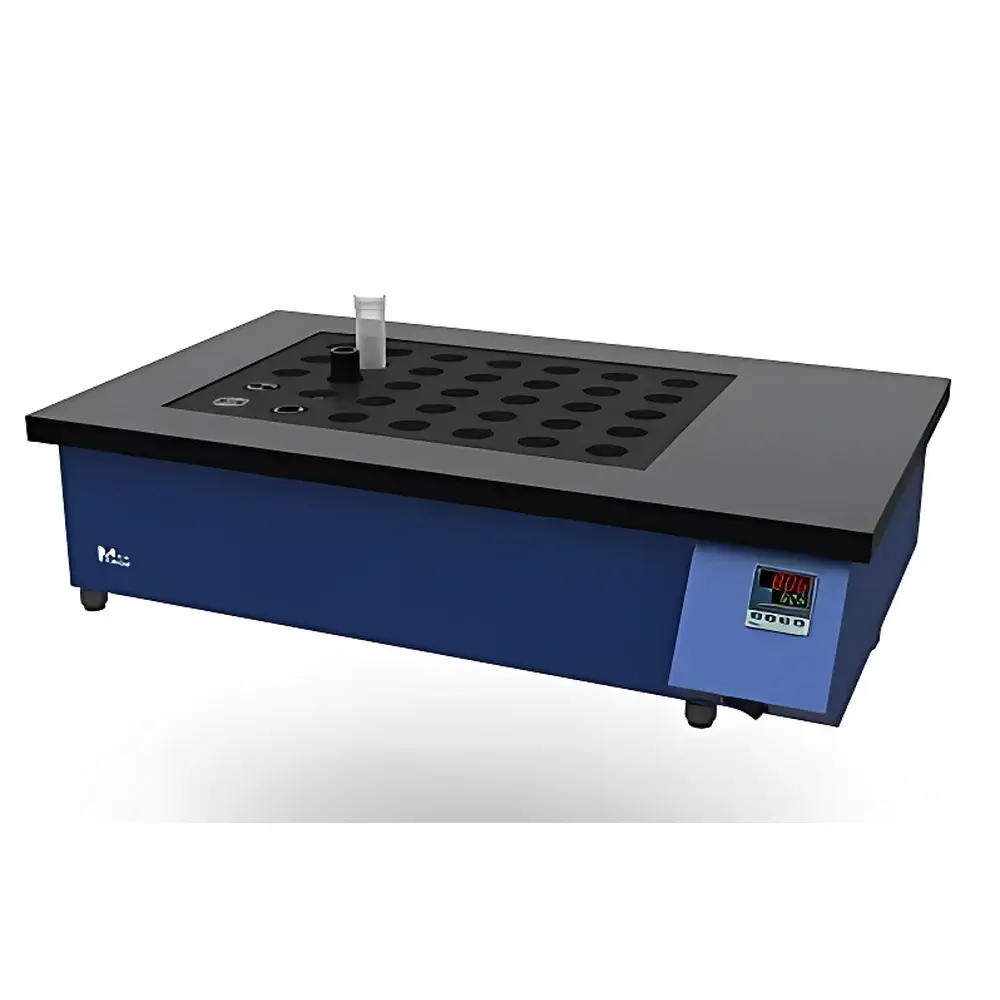

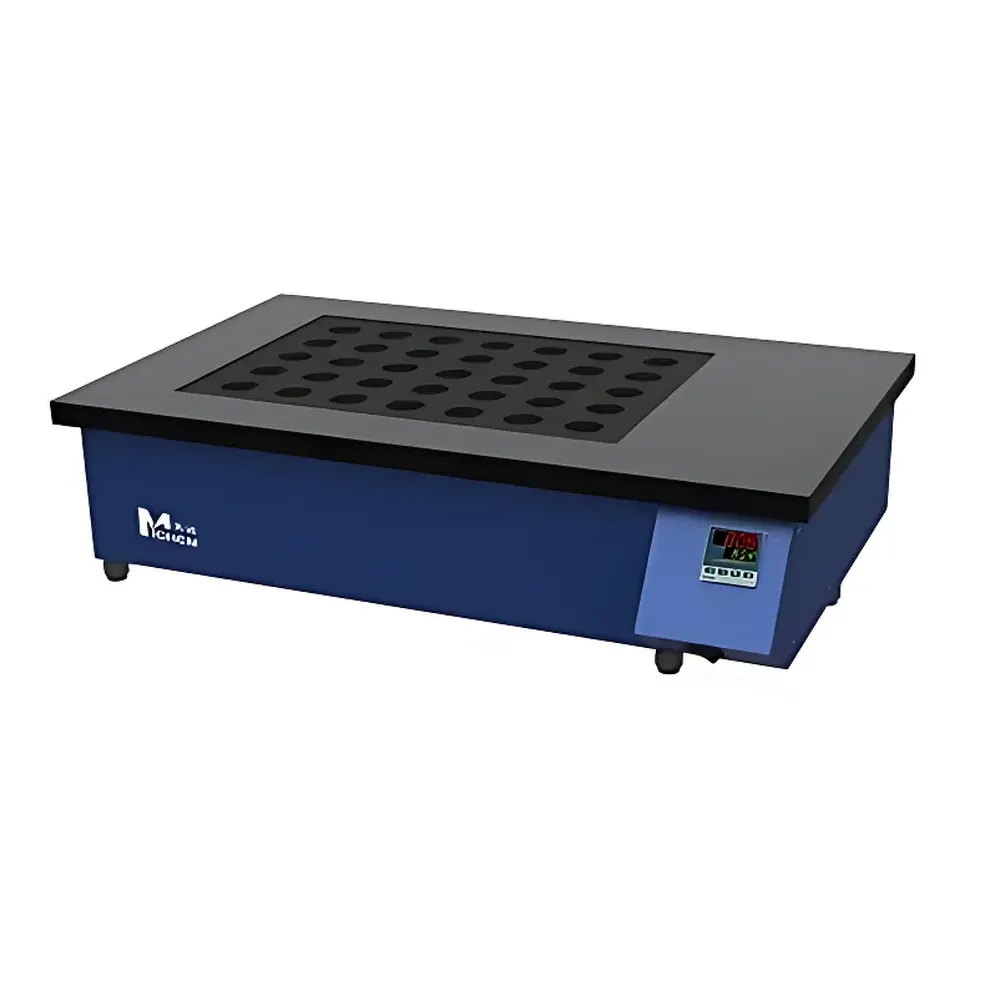

MICHEM DR-35 Graphite Block Digestion System

Overview

The MICHEM DR-35 Graphite Block Digestion System is a precision-engineered laboratory digestion platform designed for reproducible, high-throughput sample preparation in environmental, food, pharmaceutical, and geochemical laboratories. Unlike conventional hot plates or ceramic heating blocks, the DR-35 employs an infrared-heated, high-purity graphite block as its thermal core—providing rapid thermal response, exceptional heat retention, and uniform conductive heating across all 35 digestion positions. Its operational principle relies on controlled conductive and radiative heat transfer from the PTFE-coated graphite surface directly to sample vessels, enabling consistent thermal profiles essential for trace-metal analysis, acid digestion (e.g., EPA Method 3050B, 3051A, 3052), and post-microwave acid removal (‘acid evaporation’ or ‘赶酸’). The system operates within a validated temperature range of ambient to 260 °C, supporting aggressive digestion protocols using HNO₃, HCl, HF, and H₂O₂ under open-vessel conditions.

Key Features

• Uniform heating performance: Achieves ≤1.0 °C inter-well temperature deviation at 150 °C across all 35 positions—critical for parallel digestion reproducibility and compliance with ISO/IEC 17025 method validation requirements.
• Chemically inert surface: Graphite block coated with industrial-grade PTFE provides long-term resistance to concentrated mineral acids (including hydrofluoric acid up to 40 %), alkalis, and oxidizing agents—eliminating corrosion-induced contamination and extending service life.
• Precision programmable control: 30-segment PID temperature profile capability enables complex ramp-hold-cool sequences (e.g., 90 °C → hold 30 min → ramp to 150 °C → hold 60 min → cool to 60 °C), fully compliant with USP , ASTM D5174, and EN 13656 digestion protocols.
• Energy-efficient infrared heating architecture: Delivers faster thermal equilibration and lower standby power consumption versus resistive coil-based systems—reducing laboratory energy demand without compromising peak temperature stability.
• Modular accessory compatibility: Supports interchangeable digestion vessels—including borosilicate glass tubes with air-cooled reflux condensers, PTFE digestion cups, and custom PFA-lined options—to accommodate varying sample matrices and regulatory constraints (e.g., low-background trace metal analysis).

Sample Compatibility & Compliance

The DR-35 accommodates standard digestion formats used in accredited testing laboratories, including EPA-compliant open-vessel digestion for soils, sediments, and biological tissues. Its design supports both classical wet digestion and post-microwave acid removal workflows, making it suitable for laboratories performing ICP-MS, ICP-OES, and AAS sample preparation where blank minimization and procedural consistency are mandatory. All contact surfaces meet USP Class VI biocompatibility standards for PTFE components, and the unit’s thermal control architecture supports audit-ready data logging when integrated with compliant software (see Software & Data Management). The system is compatible with GLP/GMP environments when operated under documented SOPs and calibrated per ISO/IEC 17025 clause 6.4.10.

Software & Data Management

While the DR-35 features an embedded touchscreen interface for local operation, it includes RS-485 and optional USB-to-serial connectivity for integration into centralized laboratory informatics systems. When paired with MICHEM’s optional LabLink™ Data Logger (sold separately), users can export time-stamped temperature profiles, program execution logs, and alarm history in CSV format—enabling full traceability for FDA 21 CFR Part 11–compliant environments. Audit trails include operator ID, method name, start/stop timestamps, and deviation alerts (e.g., out-of-spec temperature excursion >±0.5 °C), satisfying internal QA and external accreditation body requirements.

Applications

• Regulatory environmental testing: Soil and sludge digestion per EPA Methods 3050B (acid digestion) and 3052 (microwave-assisted followed by open-vessel acid evaporation).
• Food safety laboratories: Heavy metal extraction from cereals, dairy, and infant formula in accordance with GB 5009.12–2023 and EU Commission Regulation (EC) No 1881/2006.
• Clinical and pharmaceutical QC: Digestion of herbal matrices, excipients, and active pharmaceutical ingredients prior to elemental impurity testing (ICH Q3D).
• Geochemical research: Rock and ore digestion using HF-HNO₃-HClO₄ mixtures under controlled reflux conditions.
• Reference material certification: Homogeneous batch processing of CRM homogenates to ensure inter-sample comparability during digestion validation studies.

FAQ

Is the DR-35 suitable for hydrofluoric acid (HF) digestion?
Yes—the PTFE-coated graphite block and optional PFA or quartz digestion vessels provide full compatibility with HF concentrations up to 40 %, provided appropriate fume hood ventilation and PPE protocols are followed.
Can the DR-35 replace a microwave digestion system?
No—it is not a microwave instrument. It serves as a complementary platform for open-vessel digestion and, more commonly, as a dedicated post-microwave acid removal (‘赶酸’) station to concentrate digests to near-dryness while minimizing analyte loss.
What calibration documentation is provided?
Each unit ships with a factory-verified temperature uniformity report (measured per ASTM E220 at 100 °C, 150 °C, and 220 °C) and NIST-traceable certificate of conformance for the embedded Pt100 sensor.
Does the system support remote monitoring via Ethernet or Wi-Fi?
Not natively—only RS-485 serial communication is built-in. Ethernet/Wi-Fi functionality requires third-party gateway integration or the optional LabLink™ Data Logger module.
Are consumables such as graphite inserts or PTFE coatings available as spares?
Yes—MICHEM supplies certified replacement graphite blocks with pre-applied PTFE coating (part no. DR-35-GR-BLK-PTFE), individual well liners, and refurbishment services for extended equipment lifecycle management.
