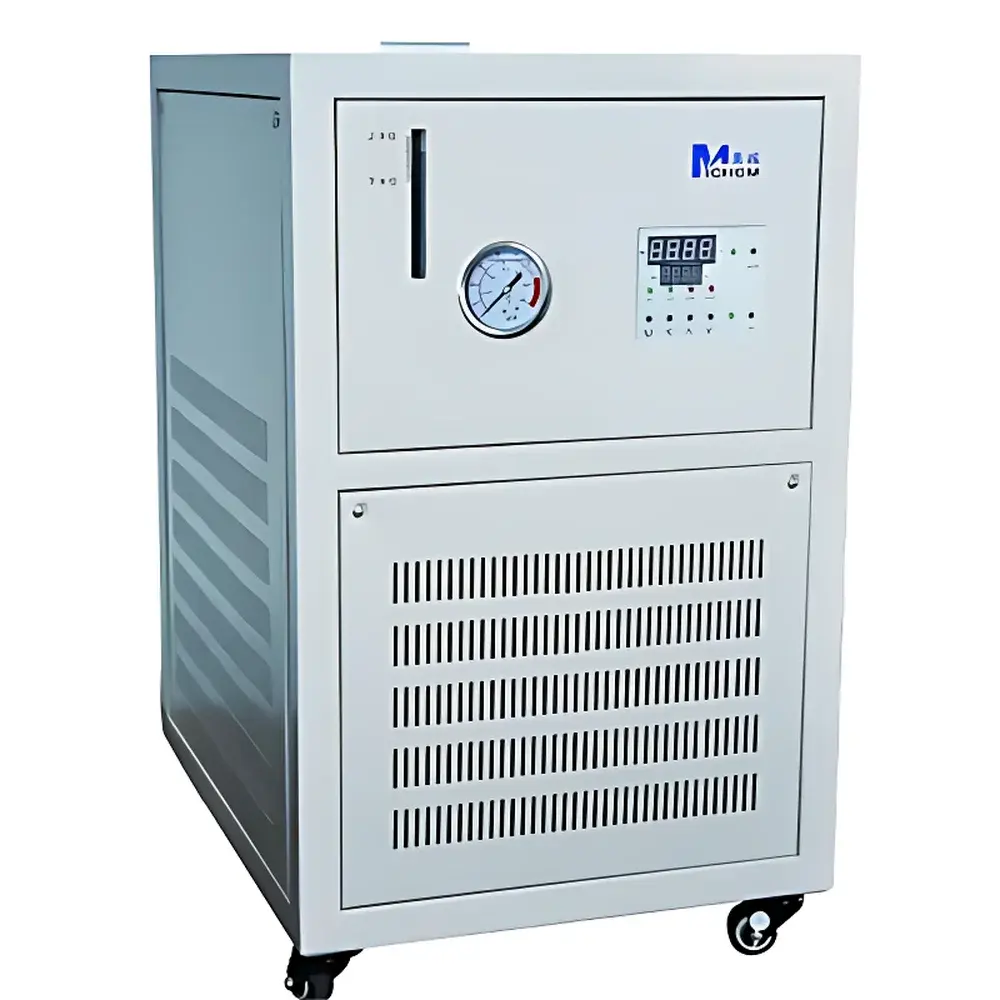

MICHEM MC-10000C Circulating Chiller

Overview

The MICHEM MC-10000C Circulating Chiller is an industrial-grade, split-system refrigeration unit engineered for precision temperature control and high-capacity heat removal in demanding laboratory and analytical environments. Based on proven vapor-compression thermodynamics with inverter-driven compressor technology, it delivers stable, continuous cooling water at precisely regulated temperatures—critical for maintaining thermal equilibrium in sensitive instrumentation. Unlike conventional on/off compressors, the MC-10000C employs variable-frequency drive (VFD) modulation to dynamically match refrigeration output to real-time thermal load, enabling energy-efficient operation while minimizing thermal overshoot and mechanical stress. Its design conforms to fundamental requirements for laboratory HVAC integration, including low-vibration mounting, corrosion-resistant wetted materials (304 stainless steel reservoir, EPDM seals), and compliance with IEC 61000-6-3 (EMC emissions) and IEC 61000-6-2 (immunity) standards.

Key Features

• Inverter-controlled hermetic scroll compressor delivering precise capacity modulation across the full 5–35 °C setpoint range, with <±0.1 °C temperature stability under steady-state conditions
• Split-system architecture: indoor unit (chiller head, reservoir, pump, controller) and outdoor condensing unit—reducing acoustic noise (<65 dB(A) at 1 m) and eliminating internal heat rejection into laboratory space
• 100 L insulated stainless steel reservoir with level sensor, anti-corrosion coating, and integrated deaeration to suppress cavitation and extend fluid service life
• High-pressure centrifugal circulation pump rated at 6 L/min flow and up to 7 bar discharge pressure—compatible with long-loop or high-backpressure applications (e.g., multi-instrument manifolds or elevated column installations)
• Dual-stage PID temperature controller with real-time digital display, programmable ramp/soak profiles, and hardware-based overtemperature cutoff (≥40 °C)
• Energy-optimized operation: up to 30% lower power consumption vs. fixed-speed equivalents at equivalent cooling loads, validated per ISO 5151 test procedures
• Modular service design with front-accessible compressor, filter-drier, and expansion valve—supporting field maintenance without system evacuation

Sample Compatibility & Compliance

The MC-10000C is compatible with standard aqueous coolant mixtures (deionized water, 20–30% ethylene glycol/water) and supports closed-loop operation with instruments requiring stable thermal input, including ICP-MS, TEM, XRD, FTIR, and high-power laser systems. It meets mechanical safety requirements per EN 61000-1-2 and carries CE marking for EMC and Low Voltage Directive compliance. While not certified for medical device use under ISO 13485, its construction and control architecture align with GLP-aligned laboratory infrastructure practices—including traceable calibration records, audit-ready event logging, and password-protected parameter modification. Optional RS485 Modbus RTU interface enables integration into centralized facility monitoring systems compliant with ASTM E2500-13 (verification of utilities and equipment).

Software & Data Management

The embedded microprocessor provides local control via a 4.3-inch TFT touchscreen with intuitive menu navigation, real-time trend graphs (temperature, pressure, power), and configurable alarm thresholds (low flow, high temp, low level). All operational events—including start/stop cycles, fault codes, and setpoint changes—are timestamped and stored in non-volatile memory for ≥30 days. Data export is supported via USB flash drive (CSV format) for post-processing in MATLAB, Excel, or LIMS platforms. For networked deployment, optional Ethernet module enables SNMP v2c monitoring and integration with LabVantage or Thermo Fisher SampleManager via OPC UA—supporting 21 CFR Part 11–compliant electronic signatures when paired with external identity management.

Applications

• Analytical instrumentation: continuous cooling for graphite furnace AAS, plasma sources (ICP-OES/ICP-MS), electron beam columns (SEM/TEM), and high-resolution mass spectrometers where thermal drift compromises spectral fidelity
• Vacuum systems: thermal stabilization of diffusion pumps, cryopanels, and turbo-molecular pump bearings to prevent oil backstreaming and maintain ultimate vacuum integrity
• Industrial R&D: temperature-controlled jacketing of reaction vessels, laser diode arrays, RF amplifiers, and thin-film deposition chambers requiring consistent ΔT across large surface areas
• Pharmaceutical QC: supporting dissolution testers, viscometers, and automated titrators operating under USP environmental control guidelines
• Academic research: scalable cooling infrastructure for multi-user core facilities, enabling shared access to high-power instrumentation without cross-contamination risk from open-bath systems

FAQ

What is the maximum allowable coolant conductivity for safe operation?
Deionized water with conductivity ≤5 µS/cm is recommended; glycol blends must remain below 30% v/v to avoid reduced heat transfer efficiency and accelerated corrosion.
Can the MC-10000C be integrated into a building management system (BMS)?
Yes—via optional Modbus TCP or BACnet/IP gateway modules, supporting read-only monitoring of temperature, flow, and alarm status per ASHRAE Guideline 13-2019.
Is remote firmware update supported?
Firmware updates require local USB connection and administrator-level credentials; no over-the-air (OTA) capability is provided to ensure deterministic system behavior in regulated environments.
What maintenance intervals are recommended for optimal longevity?
Compressor oil and refrigerant charge verification every 24 months; pump impeller inspection and reservoir cleaning every 12 months; filter-drier replacement every 18 months—per ISO 8573-1 Class 4 air quality guidelines for compressed air–assisted condenser cleaning.
Does the unit support dual-temperature zone control?
No—the MC-10000C is a single-loop system; dual-zone operation requires separate chiller units or a custom manifold with independent thermostatic valves.
