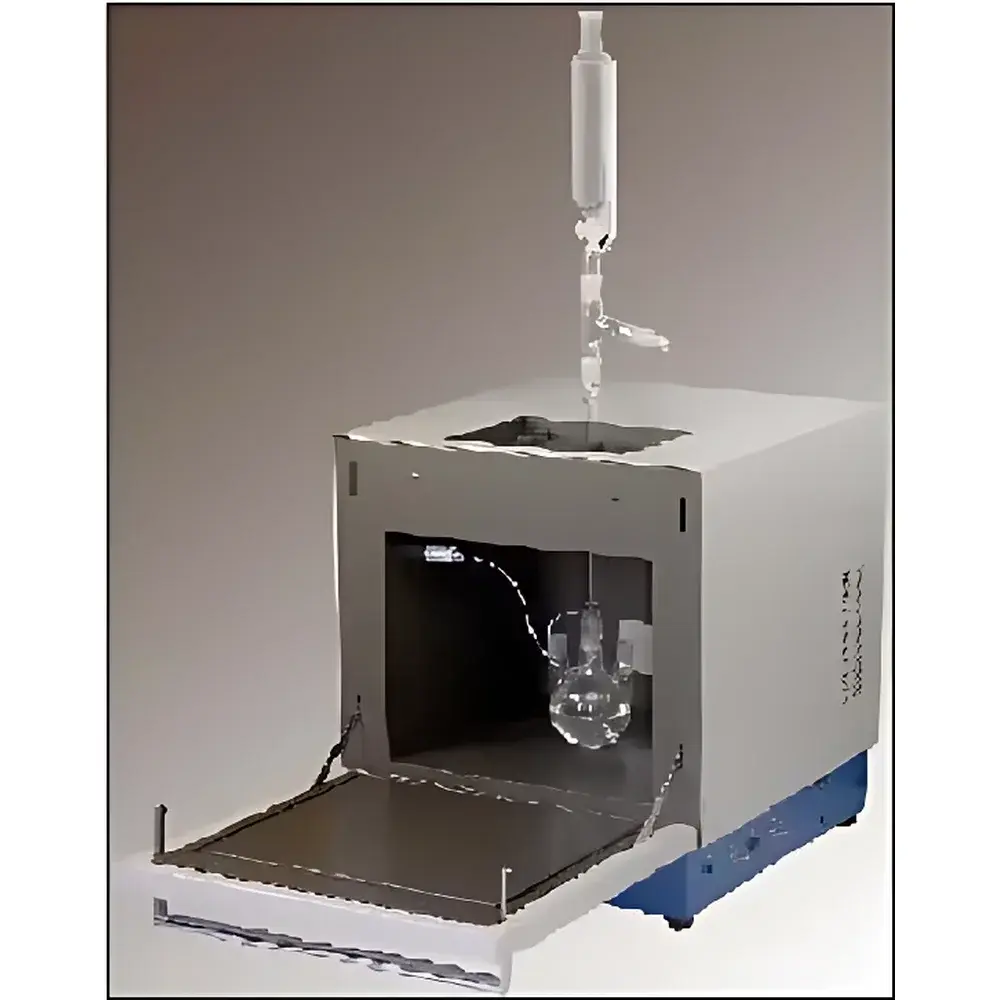

MICHEM MD6 Microwave Digestion System
| Brand | MICHEM |
|---|---|
| Origin | Beijing, China |
| Model | MD6 |
| Microwave Frequency | 2450 ±13 MHz |
| Output Power | 1200 W |
| Power Control | 0–100% PID automatic continuous adjustment |
| Cavity Volume | 45 L |
| Dimensions (W×D×H) | 490 × 610 × 610 mm |
| Net Weight | 48 kg |
| Temperature Range | 0–300 °C |
| Temperature Accuracy | ±0.5 °C |
| Pressure Range | 0–6 MPa |
| Pressure Accuracy | ±0.01 MPa |
| Cavity Coating | PFA (DuPont™) |
| Microwave Leakage | ≤0.3 mW/cm² |
| Safety Features | Dual-stage explosion-proof door (Patent ZL 200420032536), rupture disc pressure relief, Pt100 direct-contact temperature sensing, integrated pressure transducer, interlocked safety door, modular control architecture |
| Vessel Configuration | PEEK outer vessel (10 MPa rating), TFM inner vessel (chemically inert, 300 °C stable) |
| Rotating Turntable | 360° bidirectional, motor-driven, optical feedback control |
| Stirring | Electromagnetic + mechanical dual-mode, 0–5000 rpm adjustable |
| Max. Simultaneous Samples | 6 or 10 (configurable) |
| Ventilation | 3 m³/min, <20 min cooldown to safe opening temperature |
| Compliance | Meets GB 4706.21 (China), IEC 61000-4 series EMC standards, and general requirements for laboratory microwave equipment per ISO/IEC 17025 supporting infrastructure |
Overview
The MICHEM MD6 Microwave Digestion System is an engineered solution for high-efficiency, high-fidelity sample preparation in trace elemental analysis laboratories. It operates on the principle of microwave-assisted closed-vessel digestion—where controlled electromagnetic energy (2450 MHz) couples directly with polar molecules (e.g., HNO₃, HCl, HF) to induce rapid, volumetric heating under elevated temperature and pressure. Unlike conventional hotplate or block digestion, this method achieves thermal equilibrium across heterogeneous matrices within minutes, minimizing volatile element loss (e.g., As, Se, Hg, Pb) and suppressing reagent blank contributions. The system is designed specifically for compatibility with downstream instrumentation requiring ultra-low detection limits—including ICP-MS, ICP-OES, AAS, and AFS—where reproducible matrix destruction and quantitative analyte recovery are non-negotiable.
Key Features
- Robust 45-L cavity constructed with DuPont™ PFA coating—resistant to concentrated mineral acids (aqua regia, HF blends), organic solvents, and sustained temperatures up to 300 °C.
- Dual-stage explosion-proof door mechanism (Patent ZL 200420032536) featuring lateral displacement release and mechanical interlock—providing fail-safe pressure venting without compromising structural integrity.
- Pt100 platinum resistance thermometer and piezoresistive pressure transducer mounted directly inside the digestion vessel—enabling real-time, in-situ monitoring with ±0.5 °C and ±0.01 MPa accuracy.
- Variable-frequency PID-controlled magnetron output (0–1200 W)—ensuring stable power delivery, reduced standby consumption (>20% less than fixed-frequency systems), and lower acoustic emissions during operation.
- Bidirectional 360° rotating turntable with optical position feedback—guaranteeing uniform microwave field distribution across all vessels, critical for inter-sample precision (RSD < 3% for multi-element digestions).
- Modular control architecture: A-type configuration includes dedicated software for method development, curve logging (temperature/pressure vs. time), and unlimited protocol storage; C-type uses embedded microcontroller with 15 pre-programmable methods (8-step ramp/hold profiles).
Sample Compatibility & Compliance
The MD6 accommodates a broad spectrum of solid and semi-solid matrices—including geological samples (soils, sediments), biological tissues (liver, muscle), polymers, foodstuffs, and environmental filters—using standardized digestion protocols aligned with EPA Method 3051A, ASTM D5511, ISO 11466, and GB/T 22915-2008. Vessel sets consist of TFM-lined inner vessels (chemically inert, low extractables) housed in reinforced PEEK outer vessels rated to 10 MPa burst pressure. All consumables comply with USP Class VI biocompatibility and RoHS directives. The system supports GLP/GMP workflows through audit-trail-capable software (A-type), including user authentication, electronic signatures, and immutable data export (CSV, PDF). Microwave leakage remains ≤0.3 mW/cm²—well below the IEC 62233 and GB 4706.21 safety thresholds.
Software & Data Management
The MD6-A variant integrates with MICHEM’s proprietary DigestPro™ software suite (Windows 10/11 compatible), offering full lifecycle method management: parameter definition (ramp rates, hold times, power gradients), live graphical overlay of T/P curves, automated pass/fail validation against user-defined thresholds, and batch reporting with metadata tagging (operator ID, date/time stamp, vessel ID). Raw data files are stored in encrypted SQLite format with SHA-256 hashing for integrity verification. Export options include ASTM E1447-compliant XML for LIMS integration and FDA 21 CFR Part 11–ready audit logs—including all parameter changes, start/stop events, and alarm triggers—with no editable fields post-execution.
Applications
This system serves as a primary sample preparation platform for accredited environmental testing labs (EPA-certified), clinical reference laboratories (CAP-accredited), and academic research cores performing metallomics, geochemical profiling, and regulatory compliance testing. Typical use cases include: digestion of NIST SRM 1640a (trace elements in water) prior to ICP-MS analysis; extraction of heavy metals from PVC packaging per EU Directive 2002/95/EC; accelerated protein hydrolysis for amino acid quantification by HPLC; and microwave-assisted leaching of rare earth elements from spent catalysts. Its capacity to process up to 10 samples simultaneously—while maintaining <2% RSD for Cr, Ni, Cu, Zn, Cd, and Pb across certified reference materials—makes it suitable for high-throughput QA/QC environments.
FAQ
What safety certifications does the MD6 hold?
The MD6 conforms to GB 4706.21 (Chinese household appliance safety standard for microwave ovens), IEC 61000-4-3 (radiated immunity), and IEC 61000-4-6 (conducted immunity). It is not CE-marked for EU medical device use but meets general laboratory equipment EMC and RF emission requirements.
Can the MD6 be integrated into an existing LIMS environment?
Yes—the DigestPro™ software supports ASTM E1447-compliant XML export and ODBC connectivity for direct ingestion into major LIMS platforms (e.g., LabWare, Thermo Fisher SampleManager, STARLIMS). Audit trails are exportable as tamper-evident PDFs.
Is remote monitoring supported?
The A-type configuration enables secure remote access via TLS 1.2–encrypted VNC tunneling; however, no cloud-based telemetry or vendor-hosted dashboards are provided—data residency remains fully on-premise.
What is the expected service life of the PTFE/TFM vessels?
Under routine use (≤200 °C, nitric-perchloric acid mixtures), TFM inner vessels typically exceed 150 digestion cycles before showing measurable fluorine leaching (verified by IC analysis); PEEK outer vessels maintain structural integrity beyond 500 cycles when operated within rated pressure limits.
Does MICHEM provide application support for method development?
Yes—MICHEM offers documented application notes for >80 matrix types (available upon request), plus optional on-site method validation services aligned with ISO/IEC 17025 clause 7.2.2 for client-specific accreditation needs.
