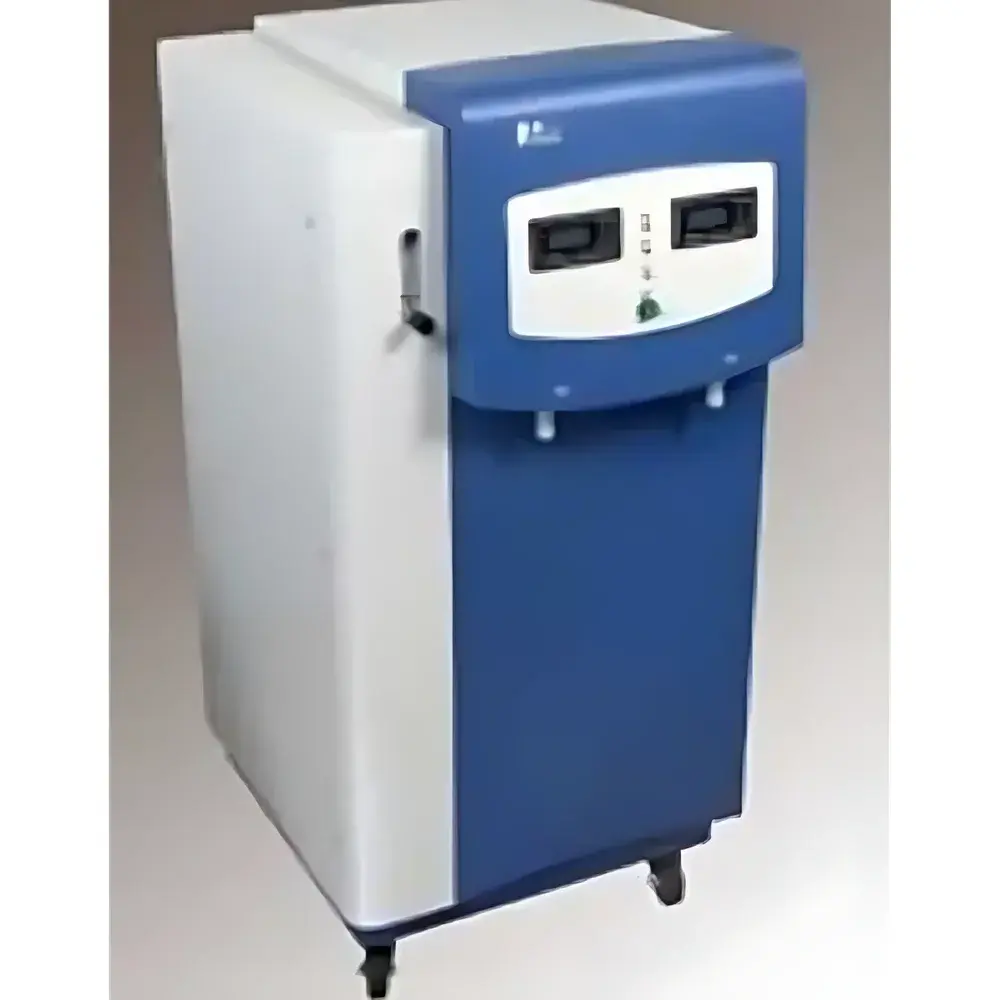

Michem MW-D10 Ultra Pure Water System

Overview

The Michem MW-D10 Ultra Pure Water System is a compact, benchtop-grade laboratory water purification platform engineered to deliver Type I ultrapure water (ASTM D1193-20 Grade I) with consistent resistivity up to 18.25 MΩ·cm at 25 °C and total organic carbon (TOC) levels ≤10 ppb. It employs a validated six-stage purification architecture—including dual-stage reverse osmosis, electrodeionization (EDI), ultrafiltration, and dual-wavelength (185/254 nm) UV photooxidation—to remove ionic, organic, particulate, colloidal, and microbiological contaminants from municipal tap feed water (conductivity ≤550 µS/cm). Unlike thermal distillation or single-pass RO systems, the MW-D10 utilizes continuous recirculation and real-time conductivity/resistivity monitoring to maintain thermodynamic equilibrium and suppress ion re-equilibration, ensuring long-term stability of electrochemical purity metrics critical for trace elemental analysis and low-background spectroscopy.

Key Features

• Compact stainless-steel powder-coated chassis with integrated casters—designed for flexible placement near analytical instruments without dedicated plumbing or floor space commitment.
• Dual independent output streams: one dedicated to purified water (≥10 MΩ·cm, suitable for glassware rinsing and general lab use); the other delivering ultrapure water (18.25 MΩ·cm, TOC ≤10 ppb) for critical applications including HPLC mobile phase preparation and ICP-MS calibration.
• Real-time digital monitoring via backlit LCD interface displaying resistivity, TOC trend (via integrated UV oxidation + conductivity correlation), water temperature, system pressure, and consumable service life.
• Automated safeguards: feed water low-pressure cutoff, reservoir overfill shutoff, UV lamp failure detection, and scheduled filter/EDI cartridge replacement alerts compliant with GLP documentation requirements.
• Energy-efficient operation—consumes 90% energy reduction versus conventional vapor compression stills.

Sample Compatibility & Compliance

The MW-D10 is validated for compatibility with high-sensitivity analytical workflows requiring stringent water purity specifications. Its output meets or exceeds ASTM D1193-20 Type I, CLSI (formerly NCCLS) EP21-A, and CAP Laboratory Standards for ultrapure water used in atomic absorption spectroscopy (AAS), inductively coupled plasma optical emission spectrometry (ICP-OES), inductively coupled plasma mass spectrometry (ICP-MS), liquid chromatography–mass spectrometry (LC-MS), and molecular biology applications such as PCR reagent preparation. All wetted components—including RO membranes (Dow Filmtec™ LE), EDI modules (Koch Membrane Systems), and ultrafilters—are NSF/ANSI 58 and 61 certified. The system supports audit-ready electronic log generation for FDA 21 CFR Part 11 compliance when paired with optional data export firmware.

Software & Data Management

While the base MW-D10 operates via embedded microcontroller logic without external PC dependency, its firmware supports USB data dump of time-stamped conductivity, TOC proxy values, alarm history, and maintenance logs. Optional firmware upgrade enables RS-232 or Ethernet connectivity for integration into centralized laboratory information management systems (LIMS). All recorded parameters include timestamps, operator ID fields (via optional keypad login), and immutable audit trails—enabling full traceability for ISO/IEC 17025-accredited laboratories. Calibration records for inline sensors are stored internally and exportable in CSV format for QA review.

Applications

The MW-D10 serves as a primary water source in analytical chemistry labs performing trace metal analysis by GF-AAS or ICP-MS, where sub-ppt contamination from Na⁺, K⁺, Cl⁻, or silica must be eliminated. It supports mobile phase preparation for UHPLC and gradient elution in LC-MS, minimizing baseline noise and column fouling. In life science facilities, it supplies nuclease-free water for qRT-PCR master mix formulation and CRISPR-Cas9 reagent dilution. Industrial users deploy it for precision optics cleaning and photoresist developer formulation, where particle counts 0.1 µm) prevent surface defect propagation. Its modular design allows seamless scalability to MW-D20/D30 configurations for higher throughput without redesigning point-of-use infrastructure.

FAQ

What feed water quality is required?
Municipal tap water meeting local regulatory standards (conductivity ≤550 µS/cm, free chlorine ≤2 mg/L, turbidity <1 NTU) is sufficient. Pre-filtration is integrated; no external softener or sediment filter is mandatory.
How often must consumables be replaced?
RO membranes: 2–3 years depending on feed water hardness; EDI cartridges: 3–5 years; UF/UV modules: 12 months; polishing cartridge: 6–12 months. System alerts notify users 72 hours prior to expiry.
Does the MW-D10 support remote monitoring?
Yes—via optional RS-232/Ethernet module enabling SNMP trap transmission, LIMS integration, and cloud-based dashboard access through secure TLS 1.2 encrypted channels.
Is the system compliant with GLP/GMP documentation requirements?
All operational events—including power cycles, alarms, manual overrides, and consumable changes—are timestamped and stored with cryptographic integrity. Audit trail export meets ALCOA+ principles for regulated environments.
Can output water be validated for pharmacopeial compliance (e.g., USP )?
While not marketed as a USP Purified Water or Water for Injection (WFI) generator, its ultrapure stream satisfies the chemical purity criteria of USP Category I water when operated under controlled environmental conditions and verified via periodic third-party testing (e.g., ISO 14644-1 Class 5 hood installation).
