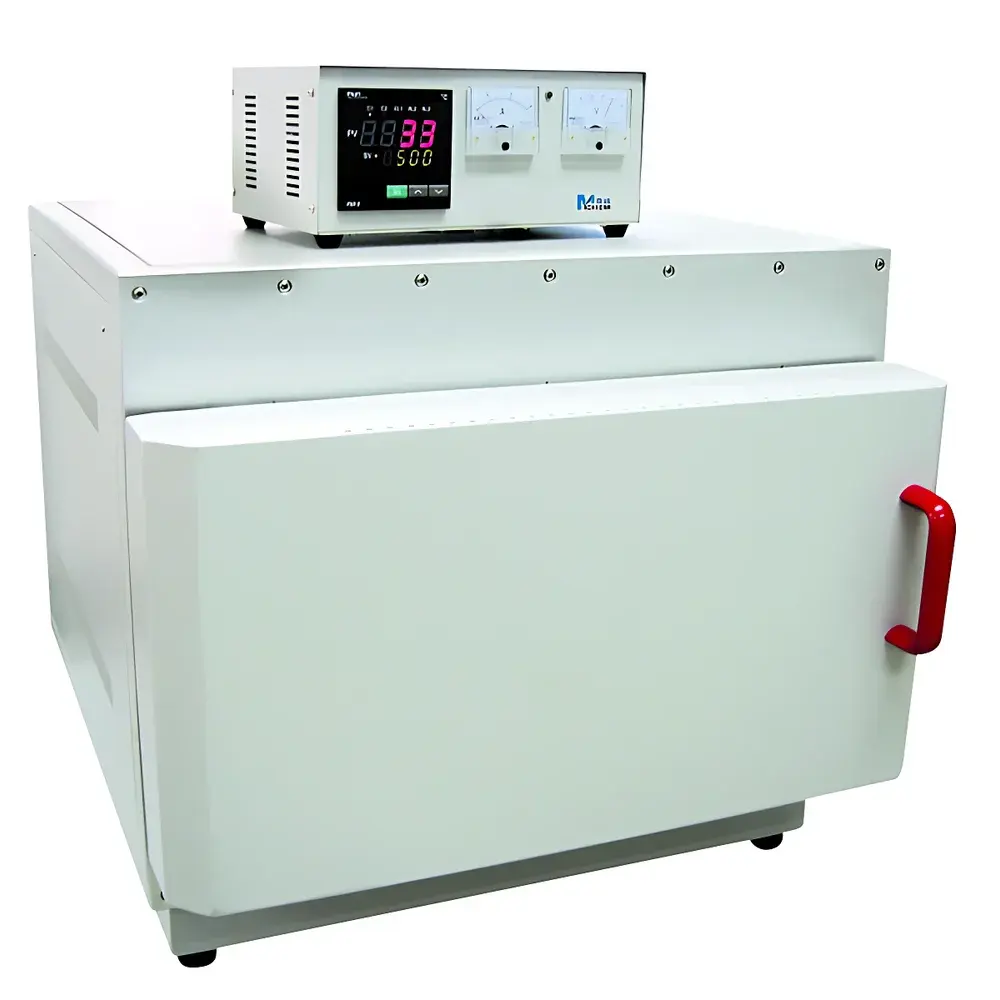

MICHEM TM20 Series Ceramic Fiber Muffle Furnace
| Brand | MICHEM |
|---|---|
| Origin | Beijing, China |
| Model | TM20 Series |
| Type | Box-Type Muffle Furnace |
| Max Temperature | 1000 °C / 1200 °C / 1400 °C |
| Temperature Uniformity | ±1 °C |
| Max Power | 5 kW |
| Heating Time to Max Temp | 30 min (1000 °C) / 50 min (1200 °C) / 60 min (1400 °C) |
| Heating Element | HRE High-Temperature Alloy |
| Internal Chamber Dimensions | 250 × 400 × 200 mm (W × D × H) |
| Insulation | Ceramic Fiber Blanket (130 mm thick) |
| Power Supply | 3-phase 380 V, 16 A |
| Weight | 85 kg |
Overview
The MICHEM TM20 Series Ceramic Fiber Muffle Furnace is a high-performance laboratory box furnace engineered for precise, repeatable, and energy-efficient high-temperature thermal processing. Designed around a robust ceramic fiber insulation architecture—offering superior thermal resistance and low heat storage—the furnace operates on the principle of radiant heating within a fully insulated, sealed chamber. This design eliminates direct contact between samples and heating elements while ensuring uniform temperature distribution across the working zone, critical for applications demanding strict thermal reproducibility. The TM20 series supports maximum operating temperatures of 1000 °C, 1200 °C, or 1400 °C, with rapid ramp rates and exceptional thermal stability (< ±1 °C at setpoint), making it suitable for routine ashing, calcination, sintering, annealing, and fusion procedures in analytical chemistry, metallurgy, materials science, and quality control laboratories.
Key Features
- High-efficiency ceramic fiber insulation (130 mm thickness) minimizes external surface temperature rise—typically ≤60 °C after 1 hour at 1000 °C—reducing ambient thermal load and improving lab safety.
- Rapid thermal response: reaches 1000 °C from ambient in ≤30 minutes; 1200 °C in ≤50 minutes; 1400 °C in ≤60 minutes—enabled by optimized HRE (high-resistance alloy) heating elements and symmetrical dual-side heating configuration.
- Precision PID temperature control with 30-segment programmable ramp-soak profiles; temperature stability maintained at ±0.2% of full scale under steady-state conditions.
- Integrated safety interlock system automatically cuts power upon door opening, complying with IEC 61010-1 requirements for laboratory electrical equipment.
- Modular construction with reinforced stainless-steel outer casing and corrosion-resistant internal lining ensures long-term structural integrity and ease of maintenance.
- Standardized 3-phase 380 V, 16 A input enables compatibility with industrial-grade lab power infrastructure without requiring custom circuitry.
Sample Compatibility & Compliance
The TM20 furnace accommodates standard crucibles (alumina, platinum, graphite, silicon carbide) and refractory sample boats up to 250 × 400 × 200 mm internal chamber volume (20 L). Its muffle design isolates samples from combustion byproducts and element degradation, supporting ASTM E121–22 (ash content determination), ISO 562 (determination of ash in coal), and USP (heavy metals testing). The furnace’s thermal uniformity profile meets GLP validation criteria for thermal mapping (per IQ/OQ protocols), and its controller supports audit-trail-capable data logging when integrated with optional RS485/Modbus RTU interfaces—facilitating compliance with FDA 21 CFR Part 11 for regulated environments.
Software & Data Management
While the base model features an embedded PP3-series digital PID controller with front-panel programming, optional firmware upgrades enable USB or Ethernet connectivity for remote monitoring and data export. Logged parameters—including real-time temperature, ramp rate, soak duration, and alarm events—are timestamped and exportable as CSV files for traceability. When deployed in GxP-regulated workflows, the system supports electronic signature-enabled user access levels (administrator/operator), event-driven alerts, and configurable data retention policies aligned with ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available).
Applications
- Analytical chemistry: Quantitative ash residue analysis per AOAC 923.03 and EPA Method 200.7.
- Materials research: Thermal gravimetric pre-treatment of catalysts, battery cathode precursors, and ceramic green bodies prior to sintering.
- Metallurgical testing: Fusion of ore samples for XRF bead preparation (ISO 9516-1); homogenization of alloy standards.
- Environmental labs: Loss-on-ignition (LOI) assays for soil and sediment organic content per ASTM D7348.
- Calibration services: Serves as a stable, high-accuracy reference source for thermocouple calibration up to 1400 °C, validated against NIST-traceable standards.
FAQ
What temperature uniformity can be expected across the 20 L chamber at 1200 °C?
Typical radial and axial uniformity is ±3 °C over the central 70% of the chamber volume, verified during factory thermal mapping (certified report available upon request).
Is the furnace compatible with inert or reducing atmospheres?
The standard TM20 model is designed for air atmosphere operation only; optional quartz tube inserts or flanged gas-tight ports are available for controlled-atmosphere configurations (N₂, Ar, forming gas).
Can the controller be validated for 21 CFR Part 11 compliance?
Yes—when configured with the optional data-logging module and user-access management firmware, the system supports electronic signatures, audit trails, and role-based permissions required for regulated pharmaceutical or clinical lab use.
What maintenance intervals are recommended for the HRE heating elements?
Under normal usage (≤8 h/day at ≤1200 °C), heating elements require inspection every 12 months; typical service life exceeds 5,000 operational hours before replacement.
Does the furnace include documentation for IQ/OQ qualification?
Factory-supplied documentation includes electrical safety test reports, thermal mapping summary, and controller calibration certificates—serving as foundational evidence for user-executed installation and operational qualification protocols.
