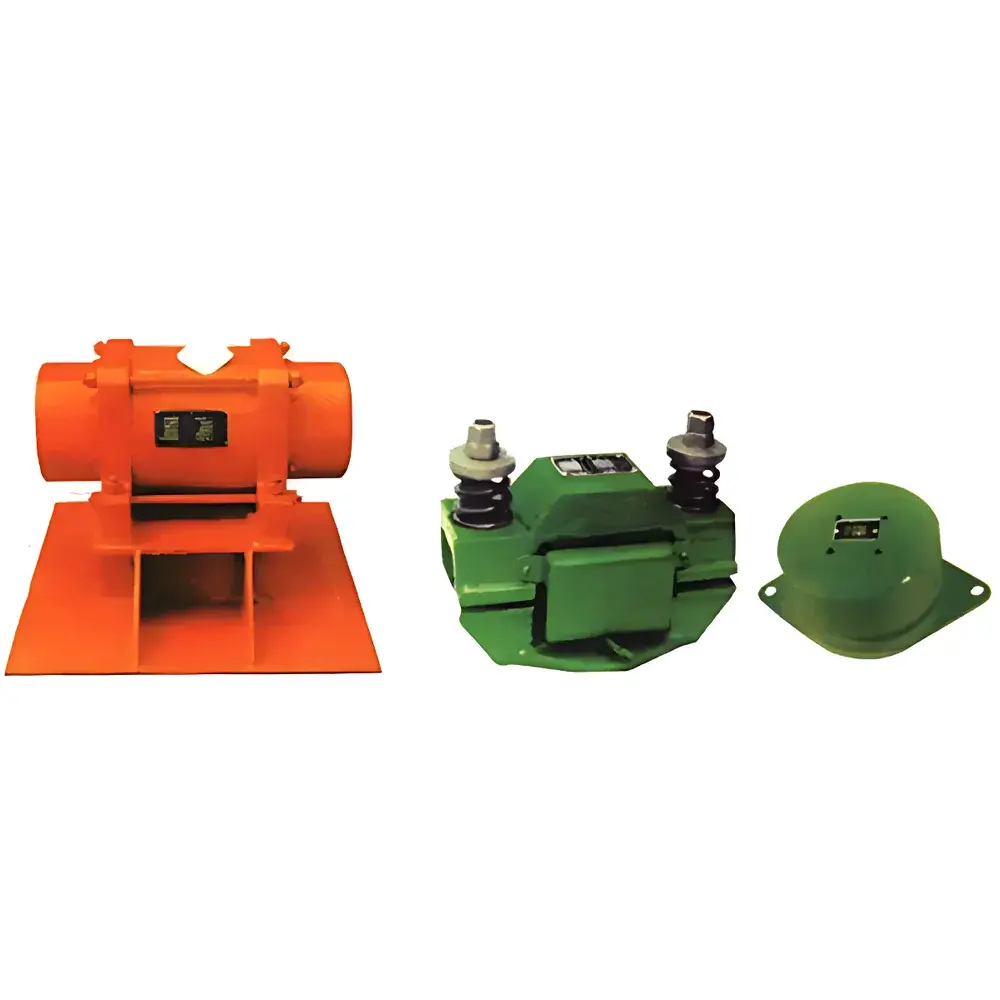

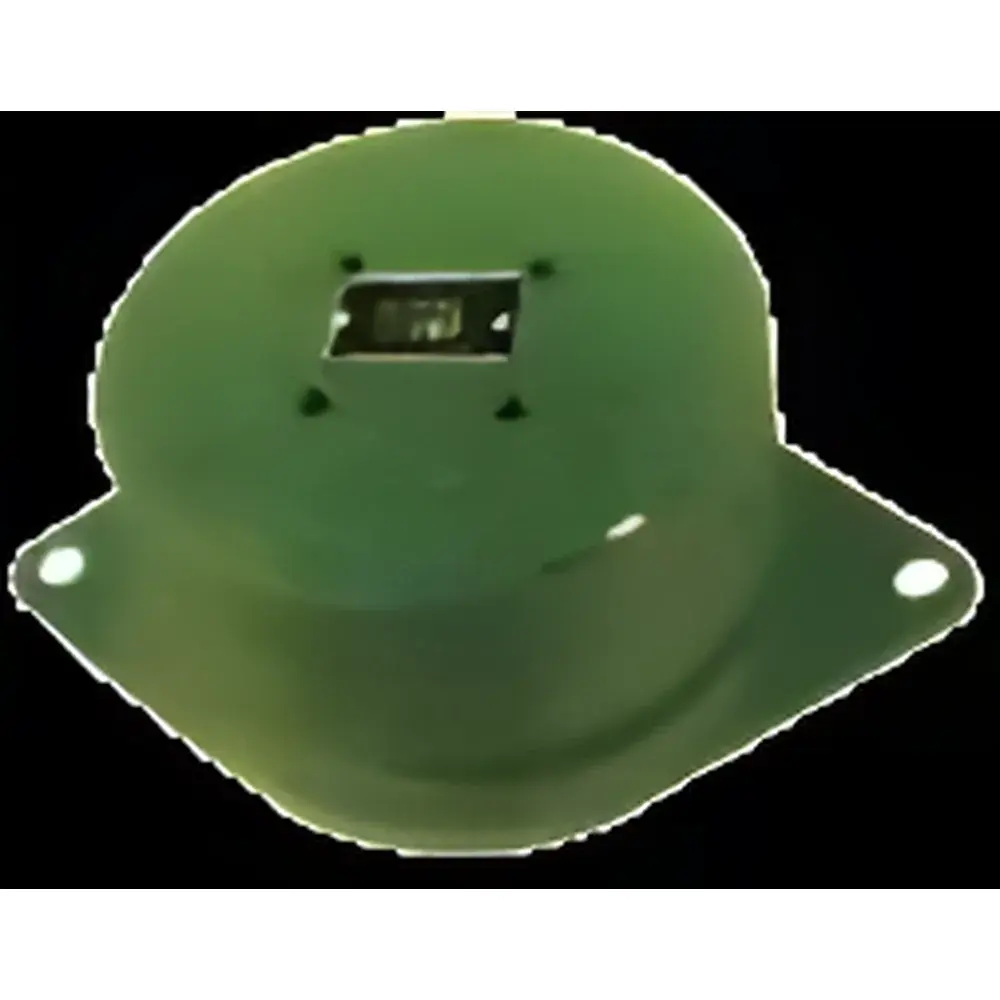

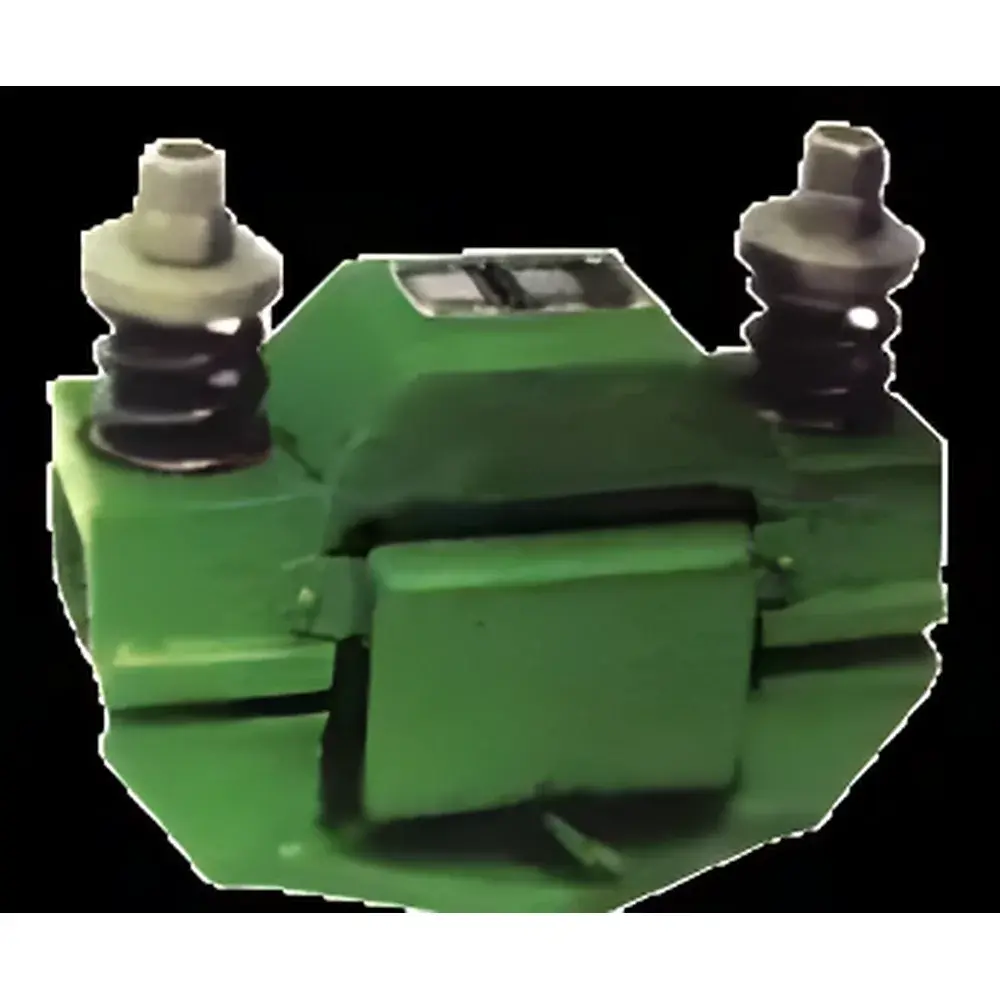

MingShen Science CZ10 Electromagnetic Bin Vibrator
| Brand | MingShen Science |
|---|---|
| Origin | Henan, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | CZ10 |
| Vibration Force | 100 kgf |
| Power Consumption | 0.008 kW |
| Vibration Frequency | 3000 rpm |
| Operating Voltage | 220 V AC |
| Applicable Bin Wall Thickness | 0.6–0.8 mm |
| Weight | 2 kg |
Overview
The MingShen Science CZ10 Electromagnetic Bin Vibrator is an industrial-grade electromechanical device engineered to resolve bridging, rat-holing, and arching phenomena in bulk solid storage systems. It operates on the principle of electromagnetic excitation—where alternating current applied to a coil generates a time-varying magnetic field that drives a movable armature against a spring-loaded impact mass. This produces high-frequency, low-amplitude mechanical impulses (3000 cycles per minute) transmitted directly into the bin or hopper wall. Unlike pneumatic or rotary vibrators, the CZ10 delivers precise, repeatable energy input without compressed air infrastructure or rotating components, making it ideal for dust-sensitive, explosion-risk, or space-constrained environments in food, pharmaceutical, chemical, and mineral processing facilities.
Key Features
- Electromagnetic actuation ensures rapid start/stop response and zero residual vibration after power cutoff—critical for synchronized discharge control in automated batching systems.
- Compact footprint (2 kg unit weight) and minimal wall penetration requirement (designed for 0.6–0.8 mm steel thickness) enable retrofit installation on existing mild steel, stainless steel, or reinforced fiberglass hoppers without structural reinforcement.
- Fixed-frequency operation at 3000 rpm eliminates variable-speed complexity while maintaining optimal energy transfer across common bulk densities (0.4–2.2 g/cm³) and particle size distributions (50 µm–25 mm).
- Hermetically sealed coil assembly with Class H insulation (180°C thermal rating) provides long-term reliability under continuous duty cycles and ambient temperatures up to 55°C.
- No moving parts external to the housing—no lubrication, no wear-prone bearings, and no maintenance intervals beyond periodic electrical connection inspection per IEC 60204-1.
Sample Compatibility & Compliance
The CZ10 is validated for use with free-flowing to marginally cohesive dry powders and granules including cement clinker, plastic pellets, sugar crystals, limestone fines, and API intermediates. It is not intended for highly adhesive materials (e.g., wet clay, hydrated lime) or viscous pastes. All units comply with CE marking requirements for electromagnetic compatibility (EN 61000-6-3/-4) and low-voltage directive (2014/35/EU). The 220 V AC input conforms to IEC 60038 nominal voltage standards. For hazardous locations, optional ATEX-certified variants (II 2G Ex ib IIB T4 Gb) are available upon request—subject to end-user risk assessment per EN 60079-10-1.
Software & Data Management
As a standalone electromechanical actuator, the CZ10 does not incorporate embedded firmware, IoT connectivity, or digital control interfaces. It is designed for integration into third-party PLC-based control architectures (e.g., Siemens S7, Allen-Bradley ControlLogix) via standard 24 V DC trigger signals or direct 220 V AC line switching. Duty cycle programming—including timed activation, level-switch-triggered pulsing, or mass-flow feedback synchronization—is implemented externally. Audit trails, event logging, and operational history are maintained within the host SCADA or MES system, supporting compliance with FDA 21 CFR Part 11 where electronic records govern material release decisions.
Applications
- Prevention of hang-up in conical silos storing fly ash or ground calcium carbonate in cement plants.
- Ensuring consistent discharge from small-volume intermediate bulk containers (IBCs) in fine chemical synthesis suites.
- Stabilizing feed rate into loss-in-weight (LIW) feeders handling polymer granules in extrusion lines.
- Eliminating “first-in, last-out” flow anomalies in stainless-steel food-grade hoppers during flour or milk powder packaging.
- Supporting GLP-compliant sample preparation workflows where manual tapping of sample containers must be eliminated to reduce analyst variability.
FAQ
Can the CZ10 be used on stainless steel bins thicker than 0.8 mm?
No—the design assumes optimal energy transmission through wall thicknesses between 0.6 mm and 0.8 mm. Thicker walls attenuate impulse transmission; alternative models (e.g., CZ250 or CZ400) are recommended for walls ≥3.3 mm.
Is the unit suitable for outdoor installation?
It carries an IP54 enclosure rating—protected against limited dust ingress and water splashes from any direction—but requires shelter from direct rainfall and UV exposure to maintain coil insulation integrity over time.
Does the CZ10 require a dedicated circuit breaker?
Yes—a 2 A slow-blow fuse or thermomagnetic circuit breaker rated for inductive loads must be installed upstream to prevent nuisance tripping during coil energization transients.
Can multiple CZ10 units be synchronized on one hopper?
Yes—when phased correctly using a master timing controller, up to four units may be mounted symmetrically to generate uniform modal excitation and avoid localized stress concentrations.
What is the expected service life under continuous operation?
Rated for ≥50,000 hours MTBF when operated within specified voltage tolerance (±10%), ambient temperature (−20°C to +55°C), and duty cycle (<60% on-time per hour).
