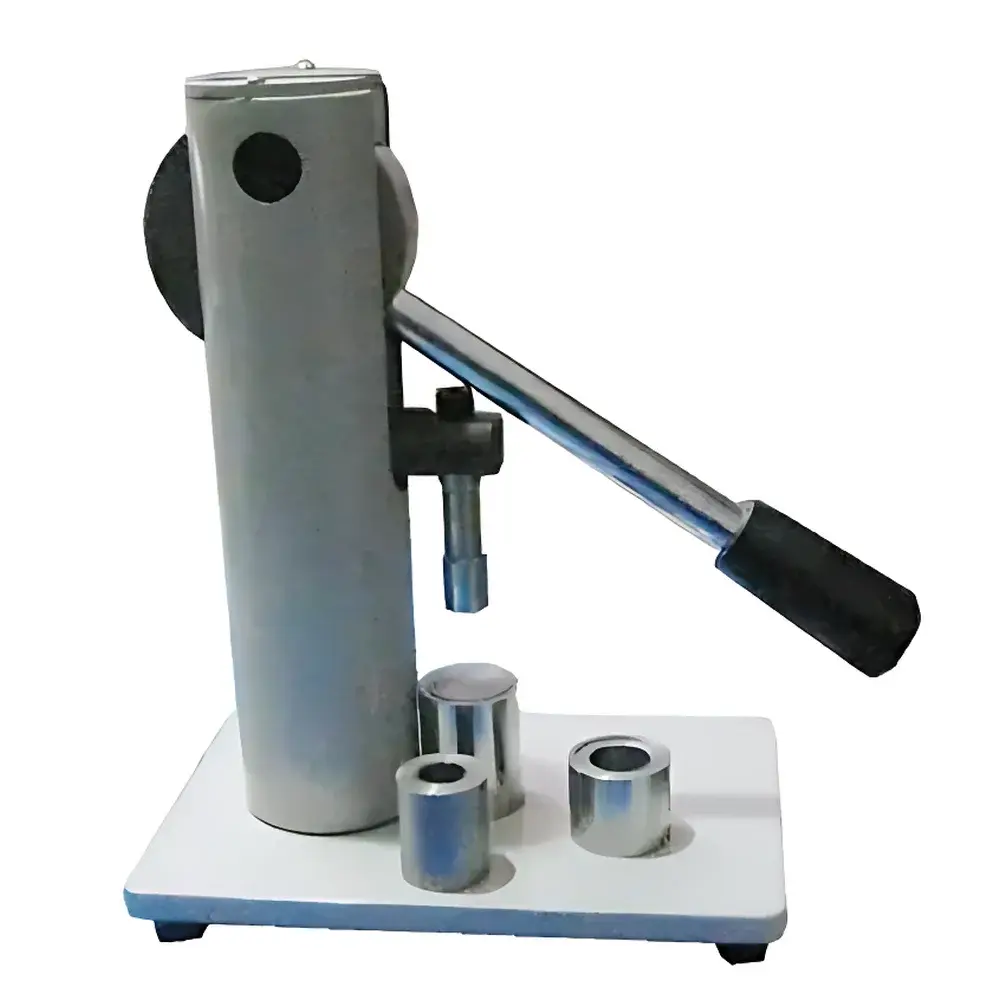

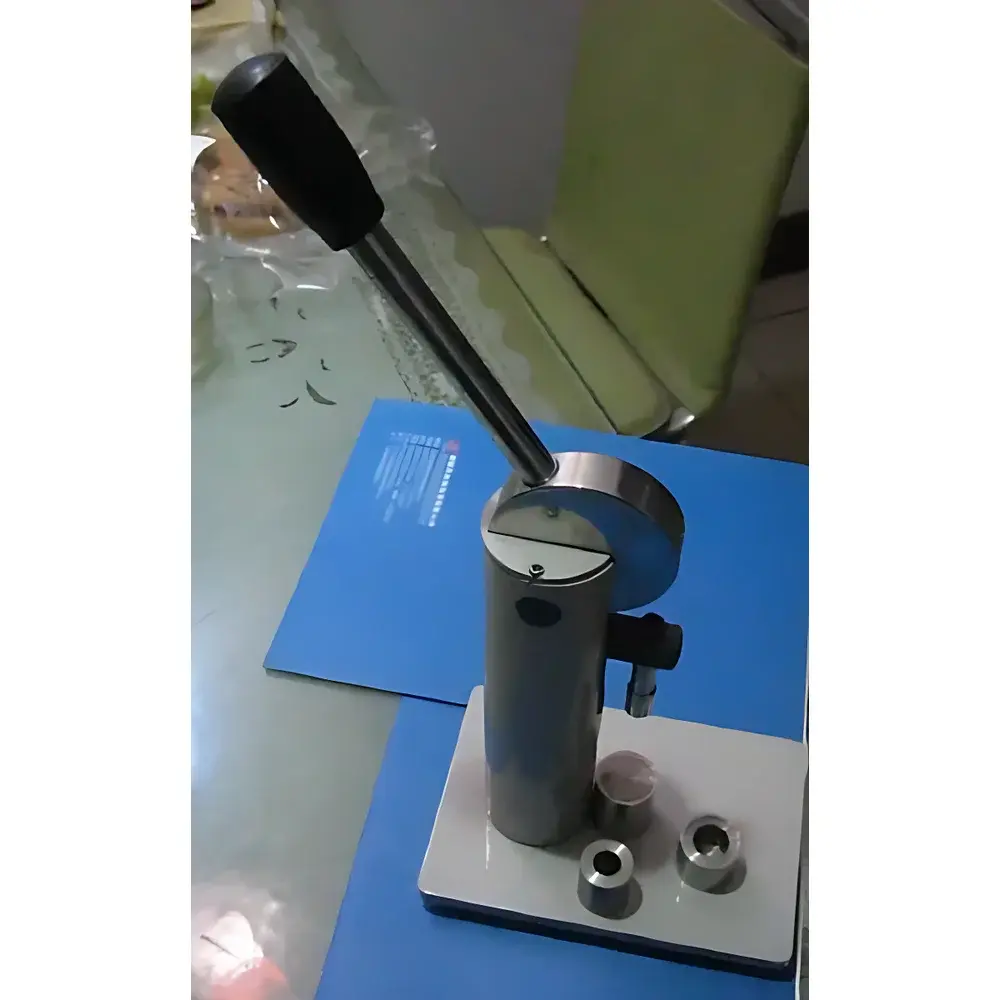

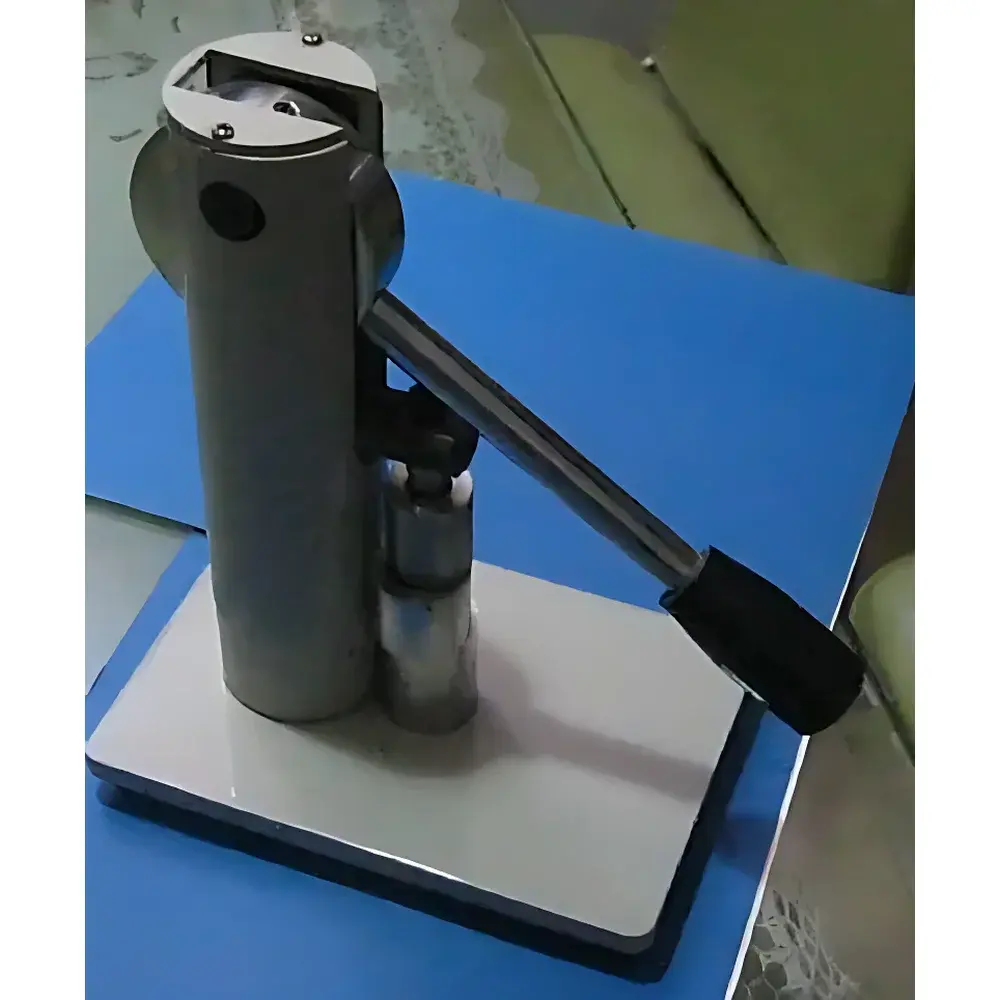

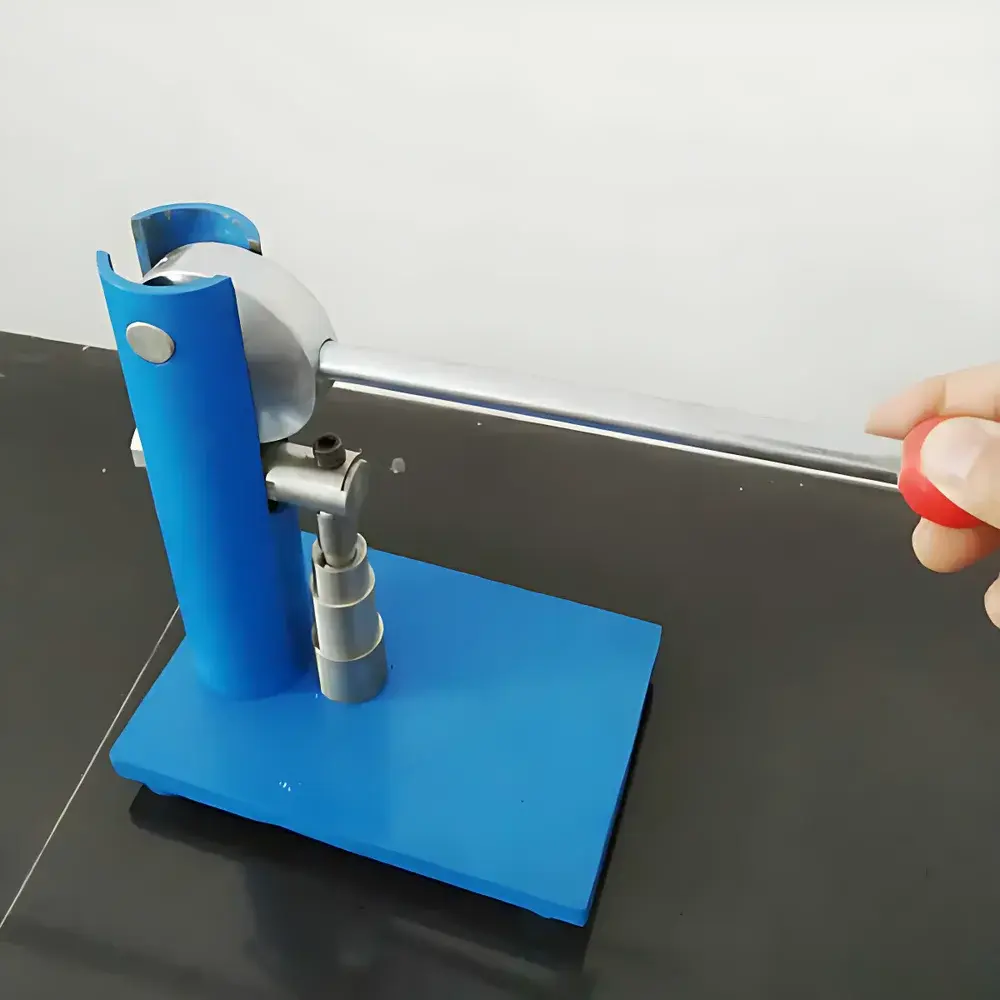

MingShen Science Lever-Actuated Pellet Press

Overview

The MingShen Science Lever-Actuated Pellet Press is a manually operated, mechanical compression device engineered for the reproducible preparation of homogeneous, high-density cylindrical pellets from fine powders—primarily for use in oxygen bomb calorimetry, thermogravimetric analysis (TGA), and elemental combustion testing. Unlike hydraulic or electric presses, this instrument relies on first-class lever mechanics to amplify user-applied force, enabling consistent compaction without external power sources or complex calibration. Its core function is to transform hygroscopic or low-cohesiveness powders—such as benzoic acid reference standards, coal samples, biomass ash precursors, or pharmaceutical excipients—into dimensionally stable, void-minimized pellets that meet strict geometric and density requirements for accurate heat-of-combustion measurement. The press operates under ambient conditions and is purpose-built for laboratories requiring rapid, operator-controlled pellet formation with minimal thermal or mechanical variability.

Key Features

• Mechanically robust lever-arm system delivering >10:1 force multiplication for uniform compaction pressure across all pellet sizes.

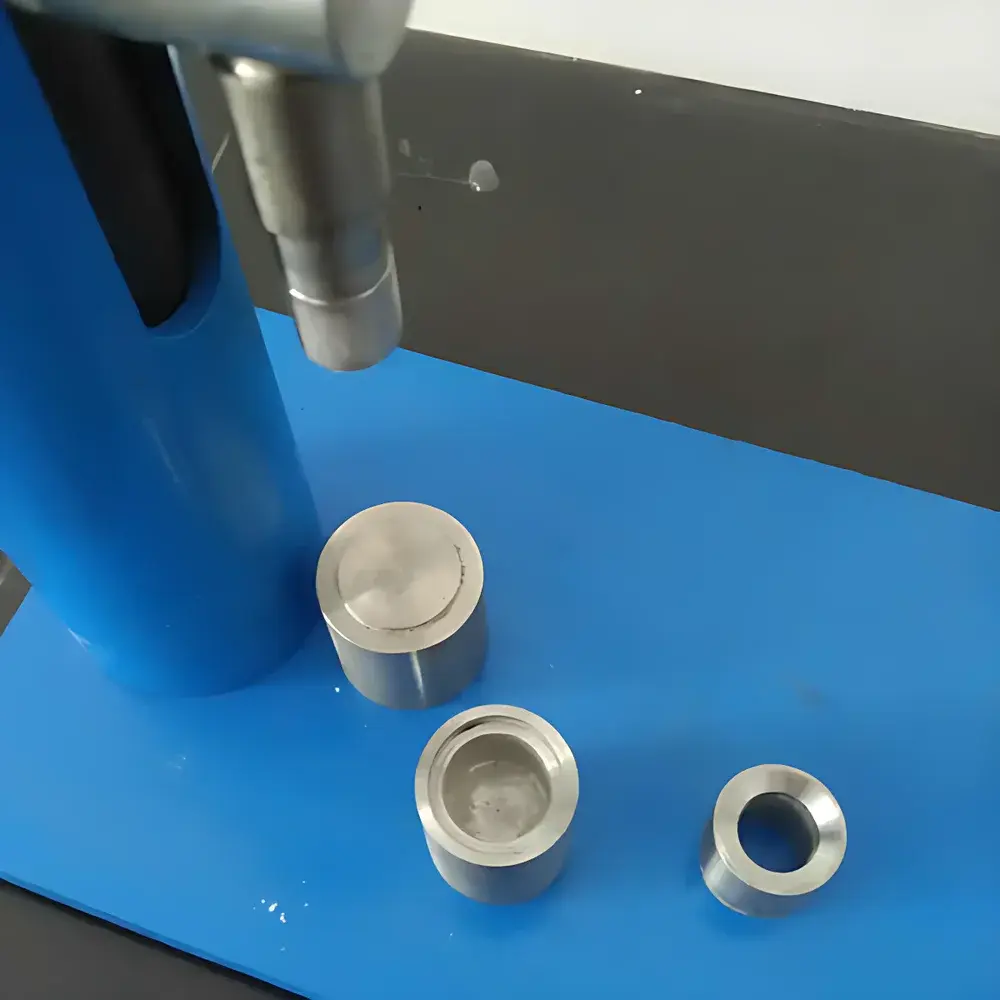

• Interchangeable hardened steel die sets supporting standard pellet diameters: 6 mm, 8 mm, 12 mm, 20 mm, 40 mm, and 60 mm—each with matched punches and die barrels precision-machined to ±2 µm tolerance.
• Self-aligning die cavity design ensures concentric loading and eliminates lateral shear during ejection, minimizing edge chipping and radial cracking.
• Ergonomic handle geometry with non-slip textured grip reduces operator fatigue during repeated pressing cycles.
• Tool-free die change mechanism enables rapid configuration switching between pellet formats—typical changeover time < 90 seconds.
• Stainless-steel construction (AISI 304 frame, HRC 60+ tool steel dies) resists corrosion from organic acids and halogenated combustion residues.

Sample Compatibility & Compliance

This press accommodates dry, free-flowing, and moderately cohesive powders with particle sizes ≤150 µm. It is routinely used for benzoic acid (CAS 65-85-0), certified coal reference materials (e.g., NIST SRM 1632e), lignocellulosic biomass, and synthetic polymers prior to ASTM D5865 or ISO 1928 oxygen bomb calorimetry. Pellets produced meet the dimensional criteria specified in GB/T 213–2008 (Chinese National Standard for Calorific Value Determination) and are compatible with commercial calorimeters requiring 12 mm × 5 mm cylindrical specimens. All die sets are traceable to factory-certified dimensional verification reports. While not a regulated medical device, the press supports GLP-aligned documentation practices via optional logbook templates for batch-wise pellet preparation records.

Software & Data Management

As a purely mechanical instrument, the Lever-Actuated Pellet Press requires no firmware, drivers, or embedded software. However, it integrates seamlessly into digital lab workflows: pellet dimensions and mass can be logged directly into LIMS platforms (e.g., LabVantage, Thermo Fisher SampleManager) via manual entry or barcode-scanned batch IDs. Optional calibration certificates—including die diameter verification and surface roughness (Ra < 0.4 µm) reports—are provided upon request and comply with ISO/IEC 17025 documentation standards. No electronic data capture or audit trail functionality is included, consistent with its classification as a Class I laboratory accessory under FDA 21 CFR Part 11 exemption guidelines.

Applications

• Preparation of ASTM E698-compliant benzoic acid reference pellets for calorimeter calibration.
• Compaction of pulverized coal samples into standardized cylinders for gross calorific value determination per ISO 1928.
• Formation of uniform biomass pellets for pyrolysis kinetics studies in TGA-Q500 systems.
• Routine tabletting of KBr or CsI matrices for FTIR transmission spectroscopy sample support.
• Prototyping of ceramic green bodies in materials science labs prior to sintering trials.
• Production of homogenized powder compacts for XRF fusion bead preparation where hydraulic press access is limited.

FAQ

What is the maximum recommended sample mass per compression cycle?

Approximately 1.0 g for 12 mm pellets; optimal mass varies with powder density and compressibility—refer to included density-vs.-load curve guide.
Can custom die sets be supplied for non-standard pellet geometries?

Yes. Custom diameters, thicknesses, and stepped or tapered profiles are available under NDA with lead times of 4–6 weeks.
Is lubrication required during operation?

No. All sliding interfaces use self-lubricating PTFE bushings; periodic cleaning with isopropanol is sufficient.
Does the press meet ISO 9001 manufacturing requirements?

Yes. MingShen Science’s production facility is ISO 9001:2015 certified, and each unit undergoes functional verification against torque and dimensional release specifications.
How frequently should die sets be recalibrated?

Annual verification is recommended; dimensional drift beyond ±5 µm warrants replacement—certificates include initial baseline measurements.
