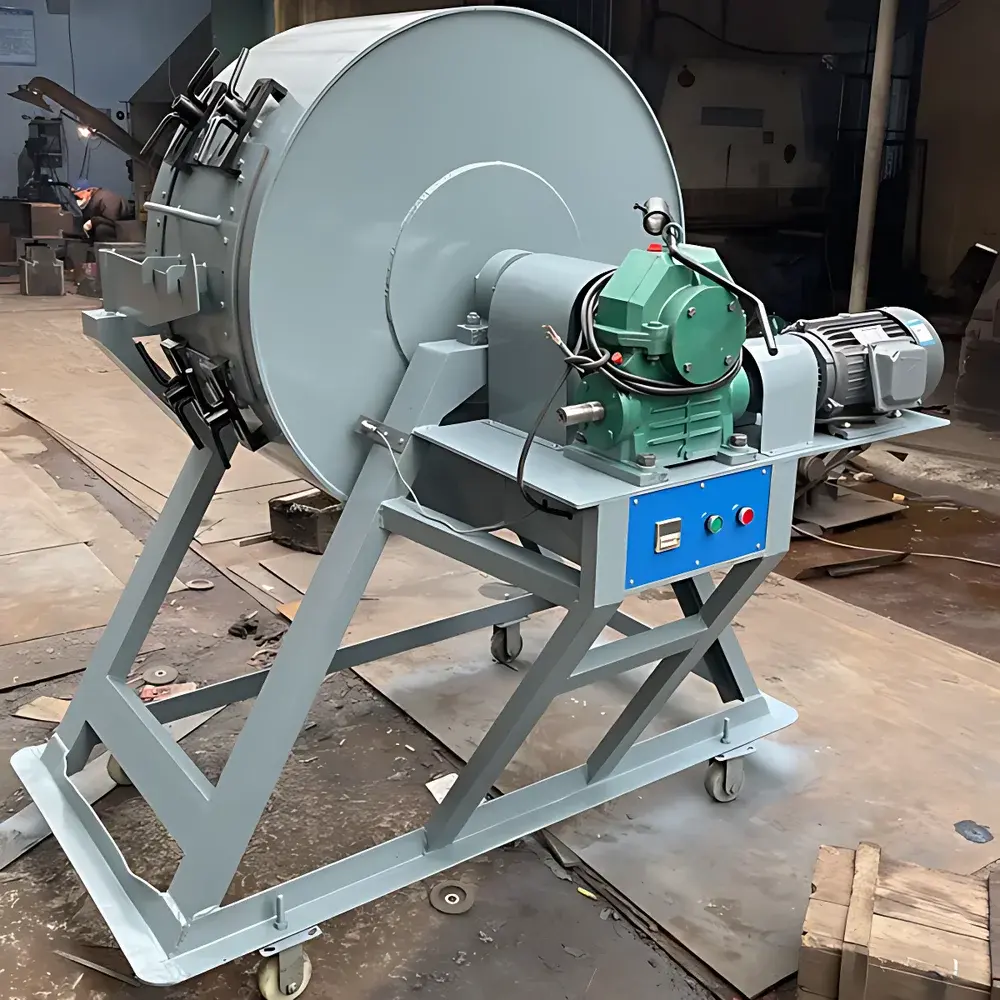

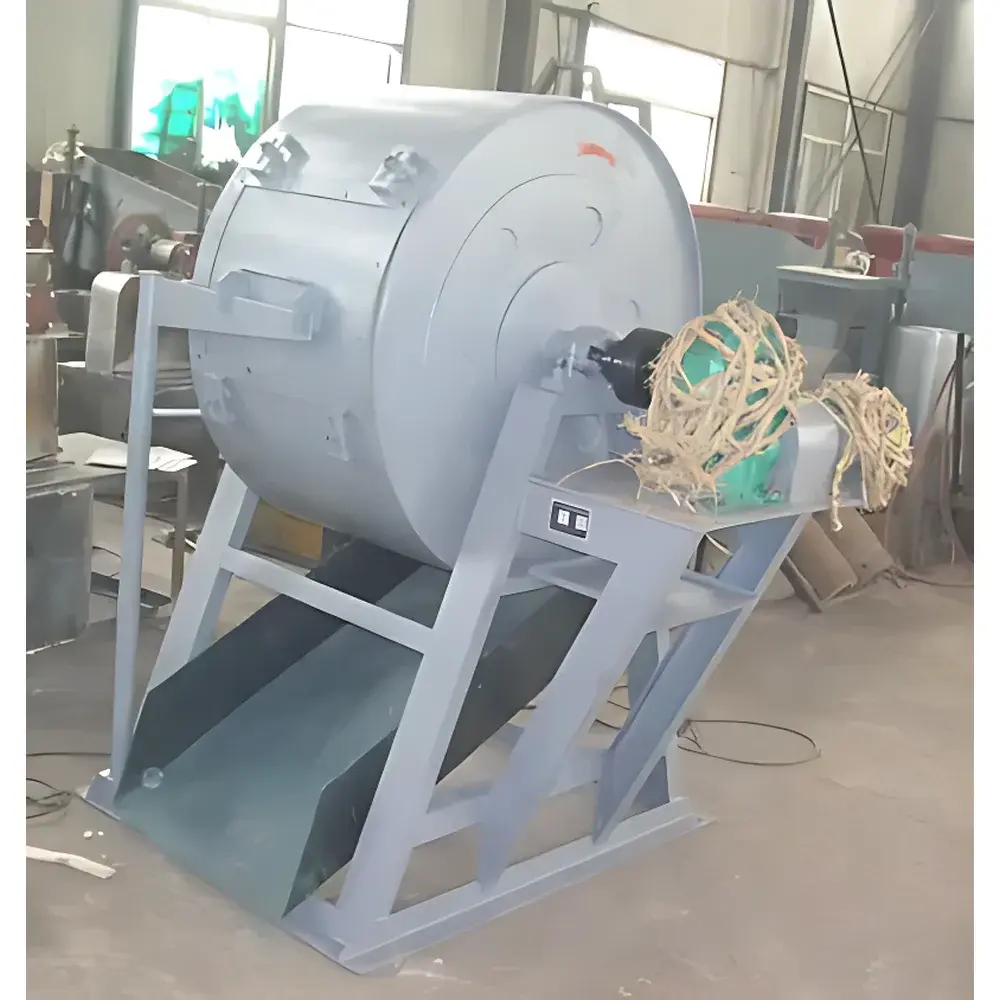

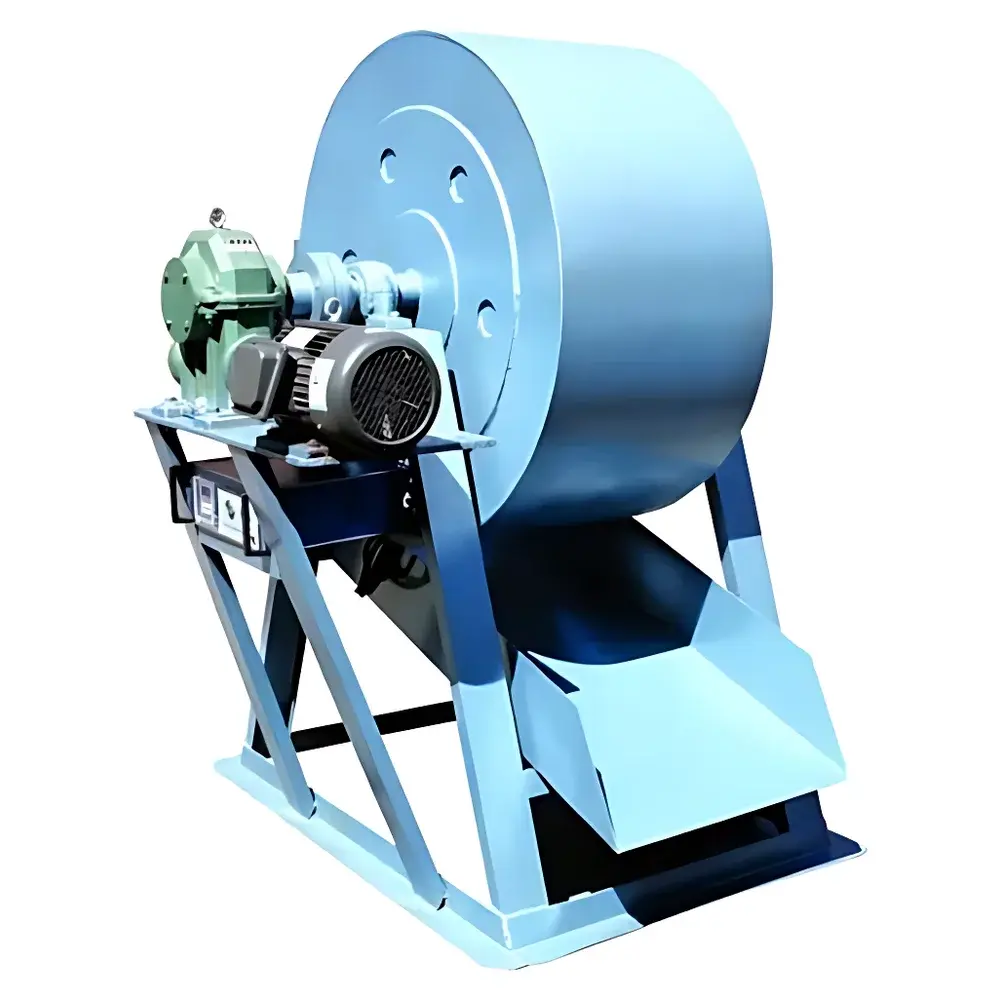

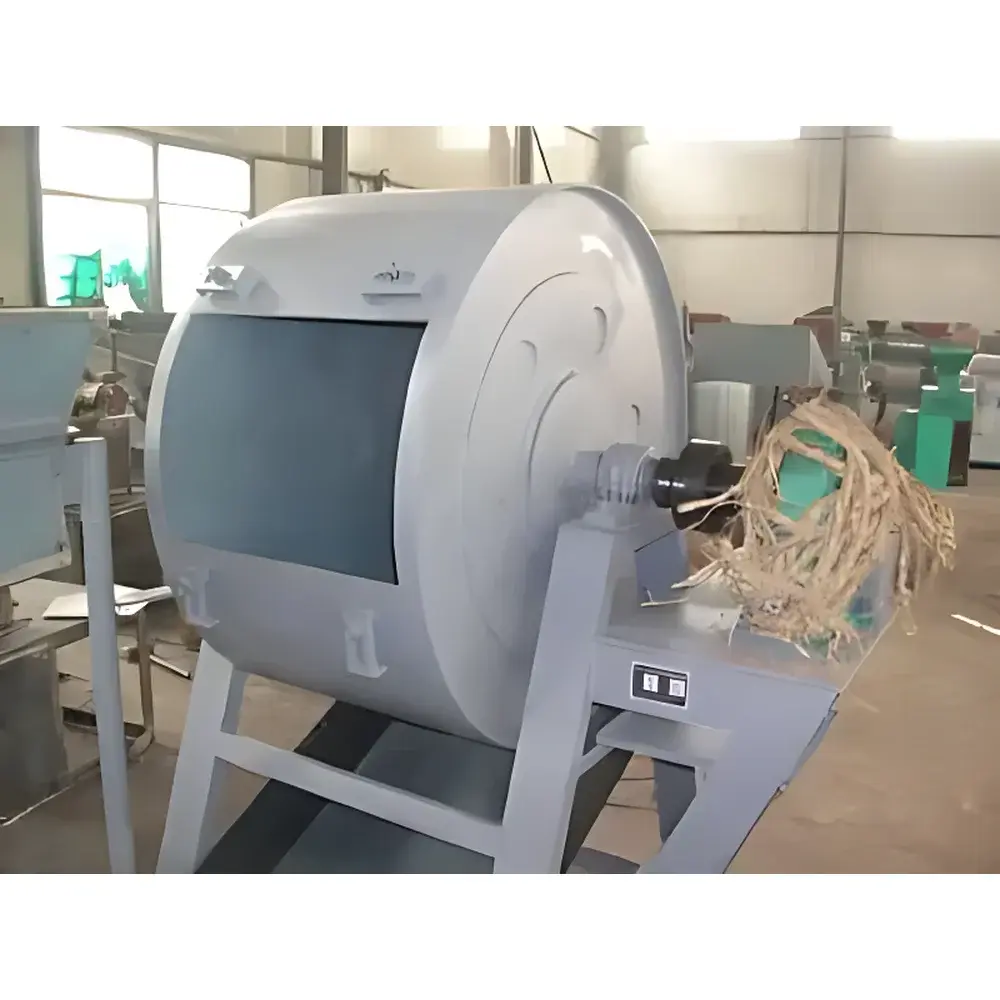

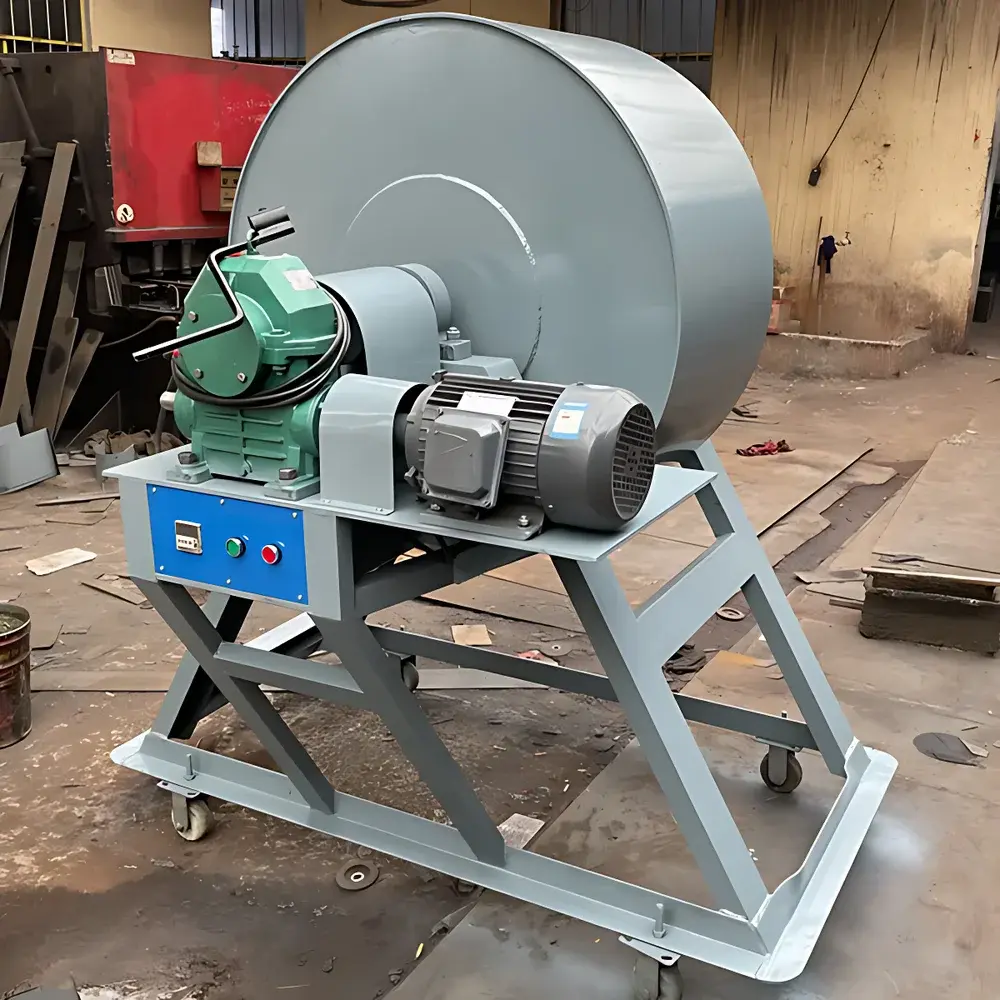

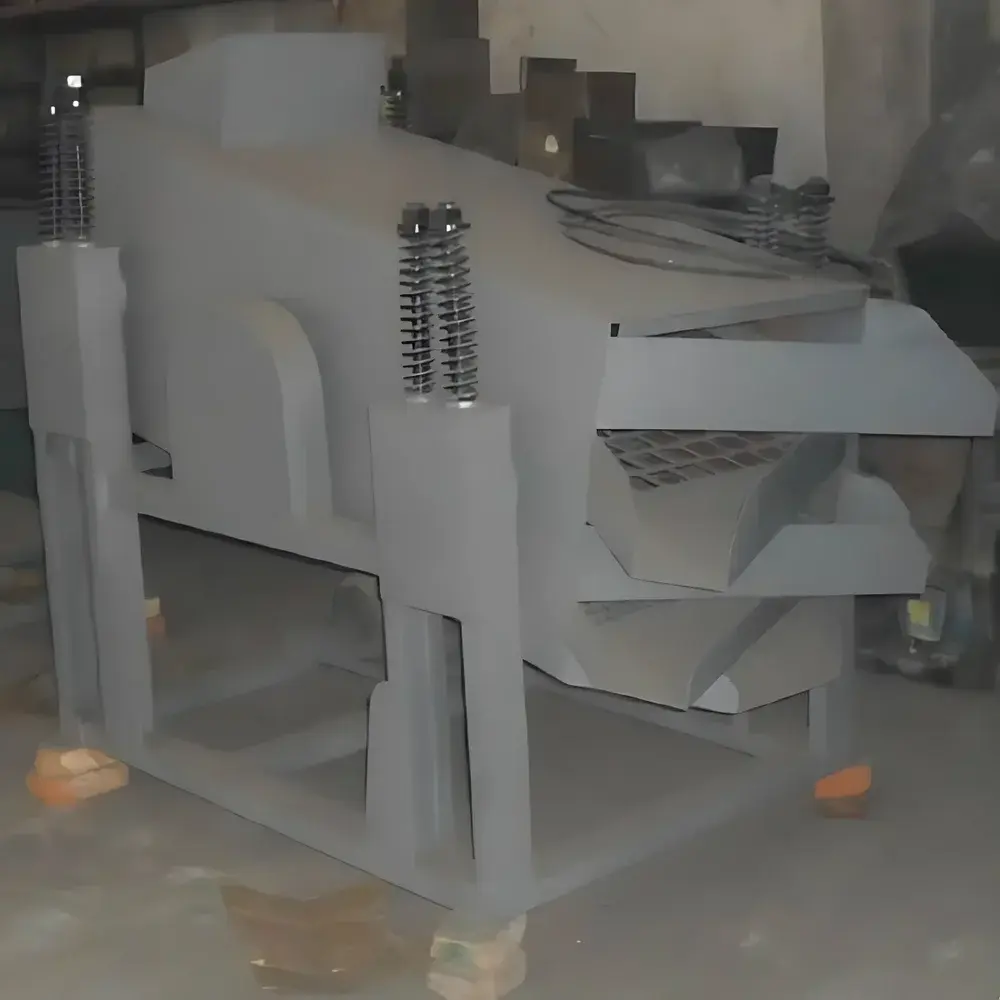

MingShen Science SQZG-4 Tumbling Abrasion Tester for Sinter and Pellet Iron Ore

Overview

The MingShen Science SQZG-4 Tumbling Abrasion Tester is a standardized mechanical strength evaluation system engineered specifically for sintered iron ore and iron ore pellets used in blast furnace feedstock preparation. It operates on the principle of controlled rotational tumbling within a cylindrical drum to simulate mechanical degradation during handling, transportation, and charging into high-temperature metallurgical processes. The device quantifies two critical quality indices defined in GB/T 8209–1987 (replaced by GB/T 8209–2022): the Tumbler Index (TI), representing the percentage of material retained on a 6.3 mm sieve after tumbling, and the Abrasion Index (AI), calculated as the mass fraction of fines (<0.5 mm) generated under identical test conditions. These metrics directly correlate with resistance to impact fracture and surface attrition—key determinants of burden permeability, reduction efficiency, and furnace stability in industrial ironmaking.

Key Features

• Robust drum construction fabricated from high-strength carbon steel with precision-machined internal lifter bars to ensure consistent sample lift-and-drop trajectory.
• Stable speed control via frequency-inverter-driven three-phase induction motor, maintaining rotational accuracy within ±1.5 rpm at 25 rpm nominal speed—complying with GB/T 8209 tolerance requirements.
• Programmable digital counter with non-volatile memory for preset revolution counts (0–9999), enabling repeatable test durations across multiple batches.
• Integrated safety interlock system that halts rotation immediately upon door opening, conforming to IEC 60204-1 electrical safety standards for industrial machinery.
• Modular frame design with adjustable leveling feet and reinforced base plate, minimizing vibration transmission and ensuring measurement repeatability across laboratory environments.
• Tool-free access to drum interior and discharge chute for rapid cleaning and residue removal between tests—critical for avoiding cross-contamination in multi-sample QA/QC workflows.

Sample Compatibility & Compliance

The SQZG-4 accommodates standard 15 kg test charges of sinter or pellet feedstock, sized per ASTM E29 and GB/T 2007.1 specifications for granular metallurgical materials. Its drum geometry (Ø1000 ± 5 mm × L500 ± 5 mm) meets dimensional tolerances mandated in GB/T 8209–2022, ensuring interoperability with national certification laboratories and third-party inspection bodies. All structural components are traceably sourced and documented per ISO 9001:2015 manufacturing protocols. While the instrument operates exclusively at ambient temperature (20–25 °C), its mechanical architecture supports optional thermal shielding upgrades for future integration into climate-controlled testing suites compliant with ISO/IEC 17025 accreditation criteria.

Software & Data Management

The SQZG-4 is a standalone electromechanical tester with no embedded firmware or proprietary software. Test execution and data recording follow manual SOPs aligned with GLP principles: operators log drum start/stop times, post-test sieve analysis results, and environmental conditions (temperature/humidity) in bound laboratory notebooks or validated LIMS templates. Digital documentation workflows may integrate with Excel-based calculation sheets preconfigured for TI and AI derivation per Equation 1 (TI = [mass >6.3 mm / initial mass] × 100) and Equation 2 (AI = [mass <0.5 mm / initial mass] × 100). For regulated environments requiring audit trails, users may deploy electronic lab notebooks (ELNs) compliant with FDA 21 CFR Part 11 when capturing and signing raw test records.

Applications

• Quality assurance of inbound sinter and pellet shipments at integrated steel plants and port terminals.
• R&D screening of new binder formulations, cooling protocols, or induration schedules in pilot-scale sinter plants.
• Process validation for ISO 9001-certified production lines supplying blast furnace operators.
• Interlaboratory comparison studies coordinated under CNAS (China National Accreditation Service) proficiency testing schemes.
• Educational use in metallurgical engineering curricula for hands-on demonstration of mechanical degradation mechanisms in porous oxide agglomerates.

FAQ

Does the SQZG-4 comply with international standards beyond GB/T 8209?
Yes—the drum dimensions, speed tolerance, and sample mass align with ISO 3271:2015 (Iron ores — Determination of tumble strength) and ASTM E290–22 (Standard Test Methods for Tumble Strength of Iron Ore Agglomerates), enabling cross-referenced reporting.
Can the unit be calibrated independently of the manufacturer?
Yes—speed verification is performed using a traceable optical tachometer; drum diameter and length are measurable with certified calipers; all calibration artifacts must meet ISO/IEC 17025 metrological traceability requirements.
Is routine maintenance documented in the user manual?
Yes—the manual includes lubrication intervals for drum bearings, torque specifications for lifter bar fasteners, and visual inspection checkpoints for liner wear, all referenced against ISO 13849-1 functional safety guidelines.
What safety certifications does the electrical system hold?
The control panel carries CE marking per EN 61000-6-2 (EMC immunity) and EN 61000-6-4 (EMC emission), with grounding continuity verified per IEC 61000-4-5 surge immunity testing.
Are spare parts available through global distribution channels?
Yes—drum liners, lifter bars, sieve sets (6.3 mm and 0.5 mm stainless steel), and motor drive belts are stocked by authorized MingShen Science distributors in Southeast Asia, the Middle East, and South America.
