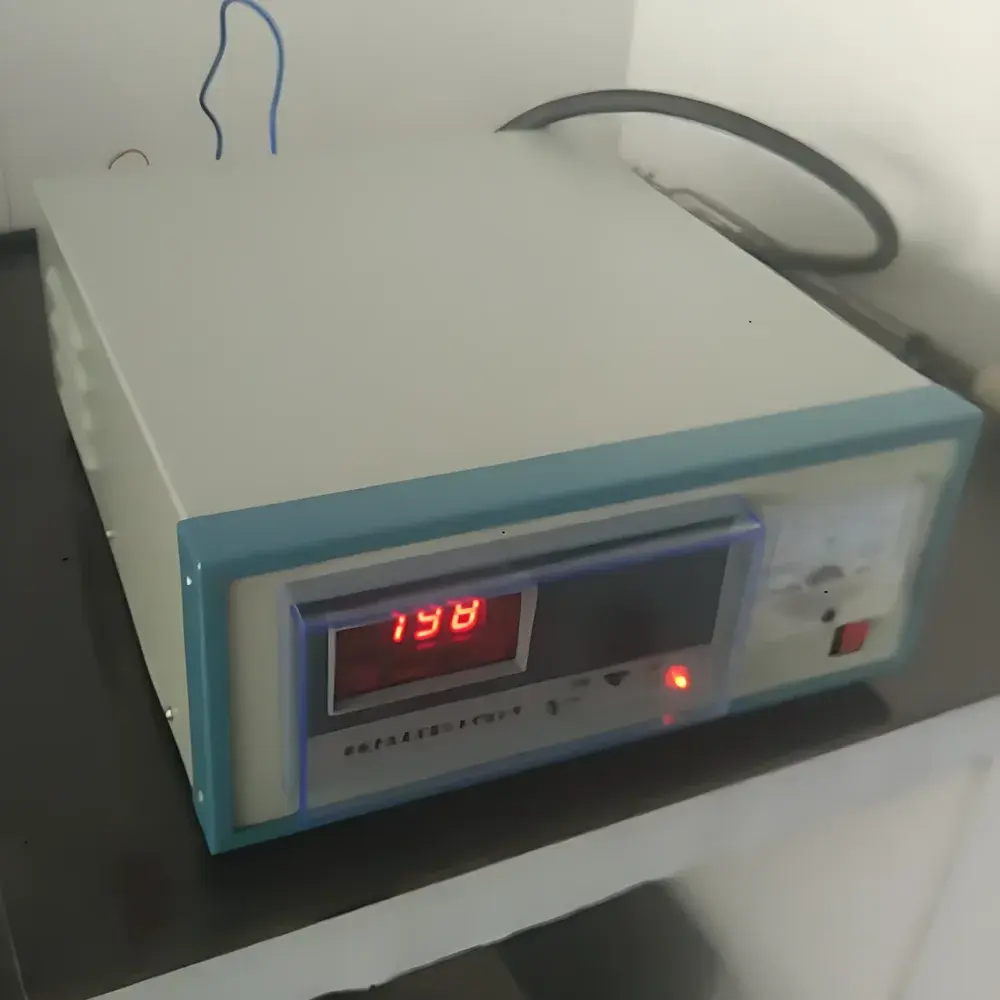

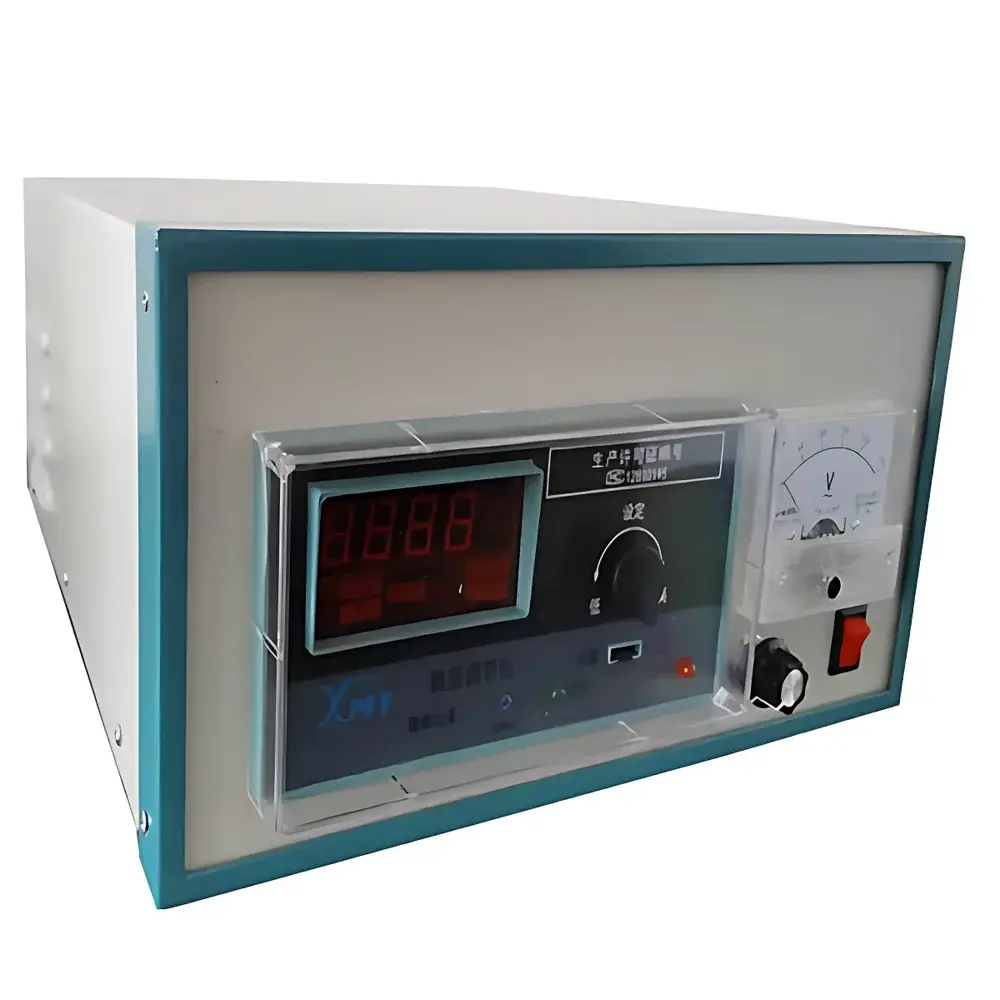

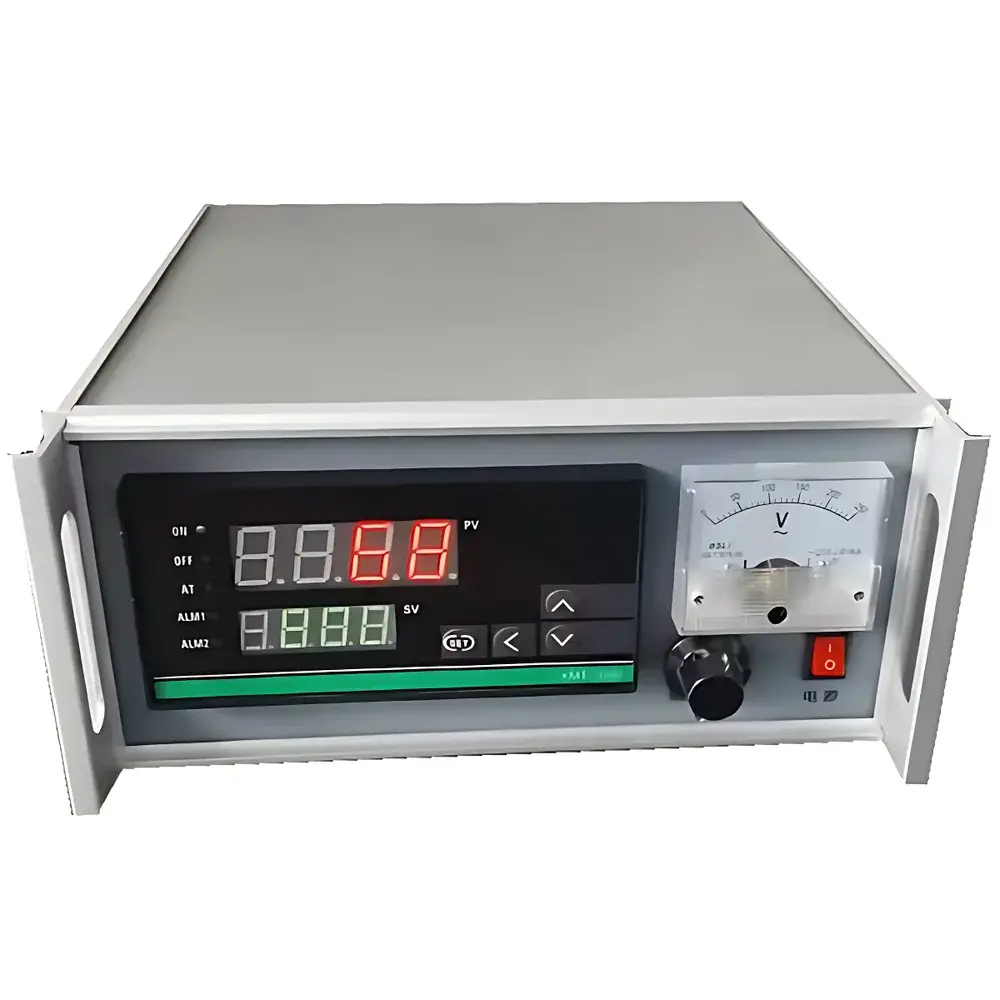

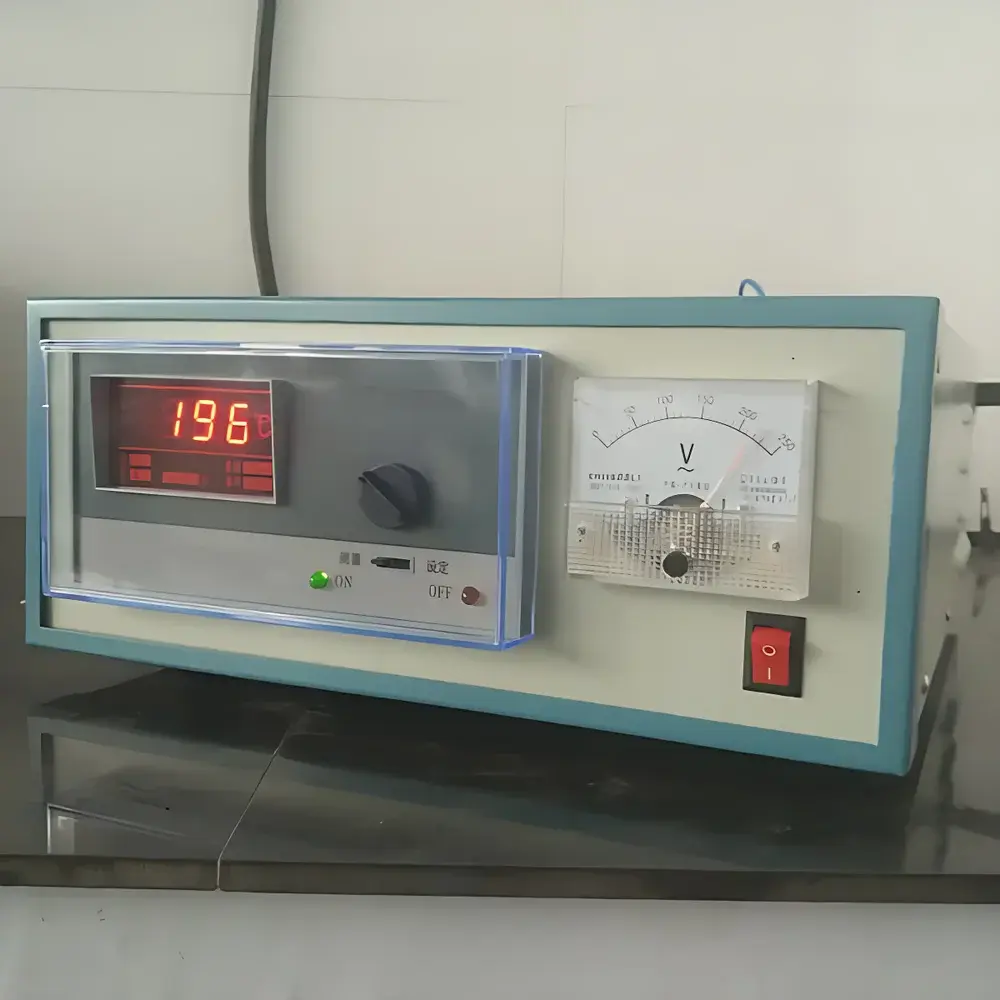

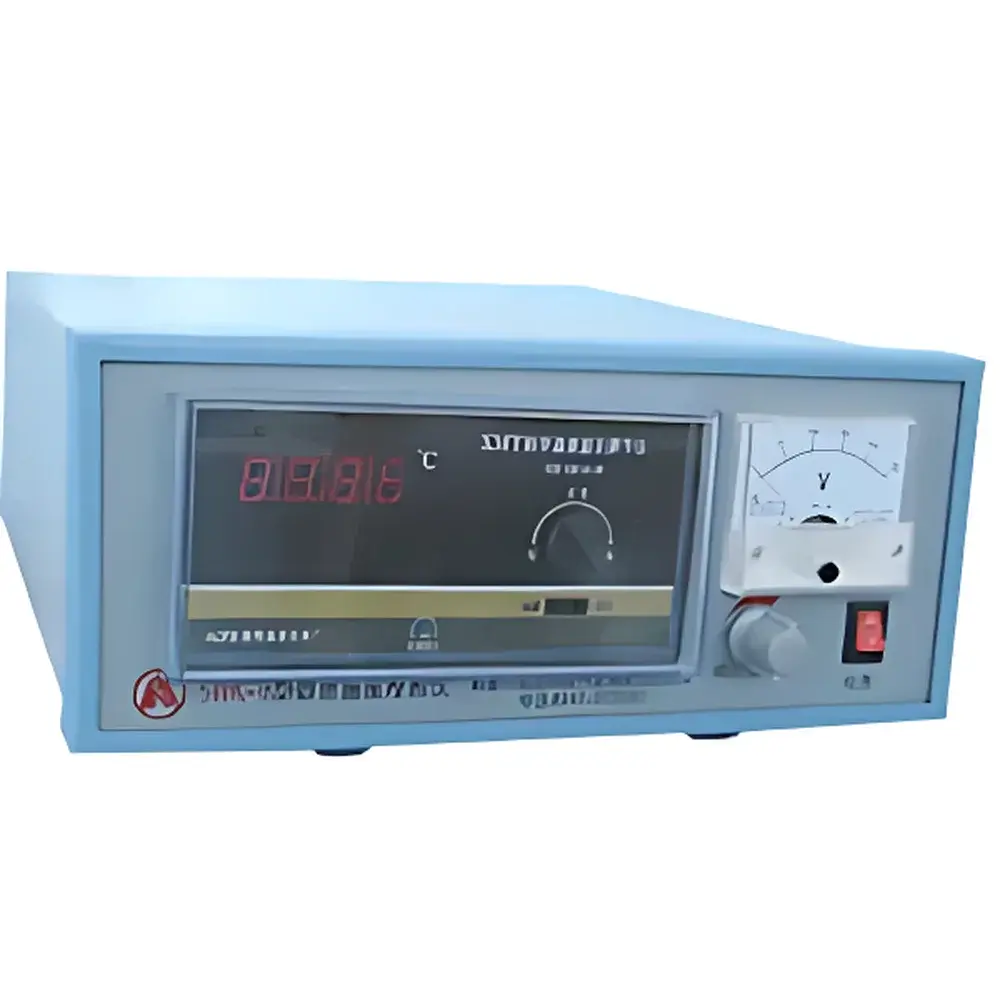

MingShen Science SWK-B Silicon-Controlled Rectifier (SCR) Digital Temperature Data Logger and Controller

Overview

The MingShen Science SWK-B Silicon-Controlled Rectifier (SCR) Digital Temperature Data Logger and Controller is an industrial-grade, single-channel thermal process controller engineered for precise, repeatable temperature regulation in high-temperature laboratory and quality control environments. It operates on the principle of phase-angle controlled AC power modulation via bidirectional silicon-controlled rectifiers, enabling smooth, contactless voltage delivery to resistive heating elements. Unlike mechanical relay-based controllers, the SWK-B eliminates arcing, contact wear, and audible noise—ensuring long-term operational stability and minimal maintenance. Its core function is closed-loop temperature regulation: it continuously compares thermocouple or RTD input signals (e.g., K-type or Pt100) against user-defined setpoints, computes error via PID algorithm, and dynamically adjusts SCR firing angle to modulate output voltage (0–220 V AC) delivered to furnaces or ovens. This architecture supports ramp-soak profiles essential for standardized thermal testing protocols—including ASTM E1113 (determination of ash fusion temperature), ISO 562 (coal ash fusibility), and GB/T 212 (Chinese standard for coal proximate analysis)—where controlled heating rates and stable plateau temperatures are critical for reproducible results.

Key Features

• Bidirectional SCR output with zero-crossing switching: Ensures electromagnetic compatibility (EMC)-compliant, silent, and wear-free power control; rated for continuous operation at up to 5 kW resistive load.
• Digital LED display with dual-function interface: Simultaneously shows real-time measured temperature and user-set target value; intuitive front-panel controls enable rapid setpoint entry and manual voltage override.
• Integrated PID controller with auto-tuning capability: Reduces overshoot and stabilizes temperature within ±1.5 °C typical deviation under steady-state conditions; parameters (P, I, D) are field-adjustable to match thermal inertia of specific furnace configurations.
• Adjustable output voltage range (0–220 V AC, continuously variable): Enables fine-grained control over heating rate—from gentle preheating ramps to rapid temperature climbs—without external dimmer modules.
• Benchtop-fixed mechanical design (330 × 290 × 120 mm): Robust sheet-metal enclosure with ventilation slots and internal cable management; optimized for integration into analytical furnace systems such as muffle furnaces, sulfur analyzers, and ash fusion testers.
• Compliance-ready architecture: Supports traceable calibration documentation; firmware and hardware design align with GLP-aligned lab practices, including secure parameter lockout and non-volatile setpoint memory.

Sample Compatibility & Compliance

The SWK-B is compatible with standard industrial temperature sensors—including Type K, Type S, and Pt100 RTDs—via isolated analog input circuitry with cold-junction compensation. It is routinely deployed in conjunction with box-type high-temperature resistance furnaces (up to 1300 °C), coal sulfur analyzers, and ash fusibility determination systems. While not certified to IEC 61000-6-4 (EMI emission) or IEC 61000-6-2 (immunity) out-of-the-box, its SCR topology inherently meets Class A emission limits when installed with proper line filtering and grounding per IEC 61000-3-2. The device adheres to GB/T 19001–2016 (equivalent to ISO 9001:2015) quality system requirements during manufacturing. For regulated environments, users may implement supplementary audit trails via external data loggers compliant with FDA 21 CFR Part 11 when paired with validated acquisition software.

Software & Data Management

The SWK-B operates as a standalone hardware controller without embedded connectivity (no USB, RS-485, or Ethernet ports). Data logging functionality is implemented via optional external recording devices interfaced through its analog output (0–5 V or 4–20 mA proportional to temperature). For laboratories requiring electronic records, the unit is compatible with third-party DAQ systems (e.g., National Instruments CompactDAQ or Keysight 34972A) configured to sample its analog output and thermocouple input simultaneously. All setpoints, PID parameters, and operational status are retained in non-volatile memory across power cycles. Firmware updates are not supported; configuration changes are performed exclusively via front-panel controls, ensuring deterministic behavior and eliminating cybersecurity exposure vectors.

Applications

• Coal and coke analysis laboratories: Precise execution of ISO 562 and ASTM D1857 ash fusibility tests, where programmed ramp rates (e.g., 5 °C/min to 1000 °C, then 1–2 °C/min near deformation point) are mandatory.
• Environmental testing facilities: Thermal conditioning of particulate matter filters prior to gravimetric analysis per EPA Method 201A.
• Materials research labs: Controlled sintering of ceramic powders and metal oxides in programmable muffle furnaces.
• Quality assurance departments in refractory manufacturing: Reproducible heat treatment cycles for firebrick and insulating castables.
• Educational institutions: Demonstrating closed-loop thermal control principles, PID tuning methodology, and SCR power electronics in senior-level instrumentation courses.

FAQ

What types of temperature sensors are compatible with the SWK-B?
The controller accepts standard millivolt-output thermocouples (Type K, J, T, S) and Pt100 RTD inputs via configurable terminal blocks. Cold-junction compensation is built-in for thermocouple use.
Does the SWK-B support multi-stage temperature ramping?
No—the SWK-B implements single-setpoint PID control only. Complex ramp-soak sequences require external programmable logic controllers (PLCs) or dedicated furnace programmers interfaced via analog setpoint input.
Can the output be used with inductive loads such as transformers or solenoids?
No—it is rated exclusively for resistive heating elements (e.g., Kanthal wire, SiC rods). Inductive or capacitive loads may cause SCR commutation failure and damage.
Is calibration certificate included with shipment?
A factory calibration report (traceable to national standards) is available upon request at time of order; NIST-traceable certification requires third-party metrology lab engagement.
What safety protections are built into the unit?
It includes over-temperature alarm output (relay dry contact), fuse-protected mains input, and thermal cutoff on internal heatsinks—but lacks integrated sensor break detection or runaway temperature shutdown; external safety limit controllers are recommended for fail-safe operation.
