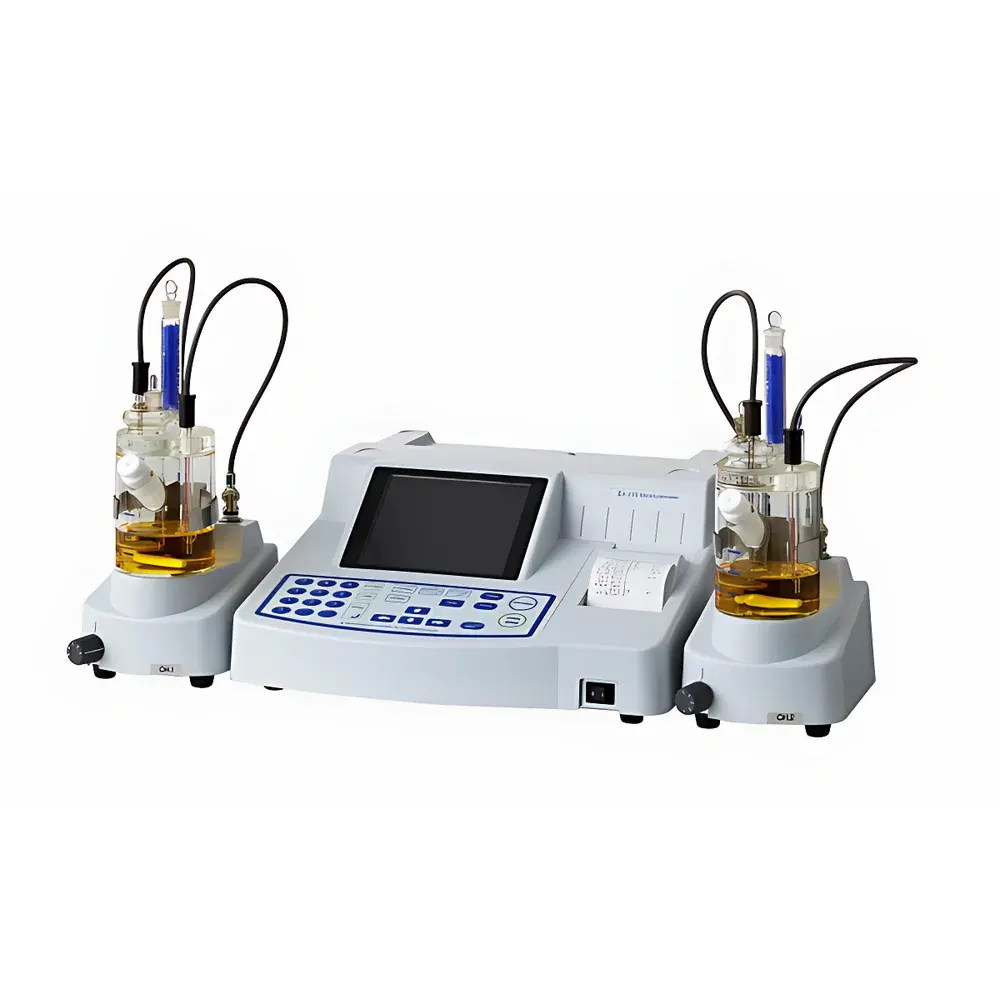

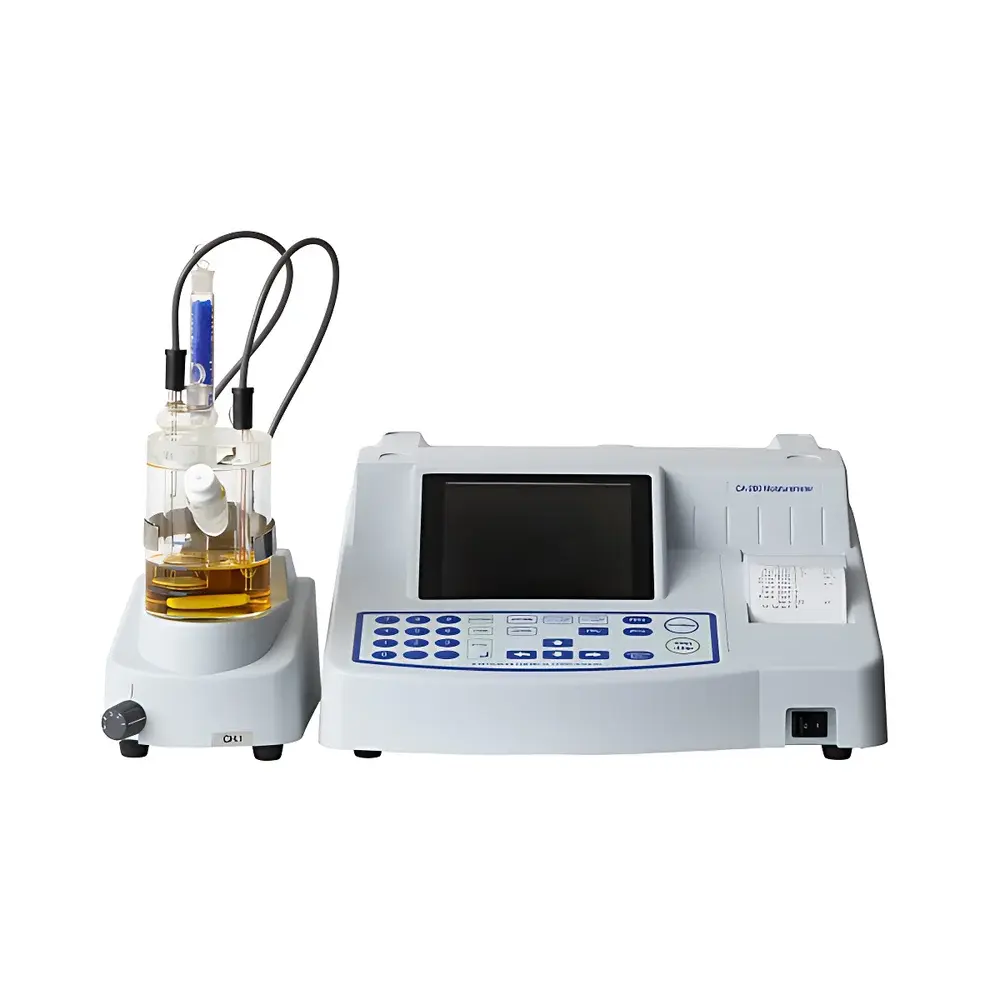

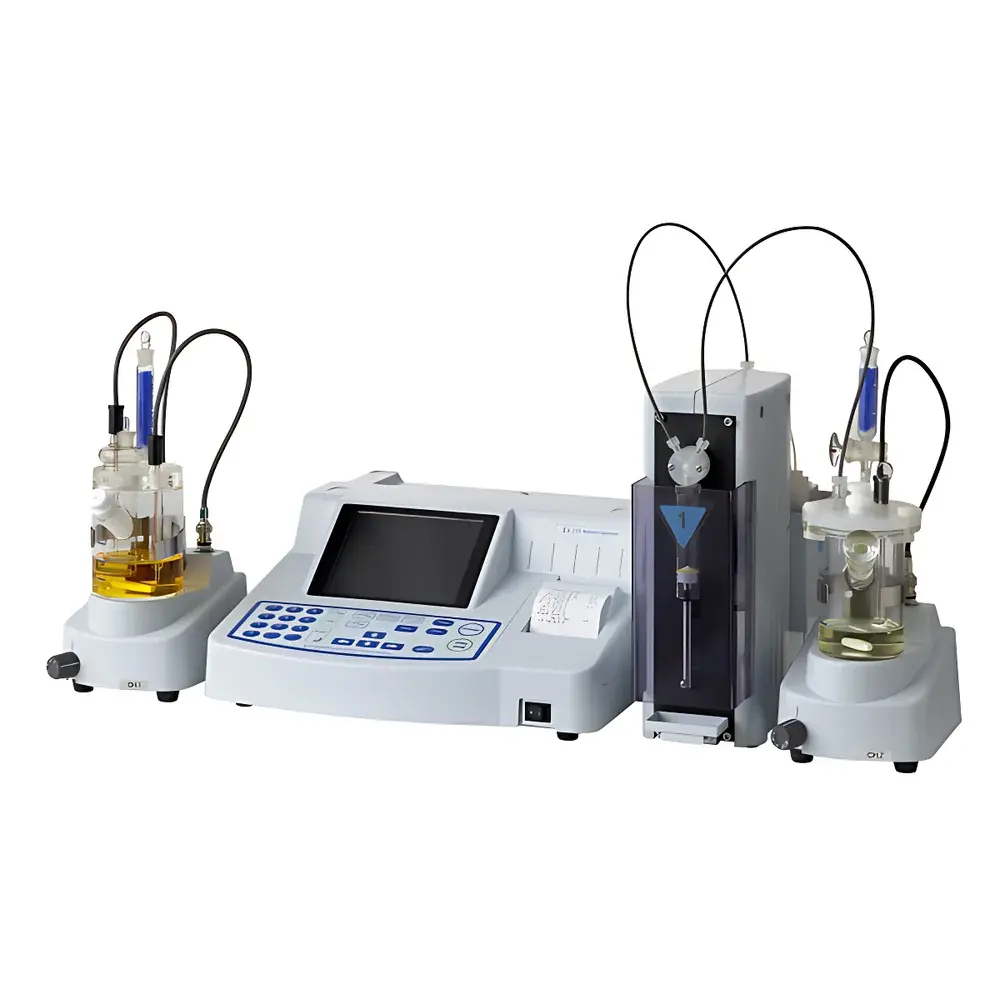

Mitsubishi Chemical CA-200 Coulometric Karl Fischer Moisture Analyzer

Overview

The Mitsubishi Chemical CA-200 is a high-precision, single-channel coulometric Karl Fischer moisture analyzer engineered for trace-level water quantification in demanding industrial and regulatory environments. It operates on the electrochemical principle of coulometric titration—where iodine is generated *in situ* via controlled electrolysis of iodide ions at the anode, and stoichiometrically reacts with water in the sample according to the Karl Fischer reaction (I₂ + SO₂ + H₂O + 3RN + CH₃OH → 2RN·HI + RN·SO₃CH₃). This method delivers inherent accuracy without reagent standardization, making it ideal for low-moisture matrices such as transformer oils, turbine oils, solvents, pharmaceutical excipients, and polymer resins. As the direct successor to the CA-100, the CA-200 integrates enhanced electrode fouling compensation, improved thermal stability in the titration cell, and expanded data governance capabilities—ensuring reproducibility across extended operational cycles and multi-shift laboratory workflows.

Key Features

• Coulometric titration mode exclusively—optimized for samples containing 10 µg to 100 mg of water, with no manual titrant calibration required.
• 5.7-inch high-resolution color LCD interface with intuitive navigation, on-screen help system, and real-time titration curve visualization.
• Dual USB ports: one dedicated to external storage (e.g., USB flash drives) for method export, result archiving, and firmware updates; the second supports direct connection to USB printers for GLP-compliant hard-copy reporting.
• Automatic electrode cleaning algorithm actively mitigates iodine deposition and membrane passivation during prolonged analysis—reducing manual maintenance and improving inter-run consistency.
• Flexible cell configuration: supports both drain-equipped and non-drain variants; compatible with multiple Mitsubishi vaporizers (VA-200, VA-210, VA-230, VA-121, VA-122, VA-236S) for liquid, viscous, solid, and thermally labile samples.
• Integrated balance auto-input functionality via serial interface—enables seamless mass transfer from analytical balances, eliminating transcription errors and supporting audit-ready weight traceability.
• Modular hardware design allows future expansion: optional RS-232C interface enables bidirectional communication with LIMS or centralized QA/QC systems under validated protocols.

Sample Compatibility & Compliance

The CA-200 accommodates a broad spectrum of sample types—including petroleum-based insulating oils (ASTM D6304), pharmaceutical intermediates (USP ), lyophilized biologics, lithium battery electrolytes, and hygroscopic polymers—without modification. Its coulometric architecture ensures minimal reagent consumption and consistent endpoint detection even in low-conductivity media. The instrument’s firmware and optional data management software comply with key regulatory frameworks: built-in user access control, electronic signature support, and full audit trail logging align with FDA 21 CFR Part 11 requirements. All measurement records include timestamped metadata (operator ID, method name, cell status, drift correction value, and raw current integral), satisfying GLP and GMP documentation mandates for quality-controlled laboratories.

Software & Data Management

The CA-200 stores up to 20 independent analytical methods and 50 composite methods—each configurable with custom titration parameters, drift correction thresholds, endpoint sensitivity, and post-analysis calculations (e.g., % w/w, ppm, mg/kg). Results are saved in CSV format with embedded metadata, enabling direct import into Excel or statistical process control (SPC) platforms. Optional 21 CFR Part 11-compliant software provides role-based authentication, electronic signatures, and immutable audit logs for all method changes, result modifications, and system events. Data integrity is further reinforced through cyclic redundancy checks (CRC) on stored files and automatic backup triggers upon method save or result finalization.

Applications

• Power industry: Quantitative moisture assessment in transformer oil per IEC 60814 and ASTM D6304—critical for dielectric strength validation and predictive maintenance scheduling.
• Pharmaceutical manufacturing: Release testing of active pharmaceutical ingredients (APIs) and excipients per USP , ensuring compliance with pharmacopeial limits for residual solvents and hydration states.
• Chemical synthesis: In-process monitoring of dehydration reactions, catalyst drying verification, and solvent purity certification (e.g., acetonitrile, THF, DMF).
• Electronics materials: Moisture content verification in lithium-ion battery electrolyte formulations—where sub-10 ppm levels directly impact cell cycle life and safety performance.
• Food & flavor chemistry: Water activity correlation studies and low-moisture ingredient QC for shelf-life modeling and microbial risk assessment.

FAQ

What distinguishes coulometric from volumetric Karl Fischer titration?
Coulometric KF generates iodine electrochemically at the anode, offering superior precision for samples containing ≤100 mg water. Volumetric KF dispenses pre-standardized titrant and is preferred for higher water concentrations (>100 mg).
Is the CA-200 compatible with non-Mitsubishi reagents?
While operation with third-party reagents is technically possible, Mitsubishi-certified anolyte/catholyte solutions are required to maintain specified accuracy, electrode lifetime, and warranty coverage.
Can the CA-200 be integrated into an automated production line?
Yes—via RS-232C (optional) or USB-serial emulation, the analyzer supports SCADA-triggered start/stop commands and structured result output for PLC synchronization.
Does the instrument support temperature-controlled sample introduction?
When paired with VA-121 (high-temperature) or VA-122 (dual-zone) vaporizers, the CA-200 enables controlled thermal desorption of bound water from solids and pastes up to 250 °C.
How often does the titration cell require maintenance?
Under typical usage (≤20 samples/day), the cell requires cleaning every 2–3 weeks; the auto-cleaning function extends intervals by up to 40% compared to legacy models.
