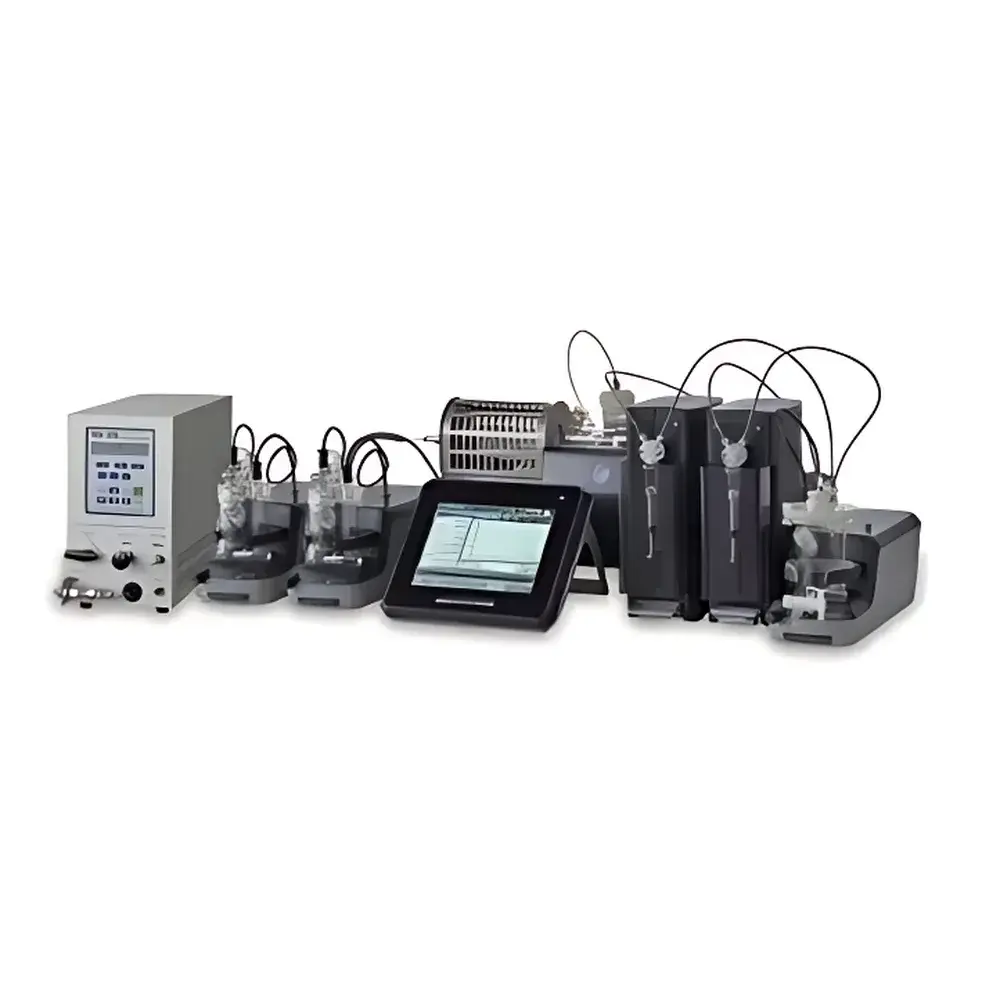

Mitsubishi Chemical CVS-236S Universal Trace Moisture Detection System (Coulometric Karl Fischer Analyzer)

Overview

The Mitsubishi Chemical CVS-236S Universal Trace Moisture Detection System is a high-precision coulometric Karl Fischer (KF) analyzer engineered for quantitative determination of trace water content across solid, liquid, and gaseous samples within a single integrated platform. Unlike volumetric KF systems that rely on standardized titrant delivery, the CVS-236S employs electrochemical generation of iodine at the anode—ensuring stoichiometric accuracy without reagent calibration drift or syringe-based dispensing errors. This coulometric architecture delivers inherent reproducibility for ultra-low moisture quantification down to 0.5 µg, making it suitable for stringent applications in pharmaceutical active pharmaceutical ingredient (API) release testing, lithium-ion battery electrolyte quality control, polymer resin certification, and semiconductor precursor gas verification. The system’s modular topology—comprising one central control unit and three dedicated, physically isolated sample introduction modules (solid, liquid, and gas)—enables concurrent, interference-free analysis while maintaining full compliance with ISO 8533:2015, ASTM E203–22, and USP guidelines for moisture determination.

Key Features

• Four independent, electrically isolated detection channels: one universal main unit plus three application-specific sample interfaces—solid (heated oven with programmable temperature ramping up to 250 °C), liquid (dual-syringe autosampler with septum-piercing capability), and gas (mass-flow-controlled carrier gas interface with moisture scrubber bypass)
• 8.4-inch full-color capacitive touchscreen HMI with real-time dual-channel electrochemical current monitoring, titration curve visualization, and dynamic endpoint recognition algorithm
• Onboard data storage capacity for up to 9,999 measurement records, each timestamped and embedded with operator ID, method name, sample ID, environmental conditions (ambient T/RH), and raw coulometric current-time integral
• Role-based user management with three-tier account hierarchy (Administrator, Supervisor, Operator) supporting password complexity enforcement, session timeout, and audit trail logging per FDA 21 CFR Part 11 Annex 11 requirements
• Coulometric cell design featuring dual-platinum electrodes, sealed anhydrous electrolyte reservoir, and automatic solvent level compensation to maintain consistent iodine generation efficiency over extended operation cycles

Sample Compatibility & Compliance

The CVS-236S accommodates heterogeneous sample matrices without cross-contamination risk: hygroscopic powders (e.g., MgSO₄, LiPF₆), viscous oils (silicone fluids, transformer oils), volatile solvents (acetonitrile, THF), and compressed gases (N₂, Ar, CO₂, NH₃). Solid samples are introduced via heated headspace extraction; liquids use direct injection into the titration cell with automated rinse cycles; gases pass through a calibrated mass flow controller before reaction in the coulometric cell. All workflows comply with GMP/GLP documentation standards—including electronic signature validation, method version control, and immutable record archiving. The system supports IQ/OQ documentation packages aligned with ISO/IEC 17025 laboratory accreditation criteria.

Software & Data Management

Embedded firmware v3.2 provides native CSV export, USB mass storage support, and optional Ethernet connectivity for LIMS integration (via ASTM E1384-compliant messaging). Audit trails capture every parameter change, result modification, and user login/logout event with SHA-256 hashing. Data integrity safeguards include write-once-read-many (WORM) mode activation, automatic backup to external SD card, and configurable auto-deletion policies based on retention period (e.g., 12 months). Optional PC-based software (CVS-Link Suite) enables advanced statistical process control (SPC) charting, multi-instrument fleet monitoring, and automated report generation compliant with ICH M4 regulatory submission templates.

Applications

• Pharmaceuticals: Quantification of residual moisture in lyophilized biologics (≤100 µg), excipient dryness verification per EP 2.5.12, and packaging headspace humidity profiling
• Electronics: Moisture assessment in anhydrous etchants (e.g., ClF₃), photoresist solvents, and encapsulation resins where >50 ppm H₂O induces delamination
• Energy Materials: Water specification enforcement for Li-ion battery cathode precursors (Ni-rich NMC), solid-state electrolytes (Li₃PS₄), and fuel cell membrane hydration control
• Chemical Manufacturing: Batch release testing of organometallic catalysts (e.g., TiCl₄), silicone polymers, and specialty monomers requiring <10 ppm detection limits

FAQ

What distinguishes coulometric KF from volumetric KF in terms of accuracy and range?
Coulometric KF generates iodine electrochemically in real time, eliminating burette calibration uncertainty and reagent degradation effects—delivering superior precision below 100 µg water and enabling absolute quantification without standardization.
Can the CVS-236S analyze samples containing ketones or aldehydes?
Yes—the system includes optional aldehyde/ketone compensation mode using methanol-free electrolyte formulations and adaptive endpoint algorithms to suppress side reactions per ISO 760 recommendations.
Is method transfer supported between different CVS-series instruments?
Yes—method files (.cvsm) are instrument-agnostic and retain all parameters including temperature profiles, gas flow rates, and endpoint thresholds, ensuring seamless scalability across lab networks.
How does the system ensure data integrity during power interruption?
All ongoing titrations are checkpointed every 2 seconds; upon restart, the system resumes from last valid current-integral state without data loss or manual intervention.
Does the gas channel support reactive or corrosive gases like HCl or SO₂?
No—the standard gas module is validated for inert and mildly polar gases only; reactive species require custom corrosion-resistant interface kits (available under Mitsubishi Chemical Engineering Services P/N GCI-EX-236S-R).
