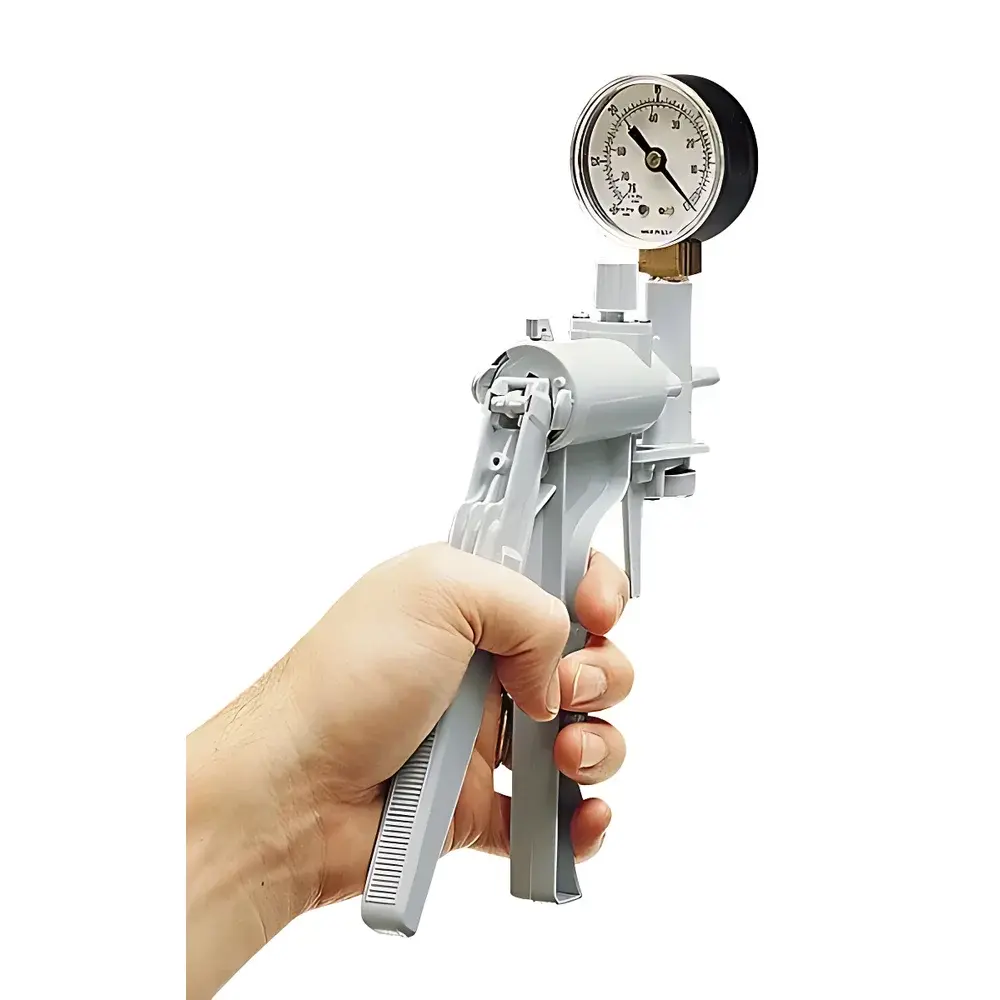

Mityvac MV8510 Silverline Elite Handheld Vacuum/Pressure Pump

Overview

The Mityvac MV8510 Silverline Elite is a precision-engineered, oil-free handheld vacuum and pressure pump designed for laboratory, field service, and quality control applications requiring portable, repeatable, and contamination-free fluid handling. Unlike rotary vane or diaphragm vacuum sources, the MV8510 employs a linear single-piston architecture operating on the principle of positive displacement—each full stroke of the ergonomic lever generates both vacuum (via suction at the front port) and positive pressure (simultaneously at the top-mounted outlet). This dual-action mechanism enables bidirectional fluid transfer without valve switching or system reconfiguration, supporting gravity-assisted aspiration, controlled pressure-driven delivery, and leak testing across sealed systems. Its robust aluminum-alloy housing, contour-grip handle, and sealed piston seal assembly ensure long-term mechanical stability and consistent performance under repeated use in environments ranging from cleanroom benchtops to industrial maintenance sites.

Key Features

• Oil-Free, Contamination-Safe Operation: Eliminates risk of hydrocarbon vapor backstreaming or lubricant carryover—critical for solvent-sensitive assays, vacuum drying, and analytical sample preparation.
• Integrated Dual-Port Architecture: Front vacuum port (1/4″ NPT) and top pressure port (1/4″ NPT) operate concurrently; no manual valve toggling required between vacuum and pressure modes.
• Ergonomic Trigger-Release Mechanism: A thumb-actuated trigger instantly vents vacuum from both the pump chamber and connected system—enabling rapid, one-handed release without loosening fittings or compromising setup integrity.
• Linear Single-Piston Design: Minimizes moving parts and wear surfaces; delivers high volumetric efficiency per stroke with low operator effort, even after extended use.
• Dual-Scale Analog Gauge (2″): Calibrated in Torr and psi (vacuum and pressure ranges), mounted directly on the pump body for real-time visual feedback during operation.
• Modular Serviceability: Field-repairable using only standard tools; O-rings, piston seals, and gauge components are standardized Cole-Parmer part numbers (e.g., MVA6825 refill kit).

Sample Compatibility & Compliance

The MV8510 is compatible with aqueous solutions, alcohols, hydrocarbons, and low-viscosity solvents commonly handled in QC labs, HVAC diagnostics, and pharmaceutical process validation. Its non-metallic wetted path (FDA-compliant elastomers, anodized aluminum body) meets USP Class VI biocompatibility requirements for incidental contact. While not certified for sterile processing, it supports GLP-aligned documentation workflows when used with traceable calibration logs and maintenance records. The device complies with IEC 61000-6-3 (EMC emissions) and carries CE marking for general laboratory equipment use within the EU. It is routinely deployed in ASTM D3924 (paint viscosity testing), ISO 20482 (leak detection of sealed packaging), and USP (vacuum integrity verification for lyophilization trays).

Software & Data Management

As a manually operated mechanical instrument, the MV8510 does not incorporate embedded electronics, firmware, or digital connectivity. All operational parameters—including vacuum level, stroke count, and pressure output—are monitored visually via its analog gauge. For audit-trail compliance in regulated environments (e.g., FDA 21 CFR Part 11), users integrate the pump into documented procedures where vacuum hold time, release timing, and gauge readings are manually recorded in validated electronic lab notebooks (ELN) or paper-based batch records. Optional third-party digital gauges (e.g., Cole-Parmer CP300 series) may be coupled via 1/4″ NPT adapters for time-stamped data logging when quantitative repeatability is required.

Applications

• Vacuum-assisted filtration and membrane degassing in HPLC mobile phase preparation
• Controlled pressure application for calibrating pressure transducers and differential manometers
• Leak testing of glassware joints, Schlenk lines, and vacuum desiccators
• Fluid aspiration and dispensing in microfluidic device priming and cartridge filling
• Removal of entrapped air bubbles from optical resin molds and adhesive layers
• Field servicing of refrigeration systems (R-134a, R-410A) per EPA Section 608 guidelines
• Pre-vacuum conditioning of moisture-sensitive powders prior to gravimetric analysis

FAQ

Does the MV8510 require calibration?
No formal recalibration is specified by the manufacturer; however, periodic verification against a traceable reference gauge (e.g., Fluke 754) is recommended every 6 months in GxP environments.
Can the MV8510 generate negative pressure below −635 Torr?
No—the maximum achievable vacuum is limited to 635 Torr absolute (−13.3 Torr gauge), constrained by atmospheric pressure and mechanical seal integrity.
Is the fluid reservoir bottle autoclavable?
The 135 mL polypropylene bottle is rated for steam sterilization at 121°C for 15 minutes; however, repeated autoclaving may degrade tapered adapter seals—replacement kits are available.
What maintenance intervals are recommended for routine lab use?
Inspect piston seal and gauge accuracy before each shift; replace O-rings annually or after 5,000 strokes, whichever occurs first.
Can the MV8510 be used with corrosive gases such as HCl or Cl₂?
Not recommended—wetted materials are incompatible with strong oxidizers and halogens; consult Cole-Parmer’s chemical compatibility chart before exposure.
