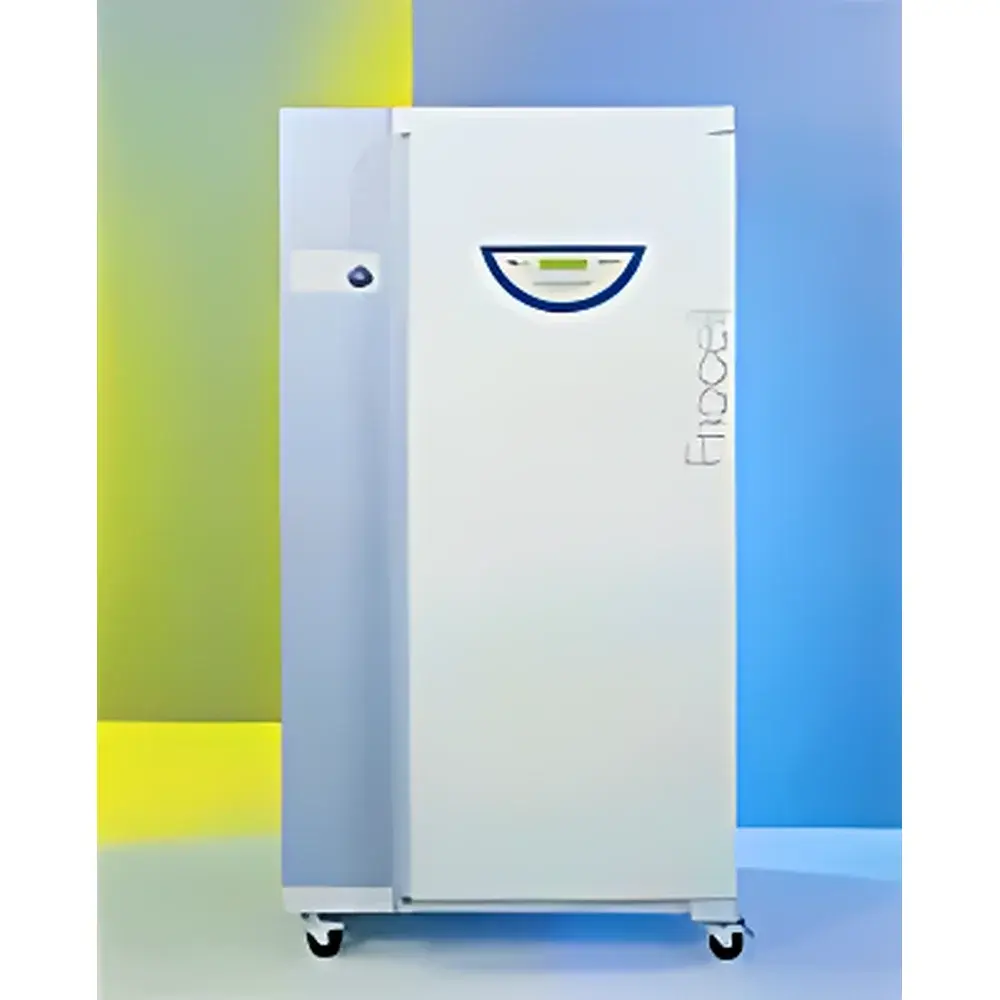

MMM Friocell ECO/EVO Low-Temperature CO₂-Free Incubator Series (22L–1212L)

Overview

The MMM Friocell ECO/EVO series represents a class of precision-engineered, CO₂-free low-temperature incubators designed for demanding life science applications requiring stable thermal environments across broad operational ranges (−10 °C to 99.9 °C). Unlike conventional CO₂ incubators, the Friocell platform employs a high-efficiency compressor-based refrigeration system using environmentally compliant R134a refrigerant—enabling rapid cooling, precise sub-ambient control, and long-term stability without humidity or gas regulation complexity. Its core architecture is optimized for microbial culture, biopharmaceutical storage (e.g., serum, reference standards, media), environmental simulation (e.g., seed dormancy, insect rearing, plant stress response studies), and regulatory-compliant stability testing. The system’s defining engineering principle is thermal homogeneity under dynamic load conditions: a top-mounted stainless-steel centrifugal fan induces a controlled upward spiral airflow pattern, minimizing vertical gradients and preventing desiccation—even at low temperatures—by maintaining consistent convective exchange across the entire chamber volume.

Key Features

• German-engineered thermal architecture: Dual-mode heating/cooling system with independent PID-controlled compressor and PTC heater ensures ±0.3 °C uniformity (at 37 °C) and ≤0.1 °C setpoint resolution.
• Modular stainless-steel chamber: Fully welded AISI 304 interior with seamless radius corners eliminates crevices, supports autoclave-compatible cleaning protocols, and resists corrosion from repeated disinfection cycles.
• Tool-free service design: Interlocking panel system allows manual disassembly of inner walls and shelves—facilitating full decontamination without specialized tools or technician intervention.
• Ergonomic front-panel interface: 3-inch LCD display mounted at upper front edge remains accessible and thermally isolated during high-temperature operation; dual-point door latch enables hands-free opening via elbow actuation.
• Robust mechanical integrity: Reinforced lower-right corner support bracket prevents long-term door warping; tempered glass inner door provides continuous sample observation without thermal leakage.
• Comprehensive safety architecture: Independently calibrated overtemperature cut-off (Class 3.1 per EN 61000-6-2), real-time fault diagnostics, and dual-stage alarm outputs (visual + audible + BMS relay).

Sample Compatibility & Compliance

The Friocell series accommodates diverse biological and chemical samples—including bacterial and fungal cultures, mammalian cell lines (non-CO₂-dependent), biological indicators (BI), pharmaceutical reference materials, plant explants, and environmental water samples—without risk of cross-contamination or moisture loss. Chamber geometry and airflow dynamics are validated per ISO 14644-1 Class 5 cleanroom-equivalent particulate control when operated with optional HEPA-filtered air recirculation kits. Regulatory alignment includes adherence to FDA 21 CFR Part 11 (via Warmcomm audit trail functionality), EU Annex 11 (data integrity), ICH Q5C (stability storage), and Chinese Pharmacopoeia 2015 requirements for microbiological assay incubation. Full IQ/OQ/PQ documentation packages—including calibration certificates traceable to NIST standards—are available for GMP/GLP-regulated laboratories.

Software & Data Management

Warmcomm software provides secure, time-stamped data acquisition via RS232 or USB connection, supporting multi-unit networked monitoring from a single workstation. It records temperature, fan status, alarm events, and user-defined program steps with configurable logging intervals (1 s to 24 h). All entries include digital signatures, immutable timestamps, and export-ready CSV/PDF reports compliant with ALCOA+ principles. The BMS relay contact interface enables integration into facility-wide building management systems for centralized alarm escalation. Optional validation packages include electronic signature workflows, change control logs, and electronic record retention aligned with 21 CFR Part 11 Subpart C requirements.

Applications

• Pharmaceutical QC/QA: Stability testing of APIs and finished dosage forms per ICH Q1A–Q1E guidelines.
• Microbiology labs: Anaerobic and aerobic culture of bacteria, yeasts, molds, and spore-forming organisms (e.g., Bacillus BI testing).
• Agricultural research: Controlled seed germination, cold acclimation studies, and insect developmental staging under defined thermal regimes.
• Environmental monitoring: BOD incubation, coliform enumeration, and phytoplankton growth assays per ISO 9308-1 and EPA Method 1603.
• Academic & clinical research: Long-term storage of cryopreserved cells pre-thaw, serum batch qualification, and standard curve preparation for ELISA and PCR workflows.

FAQ

Does the Friocell series support humidification?
No—this is a CO₂-free, non-humidified incubator platform. Humidity-sensitive applications require external humidification solutions or alternative MMM models (e.g., CO₂ incubators with integrated steam generators).
Can the same unit operate both refrigerated and elevated temperature protocols?
Yes—each model spans a continuous range (e.g., Friocell 222L: −10 °C to 99.9 °C), enabling sequential low-temperature storage followed by high-temperature recovery assays within a single chamber.
Is Warmcomm software validated for use in regulated environments?
Yes—when deployed with enabled audit trail, electronic signatures, and backup configuration, Warmcomm meets 21 CFR Part 11 and EU Annex 11 requirements for electronic records and signatures.
What validation documentation is included with purchase?
Standard delivery includes factory calibration certificates and installation qualification (IQ) templates. Operational (OQ) and performance (PQ) protocols—along with executed reports signed by an authorized MMM service engineer—are available as optional services.
Are lighting modules compatible with all chamber sizes?
LED illumination systems are configurable per shelf level and supported across all models except the compact Friocell 22L; spectral output (white or photosynthetically active radiation) is customizable for photobiology applications.
