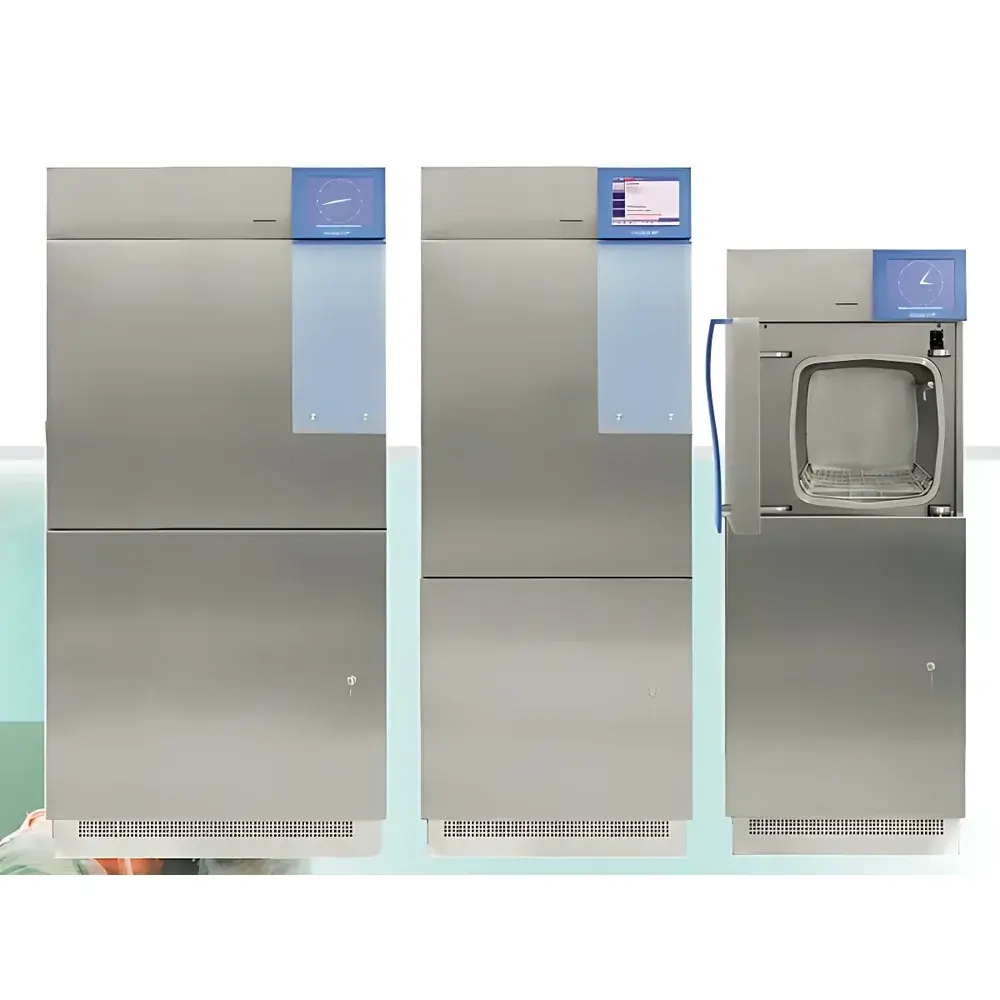

MMM UNISTERI Pulsed Vacuum Steam Sterilizer

Overview

The MMM UNISTERI Pulsed Vacuum Steam Sterilizer is a vertically oriented, CE-marked Class B vacuum steam sterilization system engineered for rigorous laboratory, quality control (QC), biosafety level (BSL)-2/3, and pharmaceutical manufacturing environments. It operates on the validated principle of fractional air removal via pulsed vacuum cycles—repeated evacuation and steam injection—to achieve complete air displacement from porous loads and wrapped instruments prior to saturated steam exposure. This ensures uniform thermal penetration and reliable microbial inactivation (including spores of Geobacillus stearothermophilus) across heterogeneous load configurations. Designed and manufactured in Germany under strict adherence to ISO 13485-certified quality management systems, the UNISTERI meets the stringent requirements of EN 285 for large steam sterilizers and DIN 58951 for microbiological safety validation protocols.

Key Features

• Triple-layer chamber construction: inner chamber and all steam-wetted components fabricated from medical-grade 316L stainless steel; jacket constructed from corrosion-resistant 316Ti stainless steel for extended thermal cycling durability.
• Pulsed vacuum technology with programmable vacuum depth and pulse count—enabling reproducible air removal from complex porous materials (e.g., filter housings, textile packs, hollow devices) without compromising structural integrity.
• Two-stage high-efficiency vacuum pump system delivering stable ≤10 mbar residual pressure, ensuring consistent steam saturation and eliminating cold spots during sterilization phase.
• Dual cooling modes: user-selectable natural cooling (for heat-sensitive liquids and delicate polymers) or accelerated cooling with controlled jacket water injection (reducing cycle time by up to 40% for non-liquid loads).
• Integrated sterile-grade filtration: both intake and exhaust lines equipped with validated 0.2 µm hydrophobic membrane filters compliant with ISO 11140-1, preventing aerosol escape and protecting downstream HVAC systems.
• Built-in thermal line printer with timestamped output of real-time temperature, pressure, vacuum, and phase duration—fully traceable per ALCOA+ data integrity principles.

Sample Compatibility & Compliance

The UNISTERI accommodates a broad spectrum of sterilizable items including but not limited to: culture media (in bottles, flasks, or bags), glassware, stainless-steel instruments, wrapped surgical kits, polypropylene labware, cellulose-based textiles, hydrophobic membrane filters, rubber stoppers, and biohazardous waste containers. Its validated cycle library supports liquid, porous, and wrapped load types per EN 285 Annex C. All models are certified to EU Pressure Equipment Directive (PED 2014/68/EU), Machinery Directive (2006/42/EU), and carry full conformity documentation for global regulatory submissions. For regulated environments, optional software packages support 21 CFR Part 11-compliant electronic signatures, role-based access control, and full-cycle audit trails meeting GAMP 5 Category 4 system requirements.

Software & Data Management

Equipped with MMM’s proprietary STERILOG® control interface, the UNISTERI provides intuitive touchscreen operation with preloaded, IQ/OQ-validated cycles and customizable parameter sets. Cycle data—including thermocouple readings, pressure transducer outputs, vacuum profiles, and door interlock status—is stored internally with ≥10,000-cycle capacity and exportable via USB or Ethernet to LIMS or ELN platforms. Optional STERILOG Connect enables remote monitoring, alarm notification via email/SMS, and centralized fleet management for multi-unit installations. All firmware updates undergo formal change control and are accompanied by version-specific validation support documentation.

Applications

The UNISTERI serves critical sterilization functions across academic research laboratories, contract testing organizations (CTOs), biopharmaceutical QC labs, cell therapy manufacturing suites, and animal facility core resources. Typical use cases include terminal sterilization of microbiological growth media prior to aseptic processing, depyrogenation of glass vials and syringes, decontamination of BSL-3 waste streams, validation of autoclave performance for ISO 17025-accredited testing, and routine sterilization of reusable surgical instruments in veterinary teaching hospitals. Its compliance with DIN 58950 makes it suitable for sterilizing heat-labile components used in diagnostic reagent production.

FAQ

What vacuum level does the UNISTERI achieve during pulsed cycles?

The two-stage vacuum pump achieves a final residual pressure of ≤10 mbar, verified per EN 285 Annex D.
Can the UNISTERI sterilize liquids in sealed containers?

Yes—its dedicated liquid cycle includes slow heating, extended holding, and controlled depressurization to prevent boil-over and container rupture.
Is the built-in printer compliant with FDA 21 CFR Part 11?

The printer itself is compliant as a data output device; full Part 11 compliance requires optional STERILOG Connect with electronic signature and audit trail modules.
What materials contact steam inside the chamber?

All wetted surfaces—including chamber walls, door gasket, drain valve, and steam distribution manifold—are constructed from 316L stainless steel per ASTM A240.
Does the UNISTERI support automatic validation reporting?

Yes—integrated validation tools generate IQ/OQ-ready reports including temperature mapping summaries, Bowie-Dick test logs, and vacuum leak test results.
