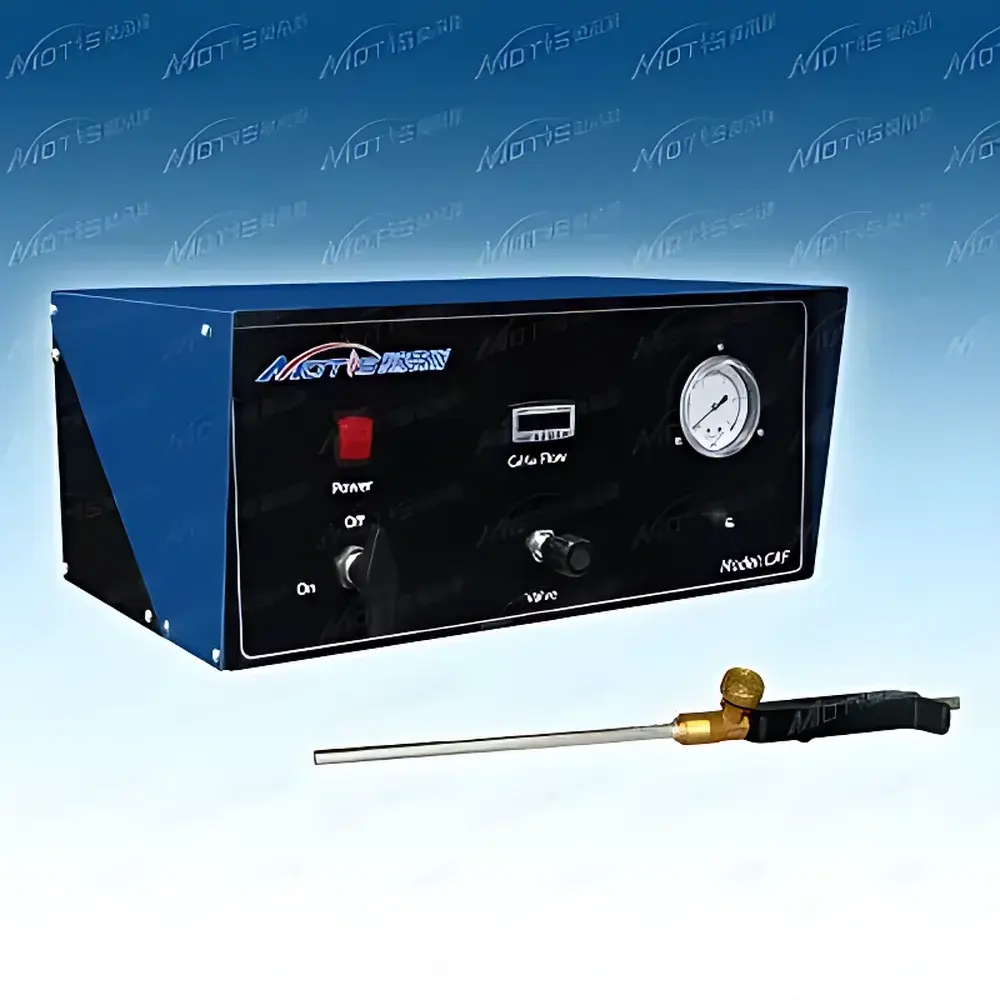

MOTIS CAF Candle Accessory Combustion Test Chamber

Overview

The MOTIS CAF Candle Accessory Combustion Test Chamber is a purpose-built physical property testing instrument engineered for standardized flammability evaluation of candle accessories in accordance with ASTM F2601–23, “Standard Specification for Candle Accessories.” This test chamber implements controlled flame impingement methodology to assess ignition resistance, flame spread behavior, and post-ignition self-extinguishment characteristics under reproducible thermal stress conditions. Unlike general-purpose combustion test equipment, the CAF system is specifically calibrated to replicate the defined flame geometry, gas flow dynamics, and pressure regimes required by ASTM F2601’s Annex A1 — including the use of a precision-machined 8 mm OD / 6 mm ID ignition nozzle, regulated fuel gas delivery, and validated pressure control within ±0.1 psi accuracy. The chamber operates on propane or butane fuel gas (as specified in ASTM F2601 Section 6.2), with integrated safety interlocks, flame supervision, and ventilation-rated exhaust ducting to ensure operator protection and environmental compliance during routine QC or regulatory validation testing.

Key Features

• Precision pressure regulation system with 0–2 psi (0–13.8 kPa) adjustable range, capable of stable operation at low-pressure thresholds as low as 28 mbar — essential for simulating real-world ignition source intensity per ASTM F2601 Section 7.3.
• Calibrated water manometer with 382 mm H₂O full-scale range, traceable to national standards, enabling direct visual verification of static pressure differentials across the burner assembly.
• Digital mass flow controller with real-time flow rate display (in L/min or SCCM), allowing repeatable delivery of stoichiometric fuel-air mixtures aligned with test method requirements for consistent flame height and thermal flux.
• Standardized ignition nozzle (8 mm outer diameter, 6 mm inner diameter) manufactured from high-temperature stainless steel, designed to maintain dimensional integrity and thermal stability over extended test cycles.
• Modular test chamber enclosure constructed from non-combustible, heat-resistant materials (ceramic fiber insulation + AISI 304 stainless steel lining), compliant with Class A fire-resistance rating per ASTM E119.
• Integrated flame failure detection and automatic gas shutoff circuitry, meeting functional safety requirements outlined in IEC 61508 SIL-2 for laboratory-scale combustion apparatus.

Sample Compatibility & Compliance

The CAF chamber accommodates a broad range of candle accessory geometries, including candle holders, oil burners, potpourri burners, candle rings, and decorative mantel inserts — all classified as “candle accessories” under ASTM F2601 Section 3.1. Each test specimen is mounted on a standardized non-combustible support plate (ASTM E136-compliant ceramic board) and positioned at prescribed distances from the ignition nozzle per Section 7.4. The system supports both horizontal and vertical orientation testing modes, with fixture adaptability for irregular shapes up to 300 mm × 300 mm × 200 mm (W × D × H). Regulatory alignment extends beyond ASTM F2601 to include UK fire safety standards BS 5852 (for upholstered furniture ignition sources), BS 7175 (curtains and drapes), BS 7176 (contract furniture), and BS 7177 (domestic furniture resistance to smoldering ignition), enabling cross-jurisdictional certification workflows for global OEMs and importers.

Software & Data Management

While the CAF chamber operates as a manually supervised benchtop system, it supports GLP-compliant documentation through optional digital logging modules (sold separately). These modules record time-stamped pressure, flow rate, and thermocouple readings (Type K, ±0.5 °C accuracy) at 1 Hz intervals, generating CSV-formatted datasets compatible with LIMS platforms. All test reports generated using the CAF system may be structured to satisfy FDA 21 CFR Part 11 requirements when paired with validated electronic signature protocols and audit trail configuration. Calibration certificates are issued annually per ISO/IEC 17025:2017, with traceability to NIM (National Institute of Metrology, China) and NIST SRMs where applicable.

Applications

• Pre-market safety validation of candle accessories for retailers subject to ASTM F2601 mandatory compliance (e.g., U.S. CPSC enforcement guidance).
• Root cause analysis of flame propagation failures in polymer-based candle holders during product development.
• Comparative flammability screening of flame-retardant additives in molded thermoplastics (PP, ABS, PS) used in accessory manufacturing.
• Third-party certification testing for CE marking (EN 15493:2019) and UKCA labeling of decorative home products.
• Internal QA/QC audits supporting ISO 9001:2015 Clause 8.5.1 (Control of production and service provision) and IATF 16949:2016 process validation requirements.

FAQ

Does the CAF chamber require external gas supply infrastructure?

Yes — the system operates on regulated propane or butane gas delivered via standard CGA-600 or CGA-750 fittings; a dedicated gas cabinet with flashback arrestor and pressure regulator is recommended.
Can the CAF be used for testing candles themselves?

No — ASTM F2601 explicitly excludes finished candles; this instrument is validated only for accessories intended for proximity use with burning candles.
Is operator training provided with purchase?

MOTIS offers on-site or virtual commissioning support and ASTM F2601 procedural training (4-hour session), including hands-on setup, calibration verification, and report generation best practices.
What maintenance intervals are recommended?

Monthly inspection of nozzle orifice integrity, quarterly recalibration of pressure and flow sensors, and annual full-system verification per ASTM E178 Annex A2.
Is the CAF compatible with automated data acquisition systems?

Yes — analog 4–20 mA outputs and RS-485 Modbus RTU interface are available as factory options for integration into centralized lab automation networks.
