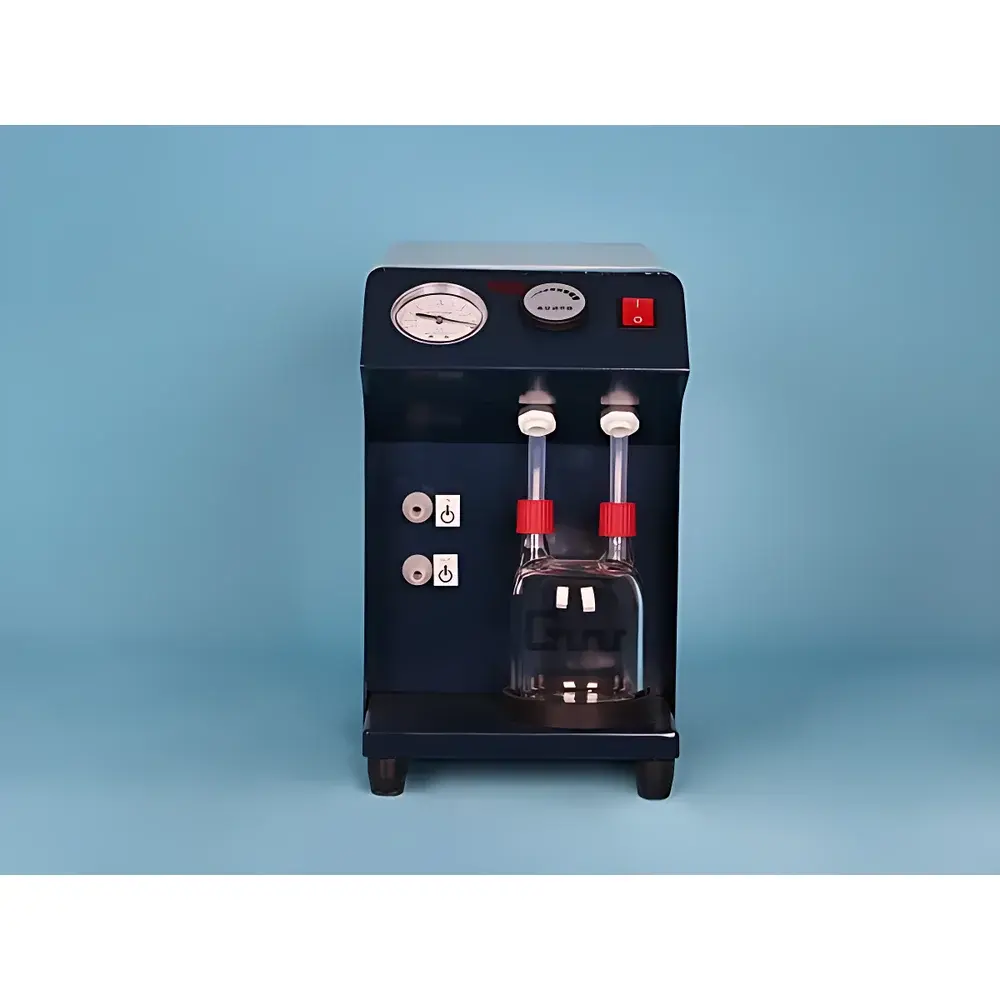

MP-401 PTFE-Lined Oil-Free Diaphragm Vacuum Pump

Overview

The MP-401 is a compact, oil-free diaphragm vacuum pump engineered for reliable, contamination-free vacuum generation in analytical, preparative, and quality control laboratories. Unlike rotary vane or water-ring pumps, it operates on positive displacement via an elastomeric PTFE-coated diaphragm actuated by an eccentric cam mechanism—eliminating lubricants, hydrocarbon vapor backstreaming, and water consumption. Its ultimate vacuum of 50 mbar (0.095 MPa absolute) and stable pumping speed of 45 L/min at ambient conditions make it suitable for routine applications including rotary evaporation, vacuum filtration, degassing of solvents, and inert gas purging. The pump’s sealed architecture prevents cross-contamination between samples and ensures compliance with ISO 8573-1 Class 0 air purity requirements for instrument-grade vacuum lines.

Key Features

• Chemically inert wetted parts: All gas-contact surfaces—including diaphragm, valves, and chamber—are fabricated from virgin PTFE or PEEK, providing exceptional resistance to acids, bases, halogenated solvents, and organic vapors.
• True oil-free operation: No lubricating oil required; eliminates risk of sample contamination, oil mist emission, or maintenance-related downtime associated with oil-sealed pumps.
• Integrated inlet protection: A removable glass or PP trap bottle intercepts liquid condensate and particulate matter before reaching the diaphragm assembly—extending service life and reducing unscheduled maintenance.
• Precision vacuum regulation: Front-panel adjustable throttle valve enables fine-tuned control of suction pressure across the operational range (50–950 mbar), supporting method-sensitive protocols such as gentle solvent removal or controlled crystallization.
• Low-noise design: Acoustic enclosure and optimized airflow path reduce operating noise to ≤55 dB(A) at 1 m distance—compatible with open-bench placement in shared lab environments.
• Modular service architecture: Diaphragm, valve plates, and gaskets are field-replaceable using standard tools; typical preventive maintenance interval exceeds 5,000 hours under continuous duty.

Sample Compatibility & Compliance

The MP-401 is compatible with corrosive, volatile, and moisture-laden process streams commonly encountered in pharmaceutical synthesis (e.g., HCl gas scrubbing), environmental sample preparation (e.g., VOC trapping), and academic chemistry labs. It meets CE safety and EMC directives (EN 61000-6-3 for emissions, EN 61000-6-4 for immunity) and conforms to RoHS 2015/863/EU restrictions on hazardous substances. While not certified for ATEX or IECEx Zone 1 use, its non-sparking PTFE/PEEK construction and thermal cutoff fuse (120 °C) support safe operation in general laboratory zones per IEC 61000-3-2 harmonic current limits. Documentation includes Declaration of Conformity, electrical schematics, and material safety data sheets (MSDS) for all wetted components.

Software & Data Management

The MP-401 operates as a standalone analog device with no embedded microcontroller or digital interface. However, its analog vacuum output (via optional 0–10 V or 4–20 mA transducer kit) is compatible with third-party SCADA systems, LabVIEW-based DAQ platforms, or PLC-controlled workflows. For GLP/GMP-regulated environments, users may integrate it into validated vacuum networks using external pressure loggers (e.g., Validyne DP15 or MKS Baratron series) that provide audit-trail-capable data export compliant with FDA 21 CFR Part 11 when paired with validated software (e.g., DeltaV, Empower). Calibration certificates traceable to NIST standards are available upon request.

Applications

• Routine vacuum filtration of aqueous and organic suspensions using Buchner or Hirsch funnels.
• Rotary evaporation of heat-sensitive compounds (e.g., natural product isolates, polymer precursors) where oil-free vacuum prevents residue carryover.
• Desiccator evacuation and glove box purging in materials science labs handling hygroscopic or air-sensitive catalysts.
• Supporting gas chromatography sample introduction systems requiring stable, pulse-free vacuum below 100 mbar.
• In-line vacuum drying of chromatography columns and SPE cartridges prior to elution.
• Environmental lab applications: EPA Method 502.2 (purge-and-trap) sample transfer, and ASTM D2879 viscosity bath evacuation.

FAQ

Is the MP-401 suitable for continuous 24/7 operation?
Yes—it is rated for continuous duty at ambient temperatures ≤35 °C and relative humidity ≤80% non-condensing. Thermal overload protection automatically interrupts power if internal temperature exceeds 120 °C.
Can it handle solvent vapors without performance degradation?
Yes, provided vapors are pre-condensed or trapped upstream. PTFE/PEEK materials resist acetone, methanol, THF, chloroform, and 10% HNO₃; prolonged exposure to strong oxidizers (e.g., fuming nitric acid) or amine bases is not recommended.
What maintenance intervals are recommended?
Diaphragm replacement every 6,000 operating hours or 24 months (whichever occurs first); valve plate inspection every 3,000 hours; inlet trap cleaning after each use involving liquids.
Does it comply with FDA 21 CFR Part 11 for electronic records?
No—the base unit has no digital logging capability. Full Part 11 compliance requires integration with validated external pressure sensors and electronic record systems.
Is a calibration certificate included?
A factory-as-tested pressure accuracy report (±5% of reading at 50–500 mbar) is supplied standard; NIST-traceable calibration with uncertainty budget is available as an optional add-on service.
