MultiGel MC100 Desktop Capsule Filler
| Brand | MultiGel |
|---|---|
| Origin | Italy |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | MC100 |
| Pricing | Upon Request |
Overview

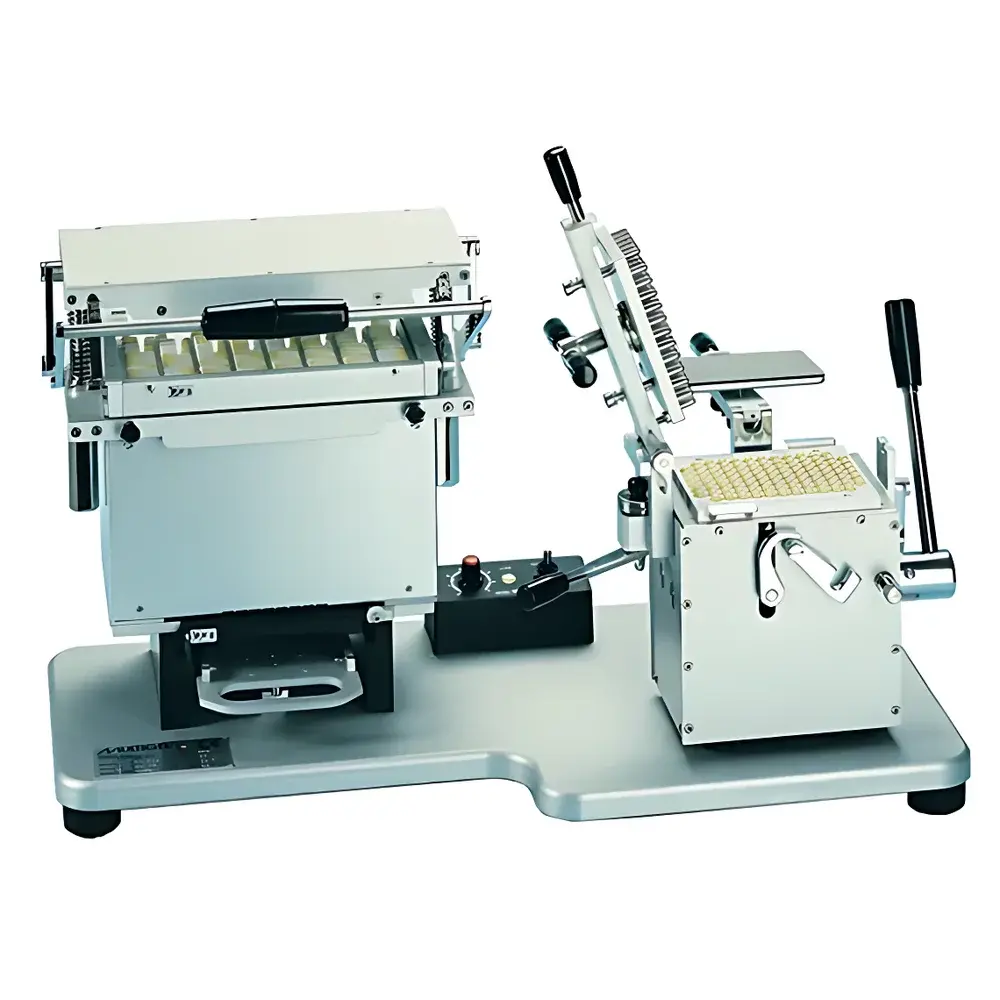

The MultiGel MC100 is a precision-engineered, manually operated desktop capsule filler designed for low-to-medium throughput applications in pharmaceutical R&D, compounding pharmacies, nutraceutical development, and clinical trial material preparation. Based on the proven European-style mechanical filling principle—utilizing gravity-assisted powder dosing, cam-driven tamping, and positive mechanical locking—the MC100 delivers reproducible fill weights across gelatin, HPMC, starch, and other vegetarian capsule shells (sizes 000–5). Its architecture adheres to core principles of unit-dose manufacturing: deterministic mechanical actuation, minimal powder residence time, and full traceability of critical process parameters via operator-controlled sequencing. Unlike semi-automated or pneumatic systems, the MC100 eliminates compressed air dependency, reducing variability from pressure fluctuations and simplifying validation under cGMP environments.
Key Features
- 100-position stainless steel filling plate with integrated locking mechanism—no elastomeric gaskets requiring replacement or cleaning
- Adjustable capsule body height setting enables precise alignment for optimal powder compression across all capsule sizes (000–5)
- Dual-spring tamping assembly ensures consistent plunger travel and repeatable powder density without external vibration
- Large-diameter adjustment screws and cam position indicator facilitate rapid tooling changeover and operator training
- Modular construction: fully disassemblable 316 stainless steel contact surfaces—including dosing tray, tamping pins, and cap/seal plates—for visual cleanliness verification and dishwasher compatibility
- Optional vibration module (MC-VIB) available for cohesive powders requiring enhanced flow and deaeration
- Front-mounted locking handle with internal gear reduction provides ergonomic engagement force and tactile feedback upon full capsule lock confirmation
- Two-piece manual orienter with conical locator pins and tapered alignment holes ensures accurate, repeatable capsule positioning within the sealing tray
Sample Compatibility & Compliance
The MC100 accommodates standard hard-shell capsules compliant with USP , Ph. Eur. 2.9.42, and JP 6.10 specifications—including animal-derived gelatin, hydroxypropyl methylcellulose (HPMC), pullulan, and starch-based shells. Fill weight accuracy meets USP/EP method requirements, with mean deviation typically ±1–3% per 100-unit batch and batch-level rejection rates ≤7% under optimized conditions. All wetted and powder-contact components are fabricated from ASTM A276 316 stainless steel (electropolished finish, Ra ≤0.8 µm), satisfying FDA 21 CFR Part 211.65(a) and EU Annex 15 material compatibility criteria. The system supports prospective validation protocols aligned with ICH Q5A, Q5C, and ISO 9001:2015 quality management requirements.
Software & Data Management
As a manually operated mechanical system, the MC100 does not incorporate embedded firmware or digital control interfaces. Process documentation is maintained externally via paper-based or electronic batch records (EBR) compliant with 21 CFR Part 11 when integrated into validated laboratory information management systems (LIMS) or electronic notebook platforms. Optional accessories—including capsule counters and overfill trays—support discrete event logging for reconciliation and audit trail generation. Cleaning logs, tooling change records, and calibration certificates for optional vibration modules are retained as part of the equipment master file per GMP Annex 15.
Applications
- Rapid formulation screening during preclinical and Phase I–II clinical supply manufacturing
- Small-batch production of investigational medicinal products (IMPs) under GMP Annex 13 guidelines
- Custom compounding of hormone, peptide, or cannabinoid formulations in pharmacy 503A/503B settings
- Nutraceutical dose optimization studies requiring variable fill weights across capsule sizes
- Training platform for capsule manufacturing fundamentals in academic and regulatory affairs curricula
- Reference standard preparation where batch homogeneity and content uniformity must be independently verified
FAQ
What capsule sizes are supported by the MC100?
The base configuration supports sizes 000 through 5; optional tamping pins and orienter inserts are available for each size.
Is the MC100 compliant with cGMP for commercial manufacturing?
Yes—it meets material, design, and operational requirements for use in cGMP-compliant pilot-scale and clinical supply manufacturing when incorporated into a validated process and supporting quality system.
Can the MC100 be used with highly cohesive or low-density powders?
Yes; the optional MC-VIB vibration module enhances powder flow and reduces air entrapment, improving fill consistency for challenging formulations.
How long does cleaning and reassembly take between batches?
Full disassembly, cleaning, drying, and reassembly can be completed in under 45 minutes using standard lab-grade detergents and ultrasonic baths.
Does the system include documentation for IQ/OQ qualification?
MultiGel provides vendor-supplied FAT/SAT documentation; site-specific IQ/OQ protocols must be developed per user’s validation master plan and executed with qualified personnel.
