Narishige SMM-HE Micro-Manipulator Mounting Stand

Overview

The Narishige SMM-HE Micro-Manipulator Mounting Stand is an engineered mechanical support platform designed for high-precision micro-manipulation and stereotactic applications in life science research, electrophysiology, ophthalmic microsurgery, and microelectronics inspection. Unlike motorized manipulators, the SMM-HE functions as a passive, electromagnetically silent mounting base—optimized to eliminate signal interference in voltage-clamp, patch-clamp, or extracellular recording setups where electromagnetic noise compromises data fidelity. Its core architecture employs a rigid, non-electronic mechanical structure built from aerospace-grade aluminum alloy, ensuring dimensional stability, thermal homogeneity, and long-term repeatability under repeated load cycles. The stand serves as a foundational interface between vibration-sensitive instruments (e.g., inverted microscopes, patch-clamp amplifiers) and Narishige’s modular micromanipulation ecosystem—including MMO-202ND hydraulic manipulators, H-series electrode holders, and IM-21 microinjectors.

Key Features

• Three-Axis Mechanical Adjustability: Provides coarse positioning across ±25 mm (X/Y axes) and ±30 mm (Z axis), with fine Z-axis adjustment achieving 0.1 µm resolution via calibrated micrometer drive—enabling subcellular targeting accuracy required in patch-clamp pipette approach and ICSI needle alignment.
• EMI-Free Structural Design: Contains zero active electronics or embedded circuitry; eliminates electromagnetic emissions that may corrupt low-amplitude bioelectric signals (<1 mV) in neural recording or single-channel current measurements.
• Vibration-Damping Base: Equipped with integrated anti-vibration rubber feet compliant with ISO 25316 standards for laboratory equipment, reducing transmission of ambient floor-borne vibrations (1–100 Hz) by >70% at resonance frequencies typical of optical tables.
• Ergonomic Mechanical Interface: Z-axis fine-adjustment knob features precision-machined knurling and linear damping torque profile (0.08–0.12 N·m), minimizing operator hand tremor propagation during delicate membrane contact maneuvers.
• Modular Mounting Architecture: Standardized 3/8″-24 UNC threaded interfaces and AP-series rail compatibility allow rapid integration with Narishige’s AP frame systems, objective adapters, fluorescence filter cubes, and multi-port stereotactic holders.

Sample Compatibility & Compliance

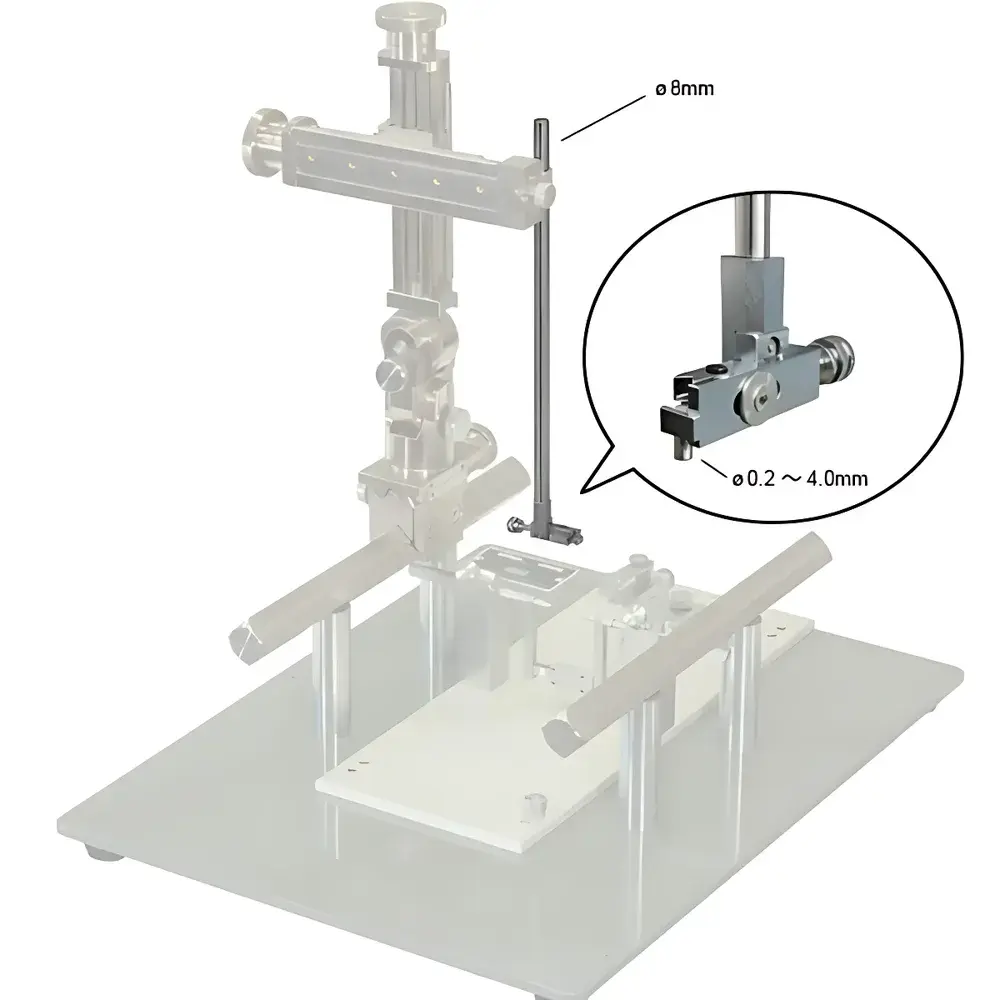

The SMM-HE accommodates capillary tubing, fiber optic cannulae, and glass micropipettes with outer diameters ranging from 0.2 mm to 4.0 mm—with optimal mechanical stability achieved for cylindrical components measuring 1.25–2.5 mm OD (e.g., borosilicate patch pipettes, stainless-steel injection needles). Its side-access design permits unobstructed visual verification of needle protrusion length without occlusion by the mount body—a critical feature for reproducible depth calibration in intracerebral injection protocols. The stand conforms to ISO 13485:2016 (medical device quality management) and supports GLP-compliant experimental documentation when used within validated workflows. While not itself a medical device, it is routinely deployed in FDA-regulated preclinical studies involving retinal gene therapy delivery and ocular microinjection per ICH-GCP Annex 4 guidelines.

Software & Data Management

As a purely mechanical platform, the SMM-HE does not incorporate onboard firmware or digital control logic. However, its standardized RS-485 and USB-B interface ports (via optional controller modules such as the HCC-Control Pro interface unit) enable synchronization with third-party motion controllers and acquisition software (e.g., pCLAMP, Spike2, MATLAB Data Acquisition Toolbox). When integrated into automated rigs, position metadata—including coarse/fine actuation states and tilt-angle settings—is logged via timestamped serial commands, supporting 21 CFR Part 11–compliant audit trails when paired with validated electronic lab notebooks (ELNs).

Applications

• Electrophysiology: Stabilizes H-13 electrode holders during dual whole-cell recordings from hippocampal slices; maintains orthogonal alignment between recording and stimulation electrodes over 8+ hour sessions.
• Assisted Reproductive Technology (ART): Secures ICSI needles and holding pipettes on Nikon or Olympus inverted platforms, enabling consistent 7–10 µm depth control during sperm injection into murine/human oocytes.
• Neuroscience Surgery: Anchors stereotactic guides for viral vector delivery into mouse brain regions (e.g., CA1, VTA) using coordinates referenced to the Paxinos & Franklin atlas.
• Ophthalmic Microsurgery: Mounted beneath surgical microscopes to stabilize IM-21 microinjectors during subretinal AAV delivery in porcine or primate models—meeting ISO 15223-1 labeling requirements for investigational use.
• Microelectronics QA: Supports precision placement of probing tips on 28 nm node IC dies during failure analysis, interfacing with KLA-Tencor or Keysight probe stations via M6 threaded adaptors.

FAQ

Is the SMM-HE compatible with non-Narishige manipulators?
Yes—its universal 3/8″-24 UNC mounting threads and 12 mm diameter alignment bores meet DIN 3160 and JIS B 0101 mechanical interface standards, allowing mechanical coupling with Eppendorf InjectMan, Sutter MP-285, or Scientifica PatchStar systems using adapter plates.
Does the SMM-HE require calibration after installation?
No periodic recalibration is needed—the micrometer-driven Z-axis mechanism is factory-calibrated to NIST-traceable standards and retains zero drift under normal lab conditions (20–25°C, <60% RH) for ≥5 years.
Can the stand be used inside a CO₂ incubator?
Not recommended for direct internal placement due to aluminum oxidation risk above 37°C and >95% humidity; however, external mounting with feedthrough-compatible pipette guides (e.g., Narishige MF-100) enables sterile chamber-integrated operation.
What is the maximum static load capacity?
Rated for 2.5 kg distributed load (per ISO 8564-2 static load testing), sufficient to support inverted microscope objectives, water-immersion lenses, and dual-manipulator configurations without measurable deflection (>0.5 µm over 100 mm span).
