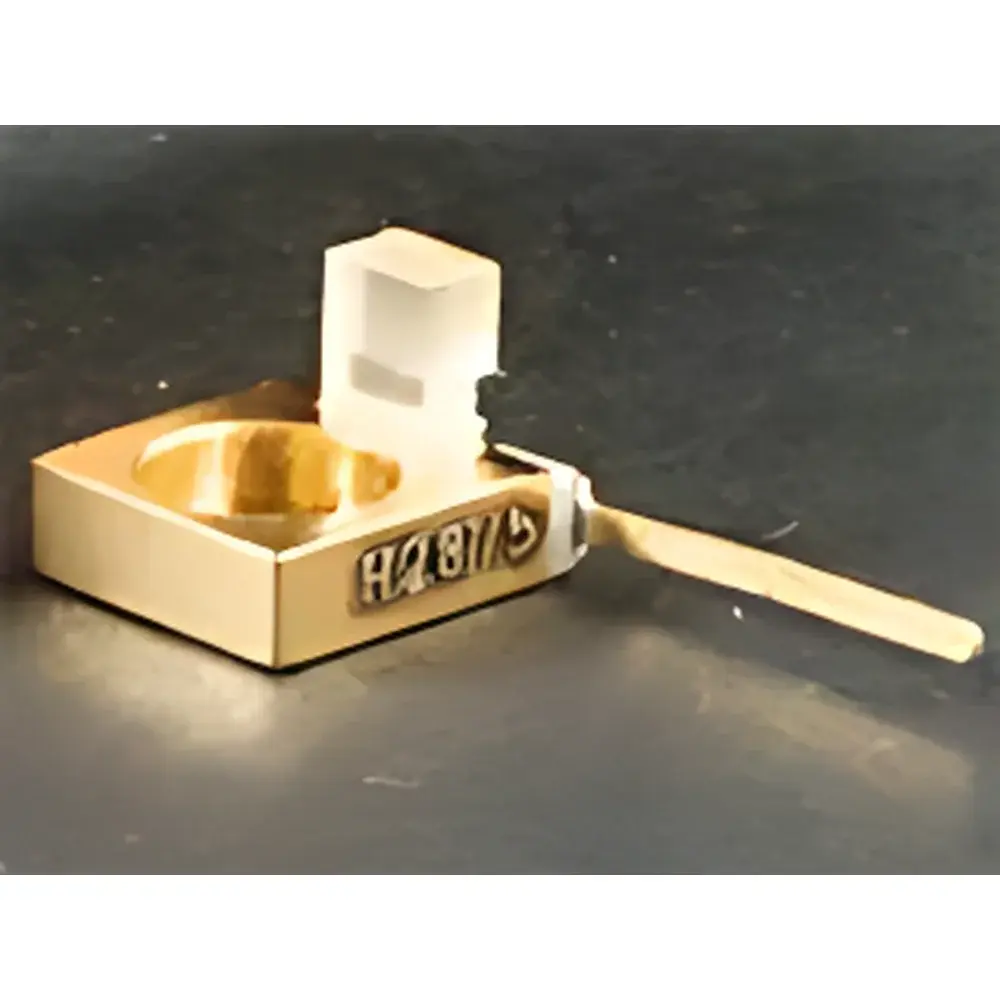

Narrow-Linewidth Laser Diode by PD-LD (NewOpto Series)

Overview

The PD-LD NewOpto narrow-linewidth laser diode series leverages proprietary Volume Bragg Grating (VBG) stabilization technology to deliver exceptional spectral purity and wavelength fidelity in compact semiconductor laser sources. Unlike conventional Fabry–Pérot or distributed feedback (DFB) diodes, these VBG-stabilized devices achieve intrinsic linewidths below 1 cm⁻¹ (< 30 GHz FWHM at 785 nm), enabling high-resolution spectroscopic interrogation where precise optical frequency control is critical. Engineered for laboratory-grade stability and long-term repeatability, the series operates across eight discrete wavelengths—from visible (532 nm) through near-infrared (1064 nm)—making it suitable for demanding applications in Raman spectroscopy, atomic physics, interferometric sensing, and coherent detection systems.

Key Features

• VBG-based spectral narrowing: Integrated monolithic volume holographic grating ensures passive, alignment-free wavelength locking with no external cavity components.
• High thermal stability: Wavelength drift controlled to < 8 pm/°C—enabling operation without active temperature compensation in many ambient-stable environments.
• Precision wavelength accuracy: Factory-calibrated to ±0.5 nm tolerance across all standard emission lines, traceable to NIST-traceable reference spectrometers.
• Flexible output architecture: Available in both free-space (C-mount, TO-3, 14-pin butterfly, coaxial) and fiber-pigtailed configurations (single-mode SMF-28 or multimode 105/125 µm).
• Power scalability: Output power spans 10 mW (low-noise Raman excitation) to 2.5 W (high-flux sensing or pumping), optimized per wavelength band to maintain beam quality and spectral integrity.
• Compact OEM-ready form factors: Designed for integration into analytical instruments, portable spectrometers, and embedded photonic subsystems with minimal footprint and low thermal load.

Sample Compatibility & Compliance

The NewOpto series supports diverse sample interaction geometries—including backscattering, transmission, and evanescent-field coupling—without requiring external line-narrowing optics. All models comply with IEC 60825-1:2014 Class 3B or Class 4 laser safety requirements depending on output power; full compliance documentation (including LSO reports and hazard classification diagrams) is provided with each unit. For regulated environments—including clinical diagnostics labs and pharmaceutical QC facilities—the devices support integration into ISO 17025-accredited measurement chains and are compatible with GLP/GMP audit trails when paired with validated control software. While not inherently FDA 21 CFR Part 11 compliant, the laser drivers and monitoring interfaces can be configured to meet electronic record and signature requirements via third-party DAQ platforms.

Software & Data Management

PD-LD provides a vendor-agnostic digital interface protocol (RS-232 and USB-CDC) for bidirectional communication with host systems. Users may configure operating current, TEC setpoint, and interlock status remotely; real-time analog monitor outputs (photodiode current, TEC voltage) enable closed-loop power stabilization in custom instrument firmware. No proprietary GUI is required—integration with LabVIEW, Python (PySerial), MATLAB, or EPICS is fully supported. For traceable calibration workflows, wavelength and power logs can be timestamped and exported in CSV or HDF5 format, aligning with FAIR data principles. Optional OEM firmware versions include configurable safety interlocks, password-protected parameter sets, and event logging for ISO/IEC 17025 documentation.

Applications

• Raman spectroscopy: Stable 785 nm and 1064 nm sources minimize fluorescence background while maintaining sufficient photon flux for handheld or benchtop analyzers.
• Bio-optical sensing: 780 nm and 808 nm variants serve as pump sources for NIR-II imaging and optogenetic stimulation with minimal tissue absorption variability.
• Atomic vapor spectroscopy: Narrow linewidth enables Doppler-free saturation spectroscopy of alkali metal transitions (e.g., Rb D2 line at 780.24 nm).
• Fiber-optic sensing: Used in high-finesse interferometric sensors (e.g., FBG interrogation, BOTDR) where coherence length >10 cm is essential.
• Laser seeding & amplification: Functions as master oscillator in MOPA architectures for ultrafast amplifier systems requiring high temporal contrast.
• Optical isolation testing: Validates Faraday rotator performance and polarization extinction ratios under spectrally constrained illumination.

FAQ

What is the typical coherence length for the 785 nm model at 120 mW output?
Coherence length is derived from measured linewidth and approximates ≥10 cm for the VBG-stabilized 785 nm diode (Δν ≈ 25 GHz). Exact values are supplied with individual unit test reports.

Can the butterfly-packaged units be integrated with standard TEC controllers?
Yes—all butterfly modules include industry-standard thermistor (10 kΩ @ 25 °C) and TEC pinouts compatible with Wavelength Electronics, Thorlabs TED, or ILX Lightwave drivers.

Is polarization-maintaining (PM) fiber pigtailing available?
PM fiber coupling is offered as a custom option for 785 nm, 976 nm, and 1064 nm models; minimum order quantity and lead time apply.

Do you provide spectral characterization data for each shipped unit?
Yes—every laser diode ships with a calibrated spectral scan (resolution ≤ 0.05 nm), power-vs-current curve, and wavelength-vs-temperature coefficient report.

Are RoHS and REACH declarations available for export compliance?
Full substance-level declarations and certificate of conformance are included in the shipping documentation package for all EU and UK shipments.
