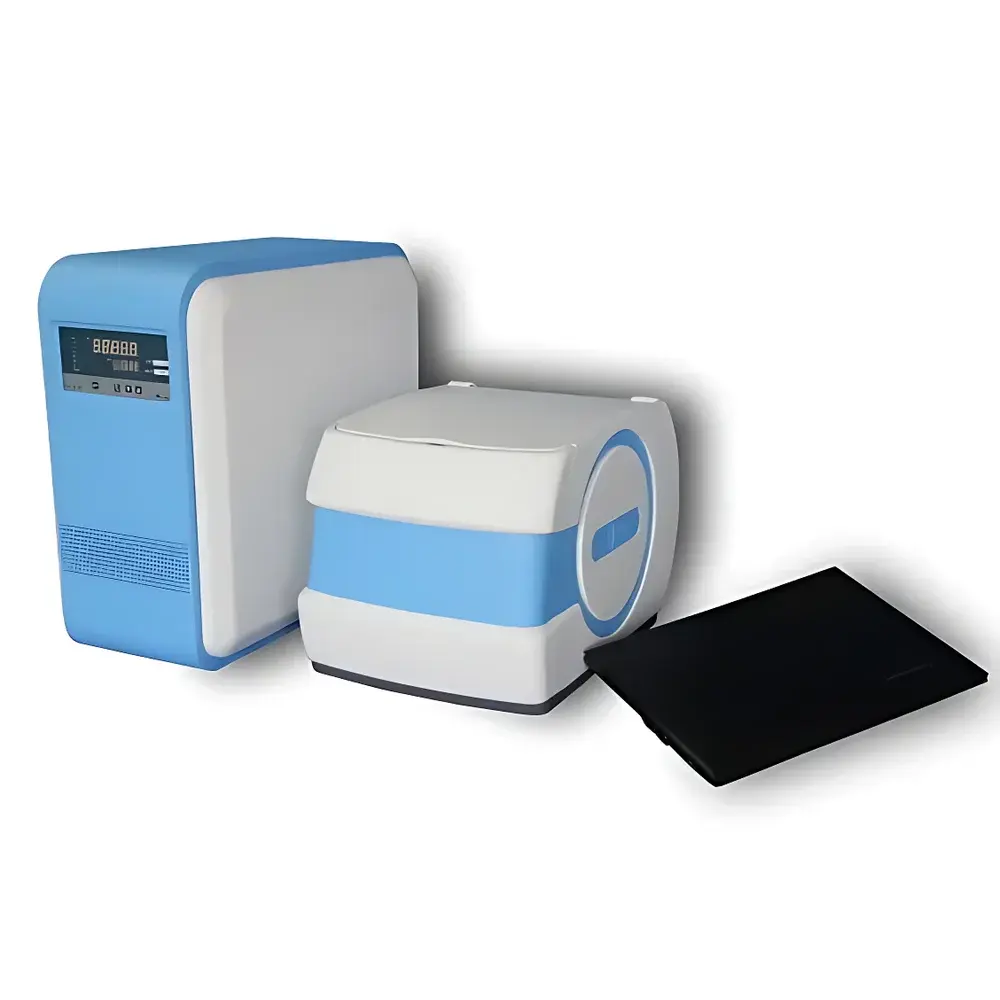

NIUMAG EDUMR Miniature Benchtop Nuclear Magnetic Resonance Imaging Educational System

Overview

The NIUMAG EDUMR is a purpose-built, benchtop-scale nuclear magnetic resonance (NMR) imaging educational system engineered for hands-on instruction in fundamental and applied magnetic resonance physics. Unlike clinical or high-field research NMR systems, the EDUMR operates at low magnetic field strength (typically < 0.5 T), enabling safe, classroom-integrated operation while preserving core NMR phenomenology—including spin excitation, free induction decay (FID), spin echo formation, relaxation dynamics (T₁/T₂), and k-space encoding. Its architecture implements pulse sequence-driven signal acquisition using standard gradient coil sets, radiofrequency (RF) transceiver modules, and analog-to-digital conversion synchronized to precise timing control—mirroring the hardware topology of clinical MRI scanners. This fidelity ensures students engage with authentic electromagnetic, timing, and signal-processing constraints encountered in real-world MR instrumentation, without requiring cryogenic infrastructure or shielded rooms.

Key Features

• Integrated tri-functional cabinet design: RF temperature stabilization, spectrometer control, and gradient power amplification housed in a single compact chassis—reducing footprint by >40% versus legacy modular teaching systems.
• Hardware-open architecture: Removable rear panel grants direct access to RF amplifier stages, gradient driver circuits, and digital timing boards; supports oscilloscope-based waveform verification and multimeter-assisted voltage/current diagnostics.
• Software-open data pipeline: Full access to raw k-space datasets in DICOM-compliant format, enabling offline reconstruction, algorithm development (e.g., compressed sensing, parallel imaging), and quantitative relaxation modeling.
• Multi-sequence pulse library: Native support for Spin Echo (SE), Fast Spin Echo (FSE), Inversion Recovery (IR), Gradient Recalled Echo (GRE), Echo Planar Imaging (EPI), and Spiral acquisitions—each configurable via intuitive GUI sliders for TR, TE, TI, flip angle, and matrix size.
• Virtual acquisition & reconstruction platform: Real-time animated visualization of k-space traversal, slice selection, phase encoding, and frequency encoding; includes simulation of B₀ inhomogeneity, eddy current artifacts, thermal noise, partial Fourier acquisition, and T₂-weighting optimization.
• Teaching-optimized imaging modes: 2D axial/sagittal/coronal slices, arbitrary-angle multi-slice acquisition, and optional 3D volumetric reconstruction from IMG-series DICOM stacks.

Sample Compatibility & Compliance

The EDUMR accommodates solid–liquid heterogeneous samples—including polymer gels, porous rock cores, seed tissues, hydrogels, and phantoms containing paramagnetic dopants—within its 25 mm diameter cylindrical sample chamber. Its low-field configuration eliminates safety concerns associated with high-field quench hazards or projectile risks, complying with IEC 61000-6-3 (EMC emission limits) and ISO 13485-aligned documentation practices for educational instrumentation. While not intended for diagnostic use, its pulse sequence engine and signal chain adhere to principles defined in ASTM E2982 (Standard Guide for NMR Spectroscopy Education) and align with foundational MRI pedagogy frameworks referenced in AAPT and IEEE EMBS curriculum guidelines.

Software & Data Management

The EDUMR runs on a Linux-based real-time acquisition OS with deterministic interrupt latency (< 10 µs). All acquired FID, echo train, and k-space data are timestamped and stored in HDF5 format with embedded metadata (pulse sequence ID, parameter set, hardware calibration flags). The virtual platform exports synthetic k-space data in DICOM-RT format compliant with OsiriX, 3D Slicer, and MATLAB’s Image Processing Toolbox. Audit trails record user actions (sequence selection, parameter edits, reconstruction runs) meeting GLP requirements for laboratory course assessment. Optional RelaxFit™ software provides non-negative least-squares (NNLS) inversion for T₂ distribution analysis—validated against NIST-traceable reference standards.

Applications

• Physics laboratories: Demonstrating Larmor precession, resonance condition derivation, Bloch equation solutions, and relaxation time measurement techniques.
• Biomedical engineering curricula: Mapping contrast mechanisms (T₁ vs T₂ weighting), evaluating motion artifact suppression strategies, and validating image reconstruction algorithms.
• Materials science education: Quantifying porosity, fluid saturation, and molecular mobility in porous media via CPMG-based T₂ distribution analysis.
• Electrical engineering labs: Characterizing gradient coil linearity, RF pulse shaping fidelity, and ADC sampling jitter effects on point spread function.
• Open-ended capstone projects: Designing custom pulse sequences in Python-based PulseSequence SDK; integrating external sensors (temperature, pressure) via GPIO expansion headers.

FAQ

Is the EDUMR suitable for quantitative T₁/T₂ measurements?
Yes—its calibrated RF power delivery, temperature-stabilized magnet, and CPMG/IR sequence support reproducible longitudinal and transverse relaxation time quantification per ASTM D8295 protocols.
Can raw k-space data be exported for third-party reconstruction?
Yes—DICOM-compliant k-space matrices (including phase and magnitude components) are accessible via USB 3.0 or Ethernet; no proprietary binary wrappers are applied.
Does the system meet regulatory requirements for university lab certification?
It complies with CE marking directives for laboratory equipment (2014/30/EU EMC Directive, 2014/35/EU LVD) and supports ISO/IEC 17025 documentation templates for teaching lab accreditation.
What safety certifications apply to classroom deployment?
No RF exposure hazard exists above 2 mW/cm² at 10 cm distance (measured per IEEE C95.1-2019); static field strength remains below ICNIRP occupational limits (40 mT) at all accessible points.
Is hardware modification supported under warranty?
Educational disassembly and reassembly are explicitly permitted; firmware updates preserve backward compatibility with user-modified timing configurations.
