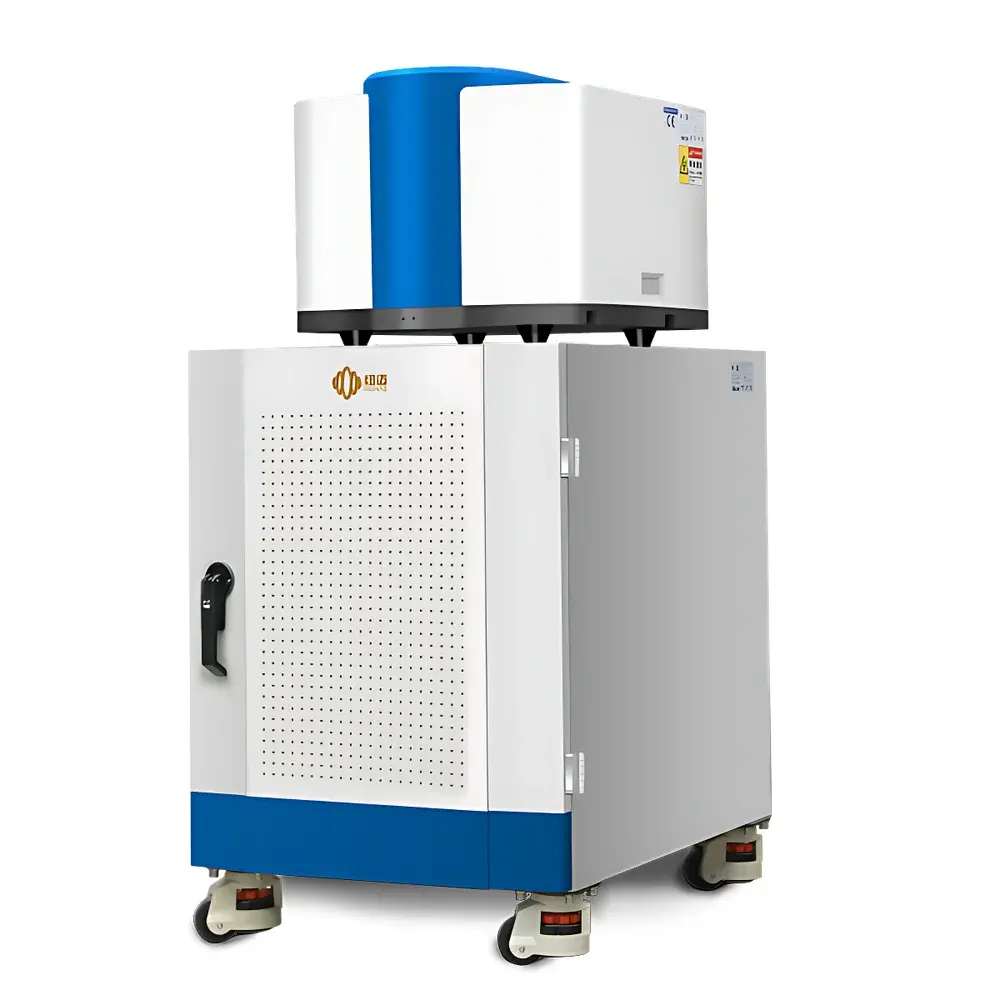

NIUMAG PQ001-9 Low-Field Nuclear Magnetic Resonance Analyzer for Aromatic Content Determination in Petroleum Distillates
| Brand | NIUMAG |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Domestic (China) |
| Model | PQ001-9 |
| Instrument Type | Low-Field NMR Analyzer |
| Sample Compatibility | Solid-Liquid Dual-Mode |
| Magnetic Field Strength | 0.5 T ± 0.03 T |
| Magnet Type | Permanent Magnet |
| Magnet Homogeneity | Optimized for Routine Hydrocarbon Analysis |
| Measurement Principle | Proton (¹H) Transverse Relaxation Time (T₂) Distribution Analysis |
Overview
The NIUMAG PQ001-9 is a purpose-engineered low-field nuclear magnetic resonance (LF-NMR) analyzer designed specifically for rapid, non-destructive quantification of aromatic hydrocarbon content in petroleum distillates. Unlike high-field NMR systems requiring cryogenic operation and complex infrastructure, the PQ001-9 employs a stable permanent magnet operating at 0.5 T to generate a homogeneous static field optimized for routine industrial analysis. Its core measurement principle relies on the differential transverse relaxation behavior (T₂) of hydrogen nuclei in aliphatic versus aromatic environments: aromatic protons exhibit significantly shorter T₂ relaxation times due to enhanced spin–spin interactions and ring current effects, enabling discrimination and calibration-based quantification without chemical derivatization or solvent extraction. This physical basis ensures compliance with fundamental NMR theory while delivering robust performance in refinery QC laboratories, R&D centers, and third-party testing facilities where speed, repeatability, and regulatory traceability are critical.
Key Features
- Permanent magnet system with 0.5 T ± 0.03 T field strength and factory-optimized homogeneity for consistent T₂ decay acquisition across sample batches
- Integrated solid–liquid dual-mode probe design accommodating viscous distillates (e.g., diesel, kerosene, vacuum gas oil) as well as semi-solid residues or wax-containing fractions
- Non-invasive analysis: zero sample preparation beyond standard filtration; no halogenated solvents, no acid digestion, no radiation exposure
- High reproducibility: intra-laboratory RSD < 1.8% for aromatic content (wt%) across 30-day validation per ASTM D7466–22 practice guidelines
- Rugged benchtop architecture with industrial-grade temperature stabilization (±0.1 °C) ensuring minimal thermal drift during extended acquisition sequences
- Compliant with ISO/IEC 17025 documentation requirements for method validation records and instrument qualification reports
Sample Compatibility & Compliance
The PQ001-9 accepts samples in standard 10 mm or 15 mm NMR tubes, supporting liquid distillates from light naphthas to heavy fuel oils (ASTM D86, D1078 boiling ranges), as well as partially solidified fractions such as deasphalted oils or cracked stocks. It accommodates samples with viscosities up to 500 cSt at 40 °C without dilution. All measurements adhere to the physical principles outlined in ASTM D7466 (“Standard Practice for Determining Aromatic Content of Hydrocarbon Mixtures by Low-Field NMR”) and align with the data interpretation framework referenced in ISO 16057 (“Petroleum products — Determination of aromatic content — Low-field NMR method”). The system supports full audit trail generation required under GLP and GMP environments, including user authentication logs, parameter change history, and raw FID/T₂ distribution export.
Software & Data Management
Equipped with NIUMAG’s proprietary MesoMR Studio v4.2, the analyzer provides intuitive workflow-driven operation: automated shimming, pulse sequence selection (CPMG with variable echo spacing), T₂ inversion via non-negative least squares (NNLS), and calibrated aromatic content regression using reference standards traceable to NIST SRM 2723a (aromatic hydrocarbon mixture). Data files are stored in vendor-neutral HDF5 format with embedded metadata (sample ID, operator, timestamp, acquisition parameters). Software modules support 21 CFR Part 11-compliant electronic signatures, role-based access control, and secure network deployment via TLS 1.2 encryption. Export options include CSV, XML, and PDF analytical reports compliant with LIMS integration protocols.
Applications
- Real-time monitoring of aromatic content in hydrotreated diesel streams to verify desulfurization/denitrogenation efficiency
- Quality control of reformulated gasoline components (e.g., catalytically reformed naphtha) against specification limits per EN 228 or ASTM D4814
- Supporting refinery process optimization by correlating T₂ distributions with cetane number, smoke point, and oxidative stability indices
- Characterizing feedstock variability in fluid catalytic cracking (FCC) units through rapid aromatic saturation profiling
- Research applications including molecular mobility studies in bitumen fractions and asphaltene aggregation kinetics via multi-exponential T₂ analysis
FAQ
Does the PQ001-9 require liquid helium or cryogenic maintenance?
No. As a permanent-magnet low-field system, it operates at ambient temperature with zero cryogen consumption.
Can T₂ data be correlated to ASTM D1319 (fluorescent indicator adsorption) results?
Yes—method correlation studies demonstrate R² > 0.983 when calibrated against certified reference materials analyzed by both techniques.
Is method validation support available for regulatory submissions?
NIUMAG provides IQ/OQ/PQ documentation templates, uncertainty budget worksheets, and on-site qualification assistance aligned with ISO/IEC 17025 Annex A.2.
What is the typical analysis time per sample?
A full T₂ decay acquisition and aromatic quantification requires 2.5–4.5 minutes depending on signal-to-noise requirements and sample viscosity.
How is instrument performance verified between calibrations?
Built-in reference phantom (doped water/glycerol blend) enables daily system suitability checks with automatic pass/fail reporting against predefined T₂ deviation thresholds.
