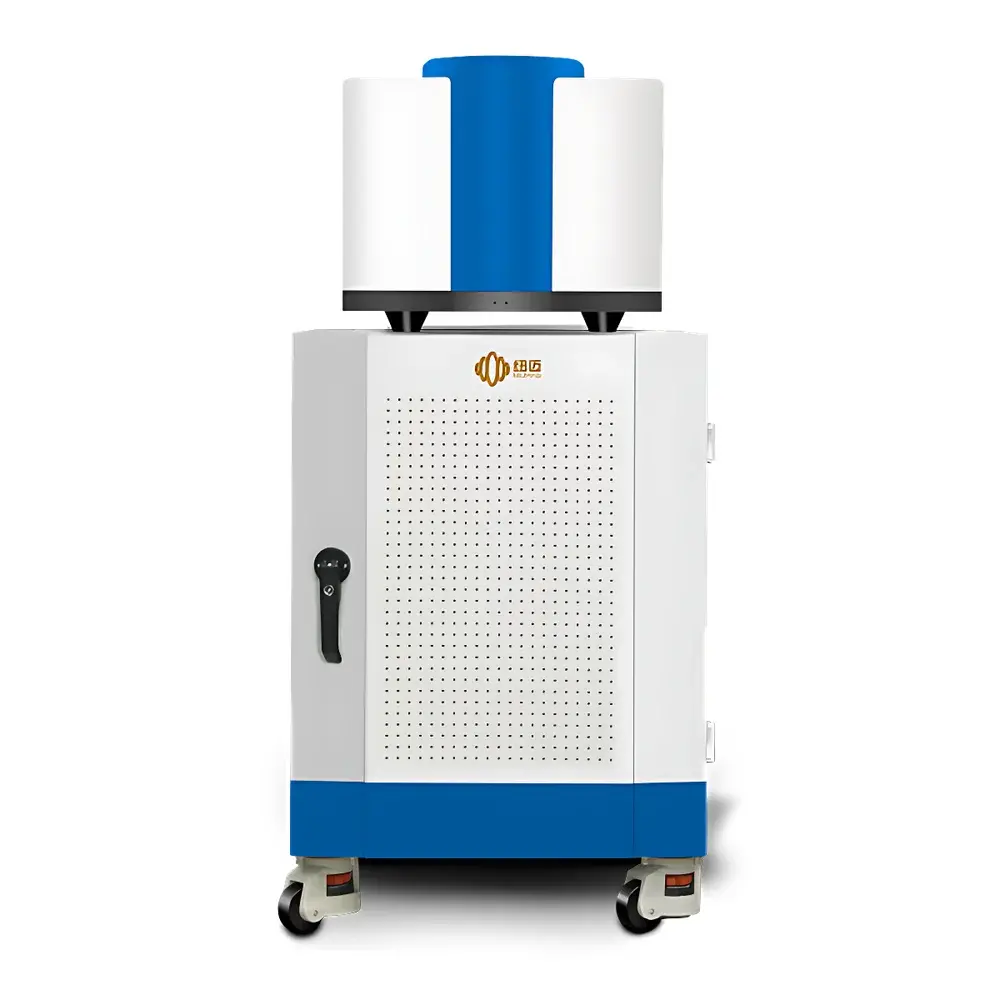

NIUMAG PQ001 Benchtop Low-Field Nuclear Magnetic Resonance Analyzer for Oil & Moisture Content in Oilseed Crops
| Brand | NIUMAG |
|---|---|
| Origin | Jiangsu, China |
| Instrument Type | Low-Field NMR Spectrometer |
| Model | PQ001 |
| Sample Compatibility | Solid-Liquid Dual-Phase (Intact Oilseeds & Pressed Cake) |
| Magnetic Field Strength | 0.50 ± 0.01 T |
| Sample Tube Dimensions | Ø16 mm × H40 mm |
| Magnet Homogeneity | ≤30 ppm |
| Oil Content Range | 1–100 wt% |
| Moisture Content Range | 2–10 wt% |
| Repeatability (11 Replicates) | ≤0.5% RSD for Oil Content |
| Measurement Principle | Time-Domain Pulsed NMR (T₂ Relaxation & FID Signal Separation) |
Overview
The NIUMAG PQ001 is a dedicated benchtop low-field nuclear magnetic resonance (LF-NMR) analyzer engineered for rapid, non-destructive quantification of oil and moisture content in intact oilseed crops and their by-products. Unlike conventional chemical extraction methods, the PQ001 leverages the intrinsic magnetic properties of hydrogen nuclei (¹H) in triglycerides and water molecules. By applying precisely calibrated radiofrequency pulses and measuring the resulting free induction decay (FID) signals and transverse relaxation (T₂) profiles, the instrument distinguishes between immobilized protons (in solid matrix—e.g., proteins, carbohydrates) and mobile protons (in liquid-phase oil and free water). This enables direct, calibration-based quantification without solvent use, sample grinding, or thermal treatment—preserving seed viability and structural integrity throughout analysis.
Key Features
- Non-invasive measurement: Analyzes whole, unprocessed seeds—including soybean, rapeseed, sunflower, peanut, sesame, and corn kernels—without crushing, drying, or solvent exposure.
- Benchtop compact architecture: Integrated permanent magnet (0.50 ± 0.01 T), shielded RF coil, and embedded pulse programmer enable stable operation in standard laboratory or QC environments without cryogens or external shielding.
- High reproducibility: ≤0.5% relative standard deviation across 11 consecutive measurements on homogeneous seed batches, validated per ISO 10565:1998 (oilseeds — determination of oil and moisture content — reference method comparison).
- Multi-parameter output: Simultaneous quantification of total oil content (1–100 wt%) and moisture content (2–10 wt%) from a single 2–3 minute acquisition.
- Modular hardware configuration: Optional accessories include automated sample loader, temperature-controlled probe (±0.5 °C), and dual-frequency RF excitation for enhanced signal discrimination in heterogeneous matrices.
Sample Compatibility & Compliance
The PQ001 accepts intact seeds, cracked kernels, and pressed oilcake—eliminating pre-processing bias introduced by milling or drying. Its Ø16 mm × H40 mm sample chamber accommodates typical commercial seed lots while maintaining field homogeneity (≤30 ppm) across the active volume. The system complies with fundamental principles outlined in ASTM D7495-22 (Standard Practice for Determination of Oil Content in Oilseeds Using Low-Field NMR) and supports GLP-compliant workflows through audit-trail-enabled software logging. While not FDA 21 CFR Part 11 certified out-of-the-box, the firmware architecture permits integration with validated LIMS platforms supporting electronic signature and data integrity requirements per ICH GCP and EU Annex 11.
Software & Data Management
Equipped with NIUMAG’s proprietary NMIQ™ software suite (v4.2+), the PQ001 provides intuitive acquisition control, real-time FID visualization, T₂ spectrum deconvolution, and multi-component fitting algorithms optimized for oil/water/solid phase separation. Calibration models are built using user-defined reference standards traceable to gravimetric or GC-FID validation. All raw FID data, processed spectra, and metadata (operator ID, timestamp, instrument status) are stored in vendor-neutral HDF5 format. Export options include CSV, PDF reports (with customizable templates), and direct SQL database push for enterprise-level QA/QC tracking.
Applications
- Seed breeding programs: High-throughput phenotyping of oil content in F₂/F₃ populations during varietal selection—enabling non-lethal longitudinal assessment of same-seed germination potential post-scan.
- Oil mill quality assurance: In-line verification of press cake residual oil (<2.5%) and incoming seed moisture prior to conditioning—reducing energy waste and optimizing screw press throughput.
- Regulatory compliance testing: Supporting export documentation per USDA FAS grade standards and EU Regulation (EU) No 1308/2013 for oilseed origin labeling.
- Academic research: Investigation of lipid mobilization kinetics during seed imbibition and germination via time-resolved T₂ mapping.
- Feed formulation: Rapid assessment of energy density in soybean meal, cottonseed cake, and palm kernel expeller for ruminant and poultry diets.
FAQ
Does the PQ001 require liquid helium or cryogenic cooling?
No—the system employs a self-shielded permanent magnet operating at ambient temperature; no cryogens, compressors, or external chillers are needed.
Can it differentiate between free water and bound water in seeds?
Yes—via multi-exponential T₂ relaxation analysis, the software resolves at least three distinct proton pools: bulk oil (T₂ > 100 ms), free water (T₂ ≈ 20–80 ms), and bound water/matrix protons (T₂ < 5 ms).
Is method validation support available for regulatory submissions?
NIUMAG provides IQ/OQ documentation templates, system suitability test protocols, and assistance in developing site-specific validation plans aligned with ISO/IEC 17025 requirements.
What is the minimum sample mass required for reliable measurement?
A minimum of 3 g of representative, loosely packed seeds is recommended to ensure full coil filling and signal-to-noise ratio > 50:1 for oil quantification at 1% level.
How often does the instrument require recalibration?
Factory calibration remains stable for ≥12 months under normal use; users perform daily system suitability checks using supplied reference oil/water phantoms before batch analysis.
