NIUMAG PQ001-F1 Benchtop Low-Field Nuclear Magnetic Resonance Fluorine Analyzer

Overview

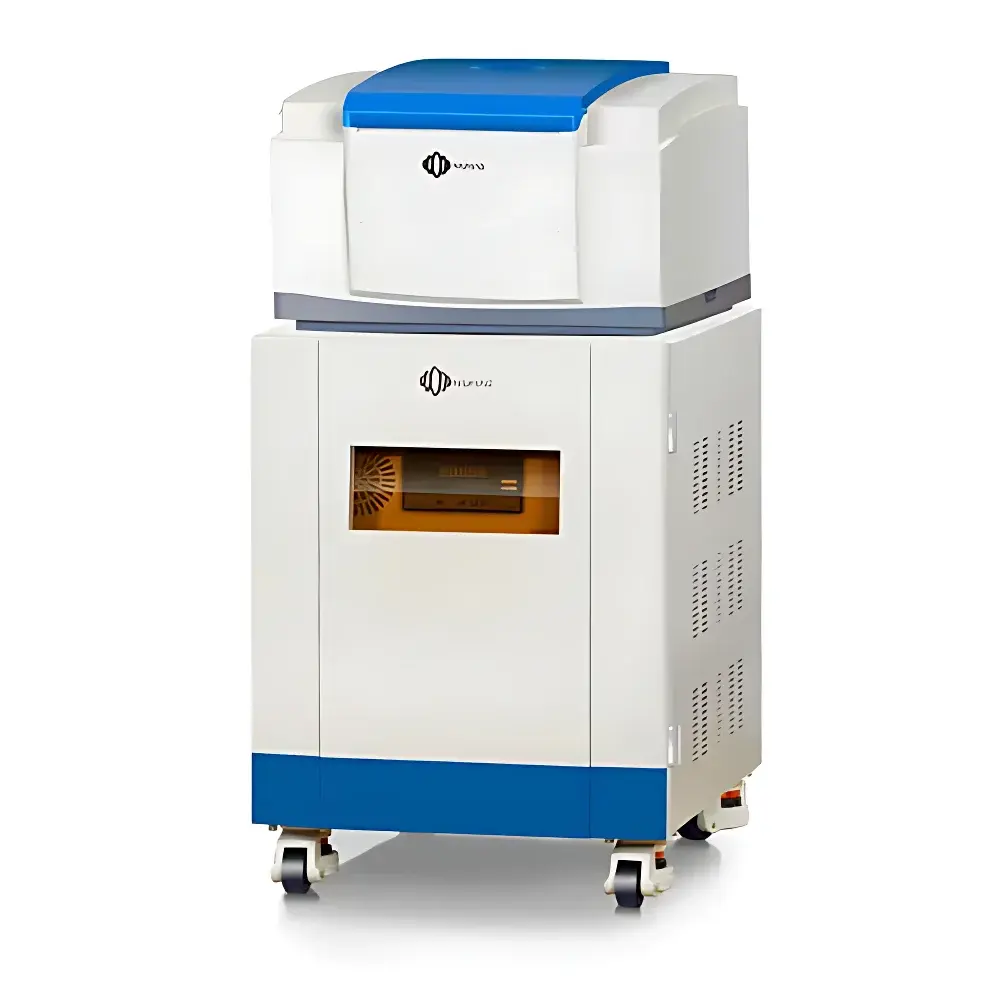

The NIUMAG PQ001-F1 is a dedicated benchtop low-field nuclear magnetic resonance (NMR) analyzer engineered for quantitative fluorine-19 (¹⁹F) detection in toothpaste formulations. Unlike conventional wet-chemistry methods—such as potentiometric titration or ion-selective electrode (ISE) analysis—the PQ001-F1 leverages the intrinsic magnetic moment of the ¹⁹F nucleus to deliver non-destructive, reagent-free quantification. As the only stable, 100%-abundant NMR-active fluorine isotope, ¹⁹F provides high gyromagnetic ratio and favorable signal-to-noise characteristics under low-field conditions. The instrument operates at a static magnetic field of 0.5 ± 0.08 T (corresponding to a ¹⁹F Larmor frequency of 21.3 MHz), enabling robust signal acquisition from fluorinated compounds—including sodium monofluorophosphate (MFP), sodium fluoride (NaF), and amine fluoride—without sample derivatization or matrix digestion. Its design targets regulatory compliance testing in QC laboratories where routine batch verification of fluoride concentration (typically 1000–1500 ppm F⁻) must meet ISO 11609:2017 and USP specifications.

Key Features

• Permanent magnet architecture ensures long-term field stability with zero cryogen or power-intensive electromagnet requirements
• Dedicated ²⁵-mm diameter RF probe optimized for ¹⁹F excitation and reception, minimizing dead time and maximizing signal fidelity
• Pulsed Fourier transform (PFT) acquisition mode supports both single-pulse and CPMG-based relaxation filtering to suppress interference from paramagnetic impurities or viscous matrix effects
• No consumables required: standard 10-mm glass NMR tubes are reusable after solvent rinse; no acid reagents, electrodes, or calibration standards needed per test
• Typical analysis time ≤ 3 minutes per sample, including auto-shim, pulse sequence execution, and spectral integration
• Embedded temperature control (±0.5 °C) stabilizes chemical shift referencing and mitigates thermal drift during multi-sample runs

Sample Compatibility & Compliance

The PQ001-F1 accepts direct analysis of homogenized toothpaste suspensions without centrifugation, filtration, or extraction—preserving native ¹⁹F speciation integrity. It accommodates samples with viscosity up to 100,000 cP and solid loading up to 40 wt%, thanks to its broadband RF coil design and adaptive pulse width calibration. All measurement protocols adhere to GLP principles: full audit trail logging (user ID, timestamp, parameter set, raw FID), electronic signature support, and exportable .csv/.txt data files compliant with FDA 21 CFR Part 11 requirements. Method validation documentation—including linearity (R² ≥ 0.999 over 500–2000 ppm F), repeatability (RSD < 1.2% intra-day, < 1.8% inter-day), and specificity against common excipients (e.g., silica, glycerin, sorbitol)—is provided with each system.

Software & Data Management

Controlled via NIUMAG’s proprietary NMRStudio v4.x software, the PQ001-F1 offers intuitive workflow-driven operation: “Calibrate → Load → Acquire → Quantify”. The software implements automated baseline correction, Lorentzian-Gaussian deconvolution for overlapping resonances, and built-in calibration curve manager supporting up to 16 reference standards. All spectra and processed results are stored in a relational SQLite database with configurable retention policies. Export modules generate PDF reports containing raw FID, magnitude spectrum, integration table, and uncertainty estimation (k = 2). Remote monitoring and scheduled calibration checks are supported via optional Ethernet/Wi-Fi connectivity and TLS-secured API endpoints.

Applications

• Routine QC release testing of fluoride concentration in commercial toothpaste batches
• Stability studies tracking fluoride degradation kinetics under accelerated aging (40 °C/75% RH)
• Formulation development support for novel fluorinated actives (e.g., olaflur, stannous fluoride)
• Raw material verification of fluoride salt purity and hydration state
• Regulatory submission dossier preparation (ISO, FDA, Health Canada, MHLW)
• Method transfer between R&D and manufacturing sites using identical hardware/software configuration

FAQ

Does the PQ001-F1 require external cooling or liquid nitrogen?
No. It uses a passively stabilized permanent magnet with integrated air-cooled temperature regulation.
Can it distinguish between different fluorine-containing compounds (e.g., NaF vs. MFP)?
Yes—under optimized pulse sequences and sufficient signal averaging, chemical shift dispersion (~20 ppm range for common toothpaste fluorides) enables compound-specific quantification.
Is method validation assistance included with purchase?
Yes. NIUMAG provides IQ/OQ documentation templates, SOP drafting support, and on-site or virtual validation protocol execution guidance.
What sample volume is required per analysis?
300–500 µL of homogenized toothpaste slurry, loaded into a standard 10-mm OD borosilicate NMR tube.
How frequently does the instrument require recalibration?
Annual field homogeneity verification is recommended; daily internal reference lock (CF₃COOH) ensures consistent chemical shift referencing across operational shifts.
