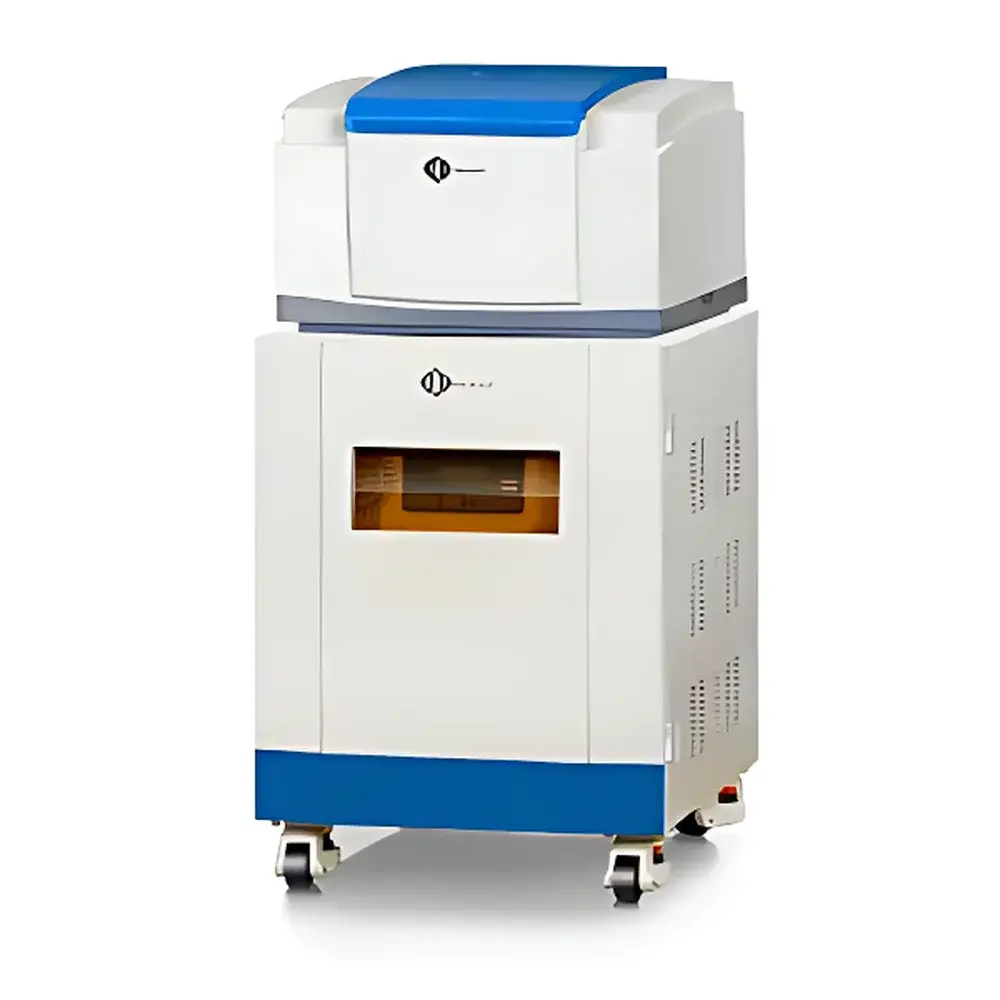

NIUMAG PQ001 Low-Field Nuclear Magnetic Resonance Analyzer

Overview

The NIUMAG PQ001 Low-Field Nuclear Magnetic Resonance Analyzer is a benchtop time-domain NMR instrument engineered for quantitative characterization of molecular mobility and microstructural properties in heterogeneous materials. Unlike high-field NMR spectrometers optimized for chemical shift resolution, the PQ001 operates in the low-field regime (1–30 MHz), where signal intensity and relaxation behavior—particularly spin–spin (T₂) and spin–lattice (T₁) relaxation times—are highly sensitive to physical state, pore geometry, phase distribution, and molecular dynamics. This makes it especially suited for routine quality control, process monitoring, and R&D applications across food science, agricultural product evaluation, petrophysics, polymer science, and pharmaceutical solid-state analysis. The system employs a stable permanent magnet assembly generating a homogeneous static field, enabling reproducible measurements without cryogenic infrastructure or RF shielding rooms. Its non-invasive, non-destructive nature allows repeated analysis of the same sample under varying conditions (e.g., temperature, hydration, aging), supporting longitudinal studies compliant with GLP principles.

Key Features

• Permanent magnet architecture ensuring long-term field stability and zero helium consumption
• Dedicated ¹H resonance detection optimized for proton-rich organic and aqueous systems
• Integrated pulse sequence library including CPMG (for T₂), inversion recovery (for T₁), and diffusion-weighted sequences
• Benchtop footprint with modular electronics: RF transmitter, receiver, gradient driver (optional), and digital signal processor
• Automated sample positioning and temperature-controlled probe option (–10 °C to +80 °C) for kinetic studies
• Real-time signal acquisition and on-board FFT processing reducing reliance on external computing resources

Sample Compatibility & Compliance

The PQ001 supports both solid and liquid samples in standard 15 mm or 25 mm OD glass or plastic NMR tubes—no sample derivatization or vacuum requirements. It accommodates bulk solids (e.g., grains, seeds, rock cores), emulsions, gels, polymers, and hydrated biomaterials. All hardware and firmware comply with IEC 61000-6-3 (EMC emission standards) and IEC 61000-6-2 (immunity). Data integrity protocols align with FDA 21 CFR Part 11 requirements when operated with audit-trail-enabled software configurations. The system supports IQ/OQ documentation packages for laboratory validation under ISO/IEC 17025 and GMP environments.

Software & Data Management

The proprietary NMIView™ software provides a unified interface for instrument control, sequence selection, real-time visualization, and multi-exponential relaxation fitting. Key modules include T₂ distribution analysis via SVD or NNLS algorithms, T₁–T₂ correlation mapping (2D NMR), and customizable report generation (PDF/CSV/XLSX). Raw FID data is stored in vendor-neutral HDF5 format, enabling third-party integration with MATLAB, Python (via nmrglue), or LIMS platforms. All user actions—including parameter edits, calibration events, and export operations—are timestamped and logged for traceability. Software updates are delivered via secure HTTPS channel with SHA-256 signature verification.

Applications

• Food & Agriculture: Moisture distribution in cereals, oil content quantification in seeds, fat crystallinity in dairy products, shelf-life prediction via water mobility shifts
• Geoscience: Porosity/permeability estimation in core plugs, clay-bound vs. free water differentiation, wettability assessment in reservoir rocks
• Polymers & Elastomers: Crosslink density calculation from T₂ decay, phase separation analysis in blends, solvent diffusion kinetics in membranes
• Pharmaceuticals: Excipient compatibility screening, hydrate/anhydrate ratio determination, tablet coating uniformity evaluation
• Materials Science: Gelation kinetics, curing degree monitoring in composites, pore size distribution in aerogels and MOFs

FAQ

What is the typical measurement repeatability for T₂ relaxation time under standardized conditions?
Under controlled temperature (±0.5 °C) and consistent sample packing, the coefficient of variation (CV) for T₂ values in homogeneous liquids is ≤1.2% (n=10). For heterogeneous solids, CV depends on sample homogeneity but remains ≤3.5% when using volume-averaged ROI analysis.
Can the PQ001 be used for quantitative moisture analysis without calibration curves?
Yes—absolute moisture content can be determined using the proton count method when calibrated against gravimetric reference standards per ASTM D4006 or ISO 15512, provided sample density and hydrogen index are known or measured independently.
Is remote operation supported?
The system supports TCP/IP-based remote access via VNC or dedicated client application, enabling instrument control and data review from off-site locations within secured intranet environments.
Does the system meet regulatory requirements for use in pharmaceutical QC labs?
When deployed with validated software configuration, electronic signatures, and full audit trail enabled, the PQ001 meets functional requirements for routine testing under USP , EP 2.2.39, and ICH Q5C guidelines for physicochemical characterization.
What maintenance is required beyond routine calibration?
Annual field homogeneity verification and RF coil tuning are recommended. No cryogen refills, vacuum pump servicing, or magnet shimming are required due to the permanent magnet design.
