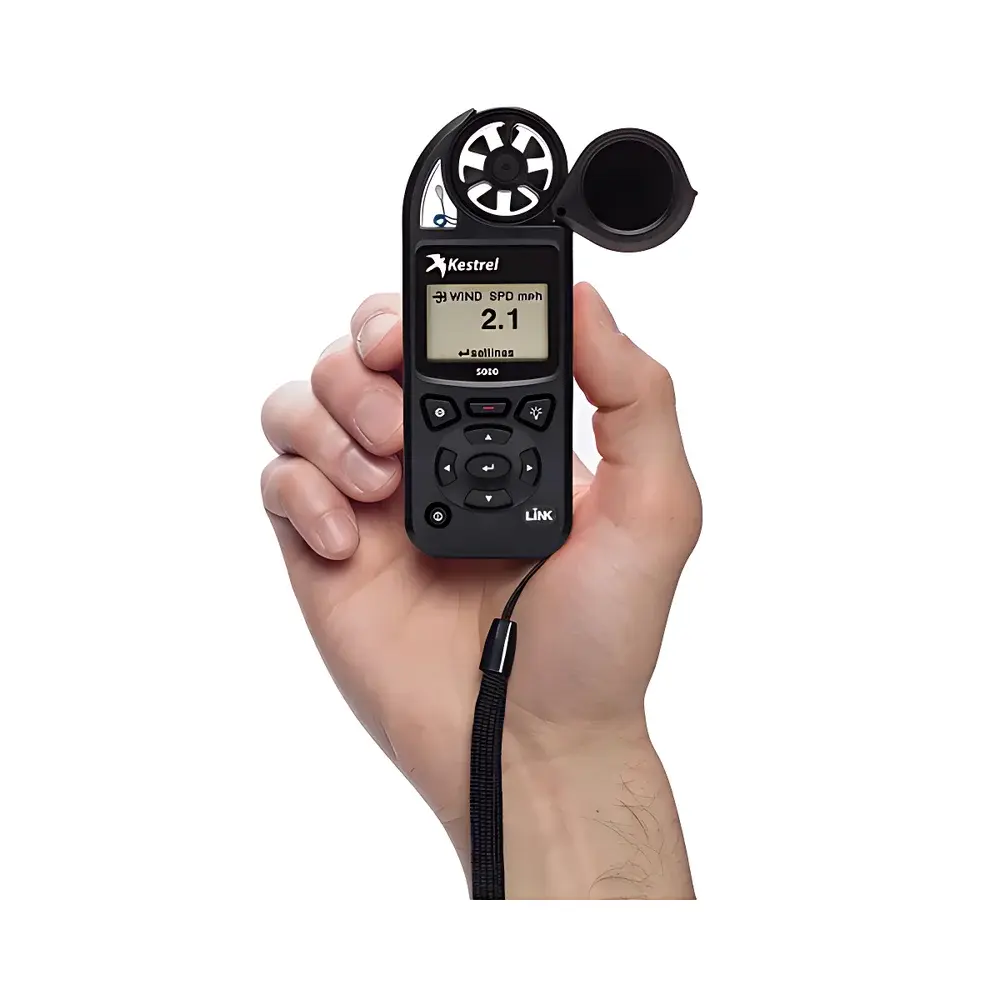

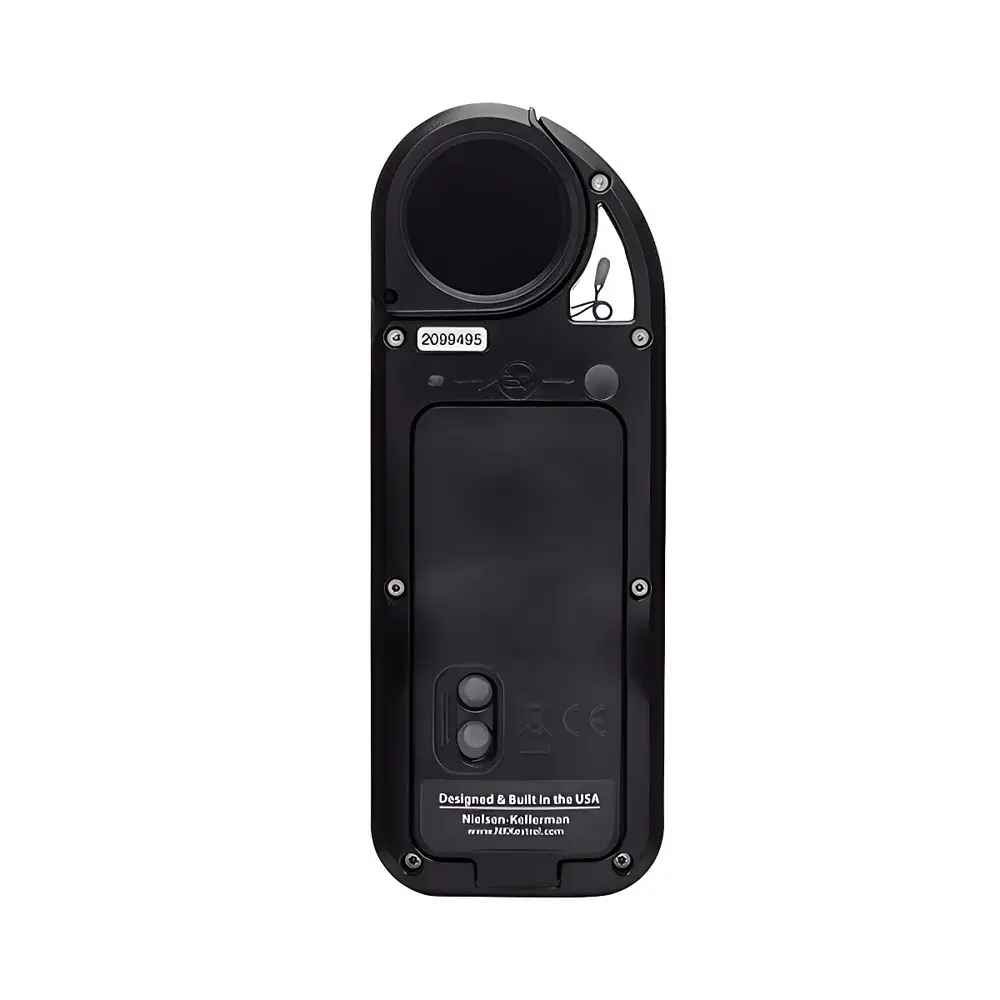

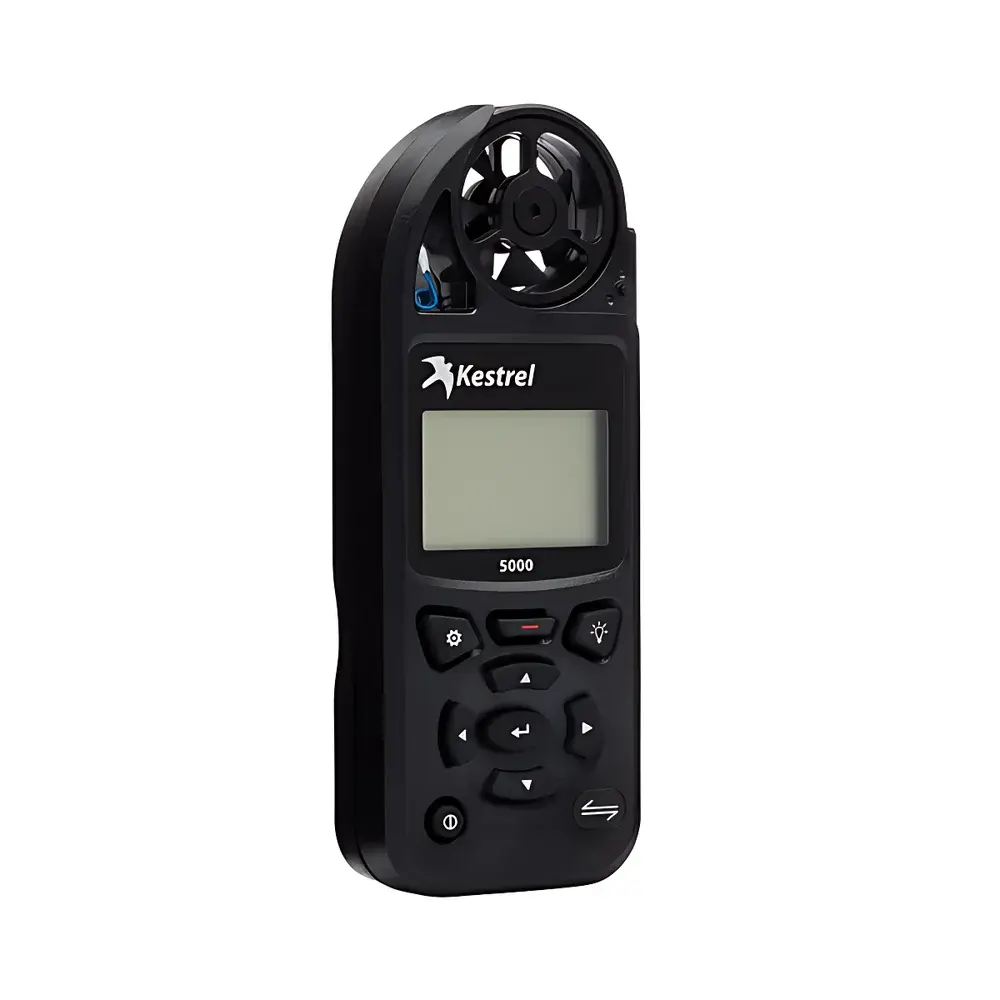

NK Kestrel 5000 Handheld Weather Meter

Overview

The NK Kestrel 5000 Handheld Weather Meter is a rugged, field-deployable environmental measurement instrument engineered for high-fidelity real-time acquisition and long-term logging of atmospheric parameters. Built upon the proven sensor architecture of the Kestrel 4000 series, the Kestrel 5000 integrates precision-calibrated impeller-based anemometry, capacitive relative humidity sensing, and piezoresistive barometric pressure transduction—each traceable to NIST-certified reference standards. Its core measurement principle relies on direct physical transduction: wind speed is determined via rotational frequency of a low-inertia vane anemometer; temperature is measured using a thermistor with ±0.1 °C stability over its operating range; relative humidity employs a polymer-based capacitive sensor with hysteresis <1% RH; and absolute atmospheric pressure is resolved by a compensated silicon MEMS pressure die. Designed for operational continuity in uncontrolled environments, the device meets MIL-STD-810G for shock, vibration, and thermal shock, and achieves IP67 ingress protection—ensuring functionality after full submersion at 1 meter for 30 minutes and resistance to dust ingress under dynamic conditions.

Key Features

• Ruggedized polycarbonate housing with dual-color backlight LCD (high-contrast, adjustable font size) for legibility in low-light or direct-sun conditions
• Onboard data logging of >10,000 timestamped records across all measured parameters, with user-selectable sampling intervals (1 sec to 12 hrs)
• Bluetooth Smart® (BLE 4.0+) connectivity enabling wireless bidirectional communication with iOS and Android devices via the Kestrel LiNK application
• Integrated USB-C port (via optional Kestrel LiNK Dongle or direct USB cable) for high-speed bulk data export and firmware updates
• Fully sealed, floatable design certified to IP67; independently tested for survivability after 2-meter drops onto concrete per MIL-STD-810G Method 516.6
• Expandable platform: compatible with Kestrel Wind Vane Kit (threaded ¼”-20 mount), tripod adapters, and portable carrying cases for fixed-site deployment
• Real-time derived parameter computation—including wind chill, heat stress index (WBGT), dew point, density altitude, and station pressure—calculated onboard using industry-standard algorithms (e.g., NOAA/NWS formulas, ASHRAE thermal comfort models)

Sample Compatibility & Compliance

The Kestrel 5000 operates without consumables or calibration gases and requires no sample preparation—making it suitable for direct ambient air measurement across diverse field settings. It is routinely deployed in compliance-critical workflows including OSHA-mandated heat stress monitoring (29 CFR 1910.132, 1910.136), EPA field verification protocols, USDA agricultural microclimate studies, and NFPA 1620 incident command assessments. While not a regulated medical device, its sensor outputs align with ASTM D5467 (standard practice for measuring wind speed), ISO 7726 (ergonomic assessment of thermal environments), and IEC 60751 (industrial platinum resistance thermometer tolerances, where applicable to reference-grade validation). The device supports audit-ready data export in CSV and .KST formats, with optional time-stamped metadata (GPS coordinates when paired with external GNSS modules).

Software & Data Management

Data acquisition and analysis are managed through the free Kestrel LiNK mobile application (iOS/Android), which provides live telemetry visualization, configurable alerts, and customizable dashboard views. Logged datasets can be exported with full metadata (date/time, GPS if enabled externally, sensor ID, battery status) for integration into LIMS, Excel, or statistical platforms such as MATLAB or Python (pandas). For enterprise deployment, the Kestrel Desktop Software (Windows/macOS) enables batch processing, report generation (PDF/HTML), and automated folder-based synchronization—supporting GLP-aligned documentation practices including electronic signature capture and change-log tracking. All firmware updates are digitally signed and delivered over secure HTTPS channels; no cloud storage is required—the instrument retains full local autonomy unless explicitly connected.

Applications

• Occupational health & safety: Real-time WBGT monitoring for outdoor labor compliance and heat illness prevention programs
• Agricultural science: Microclimatic profiling for irrigation scheduling, pest forecasting, and greenhouse ventilation control
• Wildland fire management: Spot weather assessment for fire behavior modeling (e.g., input to BEHAVE, FARSITE)
• Military & tactical operations: Environmental situational awareness for ballistic trajectory correction and CBRN response planning
• Academic research: Field-based atmospheric physics education, boundary layer studies, and citizen science campaigns
• Facility maintenance: HVAC commissioning support, rooftop unit performance verification, and indoor-outdoor air exchange analysis
• Emergency response: HAZMAT incident scene characterization, plume dispersion modeling inputs, and incident command weather briefings

FAQ

Does the Kestrel 5000 require annual recalibration?
No scheduled recalibration is mandated; however, NK recommends field verification against a NIST-traceable reference every 12–24 months depending on usage intensity and environmental exposure. Sensor drift remains within published specifications (<±3% RH, ±0.5 °C, ±0.5 hPa) for ≥2 years under normal conditions.
Can the Kestrel 5000 operate in extreme cold or desert heat?
Yes—it is rated for continuous operation from –20 °C to +60 °C. Battery performance may decrease below –10 °C; alkaline cells are recommended over lithium primaries in sub-zero conditions due to voltage stability.
Is the Kestrel LiNK app compatible with enterprise MDM systems?
Yes—the iOS version supports Apple Configurator and Mobile Device Management profiles for silent installation, enforced settings, and remote wipe capabilities in institutional deployments.
How is time synchronization handled during data logging?
The internal real-time clock (RTC) maintains accuracy to ±2 seconds per month. Time is set manually or synchronized automatically via Bluetooth when connected to a smartphone with network time protocol (NTP) access.
What mounting options exist for permanent outdoor installation?
The Kestrel 5000 pairs with the Kestrel Wind Vane Kit (¼”-20 threaded base) and third-party weather mounts (e.g., Davis Instruments, Campbell Scientific tripods); for unattended long-term use, pairing with a solar-charged power bank and protective enclosure is advised.
