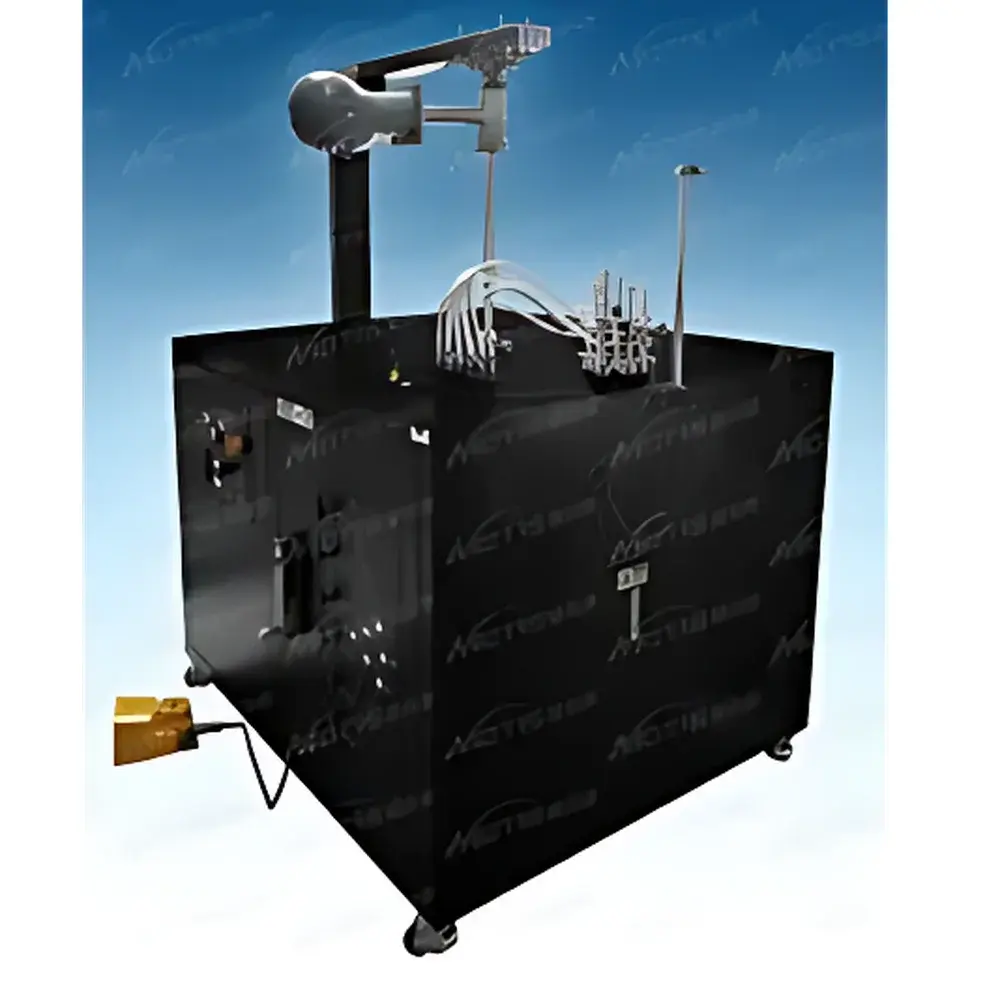

NYX FFM Full-Facepiece Combustion Tester

Overview

The NYX FFM Full-Facepiece Combustion Tester is an engineered test system designed to evaluate the flame resistance and thermal stability of critical components used in self-contained open-circuit compressed air breathing apparatus (SCBA). It operates on the principle of controlled direct-flame impingement—subjecting materials and assemblies to standardized thermal exposure under precisely regulated gas combustion conditions. This methodology aligns with internationally recognized fire safety assessment protocols for respiratory protective equipment, particularly those requiring quantifiable performance data on ignition resistance, flame propagation, and structural integrity retention during short-term thermal exposure. The system is not a generic ignition tester but a purpose-built platform calibrated to replicate the thermal stress profile defined in GB/T 16556–2007 (Chinese national standard for SCBA), EN 136 (European standard for full-face masks), and KS M 6673 (Korean industrial specification for firefighter respirators). Its architecture supports repeatable, operator-independent execution of sequential flame exposure tests across multiple component categories—including facepieces, inhalation/exhalation hoses, medium-pressure supply lines, demand valves, and harness webbing with buckles.

Key Features

• Anthropomorphic metallic headform conforming to ISO 16900-1 geometric specifications, rotatable ±180° to enable standardized angular exposure per EN 136 Annex B.
• Six independently height-adjustable TEKLU-type laminar-flow burners, each equipped with precision-machined nozzles ensuring uniform flame geometry and stable blue-flame combustion.
• Digital mass flow controller with real-time numerical display for propane or natural gas (user-selectable), enabling reproducible stoichiometric control across all burners.
• Integrated pressure regulation module (10–50 kPa range) with dual-stage filtration and overpressure relief, compliant with EN 136 Section 4.4.2 requirements for gas supply stability.
• K-type thermocouple mounted at 250 mm vertical offset from burner apex, calibrated traceably to NIST standards, delivering continuous temperature monitoring with ±2 °C accuracy in the 950 ± 50 °C operational band.
• Fail-safe flashback arrestor system installed upstream of all burners, certified to EN ISO 25037:2021 for flame arrestation performance under transient backflow conditions.
• Rigid welded steel frame with powder-coated finish, fully enclosed rear access paneling, and integrated ventilation ducting for exhaust gas management in accordance with laboratory fume hood interface guidelines.

Sample Compatibility & Compliance

The FFM accommodates full-assembly testing of certified SCBA components without disassembly: complete facepieces (with visor, seal skirt, and exhalation valve), corrugated breathing hoses (up to 2 m length), medium-pressure regulator housings, and textile-based harness systems (webbing width ≤ 50 mm). All test fixtures are dimensionally referenced to EN 136 Figure 1 and GB/T 16556–2007 Clause 6.3.1. The system supports audit-ready documentation per GLP and ISO/IEC 17025:2017 requirements—test logs include timestamped burner activation sequences, thermocouple readings, gas flow rates, and pressure setpoints. Calibration certificates for thermocouples and mass flow meters are provided with initial delivery and remain valid for 12 months under routine use.

Software & Data Management

The FFM operates via embedded microcontroller firmware (v3.2.1) with RS-485 Modbus RTU interface for integration into centralized lab data acquisition networks. No proprietary PC software is required; raw sensor outputs (temperature, flow, pressure) are output as ASCII-formatted serial streams at 1 Hz sampling rate. Optional USB-to-serial adapter enables direct logging into third-party platforms such as LabVIEW, MATLAB, or ELN systems compliant with FDA 21 CFR Part 11 (audit trail, electronic signature, and data integrity controls enabled upon configuration). All test records retain immutable metadata including operator ID, ambient humidity/temperature, calibration expiration dates, and burner-specific duty cycles.

Applications

• Pre-certification validation of SCBA facepiece polycarbonate visors against EN 136 Class 1/2 thermal resistance thresholds.
• Qualification testing of silicone and thermoplastic elastomer (TPE) sealing skirts per GB/T 16556–2007 Clause 7.4.3.
• Comparative flame spread analysis of aramid-reinforced versus standard nylon harness webbing under identical thermal flux profiles.
• Supplier qualification audits for Tier-1 respiratory equipment manufacturers serving NFPA 1981-compliant markets.
• Root-cause investigation of field-reported thermal degradation incidents in firefighter SCBA systems.
• Material substitution studies supporting ISO 10993-1 biocompatibility pathway alignment for skin-contact components.

FAQ

Does the FFM support automated pass/fail decision logic based on temperature decay curves?
No—the system delivers raw, time-stamped thermal and flow data only. Pass/fail evaluation must be performed externally using criteria defined in the applicable standard (e.g., EN 136 Section 4.4.3 requires <5 s flame persistence after burner shutdown).

Can the headform be replaced with custom anthropometric variants?
Yes—NYX provides optional headforms per ISO 16900-2 (child, female, and large-male geometries) with mechanical coupling compatibility verified per EN 136 Annex C.

Is gas supply piping included with the instrument?
No—users must provide certified stainless-steel gas supply lines rated for ≥100 kPa working pressure, with ISO-B17 fitting interfaces. NYX supplies gas inlet adapters and leak-test certification documentation.

What maintenance intervals are recommended for burner nozzles?
Burner nozzles require ultrasonic cleaning and dimensional verification every 200 test cycles or quarterly—whichever occurs first—using NYX-provided calibration gauge set (P/N MAINT-FFM-NOZZLE-KIT).
