Phenom Charge Reduction Sample Holder
| Brand | Phenom |
|---|---|
| Origin | Netherlands |
| Manufacturer Type | Manufacturer |
| Origin Category | Imported |
| Model | Charge Reduction Sample Holder |
| Price | Upon Request |
Overview

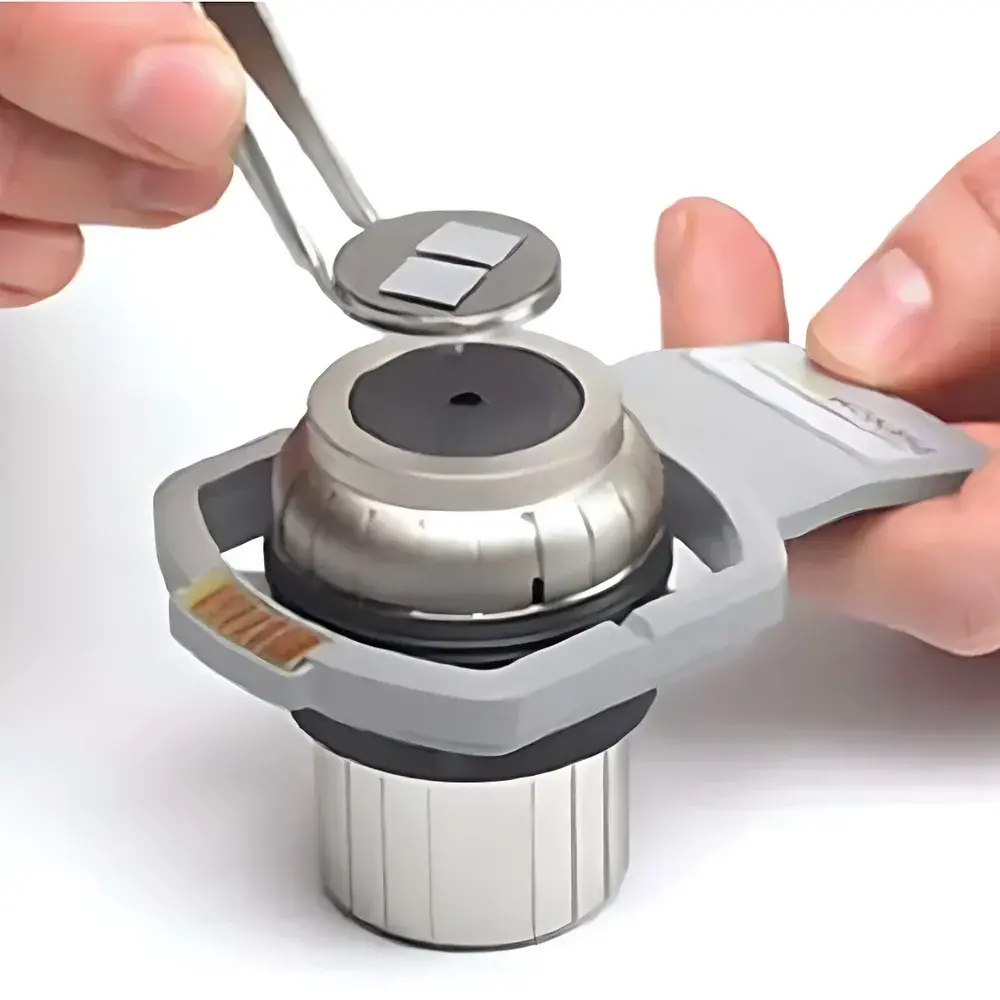

The Phenom Charge Reduction Sample Holder is an engineered accessory designed exclusively for Phenom desktop scanning electron microscopes (SEM). It addresses a fundamental challenge in low-vacuum and environmental SEM imaging: charge accumulation on non-conductive or poorly conductive specimens. Unlike conventional sample holders that require metallization (e.g., sputter coating with gold or platinum), this holder mitigates charging effects through controlled gas permeation—leveraging a proprietary porous material integrated into the sample stage. This material maintains a stable, localized partial pressure of ambient gas (typically air or nitrogen) around the specimen while preserving the integrity of the electron column’s high-vacuum environment. The result is stable, artifact-free imaging of insulating materials—such as polymers, ceramics, biological tissues, and geological samples—without compromising filament lifetime or system vacuum integrity.
Key Features
- Integrated porous gas-permeable matrix enabling localized charge dissipation without external gas injection systems
- Full compatibility with all Phenom ProX, Pure, and Pharos series desktop SEMs
- No modification to microscope hardware or software required—installs as a direct replacement for standard sample stubs
- Maintains full operational vacuum separation: electron gun and detector regions remain under high vacuum; only the immediate sample vicinity experiences controlled low-pressure conditions
- Preserves tungsten or CeB₆ filament longevity by eliminating ion bombardment caused by uncontrolled discharges
- Enables acquisition of both secondary electron (SE) and backscattered electron (BSE) signals with enhanced material contrast on native, uncoated samples
Sample Compatibility & Compliance
The Charge Reduction Sample Holder extends analytical capability to a broad range of non-conductive and beam-sensitive specimens—including hydrated plant sections, untreated polymer films, mineral powders, pharmaceutical granules, and forensic fibers. Its operation conforms to established low-vacuum SEM principles defined in ASTM E1508-21 (Standard Guide for Quantitative Analysis by Energy Dispersive Spectroscopy) and supports GLP-compliant workflows where sample preparation minimization is critical. While not requiring regulatory certification itself, its use facilitates adherence to ISO/IEC 17025 requirements for method validation when imaging uncoated specimens in quality control laboratories. No hazardous materials or consumables are involved; the porous medium is inert, non-toxic, and reusable over extended operational cycles.
Software & Data Management
Operation is fully transparent to Phenom’s proprietary Phenom Desktop Software Suite (v5.0+). No additional drivers, firmware updates, or calibration routines are necessary. All imaging parameters—including acceleration voltage (5–15 kV), spot size, dwell time, and signal mixing—remain fully adjustable within the standard interface. Image metadata automatically records holder type and acquisition mode (standard vs. charge-reduced), supporting traceability in regulated environments. Exported TIFF and BMP files retain embedded EXIF-style metadata, compatible with third-party image analysis platforms (e.g., ImageJ/Fiji, MATLAB, Thermo Scientific Avizo) for quantitative morphological or compositional evaluation. Audit trails comply with FDA 21 CFR Part 11 requirements when deployed on networked, password-protected systems with enabled electronic signature functionality.
Applications
- Routine QC inspection of injection-molded plastic components without carbon/gold sputtering
- In-situ observation of hygroscopic or volatile organic compounds under near-ambient conditions

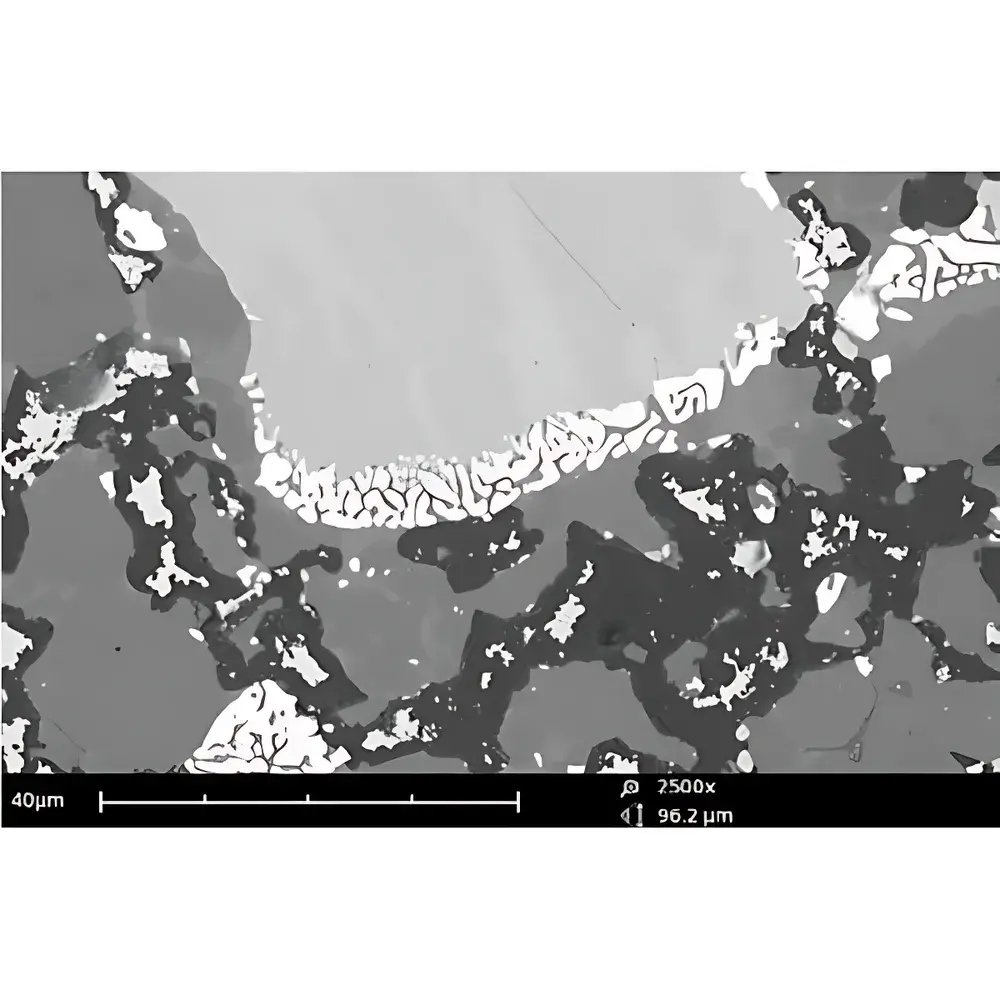

- Backscattered electron imaging for phase distribution mapping in multiphase composites (e.g., polymer-ceramic blends)
- Forensic fiber identification preserving surface topography and dye morphology
- Educational SEM labs demonstrating charge dynamics and vacuum physics principles
- Pre-screening of geological thin sections prior to focused ion beam (FIB) milling
FAQ
Does the Charge Reduction Sample Holder require a separate gas supply or vacuum pump modification?
No. It operates passively using ambient atmospheric pressure and requires no external gas lines, valves, or vacuum controller adjustments.
Can I still perform EDS analysis with this holder?
Yes—energy-dispersive X-ray spectroscopy remains fully functional, though count rates may be slightly reduced compared to high-vacuum mode due to increased scattering; optimal results are achieved at 10–15 kV with moderate beam current.
Is the porous insert replaceable or serviceable?
The porous medium is permanently bonded and not user-replaceable; however, it demonstrates >2 years of continuous operational stability under typical lab usage conditions.
How does it compare to low-vacuum mode using the microscope’s built-in gas injection system?
Unlike full-chamber low-vacuum operation, this holder localizes gas interaction solely at the sample surface—preserving column vacuum, resolution, and detector efficiency while achieving comparable charge suppression.
Is training required for operators?
No formal training is needed; standard Phenom SEM operating procedures apply, with minor optimization of working distance and beam settings recommended for first-time users.
