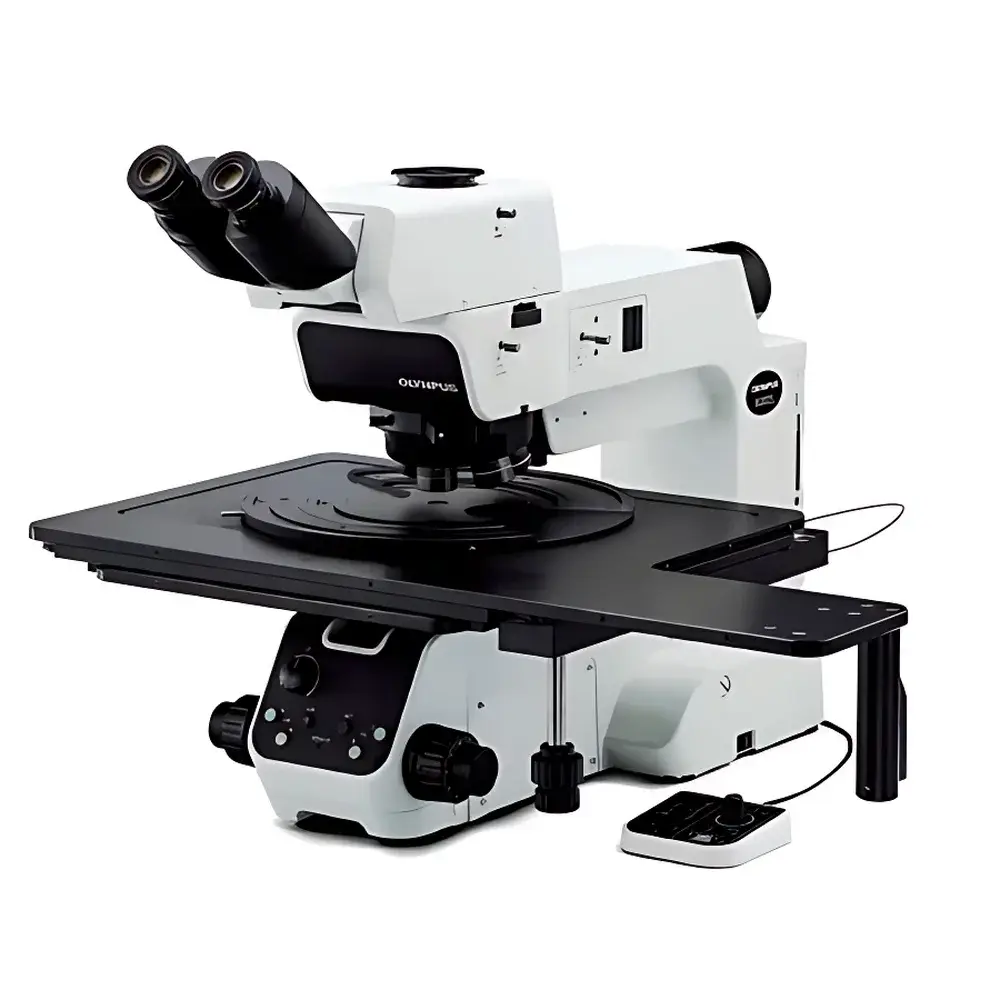

Olympus MX63 Wafer Inspection Microscope

Overview

The Olympus MX63 Wafer Inspection Microscope is a high-precision, modular optical inspection system engineered for semiconductor manufacturing, flat panel display (FPD) production, and advanced PCB quality assurance. Designed around the principles of Köhler illumination, parfocal optics, and vibration-damped mechanical architecture, the MX63 delivers consistent, high-fidelity surface imaging across large-format substrates—up to 300 mm in diameter—without compromising resolution, depth fidelity, or measurement traceability. Its core optical path supports brightfield, darkfield, polarized light, fluorescence, and MIX observation modes, enabling detection of sub-micron topographic anomalies, particle contamination, pattern defects, and edge chipping that remain invisible under conventional single-mode illumination. The system’s rigid cast-aluminum frame, anti-static surface treatments, and fully enclosed motorized components meet stringent cleanroom requirements (SEMI S2/S8), minimizing electrostatic discharge (ESD) risk and particulate generation during extended operational cycles.

Key Features

• Modular platform configurable with manual or motorized XYZ stages, tilting observation tubes, and interchangeable nosepieces for objective magnifications from 1× to 100×.
• MIX Observation Technology: Simultaneous integration of darkfield illumination (with quadrant-controlled ring LED) and brightfield/polarized/fluorescence channels to enhance contrast of low-reflectivity defects and surface texture variations.
• Instant Multi-Image Acquisition (MIA): Real-time image stitching via manual XY stage movement; no motorized stage required. Pattern-matching algorithms in Olympus Stream software generate seamless wide-field mosaics up to 100× field coverage.
• Extended Focus Imaging (EFI): Z-stack acquisition (manual or motorized Z-drive) followed by depth-map-based fusion to produce artifact-free, fully focused images of non-planar or stepped structures—critical for bump height, trench depth, and CMP uniformity assessment.
• High Dynamic Range (HDR) Image Capture: Pixel-level luminance normalization across multiple exposures eliminates saturation in reflective features and noise in shadowed regions, improving defect visibility and report-grade image fidelity.
• Integrated Metrology Engine: Sub-pixel edge detection, area/length/angle/distance measurements, and statistical reporting—all calibrated per ISO 10360 and traceable to NIST standards. Measurement metadata (scale, objective ID, illumination mode) embedded directly into TIFF/OME-TIFF files.

Sample Compatibility & Compliance

The MX63 accommodates wafers from 75 mm to 300 mm using interchangeable stage inserts and vacuum-compatible glass platen options. It supports both front-side and back-side macro inspection of silicon, GaAs, SiC, and compound semiconductor substrates. All electrically actuated components—including the motorized nosepiece, focus drive, and optional AL120 wafer handler—are housed within sealed enclosures to prevent outgassing and particle shedding. Surface materials undergo conductive anodization and carbon-black coating to maintain <1×10⁹ Ω surface resistivity, satisfying ESD control requirements per ANSI/ESD S20.20. The system complies with CE (EMC & LVD), UL 61010-1, and SEMI S2 (safety) / S8 (ergonomics) standards—validated through third-party certification and documented in the OEM Declaration of Conformity.

Software & Data Management

Olympus Stream desktop software serves as the unified interface for acquisition, analysis, and reporting. It supports FDA 21 CFR Part 11–compliant audit trails, electronic signatures, and role-based user permissions when deployed in regulated environments (e.g., ISO 9001, IATF 16949, or GMP-compliant fabs). Image data is stored in vendor-neutral OME-TIFF format with embedded EXIF and custom metadata fields (e.g., wafer ID, lot number, inspection step). Batch processing workflows automate repetitive tasks—including EFI reconstruction, HDR merging, and measurement annotation—reducing operator dependency and inter-user variability. Reports export natively to Microsoft Word (.docx) and PowerPoint (.pptx), preserving vector-based annotations, calibrated scale bars, and hyperlinked image thumbnails. All exported documents retain embedded measurement logs and timestamped acquisition parameters for full analytical reproducibility.

Applications

• Semiconductor wafer qualification: Defect review (particles, scratches, residues), lithography alignment mark verification, and post-etch/post-CMP surface integrity assessment.
• Flat panel display (FPD) manufacturing: TFT array inspection, color filter uniformity evaluation, and touch sensor electrode continuity testing.
• Advanced packaging: Flip-chip bump inspection, underfill void analysis, and substrate warpage quantification via multi-angle tilt imaging.
• PCB and flex circuit QA: Solder mask registration, via plating thickness estimation, and microvia open/short detection using polarized differential contrast.
• Materials R&D: Grain boundary mapping in polycrystalline thin films, oxidation layer thickness estimation via interference fringe analysis, and stress-induced crack propagation monitoring.

FAQ

Does the MX63 support automated wafer handling?
Yes—the optional AL120 wafer handler integrates seamlessly with the MX63 platform for hands-free transfer of 200 mm wafers from FOUPs to the stage, reducing manual intervention and contamination risk.
Can EFI and HDR be applied simultaneously?
Yes. Olympus Stream allows concurrent HDR exposure bracketing at each Z-plane during EFI acquisition, ensuring optimal dynamic range across the entire depth stack.
Is calibration traceable to international standards?
All measurement modules are factory-calibrated using NIST-traceable stage encoders and certified reference standards; calibration certificates include uncertainty budgets per ISO/IEC 17025.
What file formats does Stream support for long-term archival?
Raw image data exports as OME-TIFF (open microscopy environment); processed results and reports save as PDF/A-2, .docx, or .pptx with embedded metadata for regulatory compliance.
How is ergonomic performance validated for 8-hour shifts?
The MX63 meets SEMI S8 requirements for seated operation: adjustable eyepoint height (630–810 mm), low-force XY controls (<0.2 N), and tilting binocular tube (0–30°) validated via ISO 11228-1 biomechanical load modeling.
