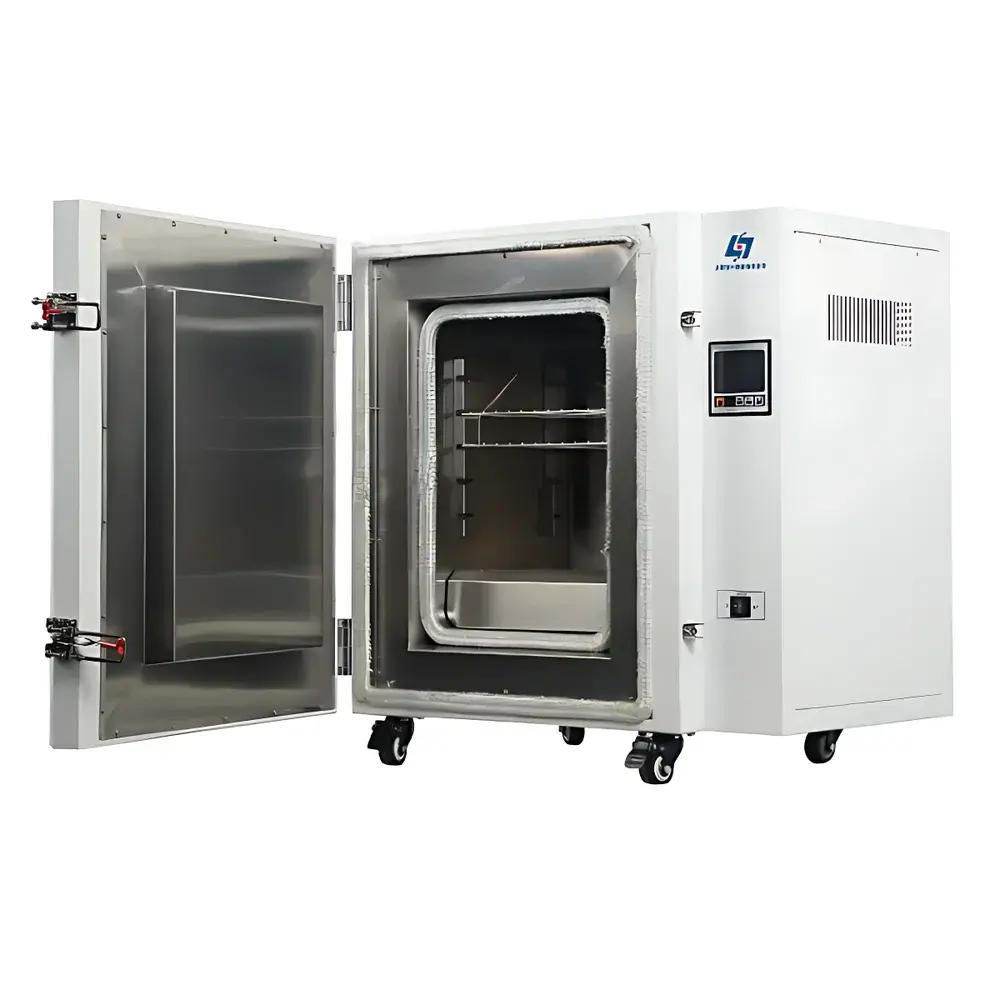

Shanghai Youyi DHG-9148A High-Temperature Forced-Air Drying Oven (400 °C)

Overview

The Shanghai Youyi DHG-9148A is a precision-engineered high-temperature forced-air drying oven designed for rigorous laboratory and industrial thermal processing applications requiring stable, uniform heating up to 400 °C. It operates on the principle of convective heat transfer enhanced by a dynamically balanced multi-blade centrifugal fan system, ensuring rapid thermal equilibration and minimal spatial temperature deviation across the working chamber. Engineered for reproducibility in thermal validation, material aging studies, moisture removal from heat-stable compounds, pre-baking of substrates, and post-curing of coatings or composites, this model meets foundational requirements for ISO/IEC 17025-compliant calibration environments and supports routine adherence to ASTM E145, ISO 5725, and USP drying protocols. Its robust architecture integrates redundant safety logic and thermally optimized insulation—critical for extended-duration high-temperature operations where energy efficiency and operator safety are non-negotiable.

Key Features

• Microprocessor-based temperature controller with 4.3-inch full-color TFT LCD interface supporting real-time display of setpoint, actual chamber temperature, elapsed time, and remaining hold duration
• Self-diagnostic startup sequence with automatic parameter retention during power interruption; seamless recovery upon re-energization without manual reconfiguration
• PID algorithm with auto-tuning and power suppression functionality to minimize overshoot and stabilize temperature within ±2.0 °C fluctuation at target setpoints
• Pre-heating air chamber design directs heated, mixed airflow directly into the working zone—reducing ramp time by up to 25% compared to conventional ducted systems
• Double-layer ceramic rope door gasket rated for continuous operation at 400 °C, offering superior compression resilience and service life exceeding 5,000 thermal cycles
• High-efficiency glass fiber insulation (density ≥120 kg/m³) between stainless steel inner chamber (SUS304, mirror-polished) and cold-rolled steel outer casing with electrostatic epoxy coating
• Independent mechanical over-temperature cut-off circuit (optional) compliant with IEC 61000-4-2/4-4 immunity standards—triggers immediate power disconnection if primary control fails

Sample Compatibility & Compliance

The DHG-9148A accommodates a broad range of sample forms—including metal coupons, polymer sheets, ceramic green bodies, pharmaceutical excipients, and inert calibration standards—within its 136 L stainless steel chamber. Its uniformity performance (±2.5 % at 100 °C, unloaded per ASTM E145 Annex A3 methodology) ensures traceable thermal exposure for GLP/GMP-regulated stability testing. The unit conforms to CE marking requirements under the EU Machinery Directive 2006/42/EC and Electromagnetic Compatibility Directive 2014/30/EU. While not certified to UL 61010-1 out-of-the-box, it may be adapted for North American use via third-party field evaluation (NRTL assessment available upon request). All electrical components meet IP20 ingress protection rating; no internal explosive atmospheres permitted.

Software & Data Management

Standard configuration includes RS485 serial interface (Modbus RTU protocol) enabling integration with SCADA platforms, LIMS, or custom Python-based data acquisition scripts. Optional accessories expand functionality: an embedded thermal printer (IEEE 1188-compliant) provides timestamped hard-copy logs of temperature profiles; dedicated Windows-compatible software (supplied on USB drive) supports real-time graphing, CSV export, alarm history review, and audit trail generation compliant with FDA 21 CFR Part 11 requirements—including electronic signatures, user access levels, and immutable event logging. Data integrity is preserved through cyclic redundancy check (CRC-16) verification on all transmitted packets.

Applications

• Accelerated aging tests of aerospace sealants and elastomers per ASTM D573 and MIL-STD-810H Method 506.6
• Drying of refractory ceramic powders prior to sintering (e.g., Al₂O₃, ZrO₂) without carbon residue contamination
• Residual solvent removal from lithium-ion battery electrode slurries under nitrogen purge (requires optional gas inlet port)
• Thermal conditioning of reference standards used in DSC and TGA calibration workflows
• Moisture content determination in food-grade starches and cellulose derivatives per AOAC 950.46
• Pre-heating of metallographic specimens before etching or mounting to eliminate condensation-related artifacts

FAQ

Is the DHG-9148A suitable for use with flammable solvents?
No. This oven is not explosion-proof and lacks intrinsically safe circuitry or purge ventilation. Solvent-laden samples must be processed only in Class B or Class C explosion-proof ovens certified to UL 1203 or ATEX directives.
Can the temperature uniformity specification be verified independently?
Yes. The chamber includes three standardized 25 mm-diameter test ports (optional 50 mm variant available) for insertion of calibrated PT100 probes per ISO 17025-accredited validation procedures.
What is the expected calibration interval for routine operation?
Shanghai Youyi recommends annual calibration against NIST-traceable references using a minimum of nine-point mapping (center + eight corners) per EURAMET cg-18 guidelines.
Does the unit support programmable ramp-soak cycles?
Not in standard configuration. Multi-step profiles require the optional intelligent program controller (Model IPC-2000), which adds 30-segment capability with dwell, rate, and loop functions.
Are spare parts such as fan motors or heating elements available globally?
Yes. Critical wear components—including the EC-type centrifugal blower motor and Incoloy-sheathed tubular heaters—are stocked in EU and US distribution hubs with lead times under 10 business days.
