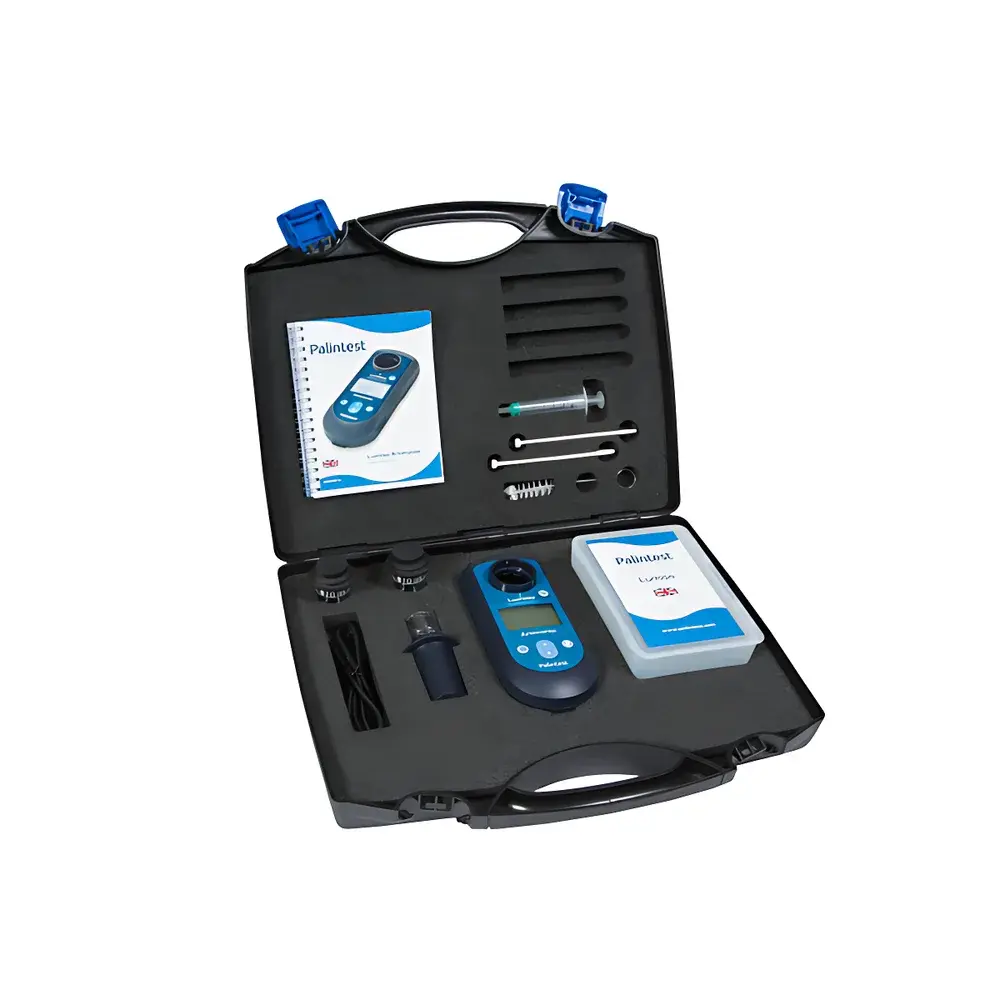

Palintest Lumiso Ammonia Nitrogen Photometer
| Brand | Palintest |
|---|---|
| Origin | United Kingdom |
| Model | Lumiso Ammonia |
| Instrument Type | Portable |
| Measurement Principle | Colorimetric (DPD-based and Nessler/Salicylate methods) |
| Wavelengths | 465 nm, 620 nm |
| Detection Ranges | Nessler method: 0.06–15.00 mg/L (0.01 mg/L res.), 0.5–50.0 mg/L (0.1 mg/L res.), 1–100 mg/L (1 mg/L res.) |
| Salicylate method | 0.01–1.00 mg/L (0.01 mg/L res.), 0.15–12/50 mg/L (0.01 mg/L res.) |
| Accuracy | ±1% T |
| Display | 226 × 138 pixel backlit LCD |
| Data Storage | 50 measurement records (including parameter, date, time, operator ID) |
| Interface | USB port + QR-code memory access |
| Protection Rating | IP67 |
| Power Supply | 3 × AA batteries |
| Dimensions | 163 × 70 × 45 mm |
| Weight | 275 g |
| Cuvette Format | 16 mm round tubes (with adapter) |
Overview
The Palintest Lumiso Ammonia Nitrogen Photometer is a field-deployable, precision colorimetric analyzer engineered for reliable quantification of ammonia nitrogen (NH₃-N) in water and wastewater samples. Designed and manufactured in the UK by Palintest Ltd.—the original inventor of the DPD (N,N-diethyl-p-phenylenediamine) methodology—the Lumiso Ammonia integrates decades of expertise in photometric water quality analysis. Its optical architecture employs dual-wavelength detection (465 nm and 620 nm) to support both Nesslerization and salicylate (indophenol) reaction chemistries, enabling accurate, interference-resistant measurements across three calibrated concentration ranges. Unlike generic photometers, the Lumiso Ammonia features a thermally stabilized LED light source, optimized optical path geometry, and factory-calibrated wavelength filters—ensuring high reproducibility and long-term photometric stability even under variable ambient conditions. The instrument operates on fundamental Beer–Lambert law principles, where analyte-specific chromophore formation generates absorbance proportional to NH₃-N concentration. This makes it suitable for routine compliance monitoring, process control in water treatment plants, environmental field surveys, and regulatory reporting under frameworks such as ISO 7150-1, EPA Method 350.1, and APHA Standard Methods 4500-NH₃.
Key Features
- IP67-rated enclosure for full protection against dust ingress and immersion up to 1 m for 30 minutes—validated for use in humid, outdoor, or industrial environments.
- Dual-wavelength photometry (465 nm and 620 nm) enables method flexibility: Nessler reagent for higher concentrations and salicylate chemistry for sub-mg/L sensitivity and reduced chloride interference.
- Integrated QR-code memory system allows instant retrieval and secure sharing of stored data—including test parameter, timestamp, operator ID, and result—without requiring proprietary software or cloud dependency.
- USB 2.0 interface supports direct data export to laboratory information management systems (LIMS) or spreadsheet applications via standard mass-storage mode.
- Self-diagnostic calibration verification using traceable optical reference filters ensures ongoing photometric integrity between scheduled maintenance intervals.
- Ergonomic handheld form factor (163 × 70 × 45 mm; 275 g) with tactile keypad and high-contrast backlit LCD (226 × 138 pixels) facilitates one-handed operation in low-light or gloved-hand conditions.
Sample Compatibility & Compliance
The Lumiso Ammonia is validated for use with standard 16 mm diameter glass or plastic cuvettes, compatible with Palintest’s certified reagent kits—including PL 420 (low-range Nessler), PL 424/PL 425 (mid- and high-range Nessler), AP152 (salicylate tablet format), and PL 400 (salicylate tube format). It meets functional requirements of ISO/IEC 17025-accredited laboratories when operated per manufacturer-specified protocols and supported by documented metrological traceability. The device supports GLP-compliant workflows through embedded audit trails (date/time stamping, operator identification), encrypted local storage, and tamper-evident data export logs. While not FDA 21 CFR Part 11-certified out-of-the-box, its data handling architecture permits integration into Part 11–compliant environments when paired with validated LIMS or electronic lab notebook (ELN) platforms.
Software & Data Management
No dedicated desktop application is required. Data transfer occurs via plug-and-play USB mass storage mode, enabling drag-and-drop export of CSV-formatted reports containing sample ID, method ID, absorbance values, calculated concentration, units, and metadata. Each of the 50 internal memory slots retains full contextual information—including operator code, measurement date/time, selected wavelength, and reagent batch identifier—facilitating traceability during internal audits or regulatory inspections. The QR-code memory function encodes measurement records as ISO/IEC 18004-compliant QR symbols, readable by any standard smartphone camera or barcode scanner, supporting rapid field-to-office data handover without network connectivity.
Applications
- Drinking water treatment: Verification of breakpoint chlorination efficiency and post-disinfection residual NH₃-N levels per WHO Guidelines and EU Drinking Water Directive (98/83/EC).
- Wastewater effluent monitoring: Compliance with national discharge limits (e.g., US EPA NPDES permits, UK Environmental Permitting Regulations).
- Aquaculture and hydroponics: Real-time tracking of toxic un-ionized ammonia (NH₃) concentrations using temperature- and pH-corrected conversions from total NH₃-N results.
- Environmental field studies: Rapid screening of surface water, groundwater, and stormwater runoff for nutrient loading assessment.
- Educational laboratories: Teaching core principles of spectrophotometry, reaction kinetics, and water chemistry standards.
FAQ
Does the Lumiso Ammonia require annual recalibration by an authorized service center?
No—routine recalibration is not required. Users perform periodic optical verification using Palintest-certified reference filters (e.g., LMC050N Calibration Check Kit), which confirms photometric performance against NIST-traceable absorbance standards.
Can the instrument store custom calibration curves for third-party reagents?
No. The Lumiso Ammonia operates exclusively with pre-programmed, factory-validated calibration algorithms matched to Palintest’s proprietary reagent formulations to ensure method accuracy and regulatory acceptability.
Is the device compatible with Bluetooth or Wi-Fi for wireless data transmission?
No. Wireless connectivity is intentionally omitted to maintain electromagnetic compatibility in industrial settings and eliminate cybersecurity exposure vectors associated with radio-frequency interfaces.
What is the expected battery life under typical field usage?
Approximately 2,000 measurements per set of three AA alkaline batteries, assuming ambient temperature operation and default backlight timeout settings.
How does the Lumiso Ammonia handle turbidity or colored matrix interference?
The dual-wavelength algorithm applies baseline correction at 620 nm to compensate for non-specific absorbance, significantly improving accuracy in moderately turbid or yellow-colored samples—though severe turbidity still requires filtration per ISO 7027 prior to analysis.
